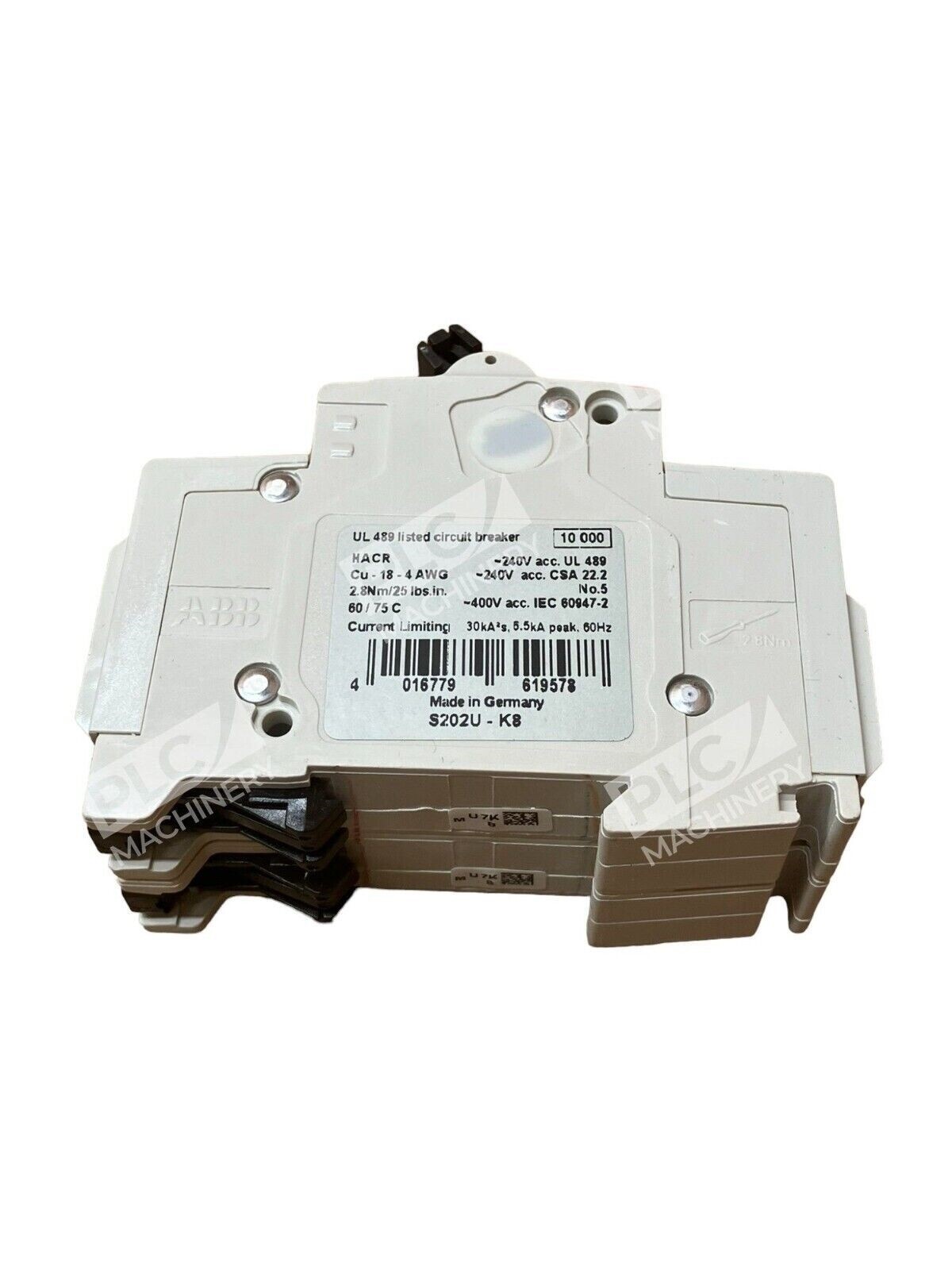

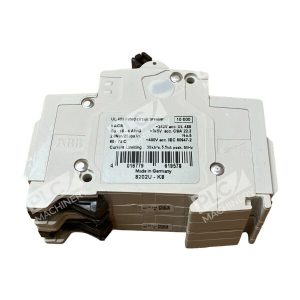

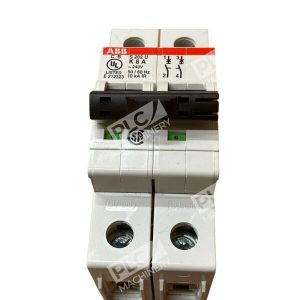

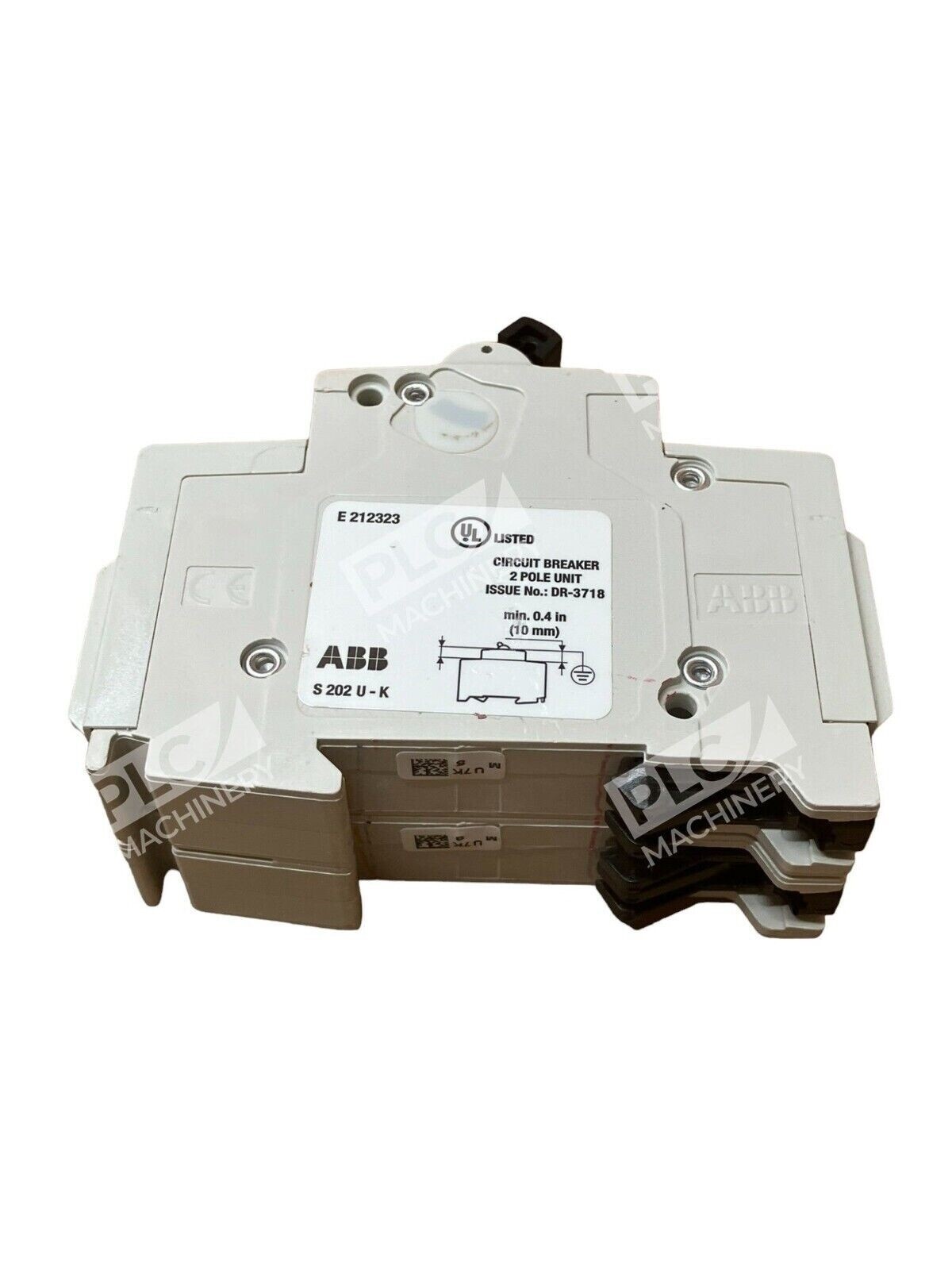

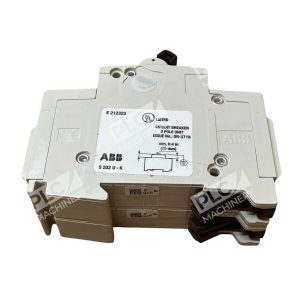

ABB S202UK8A 2 Pole Circuit Breaker 8A

ABB S202UK8A 2-Pole Circuit Breaker 8A

The ABB S202UK8A is a high-performance miniature circuit breaker (MCB) designed to provide reliable protection for electrical circuits against overcurrents and short circuits. With its 2-pole configuration and 8A rated current, this MCB is suitable for a wide range of industrial and commercial applications.

Key Features

• 2-Pole Design: Ensures comprehensive protection by disconnecting both live and neutral conductors during a fault condition.
• 8A Rated Current: Ideal for circuits requiring moderate current protection.
• K-Type Tripping Characteristic: Specifically designed to handle higher inrush currents, making it suitable for applications involving motors and transformers.
• High Breaking Capacity: Capable of interrupting fault currents up to 10 kA, ensuring safety in high fault scenarios.
• Compact and Modular: The 35mm width allows for efficient use of space in electrical panels and easy DIN rail mounting.
• Compliance with International Standards: Meets IEC/EN 60898-1, IEC/EN 60947-2, and UL 489 standards, ensuring global applicability and safety.

Technical Specifications

• Manufacturer: ABB
• Part Number: S202UK8A
• Number of Poles: 2
• Rated Current: 8A
• Tripping Characteristic: K-Type
• Rated Voltage: Up to 480Y/277V AC
• Breaking Capacity: 10 kA
• Mounting: DIN Rail
• Operating Temperature: -25°C to +55°C
• Dimensions: 35mm width, 88mm height, 69mm depth

Applications

• Industrial Control Panels: Provides protection for control circuits and equipment.
• Commercial Building Distribution: Safeguards electrical distribution systems in commercial settings.
• HVAC Systems: Ensures reliable operation of heating, ventilation, and air conditioning systems.
• Motor Protection: Suitable for circuits with motors that have high inrush currents.
• Lighting Circuits: Protects lighting installations from overcurrents and short circuits.

The ABB S202UK8A 2-Pole Circuit Breaker is engineered to deliver dependable circuit protection with its robust design and adherence to international safety standards, making it a valuable component in various electrical installations.
