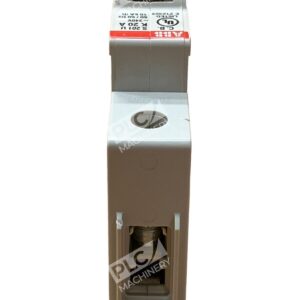

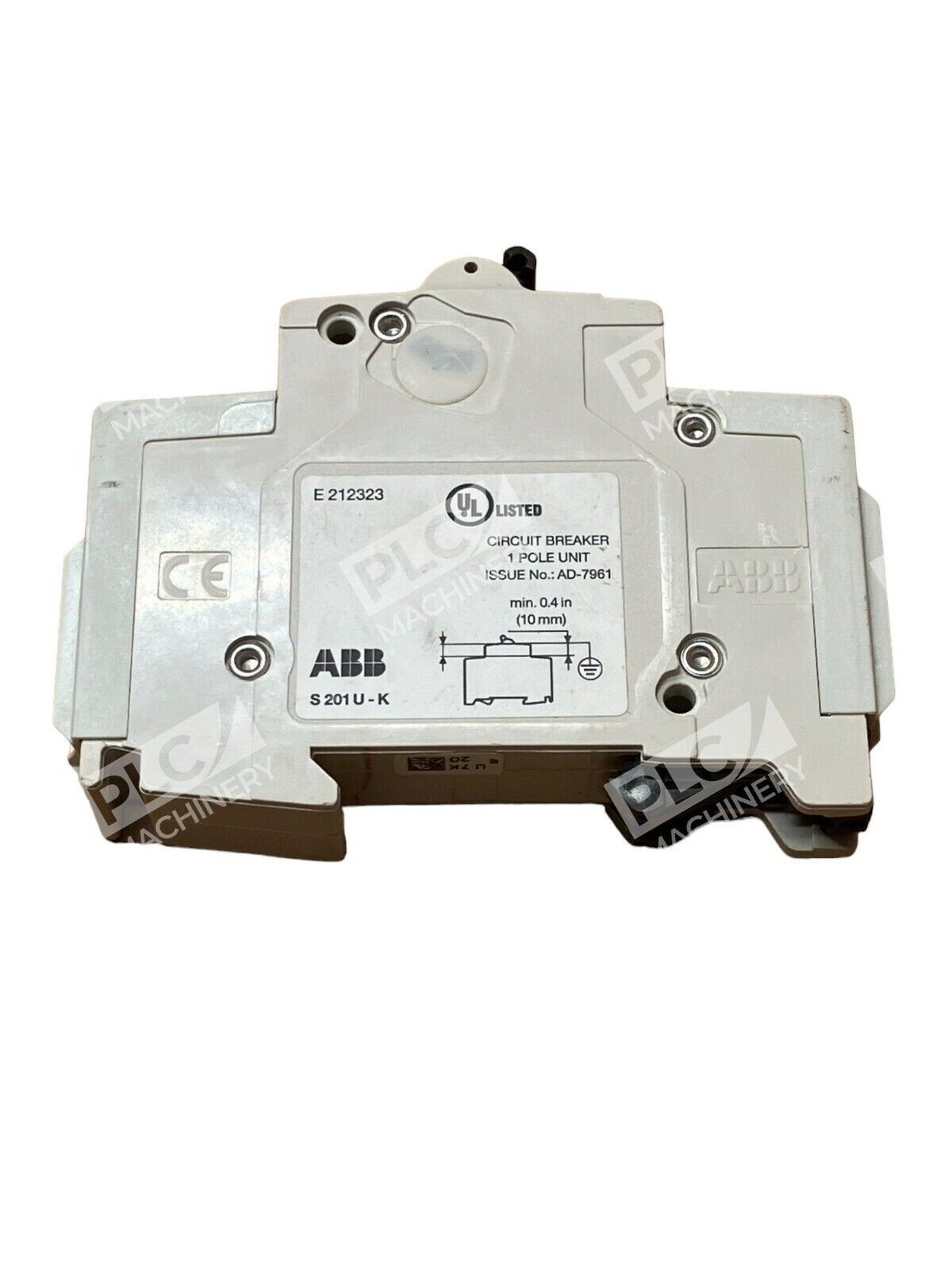

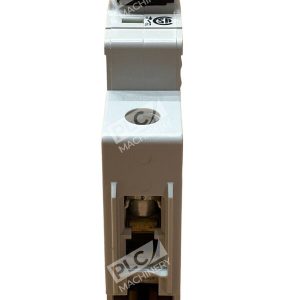

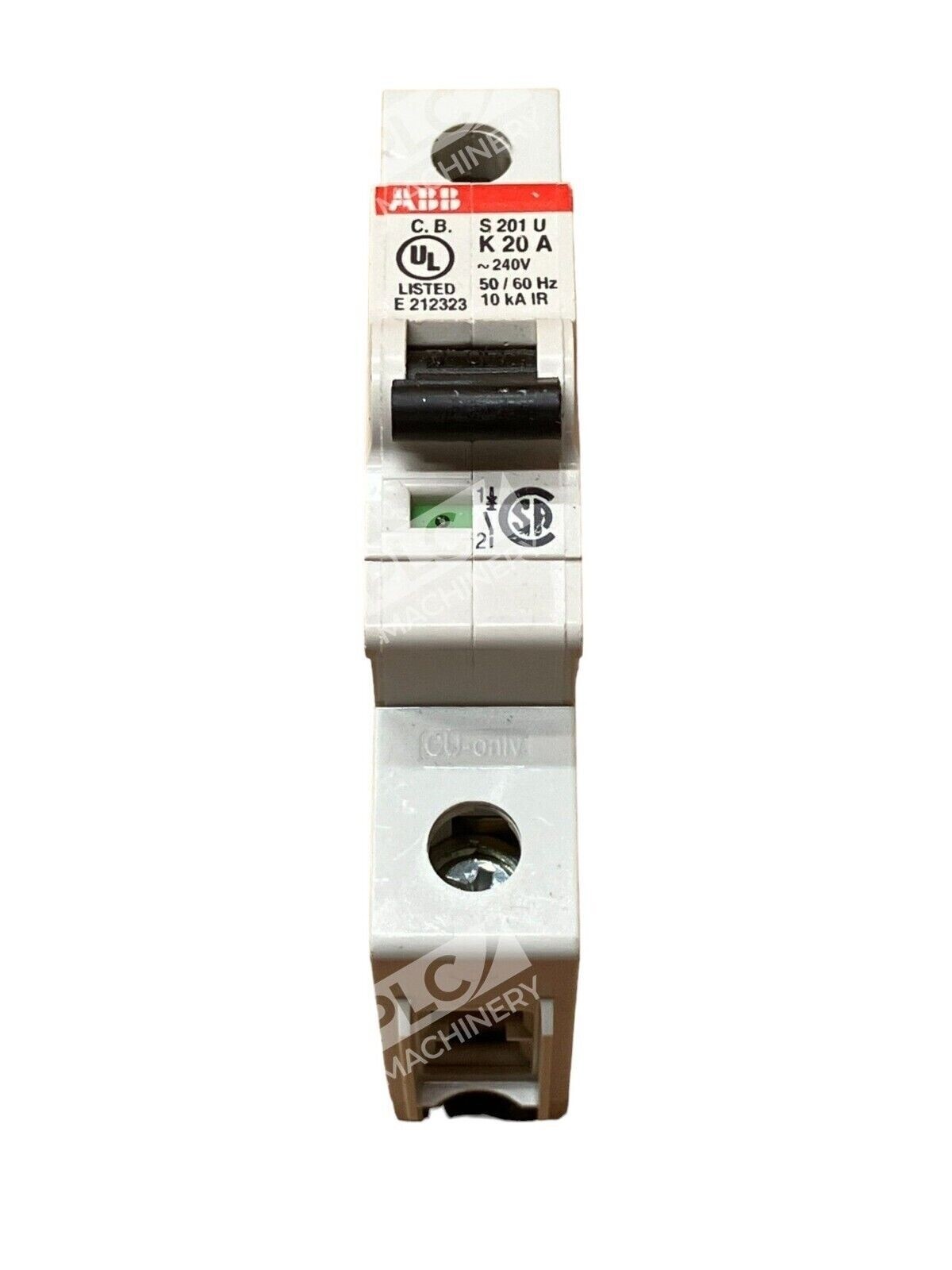

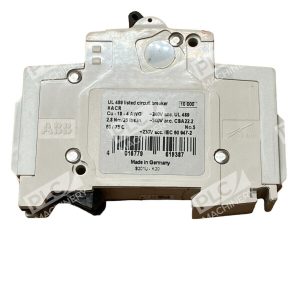

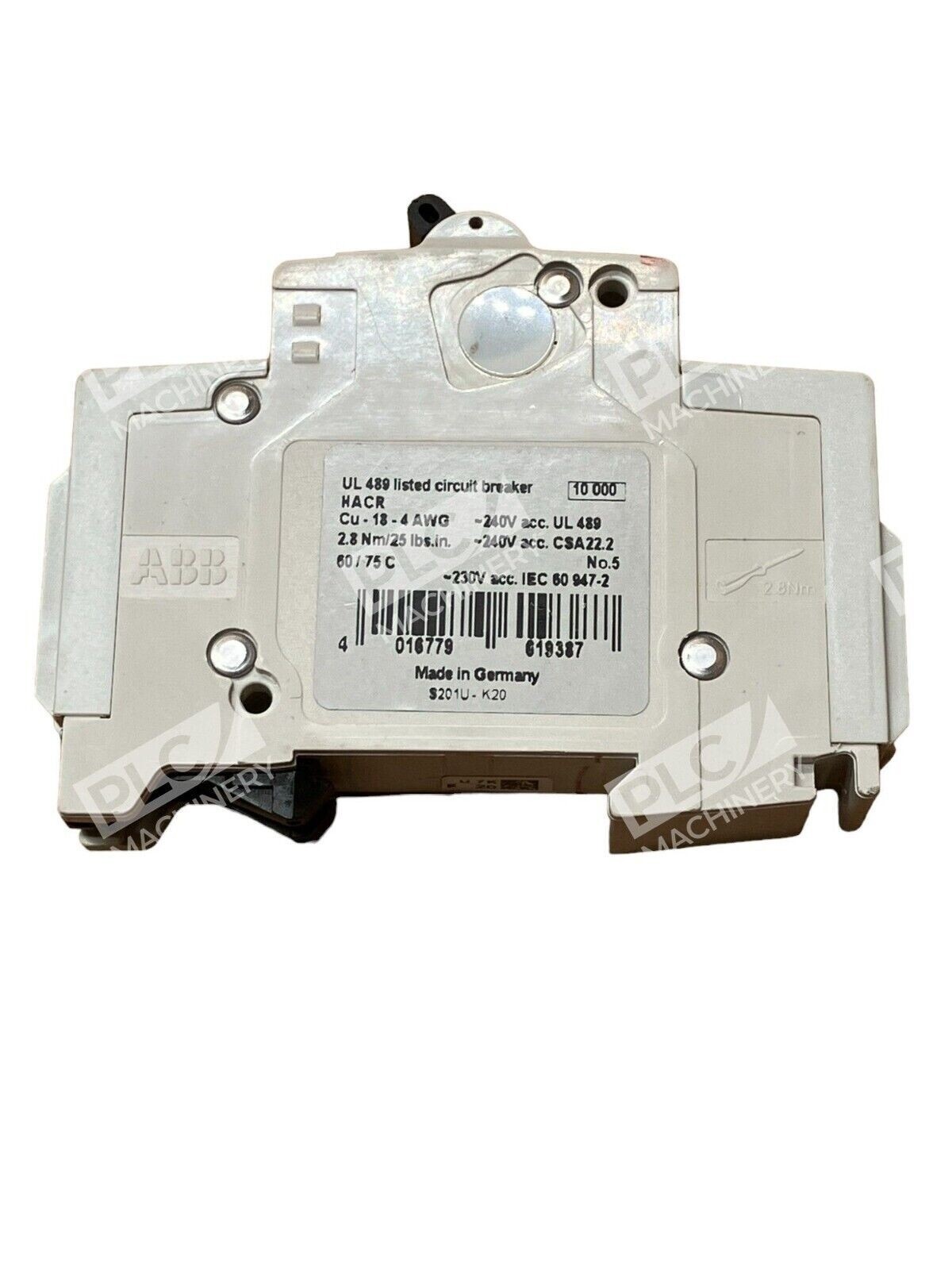

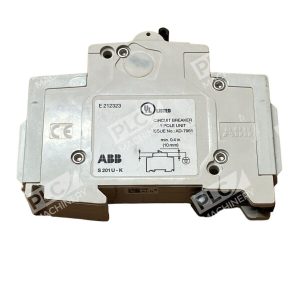

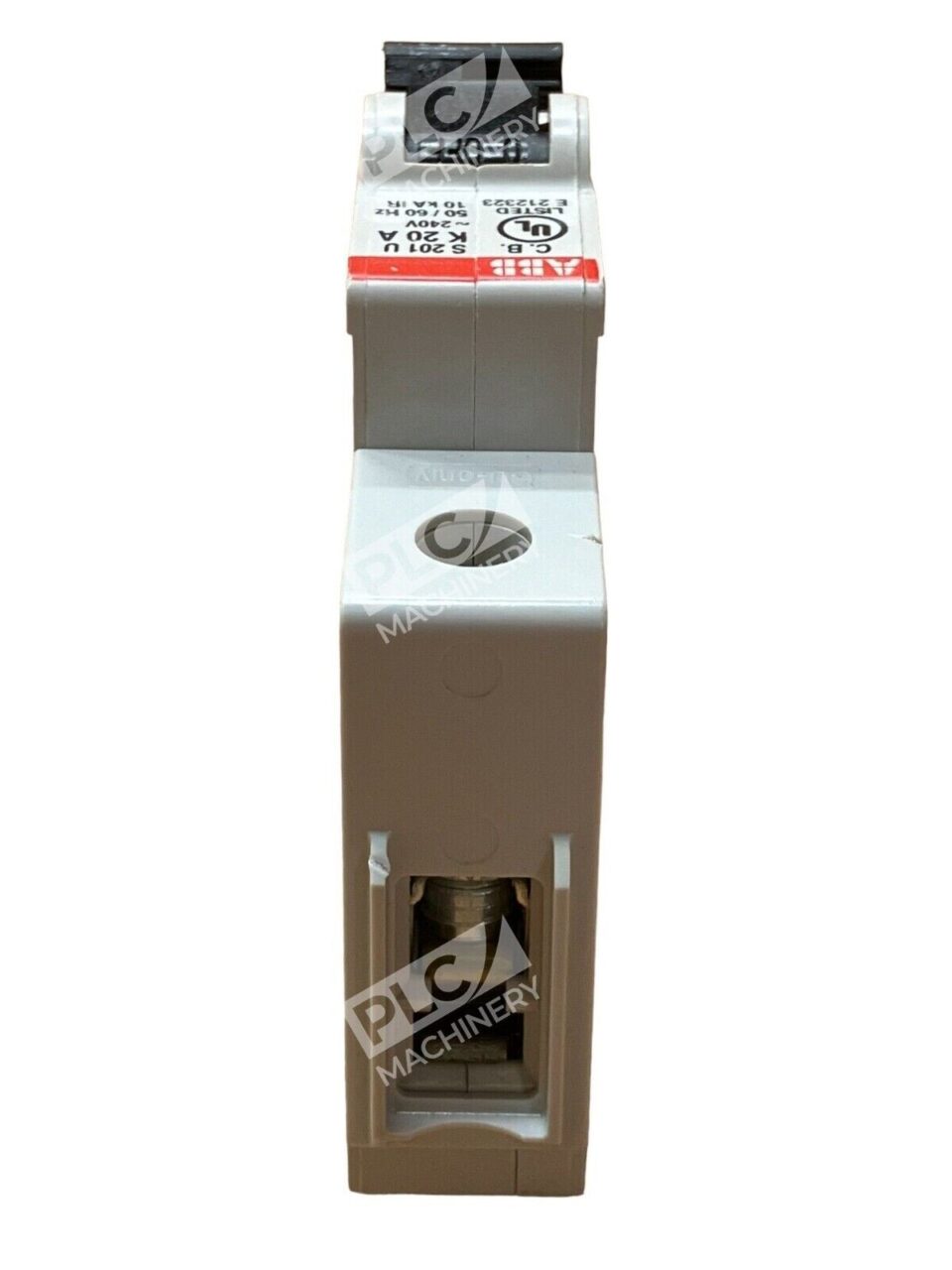

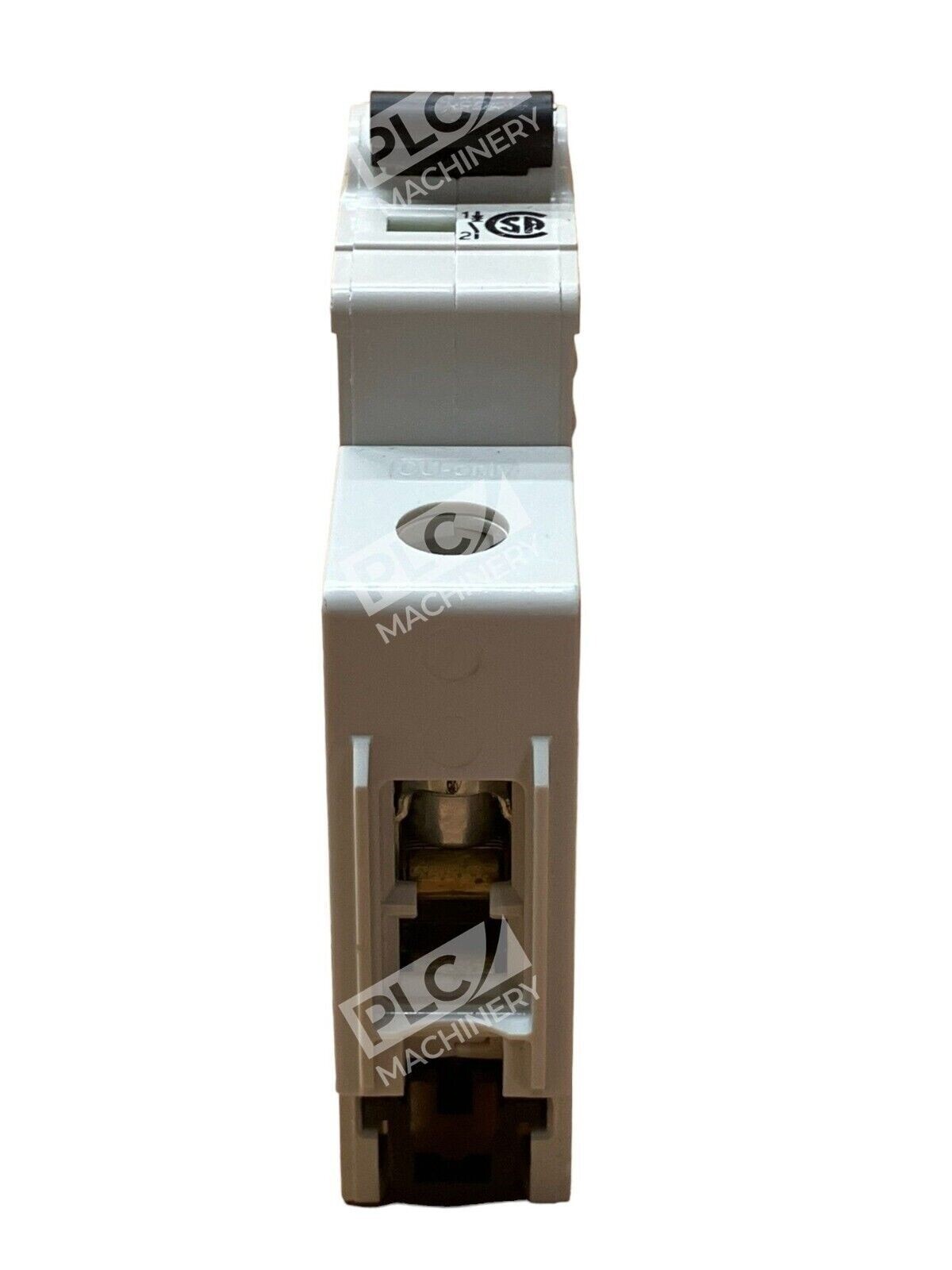

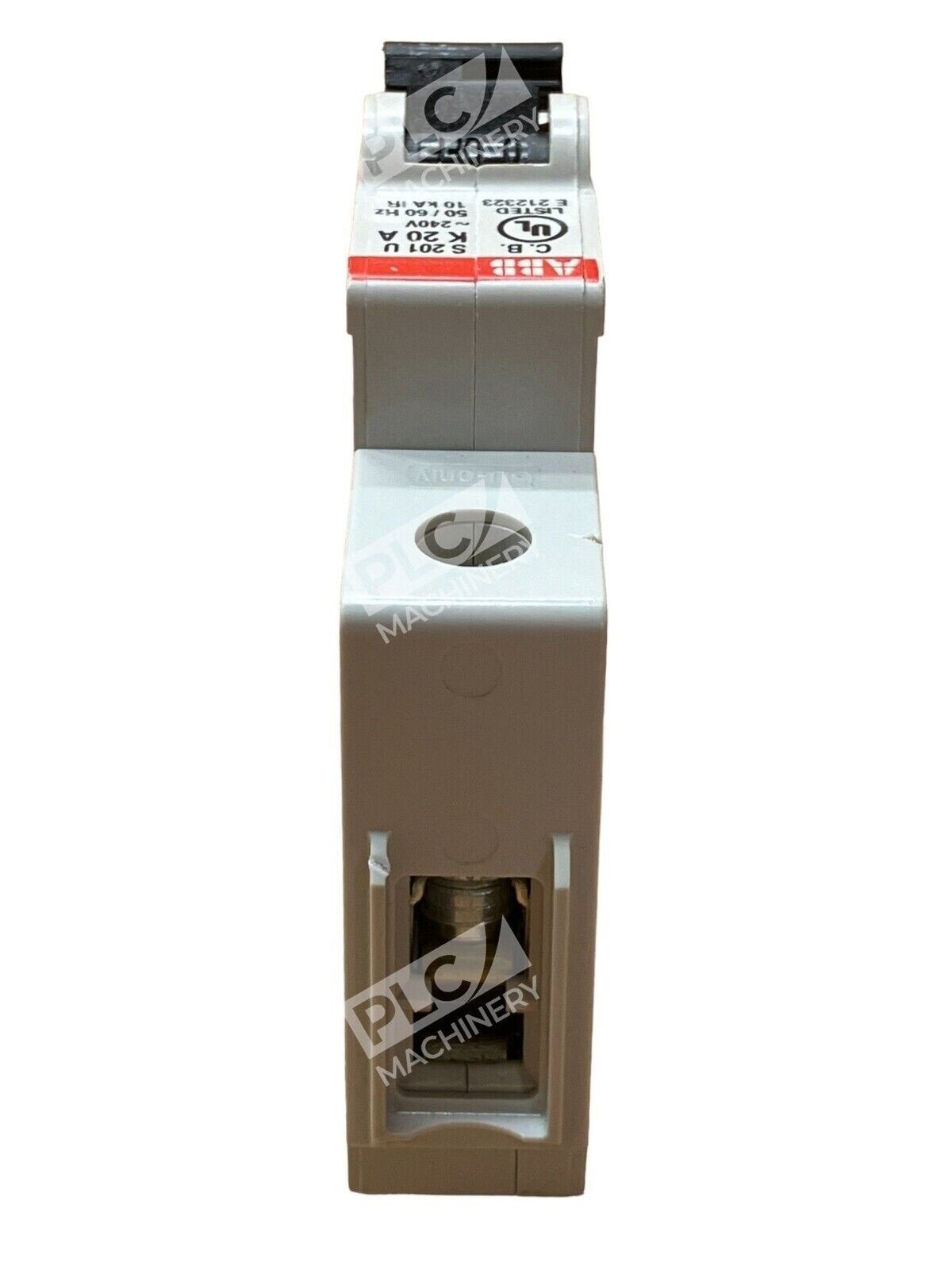

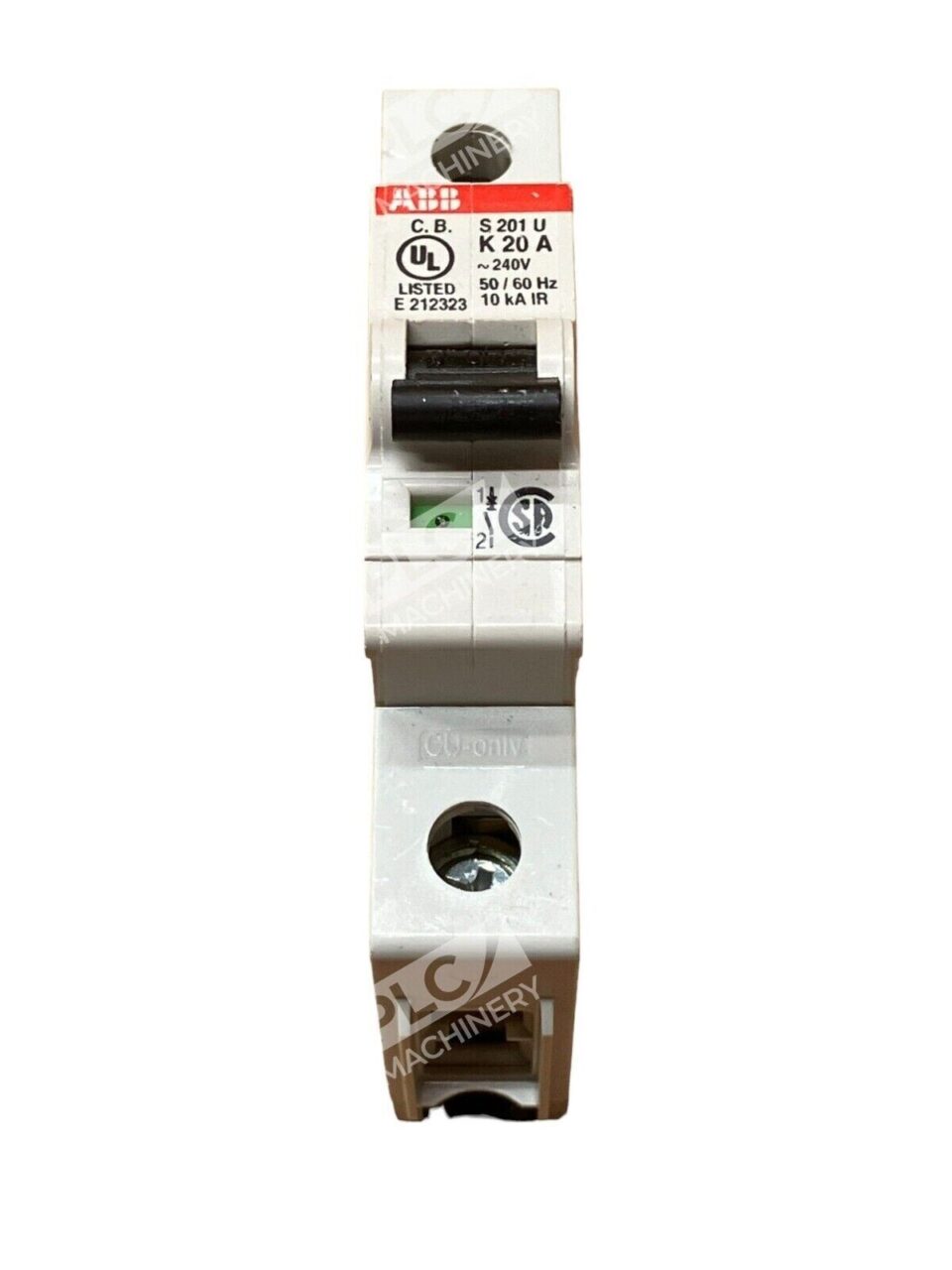

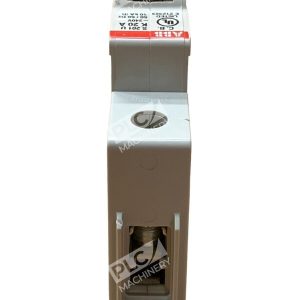

ABB S201UK20A 1 Pole Circuit Breaker

ABB S201UK20A 1 Pole Circuit Breaker

The ABB S201UK20A is a high-quality, single-pole miniature circuit breaker designed to provide reliable protection for electrical circuits. With a 20-ampere current rating, it effectively safeguards against overcurrents and short circuits, ensuring the safety and longevity of your electrical systems.

Key Features

• Current Rating: 20 Amperes
• Voltage Rating: Up to 277V AC
• Interrupt Rating: 6 kA at 277V
• Trip Curve: K
• Mounting: DIN Rail
• Protection Type: Thermal Magnetic

Design and Functionality

The S201UK20A features a K-curve trip characteristic, making it suitable for applications with moderate inrush currents, such as motors and transformers. Its thermal magnetic protection ensures rapid response to overcurrent conditions, minimizing potential damage to connected equipment.

Installation and Compatibility

Designed for easy installation, this circuit breaker mounts securely on standard DIN rails, facilitating integration into various electrical panels. Its compact design allows for efficient use of space, making it ideal for both new installations and retrofitting existing systems.

Safety and Compliance

ABB’s S201UK20A circuit breaker complies with international standards, including UL 1077 and CSA 22.2 No. 235, ensuring it meets rigorous safety and performance requirements. Its finger-safe terminals enhance user safety during installation and maintenance.

In summary, the ABB S201UK20A 1 Pole Circuit Breaker offers robust protection, reliable performance, and ease of installation, making it a valuable component for safeguarding electrical circuits in various applications.
