ABB S201PZ6A 1 Pole Circuit Breaker S201P-Z6A

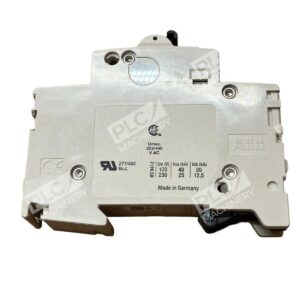

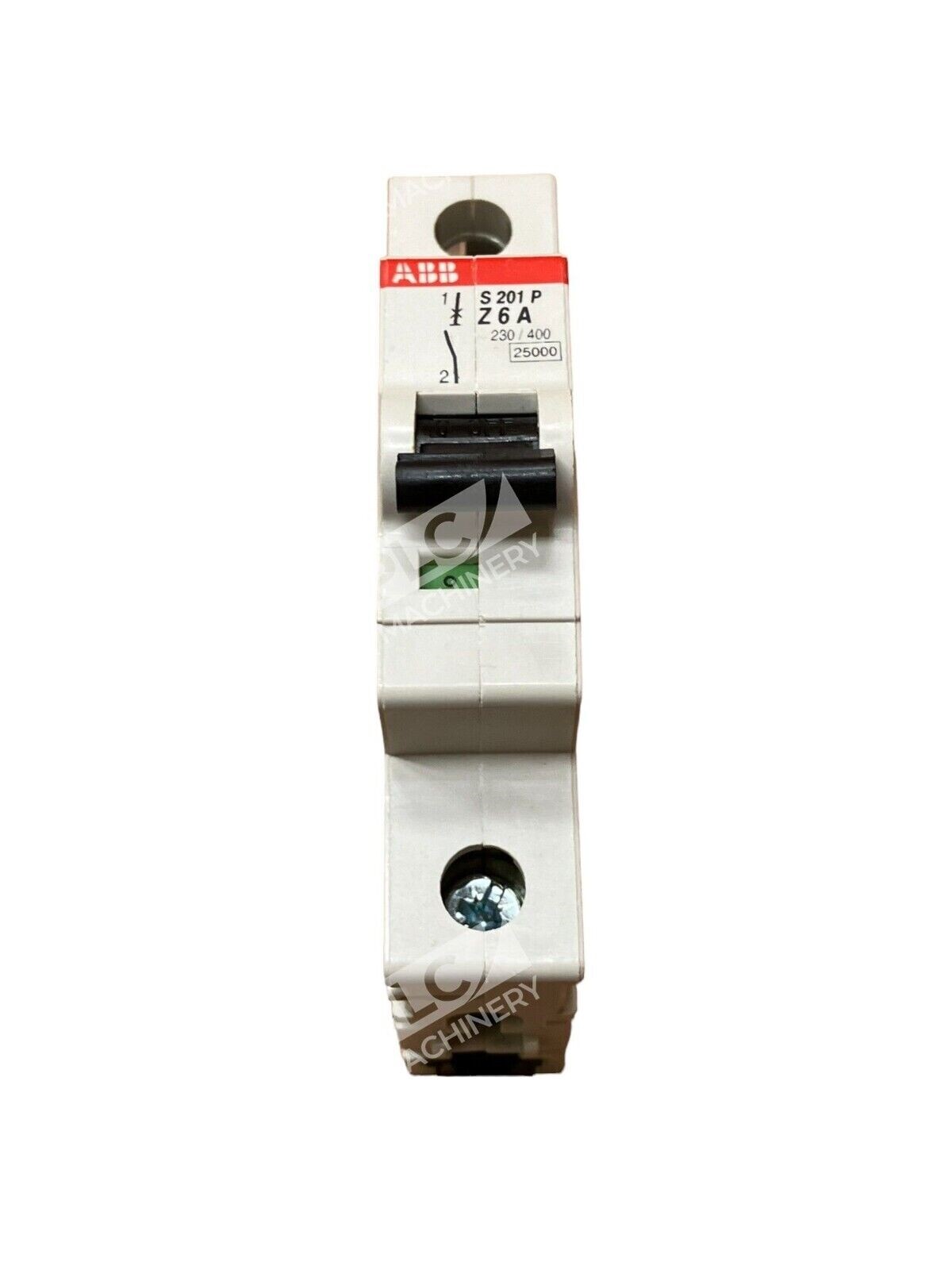

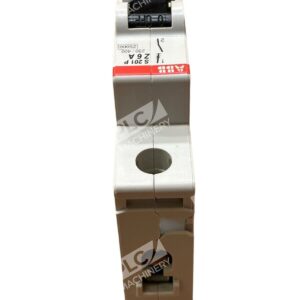

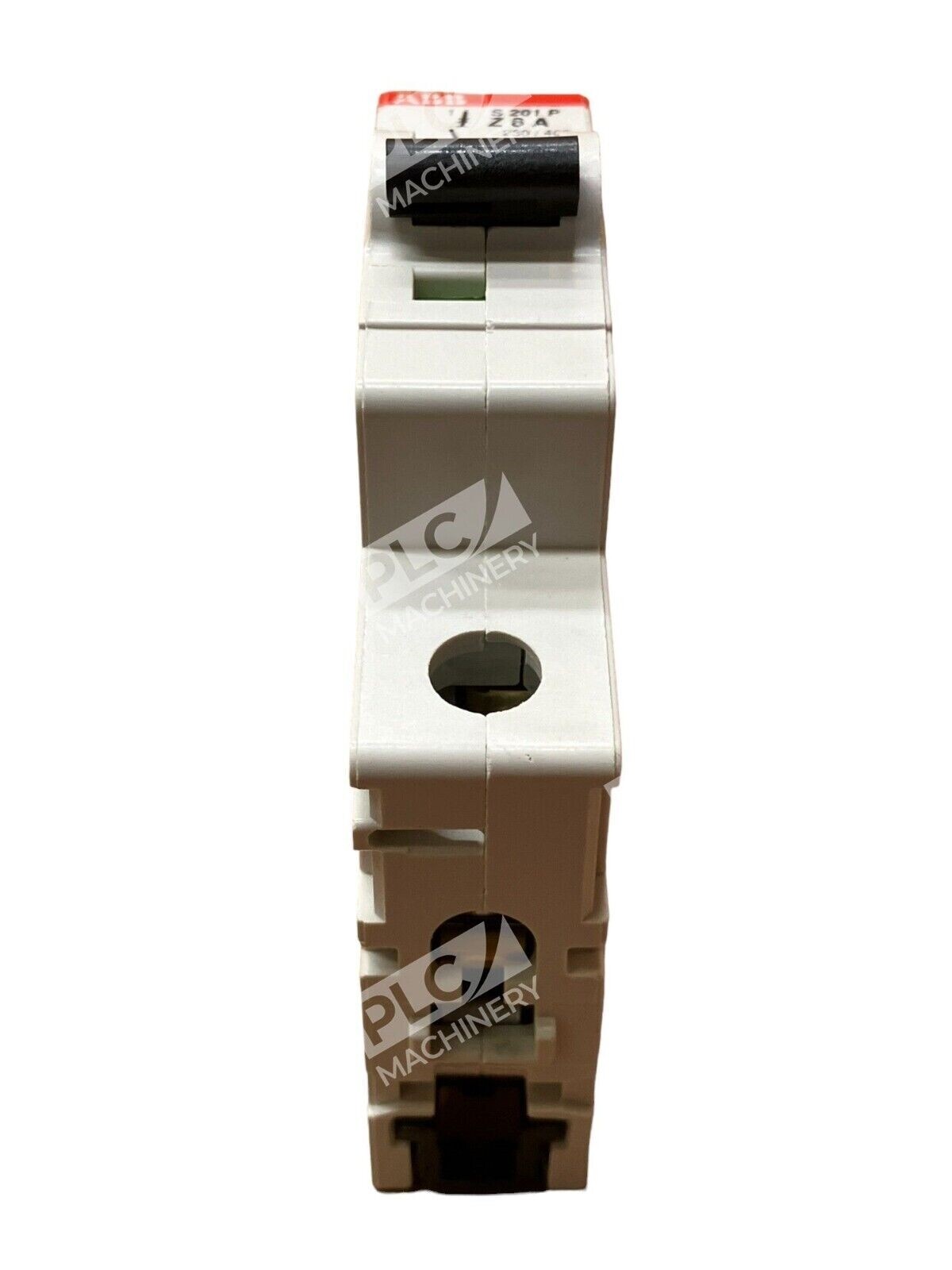

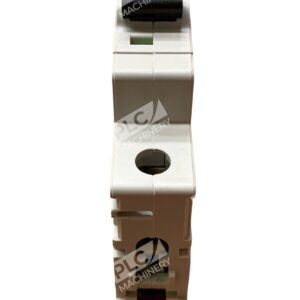

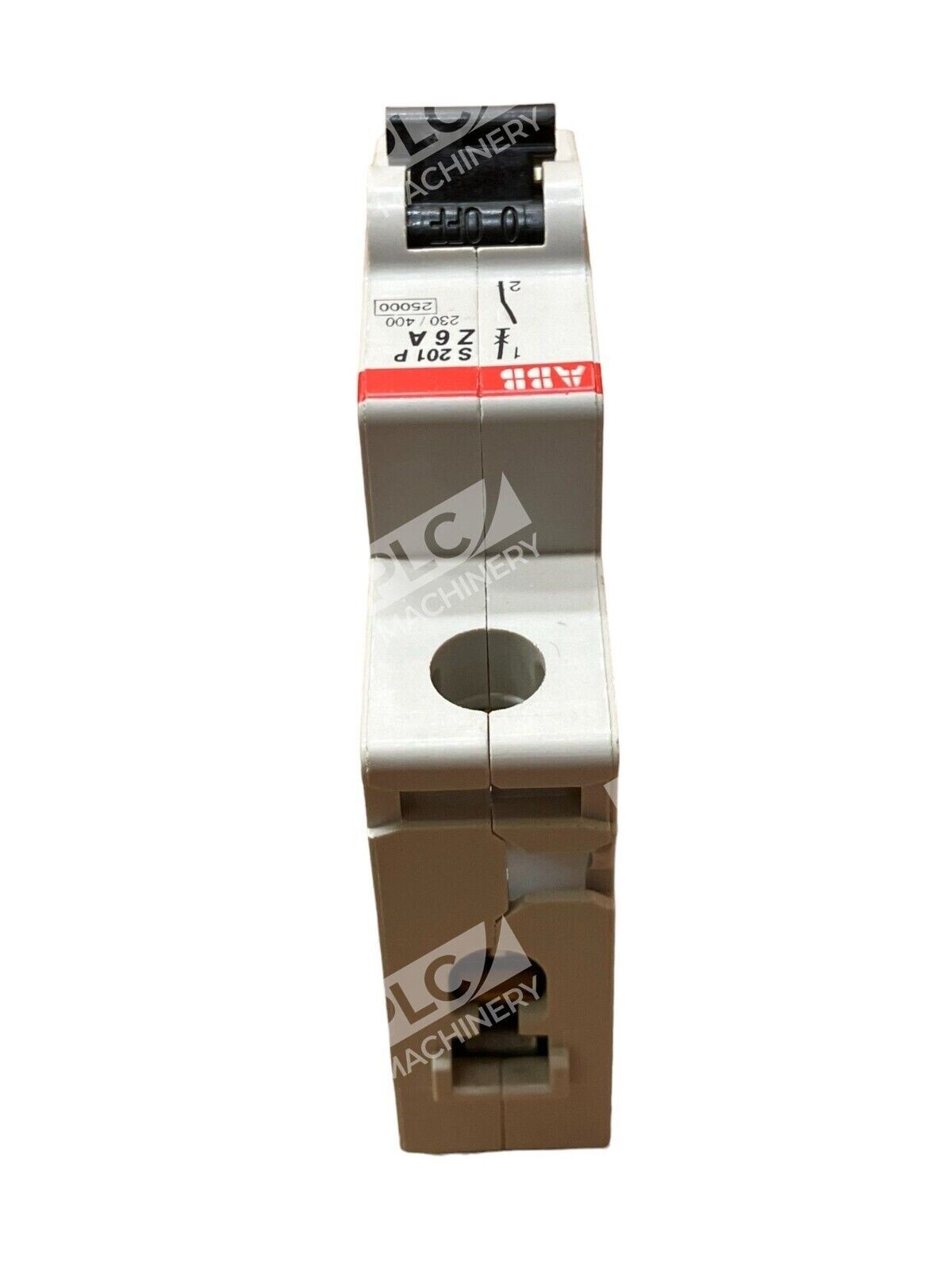

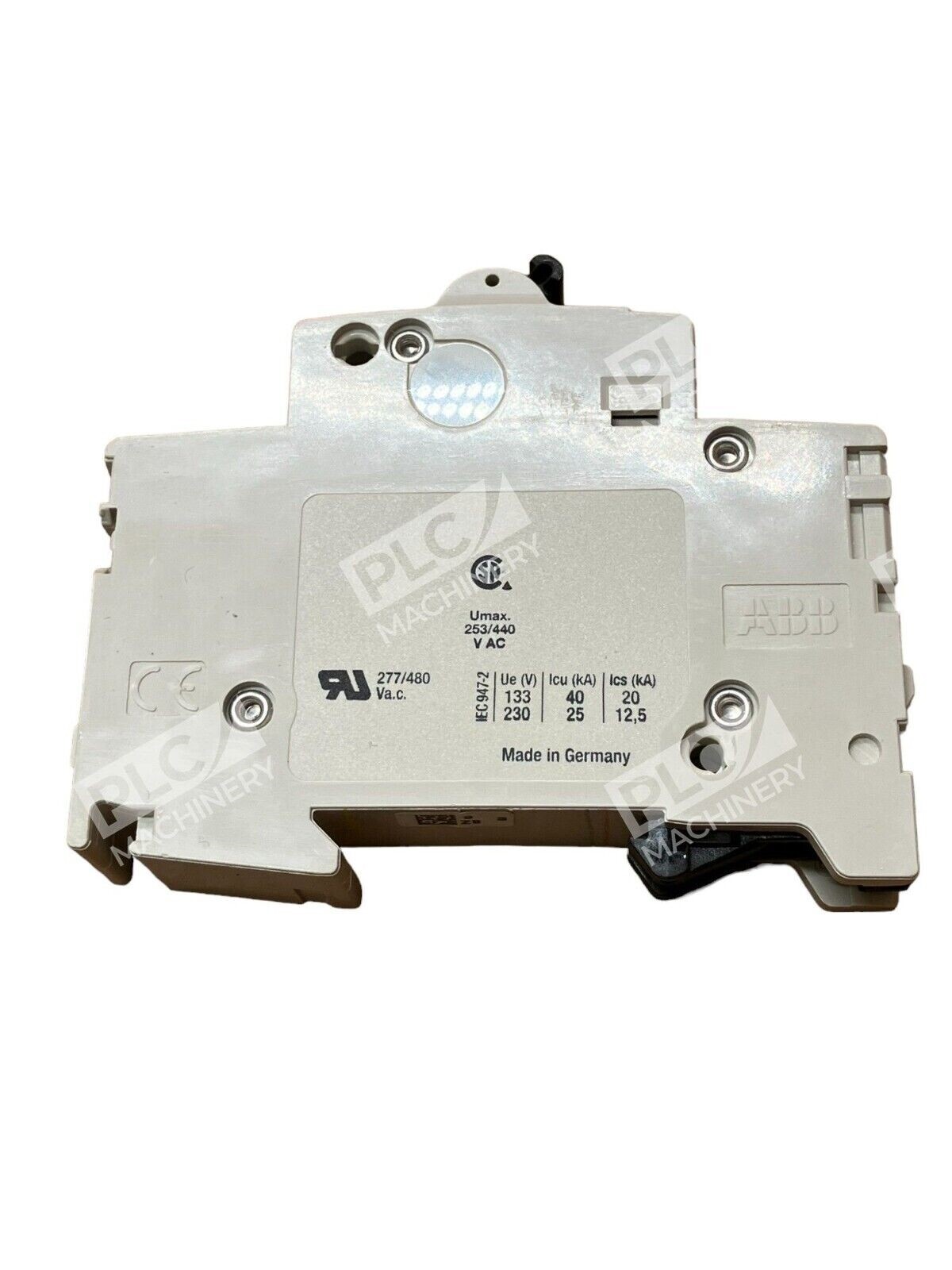

ABB S201P-Z6A 1-Pole Circuit Breaker

The ABB S201P-Z6A is a high-performance miniature circuit breaker (MCB) designed to provide reliable protection against overloads and short circuits in electrical systems. As part of ABB’s S200P series, this 1-pole, 6-ampere breaker is engineered for precision and durability, making it suitable for a wide range of applications.

Key Features

• 1-Pole Configuration: Ensures efficient circuit protection with a single-pole design.
• 6A Rated Current: Ideal for circuits requiring a 6-ampere capacity.
• Z-Type Tripping Characteristic: Offers a highly sensitive tripping curve, providing rapid response to short circuits and overloads, particularly in circuits with inductive loads such as transformers and motors.
• High Breaking Capacity: Capable of interrupting fault currents up to 25 kA, ensuring robust protection for electrical installations.
• DIN Rail Mounting: Facilitates easy and secure installation on standard DIN rails.
• Compact and Robust Design: Space-saving form factor without compromising on durability.
• Auxiliary Contacts Available: Optional auxiliary contacts can be added to enhance functionality, such as remote monitoring and control.

Technical Specifications

• Manufacturer: ABB
• Series: S200P
• Part Number/SKU: S201P-Z6A
• Poles: 1
• Rated Current: 6A
• Tripping Characteristic: Z-type
• Breaking Capacity: 25 kA
• Mounting: DIN Rail
• Dimensions: 88 mm (height) x 17.5 mm (width) x 69 mm (depth)
• Weight: Approximately 0.25 kg
• Standards Compliance: IEC/EN 60898-1, IEC/EN 60947-2, UL1077, CSA 22.2 No. 235

Applications

• Control Circuits: Protects sensitive control circuits from overloads and short circuits.
• Industrial Automation: Ensures the safety and reliability of automated systems.
• Building Installations: Suitable for residential and commercial electrical installations.
• Protection of Inductive Loads: Ideal for circuits with inductive components like motors and transformers.
• Equipment and Machinery Protection: Safeguards various types of equipment and machinery from electrical faults.

Frequently Asked Questions

What is a Z-type tripping characteristic?

A Z-type tripping characteristic is a highly sensitive tripping curve designed to protect circuits with inductive loads, such as transformers and motors. It trips quickly at low overcurrents, preventing damage to sensitive equipment.

Are auxiliary contacts included with the S201P-Z6A?

Auxiliary contacts are not included with the S201P-Z6A but are available for purchase separately. These contacts allow for remote monitoring and control of the circuit breaker’s status.

The ABB S201P-Z6A 1-Pole Circuit Breaker combines advanced protection features with a compact design, making it an excellent choice for safeguarding electrical circuits in various applications.
