ABB S201C8 1 Pole Circuit Breaker (lot of 3)

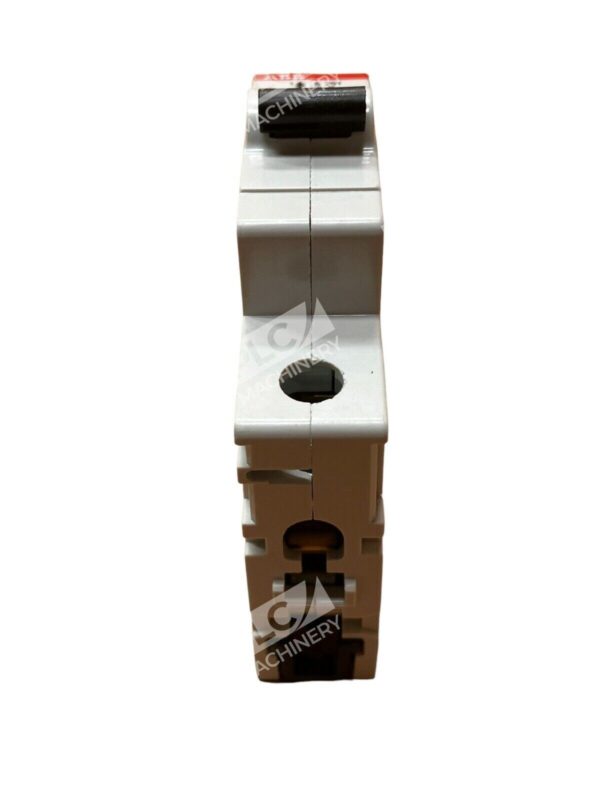

ABB S201-C8 1-Pole Circuit Breaker (Lot of 3)

The ABB S201-C8 is a high-performance miniature circuit breaker designed to provide reliable overcurrent protection in residential, commercial, and industrial applications. This lot includes three units, each rated at 8 amps with a single-pole configuration.

Key Features

• Current Limiting Design: Equipped with both a delayed thermal tripping mechanism for overload protection and an electromechanical tripping mechanism for short circuit protection.
• Trip Curve: Features a Type C trip characteristic, suitable for applications with medium inrush currents.
• Breaking Capacity: Offers a breaking capacity of up to 6 kA at 230/400 V AC, ensuring effective interruption of fault currents.
• Compliance: Meets international standards including IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, and CSA 22.2 No. 235, allowing for versatile use across various regions.
• Mounting: Designed for easy installation on DIN rails, facilitating quick and secure mounting.
• Terminal Type: Equipped with screw terminals, accommodating a range of conductor sizes for flexible wiring options.

Specifications

• Rated Current: 8 A
• Number of Poles: 1
• Rated Voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Interrupt Rating: 6 kA at 230/400 V AC
• Operating Temperature: -25°C to +55°C
• Dimensions: 69 mm (L) x 17.5 mm (W) x 88 mm (H)
• Degree of Protection: IP20

This lot of three ABB S201-C8 circuit breakers is ideal for ensuring consistent and reliable circuit protection across multiple installations.
