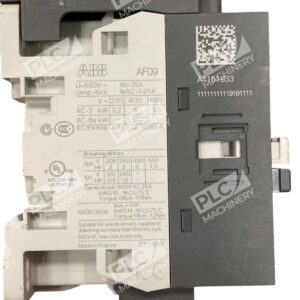

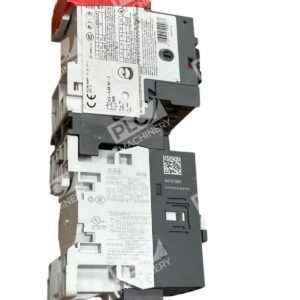

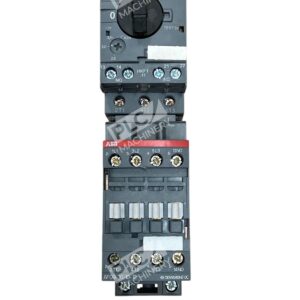

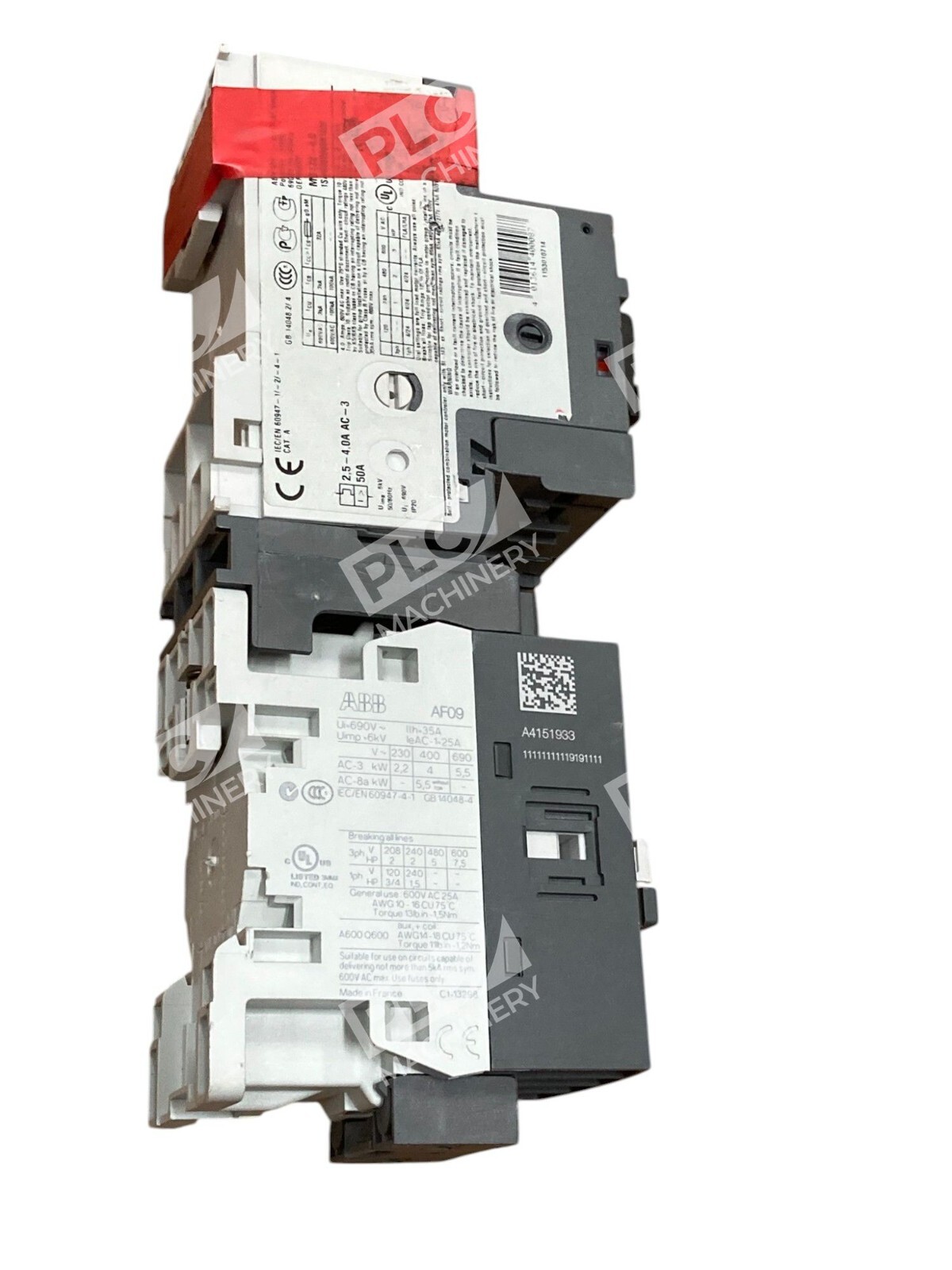

ABB AF09 3-Pole Contactor 25A 24-60V AC/DC 690V Motor Control w/ Surge Protectio

ABB AF09 3-Pole Contactor 25A 24-60V AC/DC 690V Motor Control with Surge Protection

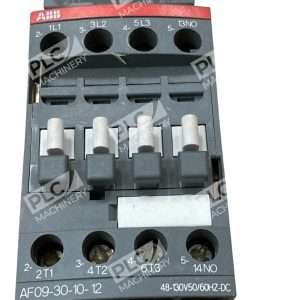

The ABB AF09 3-Pole Contactor is a high-performance device engineered for efficient motor control and power switching applications. Designed to handle currents up to 25A and voltages up to 690V, this contactor is suitable for a wide range of industrial and commercial uses.

Key Features

• Wide Control Voltage Range: The AF09 contactor operates within a control voltage range of 24-60V AC at 50/60 Hz and 20-60V DC, accommodating various control systems.
• Built-in Surge Protection: Integrated surge suppression enhances durability and reliability by protecting against voltage spikes.
• Compact Design: With dimensions of 45 mm width, 86 mm height, and 77 mm depth, the contactor is ideal for installations where space is limited.
• High Endurance: Designed for longevity, it offers a mechanical endurance of up to 10 million cycles.
• Flexible Mounting Options: The contactor supports both DIN rail and panel mounting, providing versatility in installation.

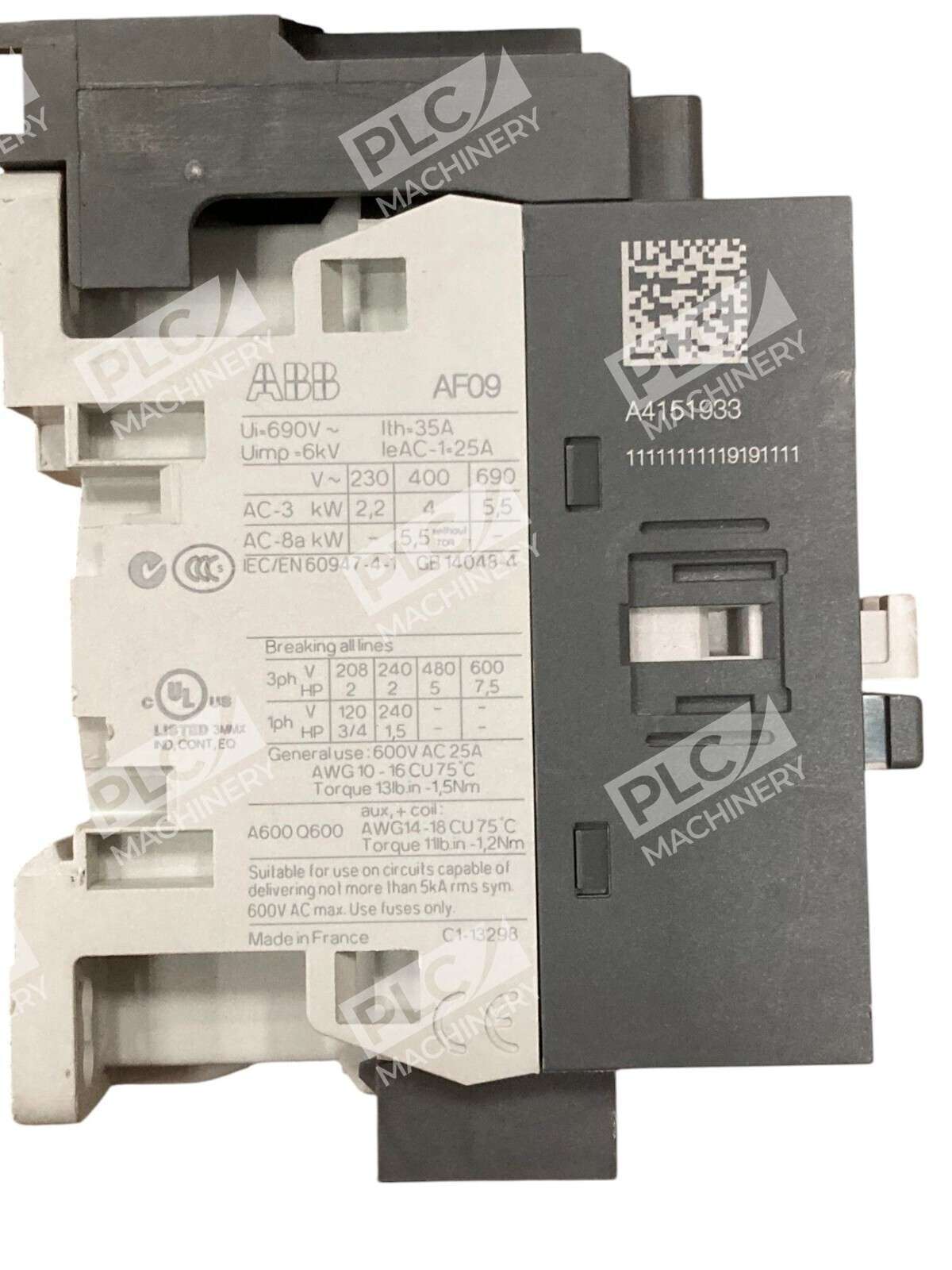

Technical Specifications

• Rated Operational Voltage: Up to 690V AC.
• Rated Operational Current: 25A at 40/60°C; 22A at 70°C.
• Motor Control Capacity: Capable of controlling motors up to 4 kW at 400V AC (AC-3) or 5.5 kW at 500/690V.
• Auxiliary Contacts: Equipped with 1 normally open (NO) auxiliary contact.
• Operating Temperature Range: -40°C to +70°C without thermal overload relay; -25°C to +60°C with thermal overload relay.
• Compliance and Certifications: Meets standards such as IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, and is RoHS compliant.

The ABB AF09 3-Pole Contactor combines advanced technology with robust design, making it a reliable choice for controlling three-phase motors and power circuits in various industrial applications.
