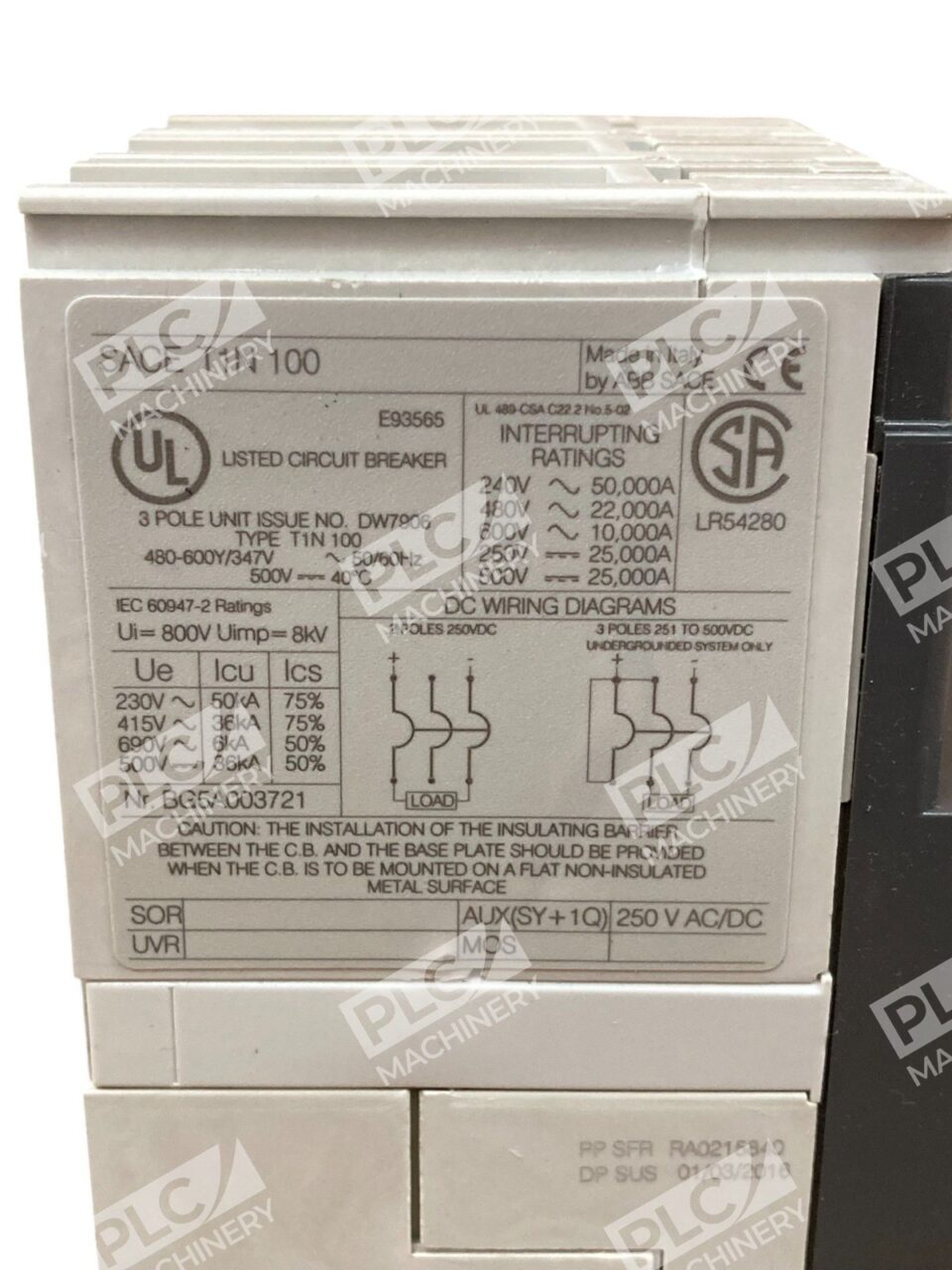

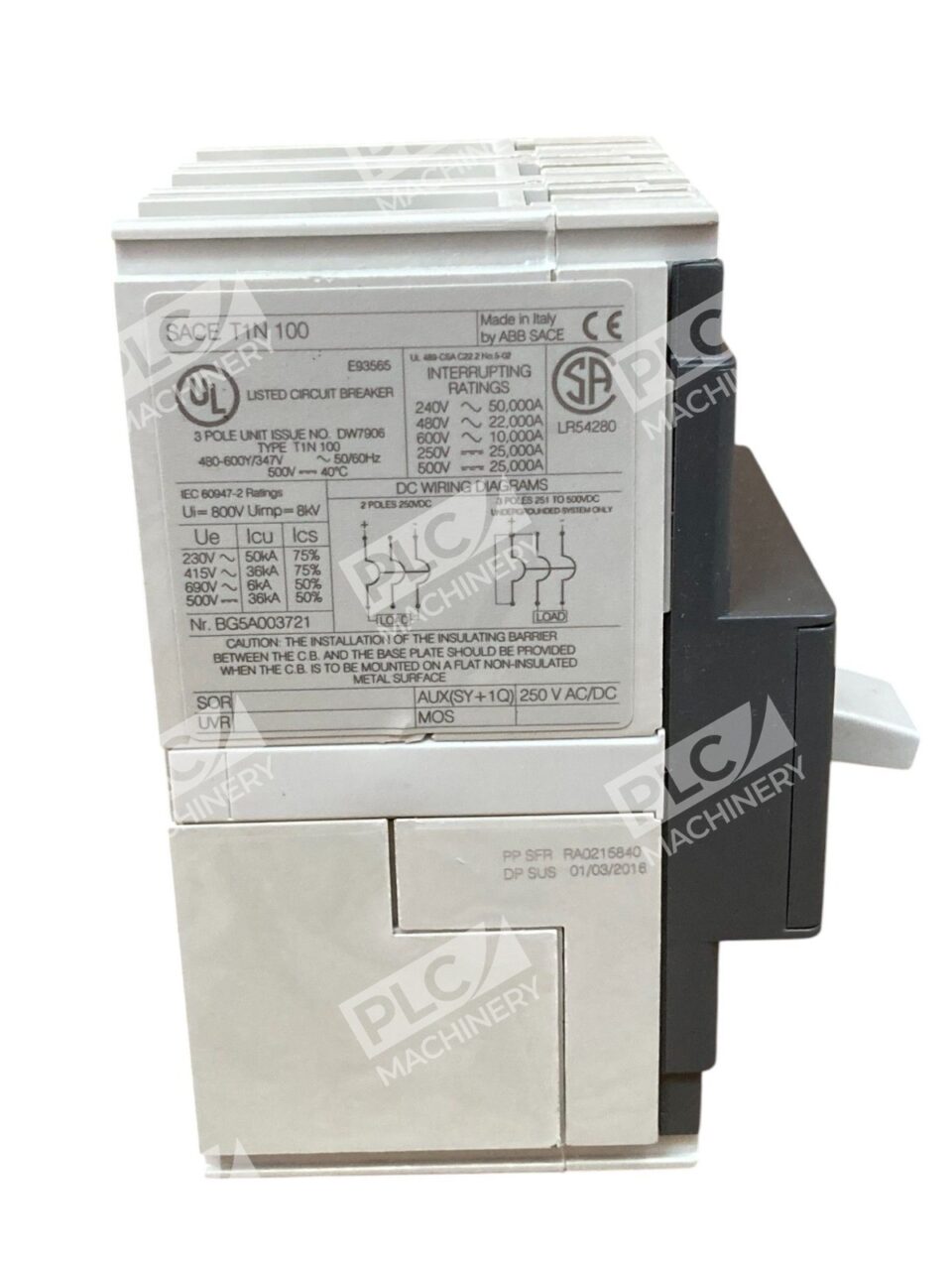

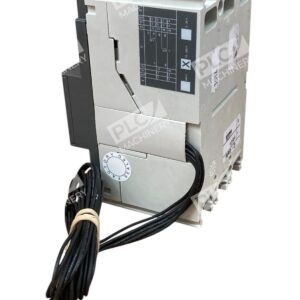

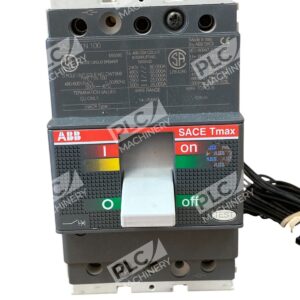

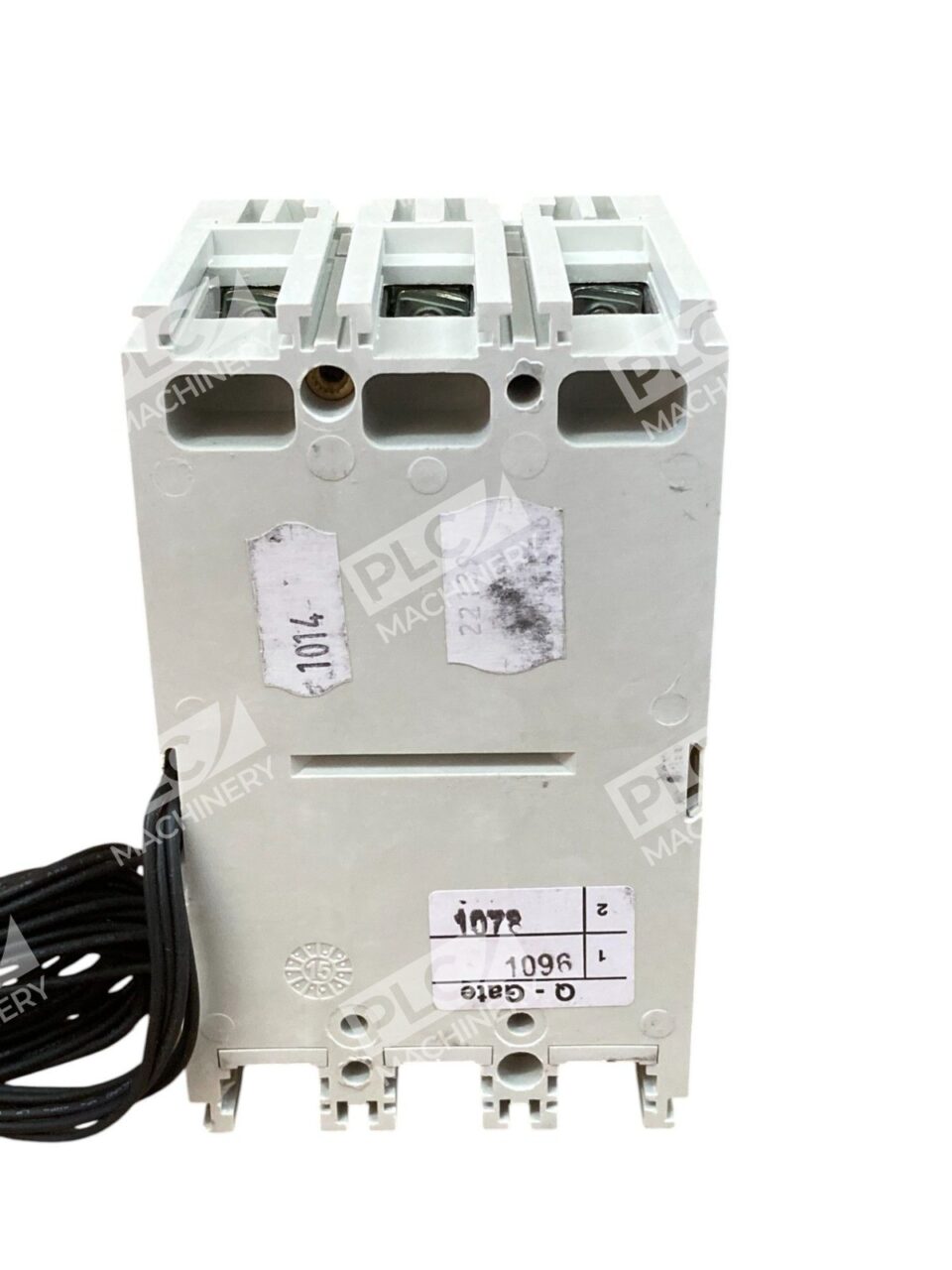

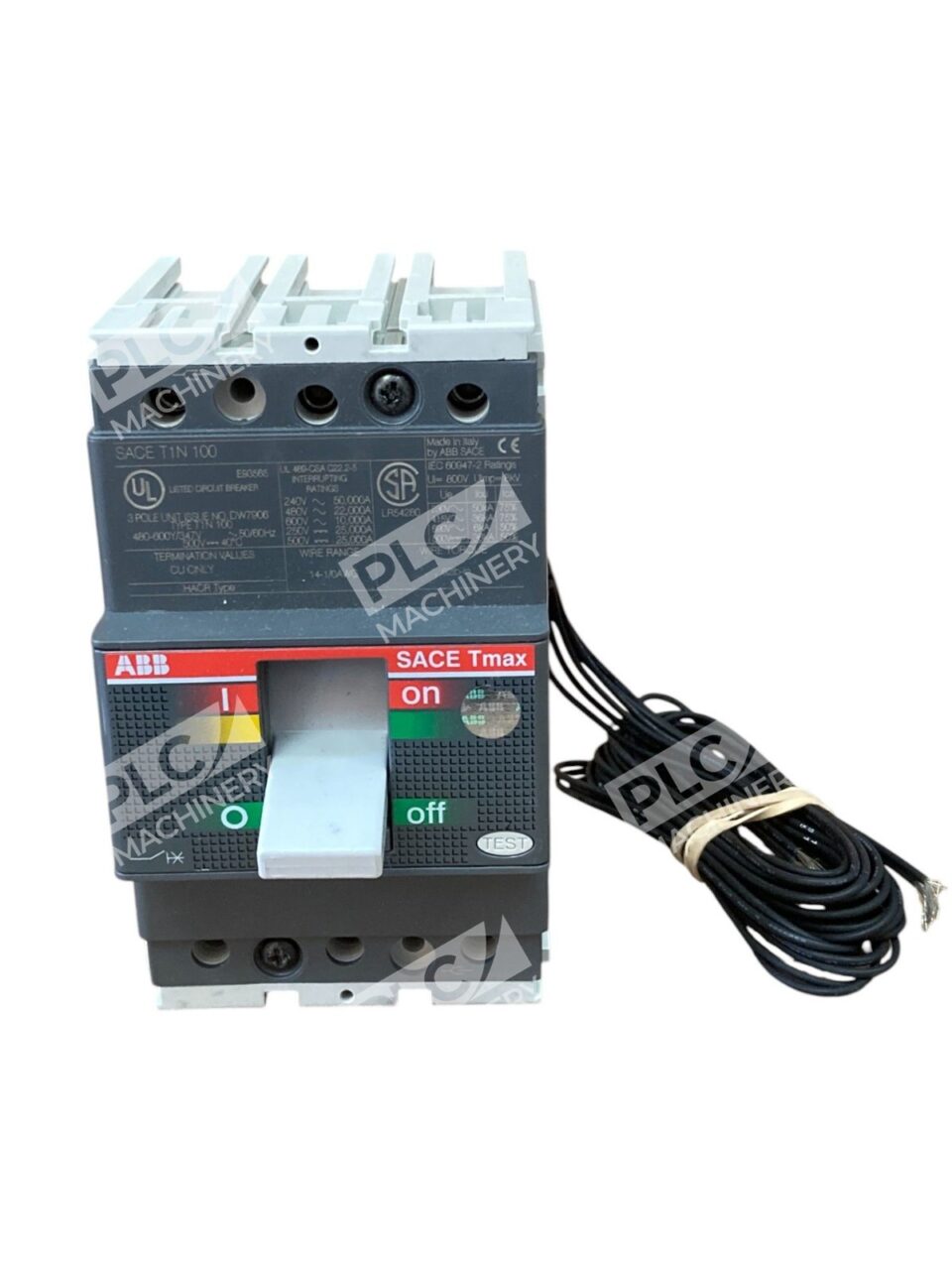

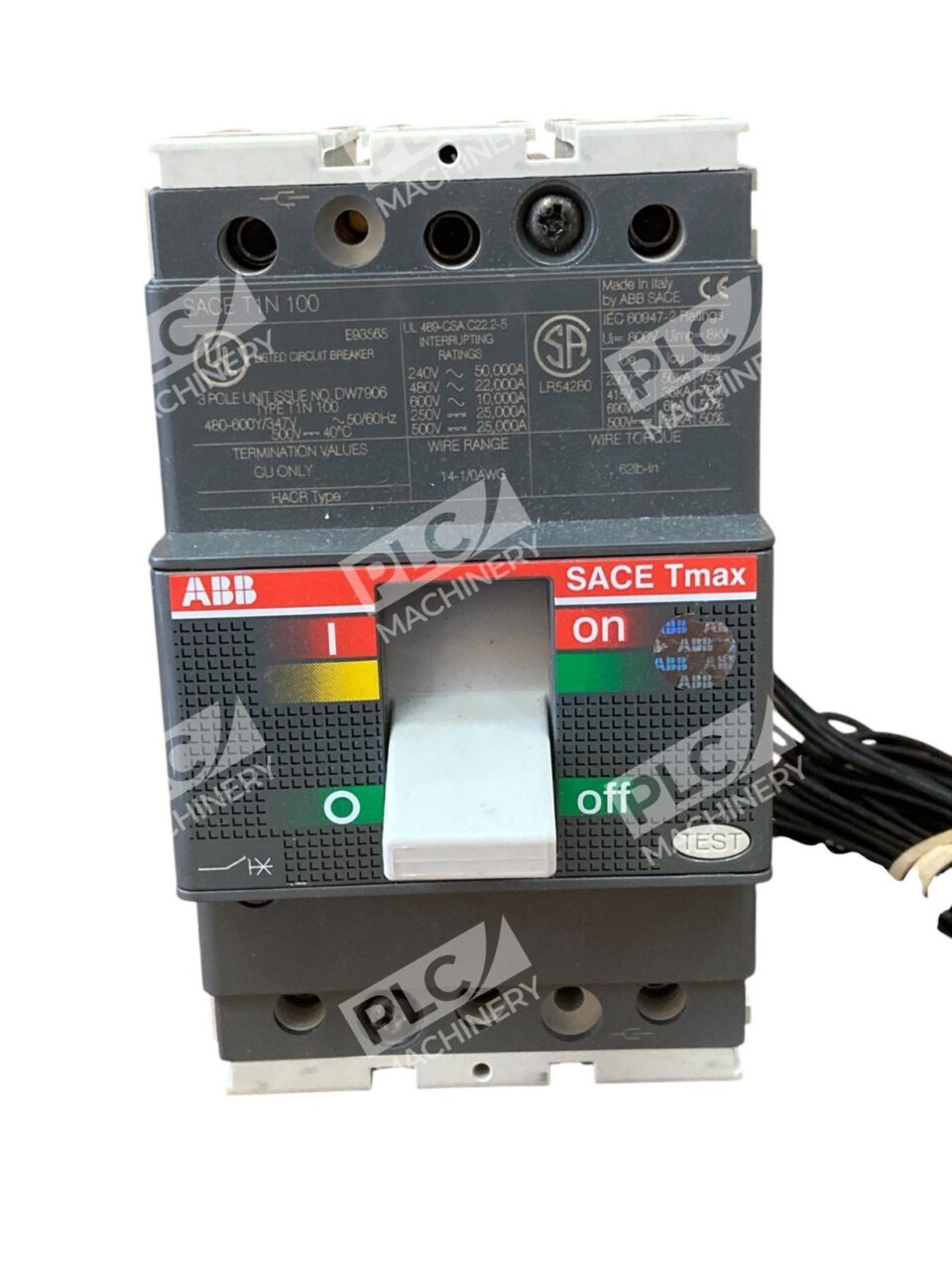

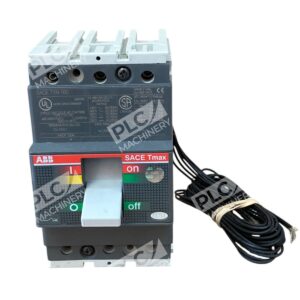

ABB 3 Pole 1SDA061803R1 DW7906 Circuit Breaker SACE TMAX T1 N 100

ABB SACE TMAX T1 N 100 Circuit Breaker

The ABB SACE TMAX T1 N 100 is a three-pole molded case circuit breaker designed to provide reliable protection and control in electrical distribution systems. Engineered for versatility and performance, this circuit breaker is suitable for a wide range of applications.

Key Features

• Rated Current (In): 100 A
• Number of Poles: 3
• Rated Insulation Voltage (Ui): 800 V
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Compliance: IEC 60947-2 standards

Applications

The SACE TMAX T1 N 100 is ideal for various applications, including:

• Power distribution systems
• Industrial control panels
• Commercial and residential electrical installations

Design and Performance

Designed with high breaking capacity in compact dimensions, the TMAX T1 N 100 ensures efficient protection without compromising space. Its thermomagnetic trip unit provides reliable operation for both overload and short-circuit conditions.

Installation and Compatibility

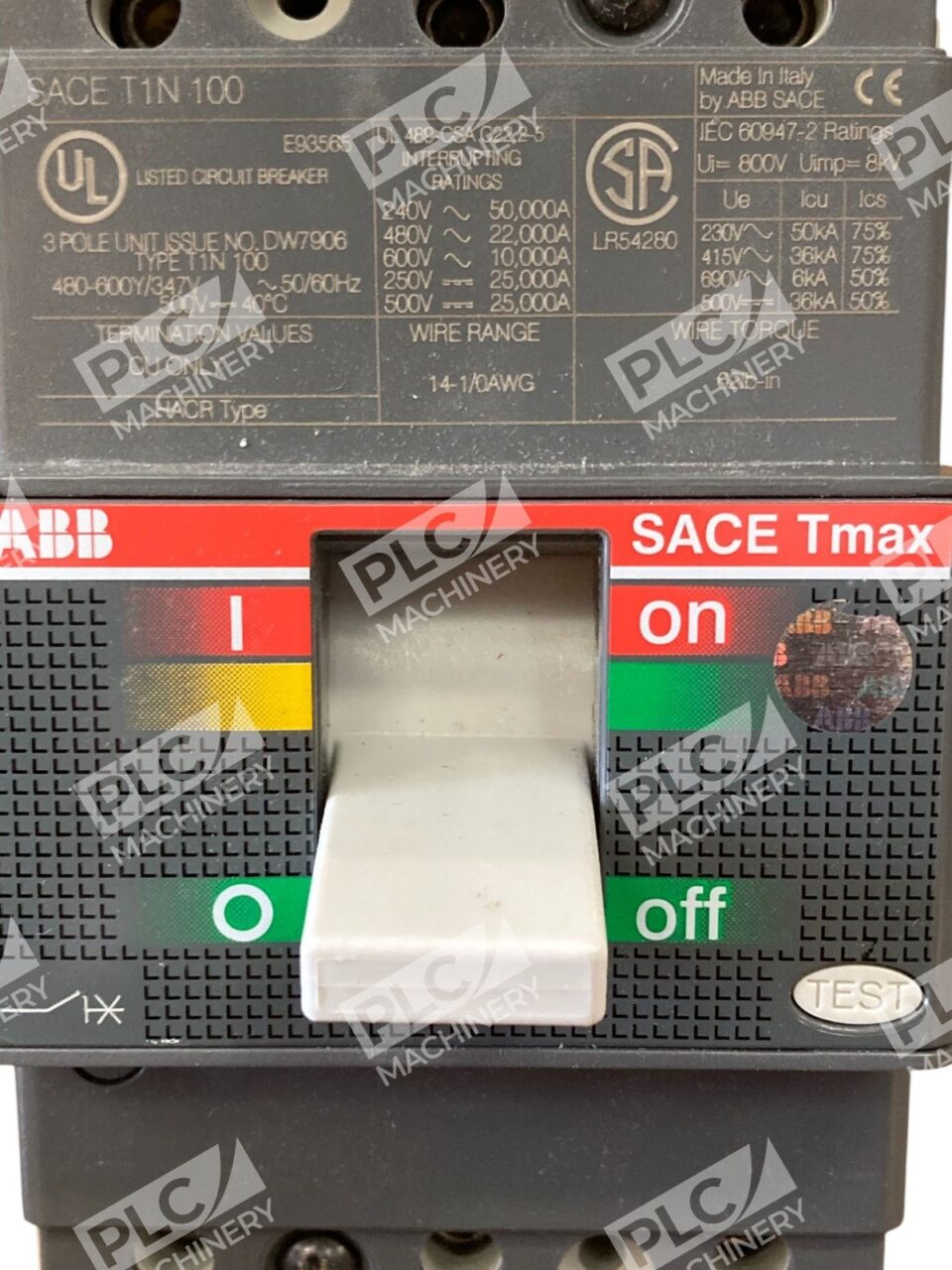

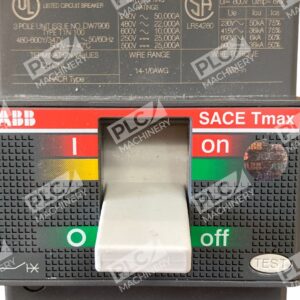

The circuit breaker features front terminals and a lever operating mechanism, facilitating straightforward installation and operation. It is compatible with various accessories, enhancing its adaptability to specific application requirements.

For more detailed technical specifications and information on available accessories, please refer to the official ABB product documentation.
