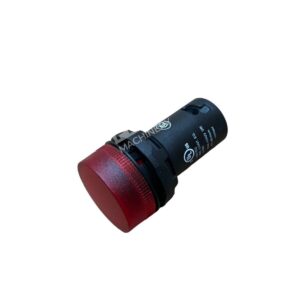

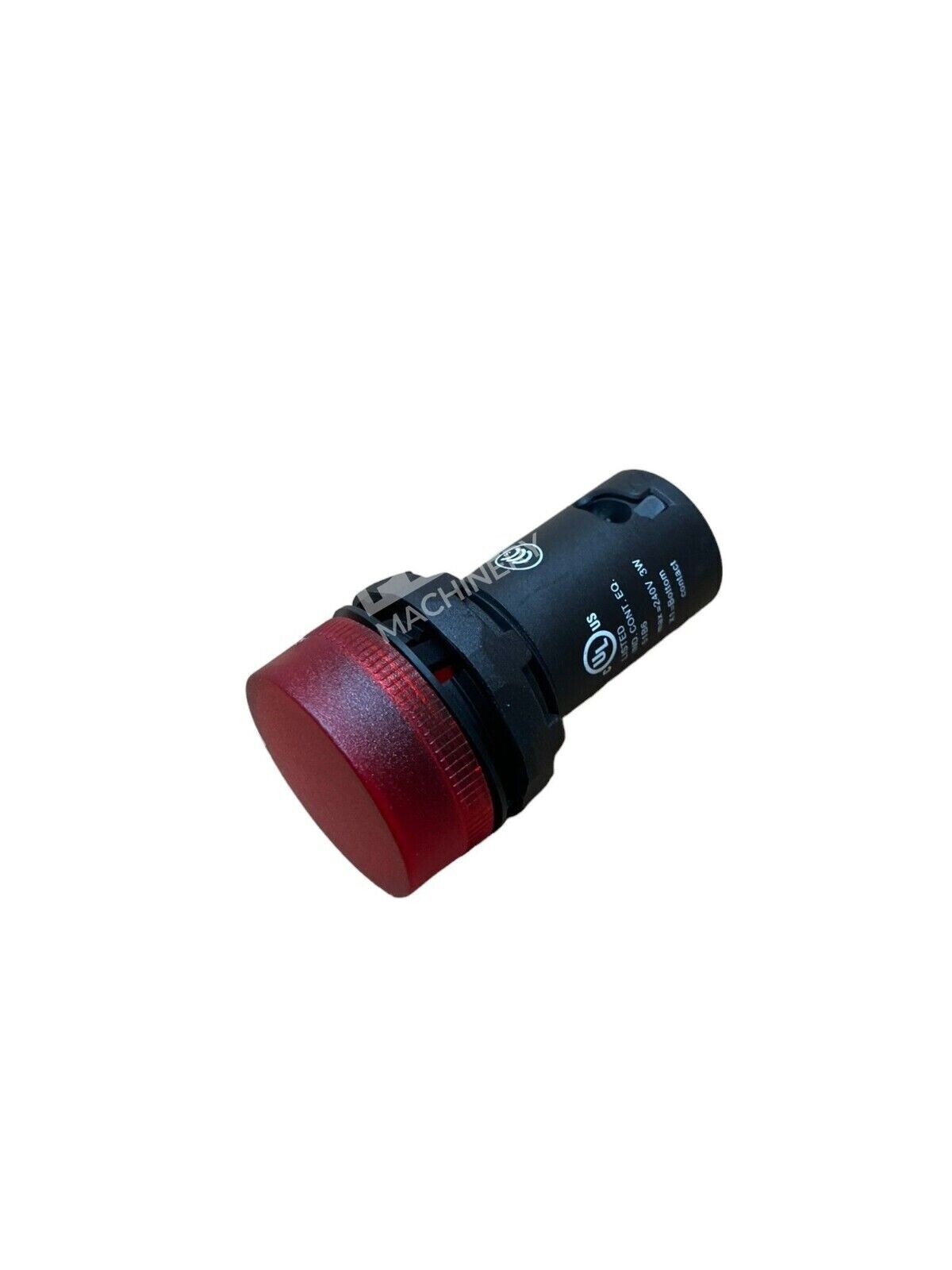

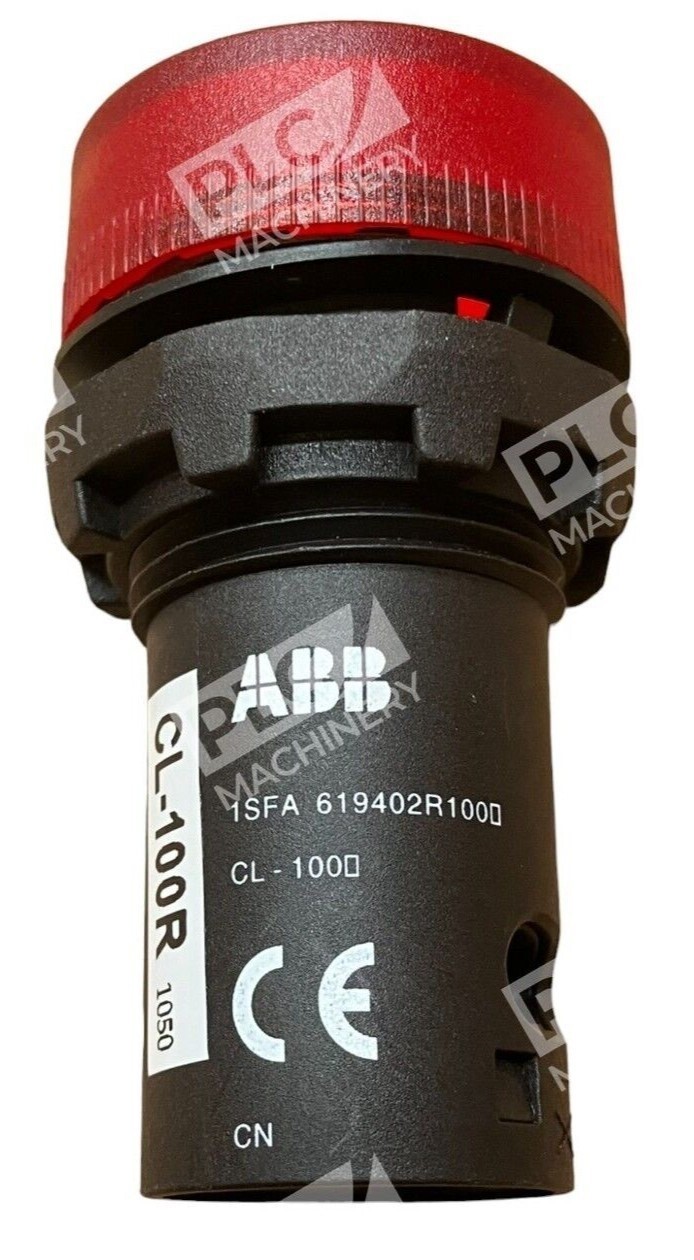

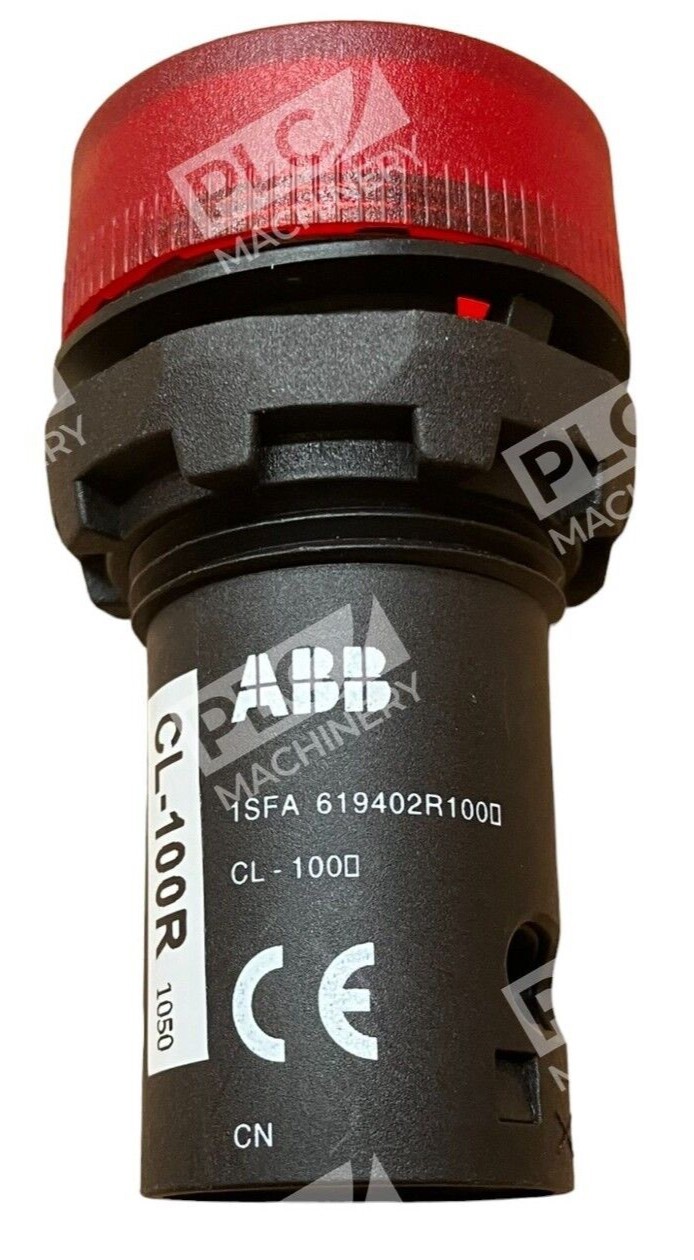

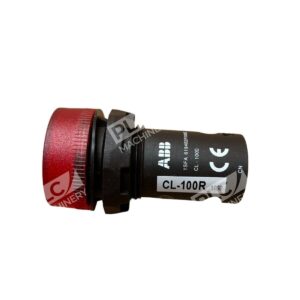

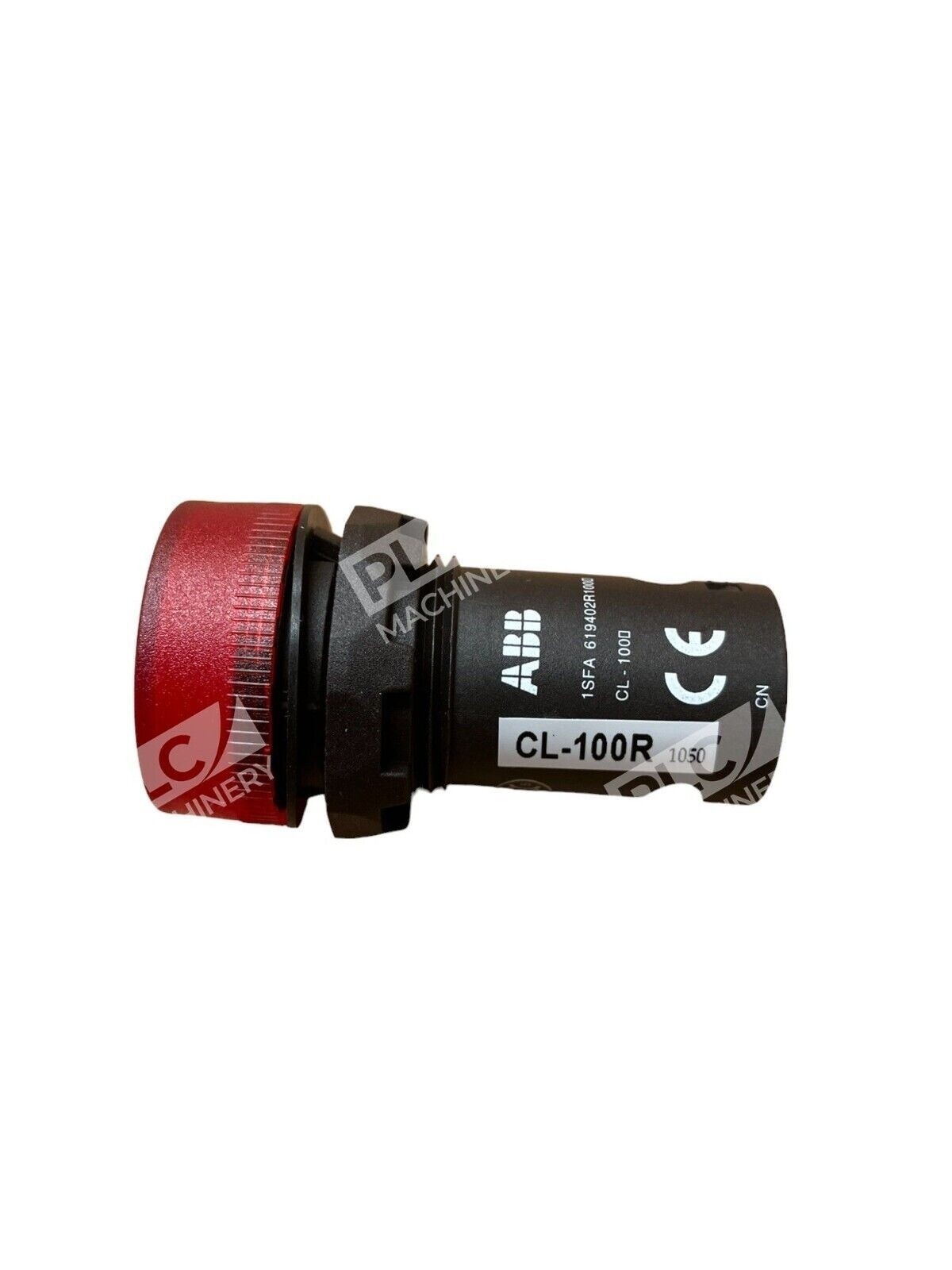

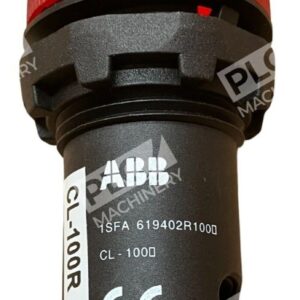

ABB 1SFA 619402R100 Red Pilot Light Base CL-100R

ABB 1SFA 619402R100 Red Pilot Light Base CL-100R

The ABB 1SFA 619402R100 Red Pilot Light Base CL-100R is a compact and reliable pilot light designed for industrial applications. This illuminated pilot light head features a red lens and is compatible with Ba9s base lamps, supporting bulbs up to 3W maximum. It is part of ABB’s CL series, known for its durability and ease of installation.

Key Features

• Compact Design: The CL-100R is designed to fit standard 22mm cutouts, making it suitable for a wide range of control panels and machinery.
• High Durability: With a front protection rating of IP66, IP67, and IP69K, this pilot light is resistant to dust, water, and high-pressure cleaning, ensuring reliable operation in harsh environments.
• Wide Operating Temperature Range: It operates efficiently within a temperature range of -25°C to +70°C, accommodating various industrial settings.

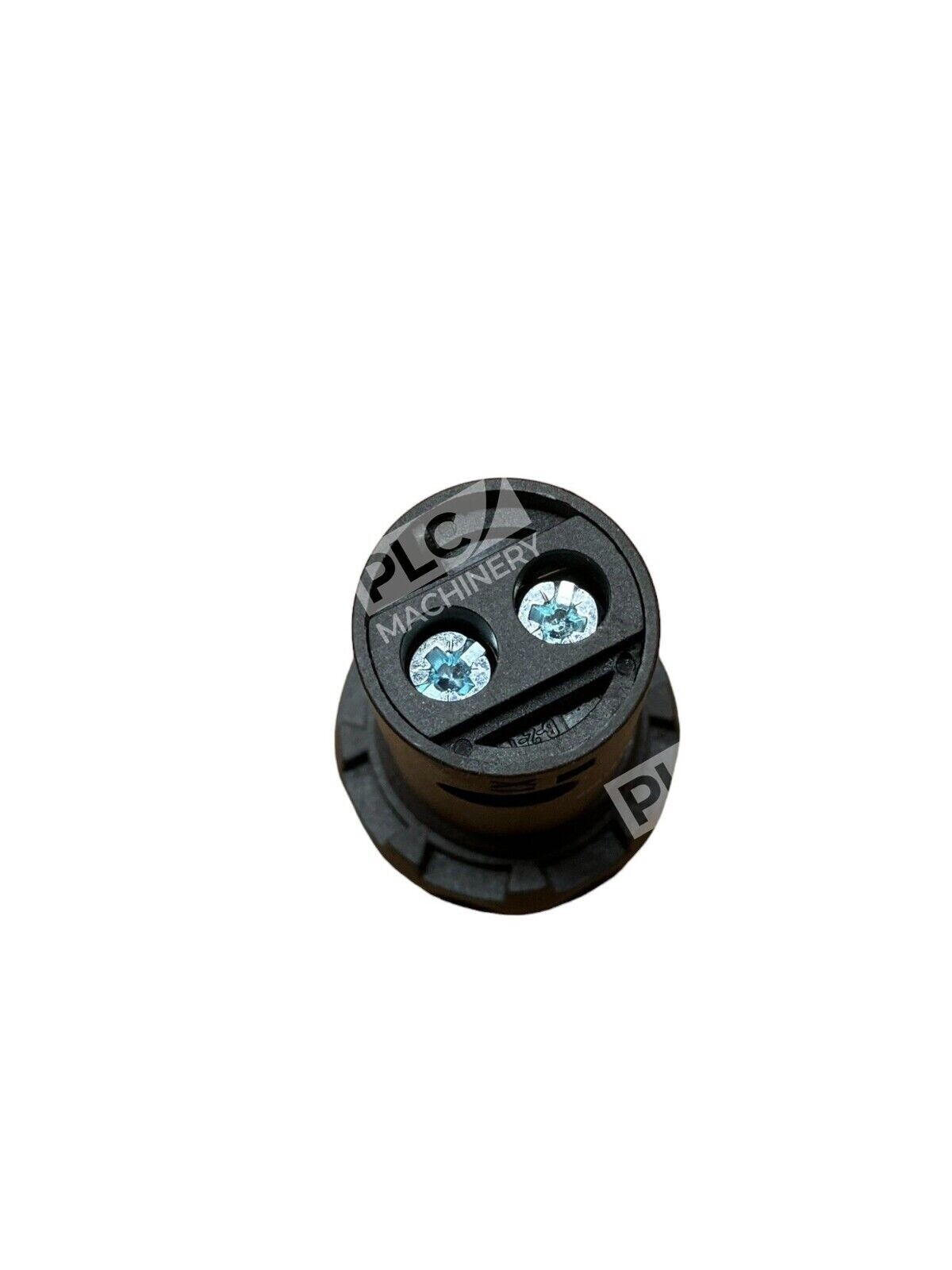

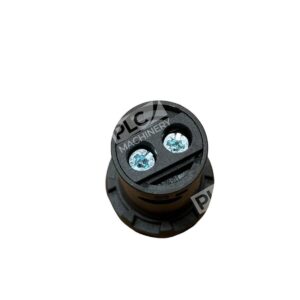

• Easy Installation: The pilot light features screw clamp terminals, allowing for secure and straightforward wiring connections.
• Versatile Compatibility: Suitable for use with bulbs up to 3W, providing flexibility in illumination intensity based on application requirements.

Technical Specifications

• Actuator Type: Pilot light head
• Color: Red
• Illumination: Illuminated
• Lamp Type: Ba9s

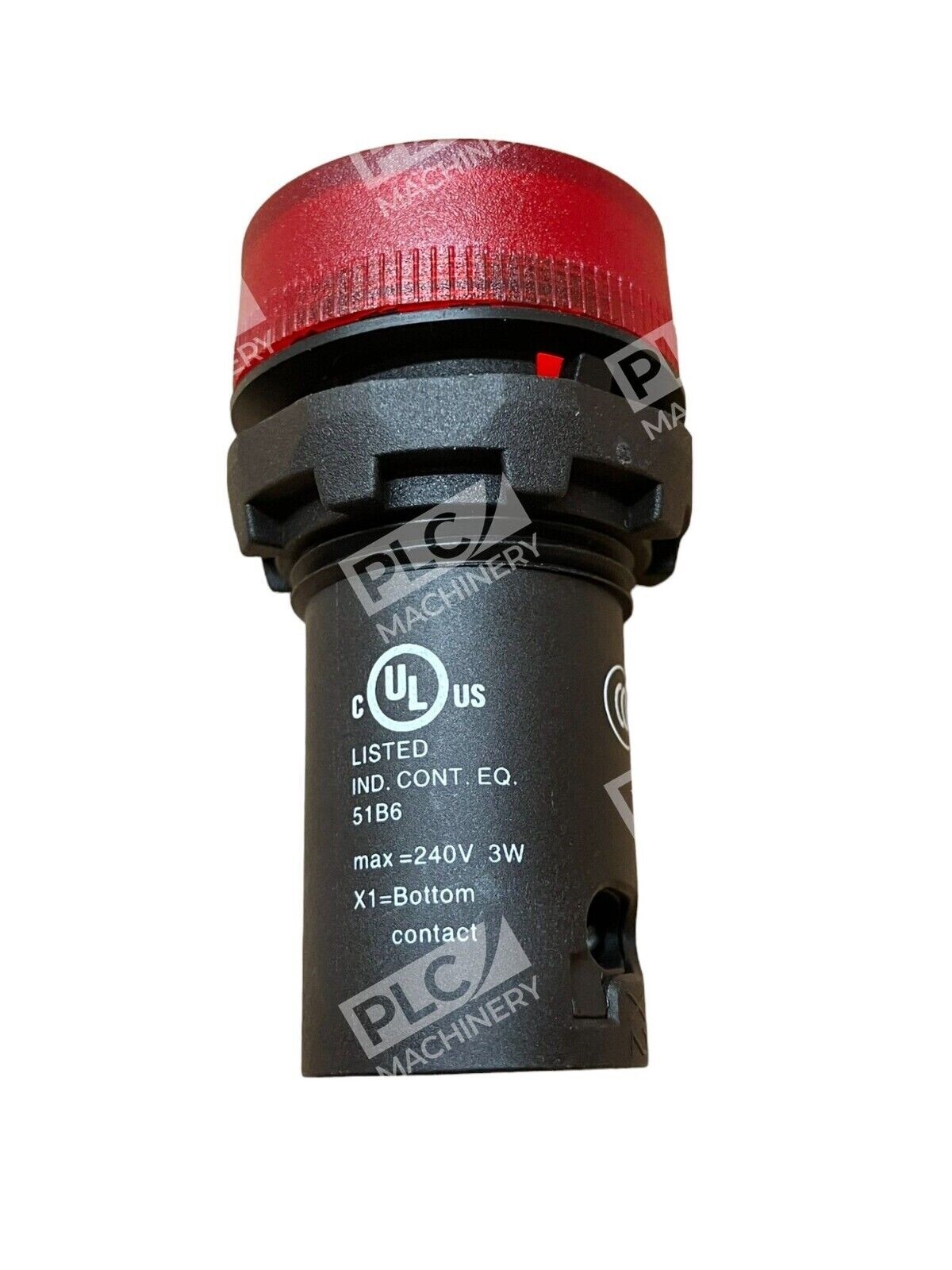

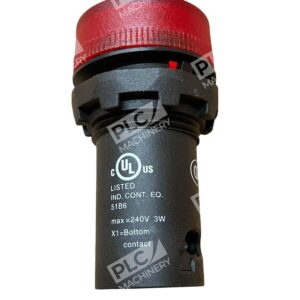

• Rated Operational Voltage: Maximum 240 V
• Rated Operational Current AC-15 (Ie): (220/240 V) 1 A; (24/127 V) 1.5 A
• Rated Operational Current DC-13 (Ie): (125 V) 0.2 A; (24 V) 0.3 A
• Degree of Protection: Front IP66, IP67, IP69K; Terminals IP20
• Ambient Air Temperature: Operation -25°C to +70°C; Storage -40°C to +85°C
• Connecting Capacity: Flexible with Ferrule 1 x 0.75…2.5 mm²; Flexible with Insulated Ferrule 1 x 0.75…2.5 mm²; Solid 1 x 0.75…2.5 mm²
• Connection Type: Screw Clamp

The ABB CL-100R Red Pilot Light Base is an excellent choice for professionals seeking a durable and efficient signaling solution in industrial environments. Its robust design and versatile compatibility make it a valuable component in control systems.
