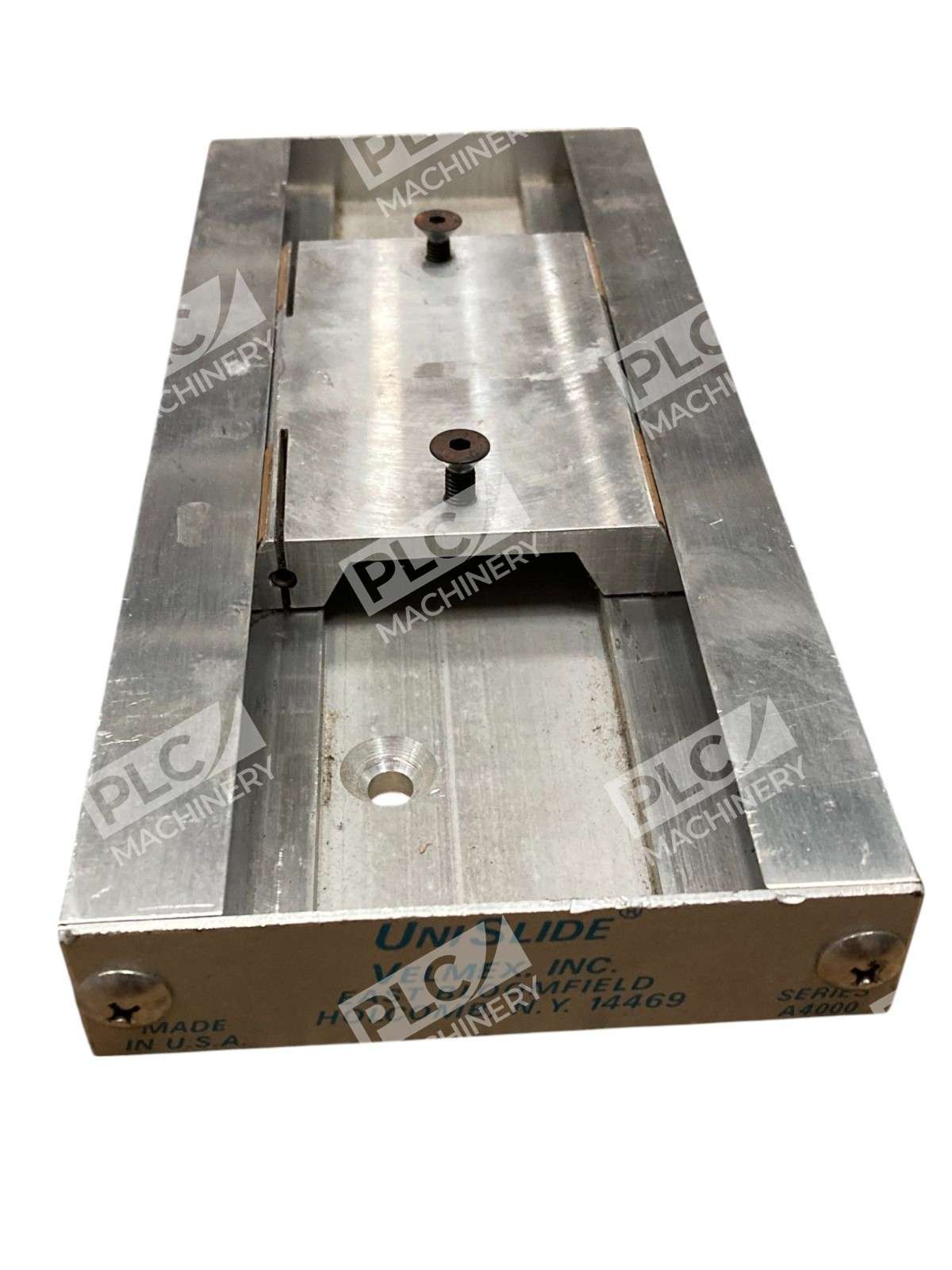

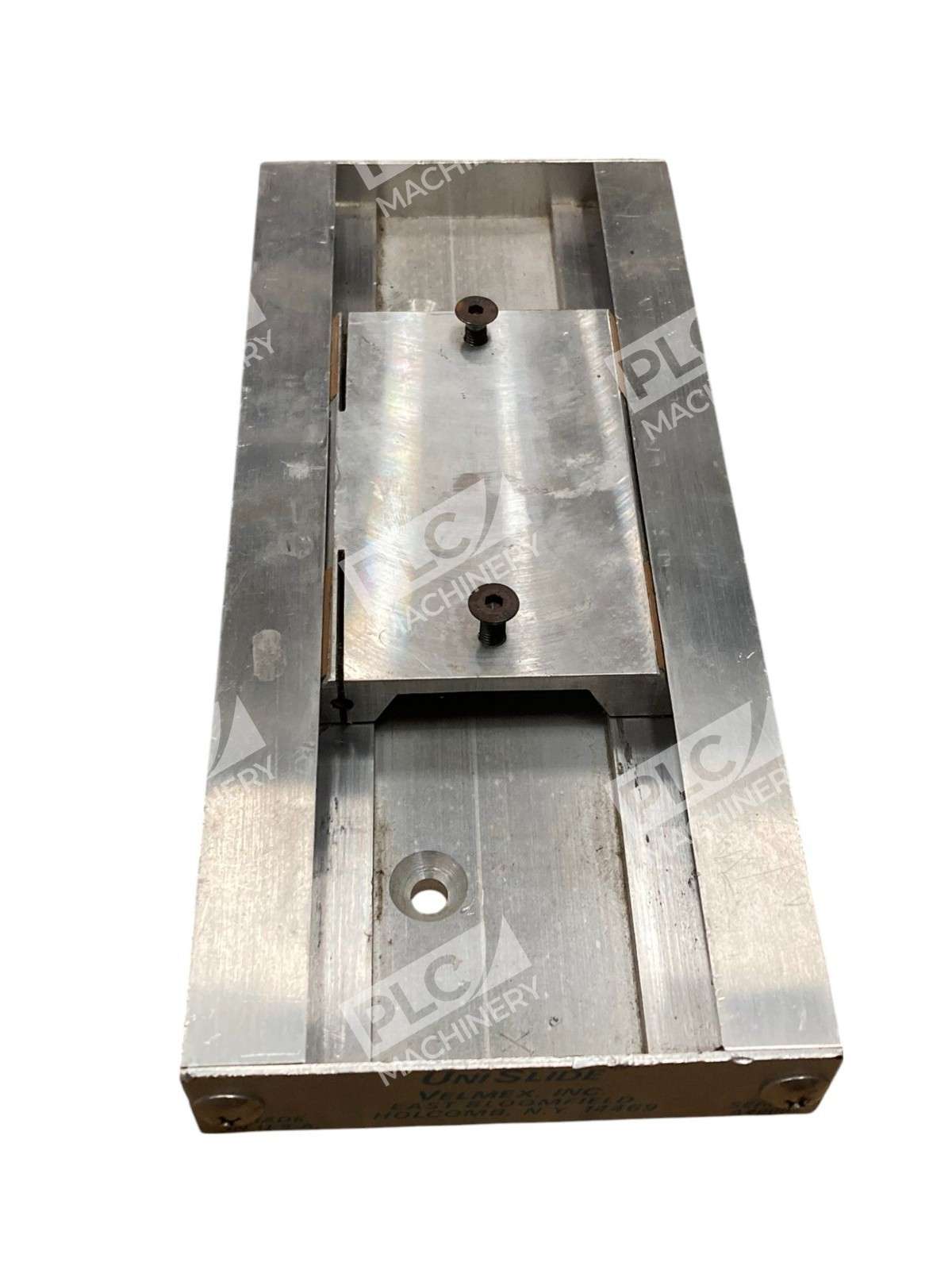

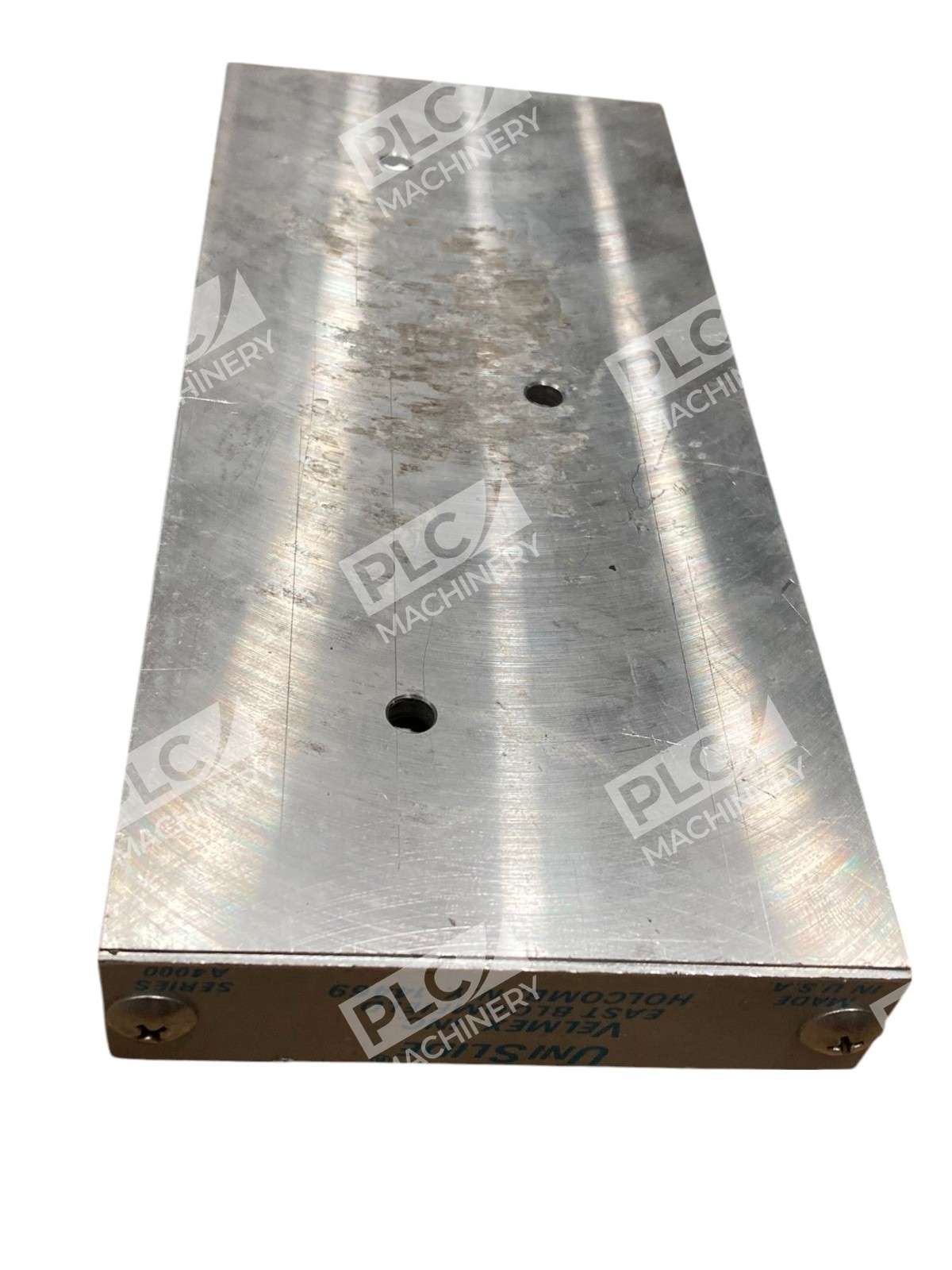

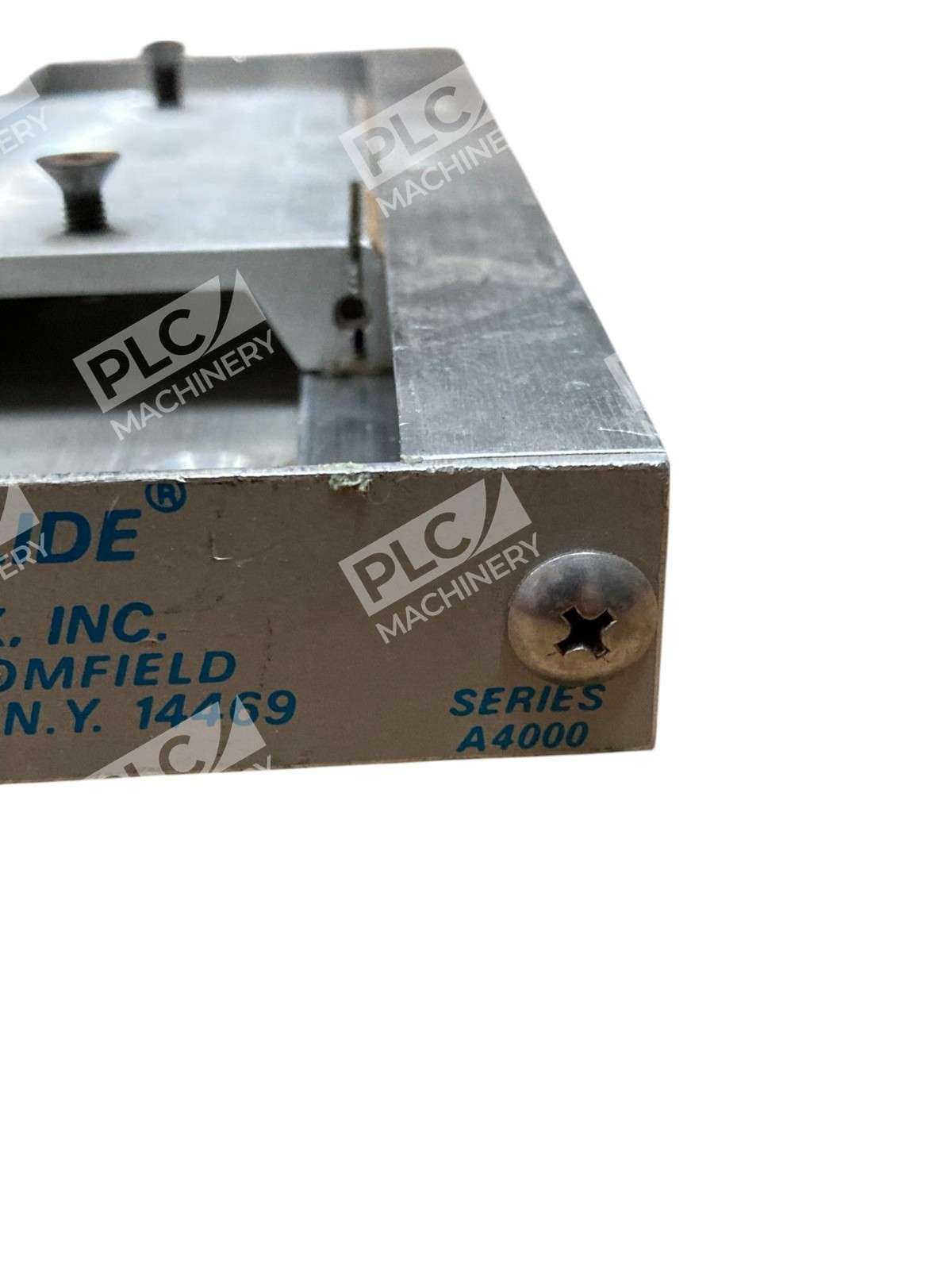

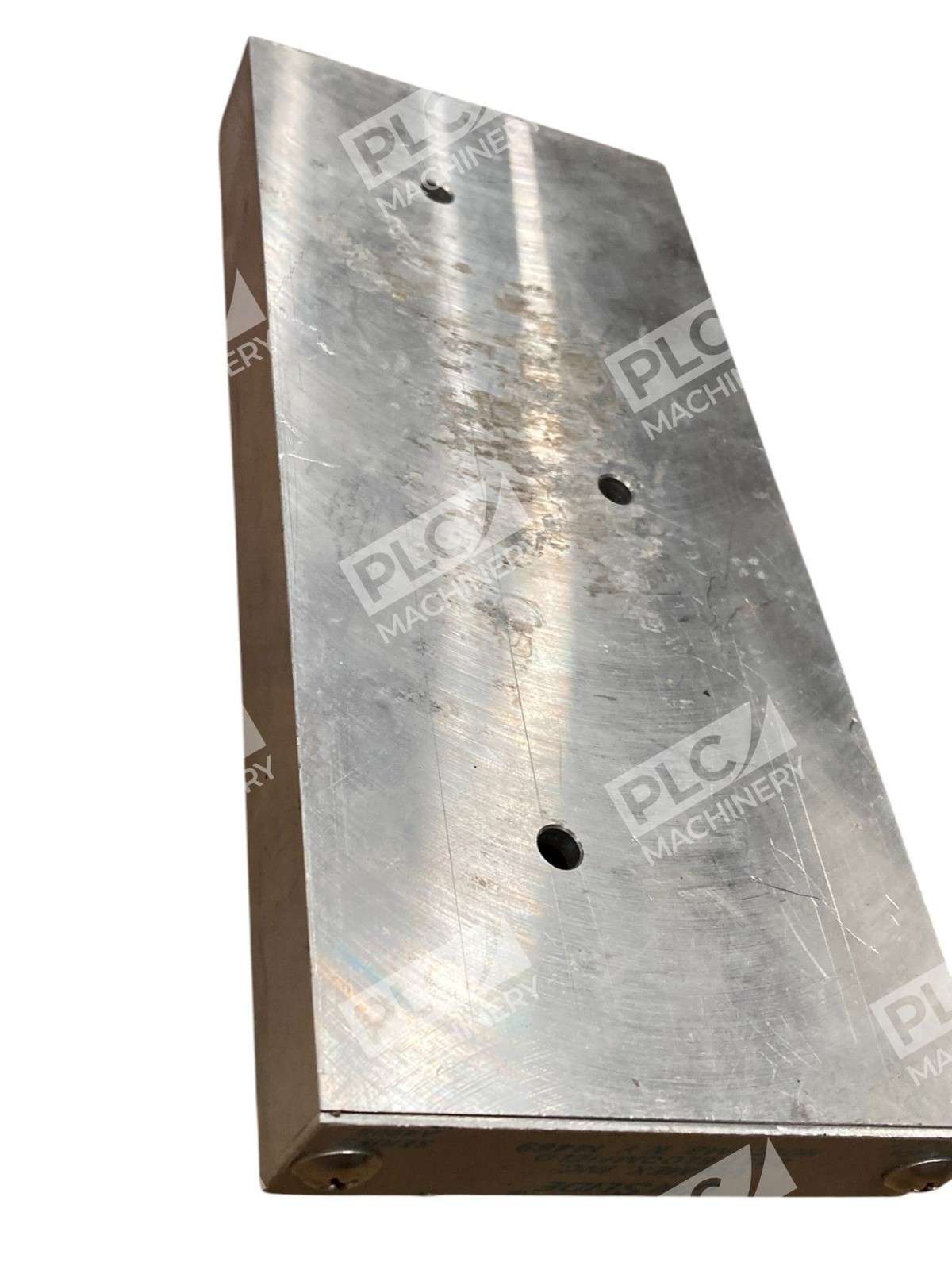

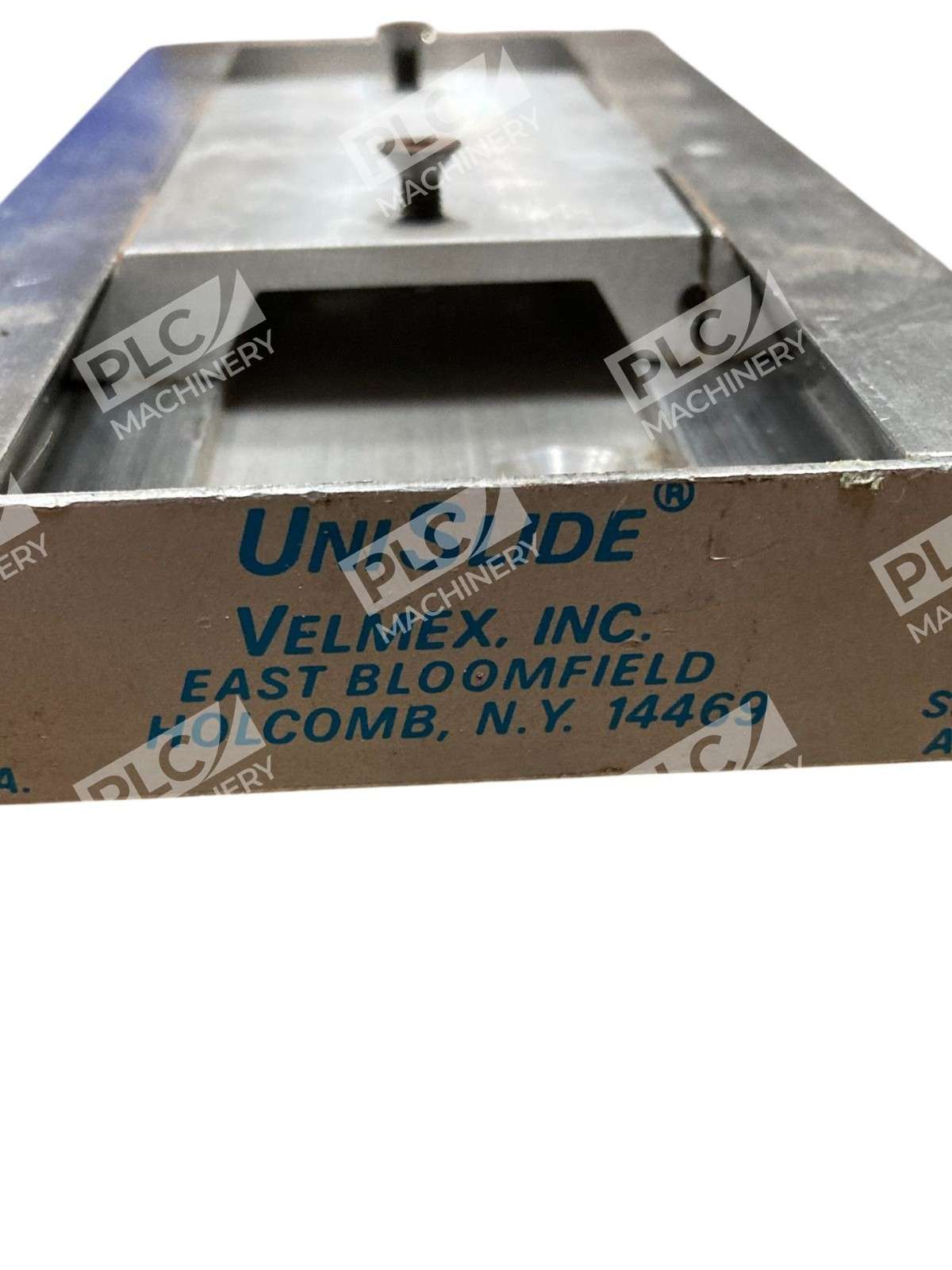

Velmex A4000 UniSlide Linear Positioning Stage The Velmex A4000 UniSlide is a precision linear positioning stage designed to deliver accurate and versatile movement for various applications. With a body width of 4 inches and a slider length of 4 inches, it can handle horizontal loads up to 100 lbs. The A4000 offers travel distances ranging from 2 inches to 38 inches, making it suitable for tasks requiring precise linear motion. Key Features Construction: Built with an aluminum alloy extruded dovetail base featuring 60-degree opposing V-type ways, ensuring durability and stability. Lead Screw Mechanism: Equipped with a lead screw supported by steel thrust bearings and a snap ring retainer, coupled with a tension-adjustable Delrin drive nut for low friction and minimal backlash. Versatility: Available in multiple models and styles, including options for different lead screw pitches and rapid advance configurations to meet diverse application needs. Load Capacity: Capable of supporting up to 100 lbs horizontally and 50 lbs vertically, accommodating a wide range of payloads. Customization: Offers compatibility with various adapter plates and brackets, allowing for multi-axis configurations and integration with other Velmex positioning systems. Applications The A4000 UniSlide is ideal for precision positioning tasks in scientific research, industrial automation, and manufacturing processes. Its robust design and customizable options make it suitable for applications requiring reliable and accurate linear motion control. Specifications Travel Distance: 2″ to 38″ (5.08 cm to 96.52 cm) Base Length: 6″ to 42″ (15.24 cm to 106.68 cm) Slider Length: 4″ (10.16 cm) Weight: 2.4 to 11 lbs. (1.1 to 5 kg) Height: 1.06″ (2.69 cm) Width: 4″ (10.16 cm) Maximum Horizontal Load: 100 lbs. (45.5 kg) Maximum Vertical Load: 50 lbs. (22.7 kg) For more detailed information and customization options, please refer to the Velmex A40 Series UniSlide product page.
