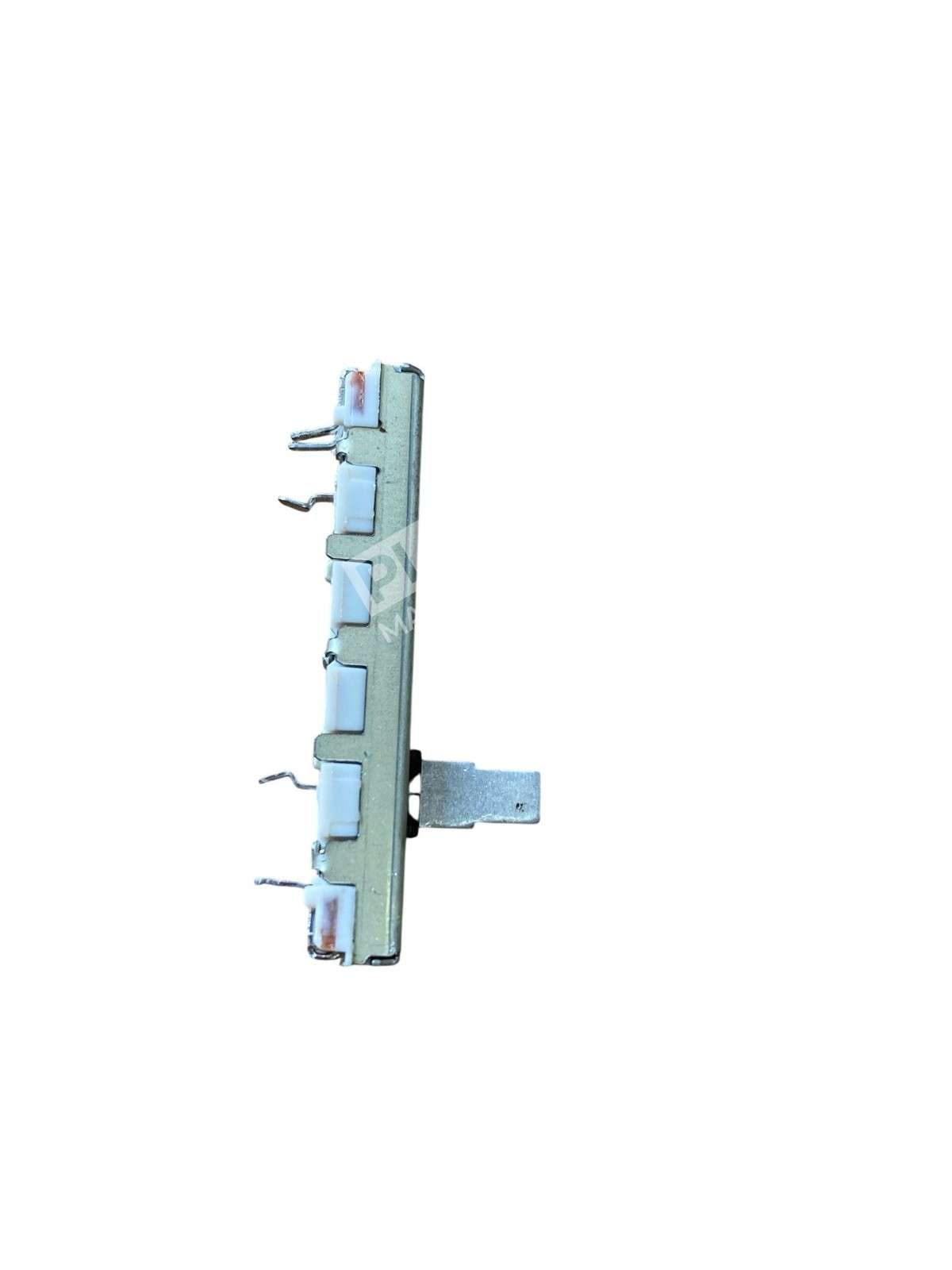

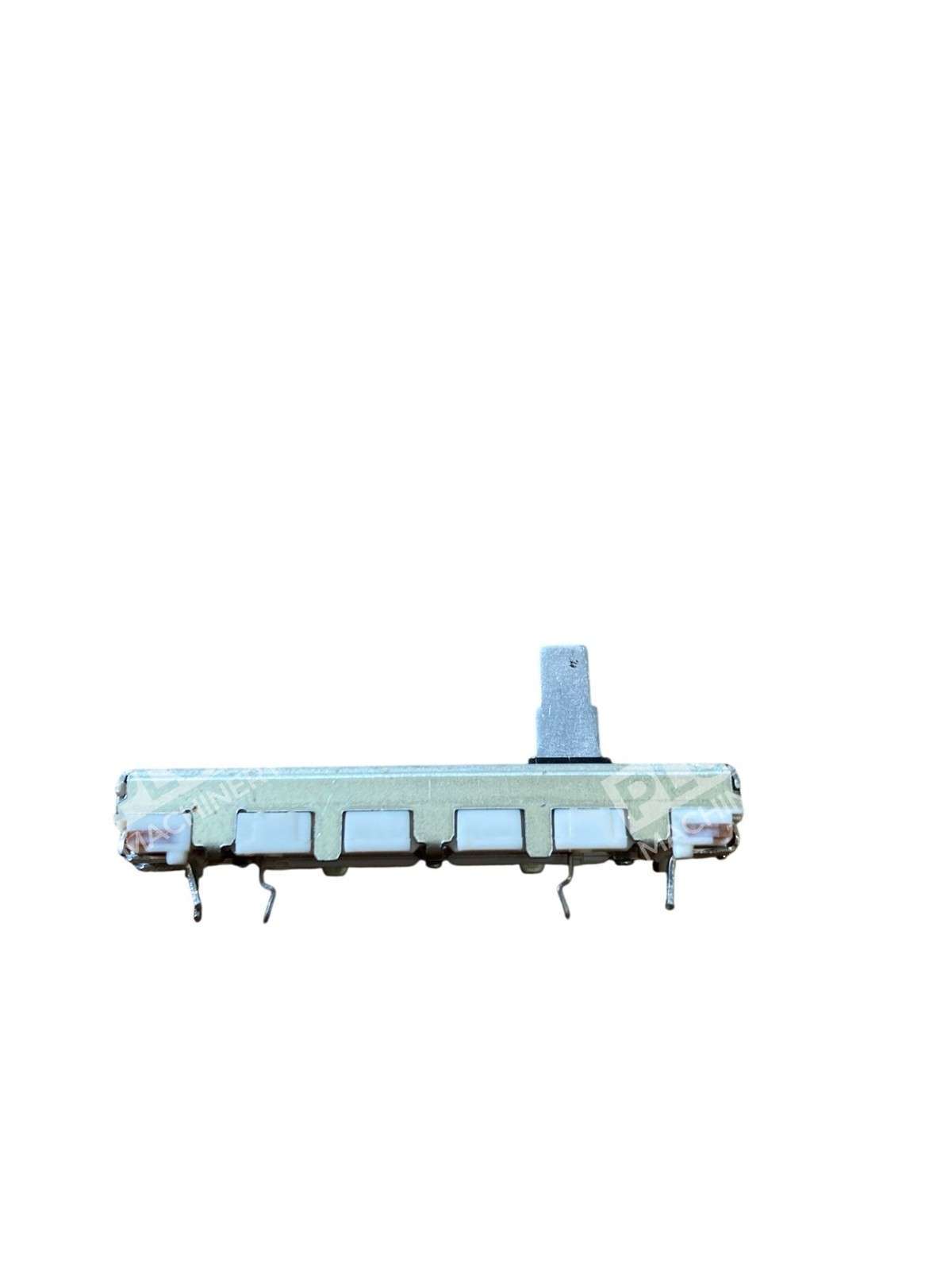

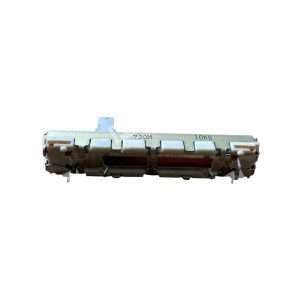

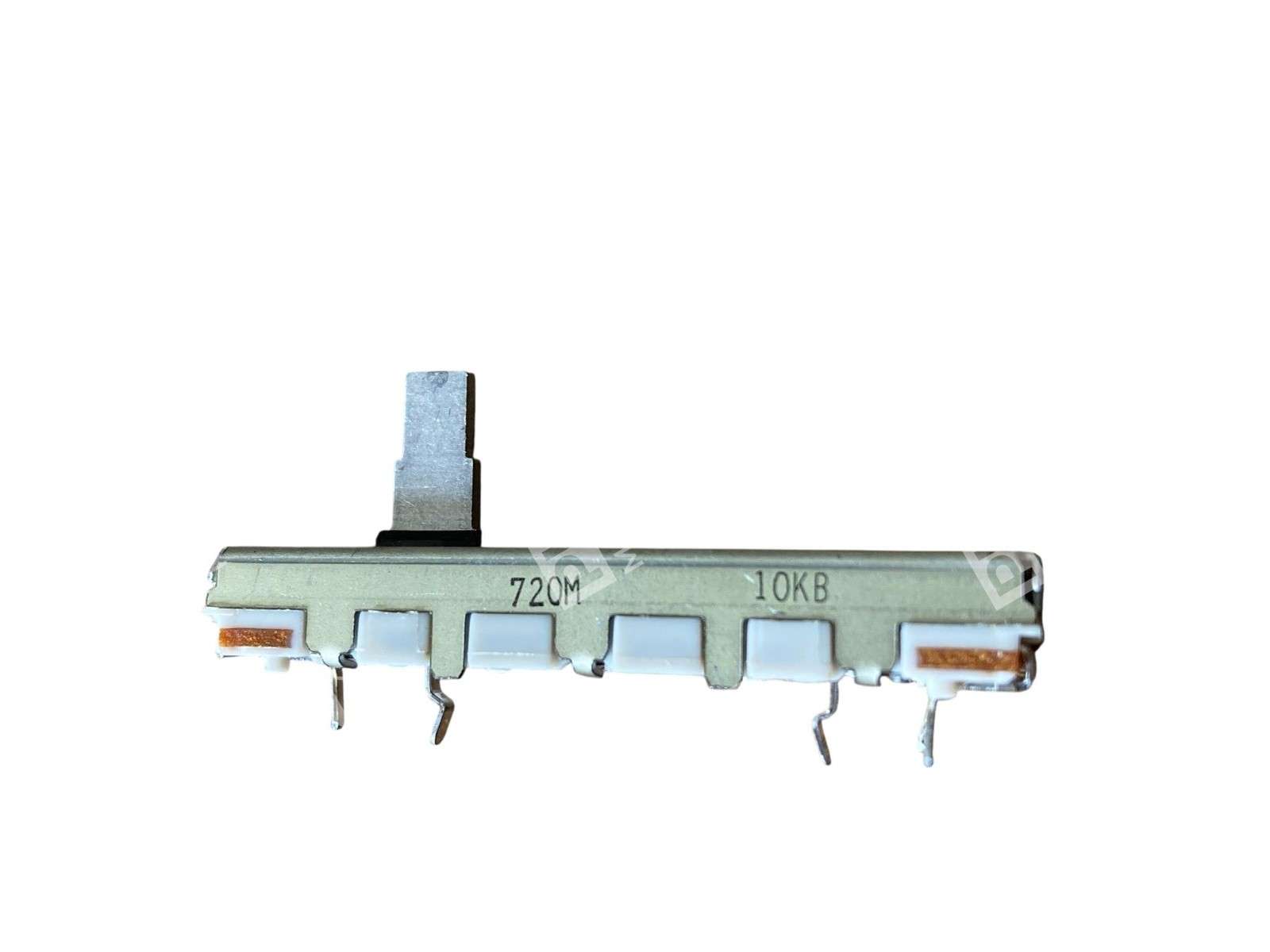

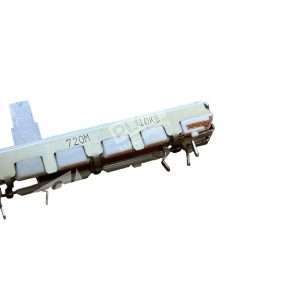

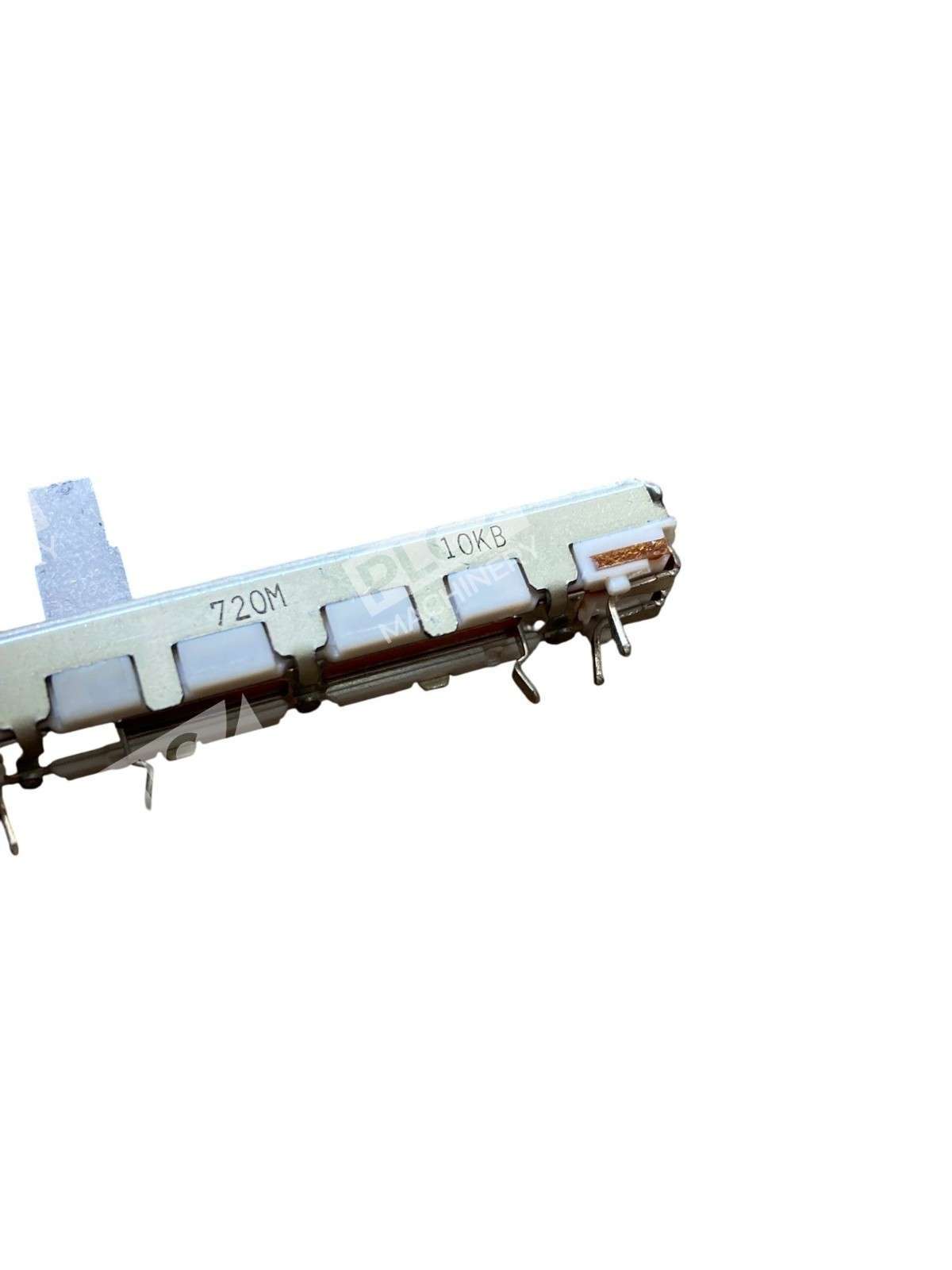

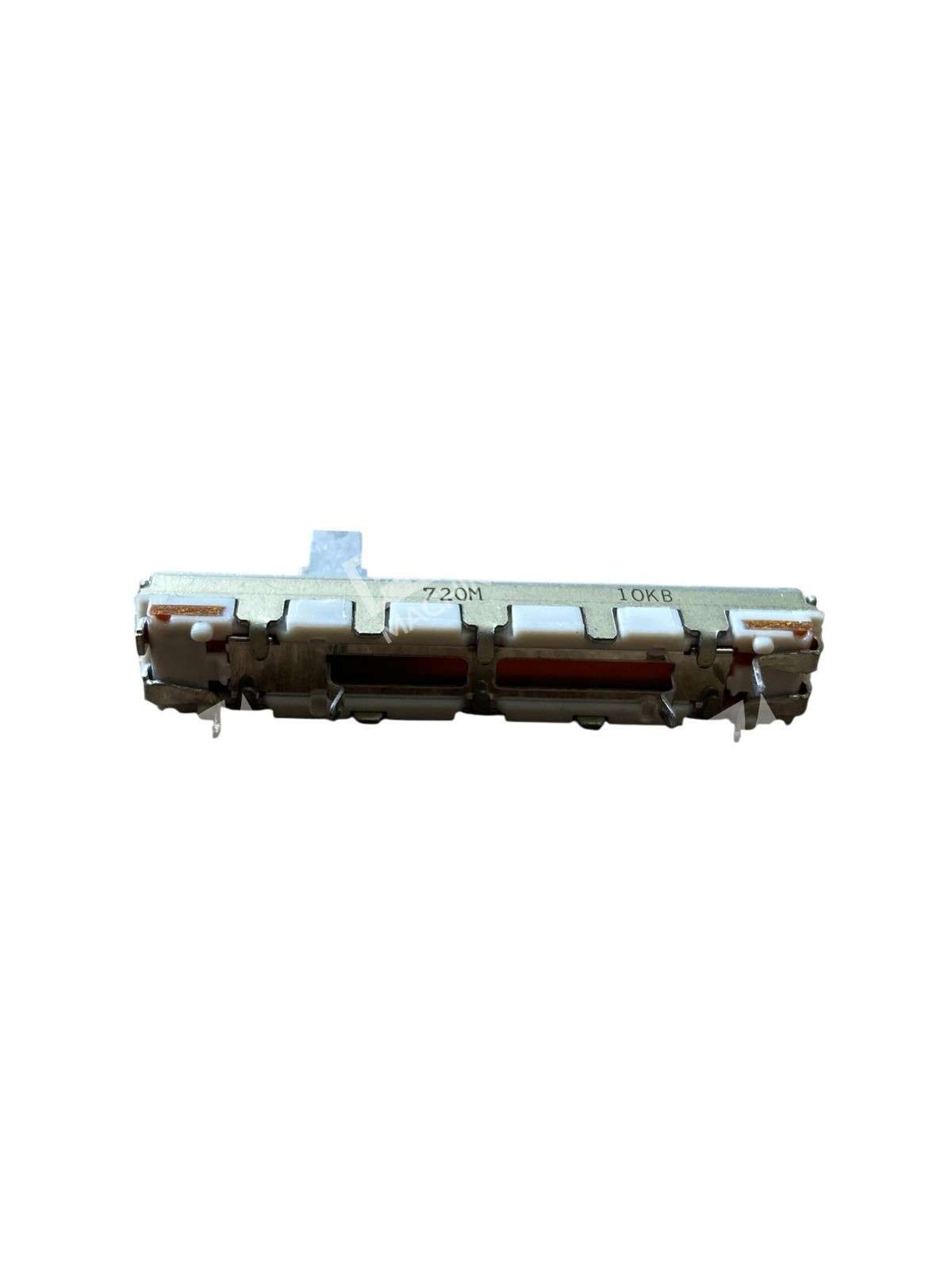

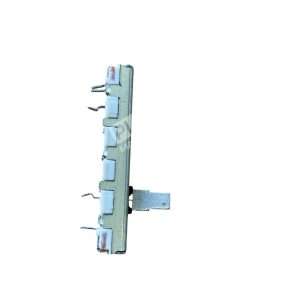

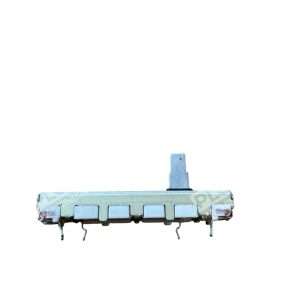

The 720M Linear Slide Potentiometer is a high-quality component designed for precise control in electronic circuits. Featuring a 10K ohm resistance with a linear B taper, this potentiometer ensures smooth and consistent adjustment across its range.
Key Features
- Resistance: 10K ohms, suitable for various applications requiring precise voltage control.
- Taper Type: Linear B taper (10KB or B10K), providing a uniform response curve for accurate adjustments.
- Mounting: 3-pin PCB mount configuration, facilitating easy integration into printed circuit boards.
- Travel Distance: Typically 30mm, allowing for fine-tuned control over the potentiometer’s range.
- Power Rating: 0.2W (200mW), ensuring reliable performance in standard operating conditions.
- Voltage Rating: Maximum of 200VAC, accommodating a range of voltage requirements.
- Insulation Resistance: 10M ohms, providing excellent electrical insulation properties.
- Withstand Voltage: 250VAC for 1 minute, ensuring durability under voltage stress.
- Compliance: RoHS compliant, adhering to environmental and safety standards.
Applications
This potentiometer is ideal for use in audio equipment, instrumentation, and other electronic devices where precise control of voltage or signal levels is required. Its linear response and reliable performance make it a preferred choice for designers and engineers.
Dimensions
- Width: 9.5mm
- Length: 45.0mm
- Height: 6.5mm
- Shaft Lever Height: 15mm
These dimensions ensure compatibility with standard PCB layouts and enclosures, facilitating seamless integration into various designs.
In summary, the 720M Linear Slide Potentiometer offers precise control, reliable performance, and easy integration, making it an excellent choice for a wide range of electronic applications.
