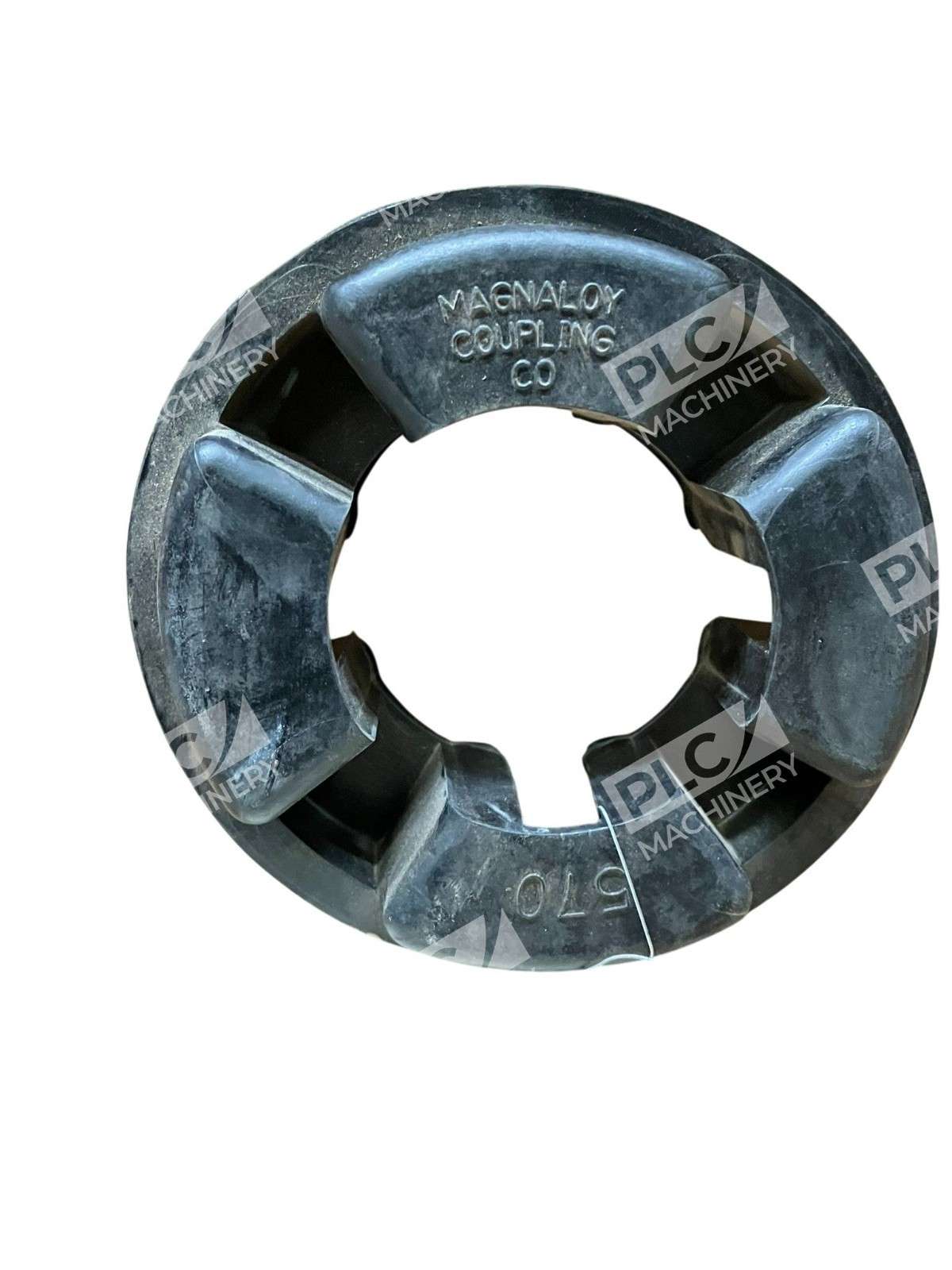

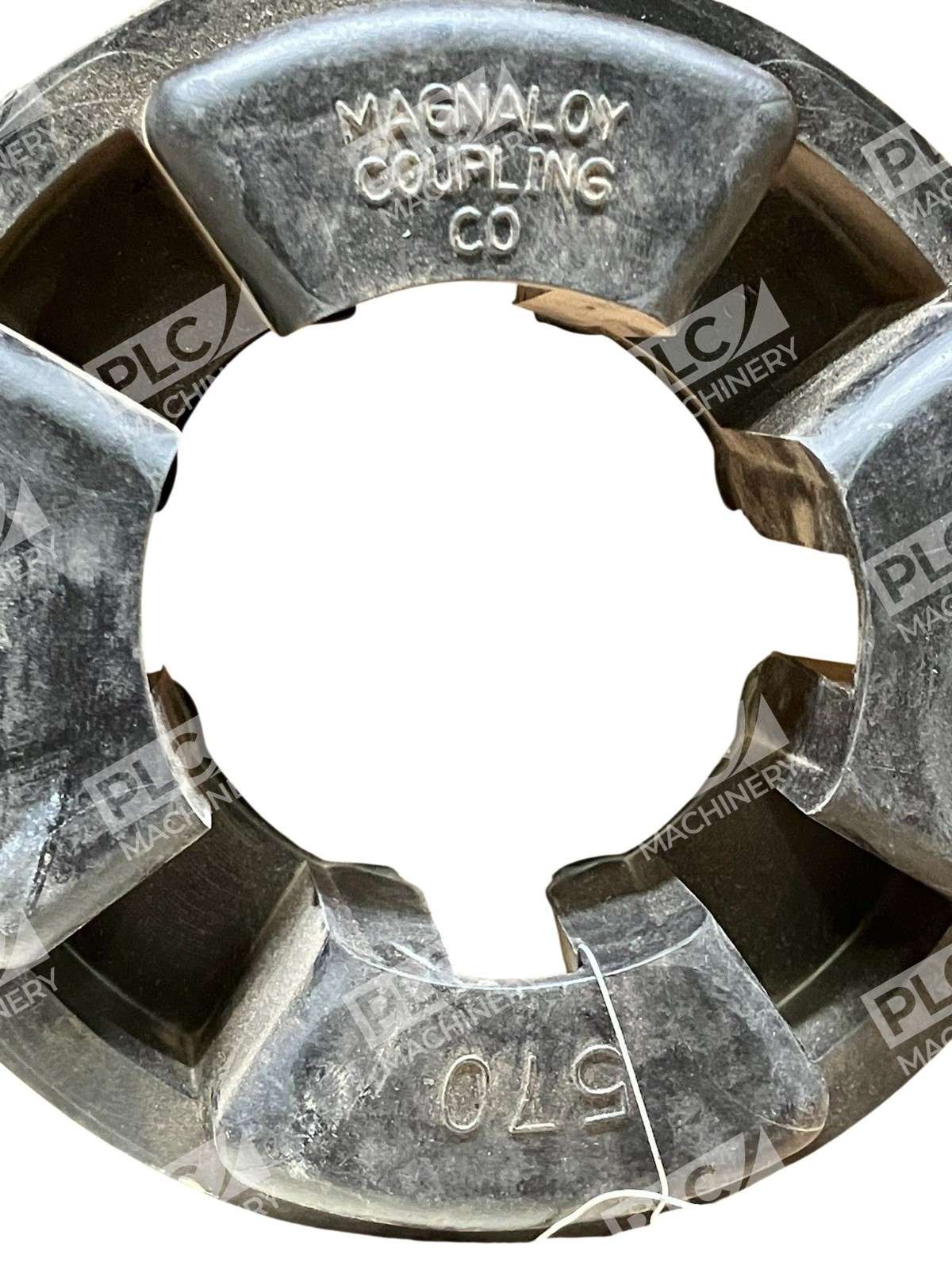

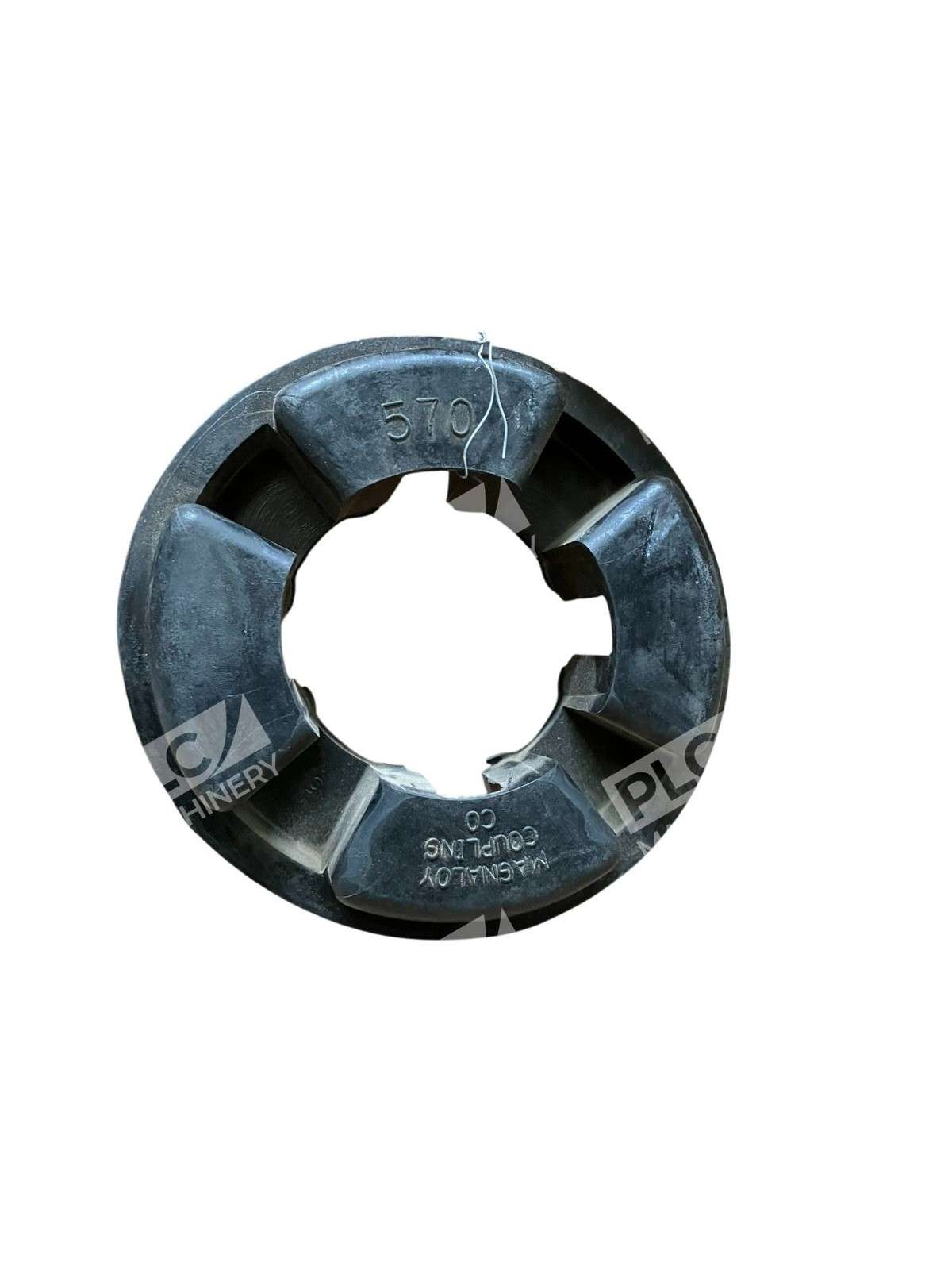

Magnaloy 570 Flexible Coupling Insert Elastomeric The Magnaloy 570 Flexible Coupling Insert is a critical component designed to enhance the performance and longevity of flexible drive couplings. Crafted from high-quality elastomeric materials, this insert effectively transmits torque while accommodating misalignment and dampening vibrations between connected shafts. Key Features Material Options: Available in various elastomeric compounds, including Neoprene, Nitrile (Buna N), Urethane, Viton (Fluorocarbon), Hytrel, and EPDM, each offering distinct advantages in terms of resilience, chemical compatibility, and temperature resistance. Torque Ratings: Depending on the material and durometer, the 570 insert can handle torque ratings up to 6,584.4 in-lbs, ensuring reliable performance under varying load conditions. Temperature Range: Designed to operate efficiently across a broad temperature spectrum, with some materials functioning from -65°F to +400°F, making them suitable for diverse industrial environments. Durometer Hardness: Offered in different hardness levels, such as 70A for Neoprene and 55D for Hytrel, allowing users to select the appropriate insert based on specific application requirements. Color Coding: Inserts are color-coded for easy identification—Neoprene (Black), Nitrile (Blue), Urethane (Yellow), Viton (Red), Hytrel (Blue-Green), and EPDM (White). Design and Performance The Magnaloy 570 insert features a “Load-Lock” design, where the drive lug configuration is tapered from top to base, as are the mating lugs of the opposing coupling hub. Under load, the insert conforms to the tapers, interlocking the two hubs. This design protects bearings and equipment by eliminating end thrust in both directions and requires only one set-screw in each hub. Additionally, the radial lug design ensures that applied forces are evenly distributed in the compressive direction only, eliminating the heat-generating radial component. This true compressive loading reduces internal heat generation and improves elastomer life. Applications The Magnaloy 570 Flexible Coupling Insert is ideal for use in various industrial applications, including hydraulic systems, pumps, compressors, and other machinery requiring reliable torque transmission and vibration dampening. Its versatility and range of material options make it suitable for environments with specific chemical exposures, temperature extremes, and load conditions. By selecting the appropriate Magnaloy 570 insert material and durometer, users can optimize the performance and durability of their flexible drive couplings, ensuring efficient and reliable operation in their specific applications.
