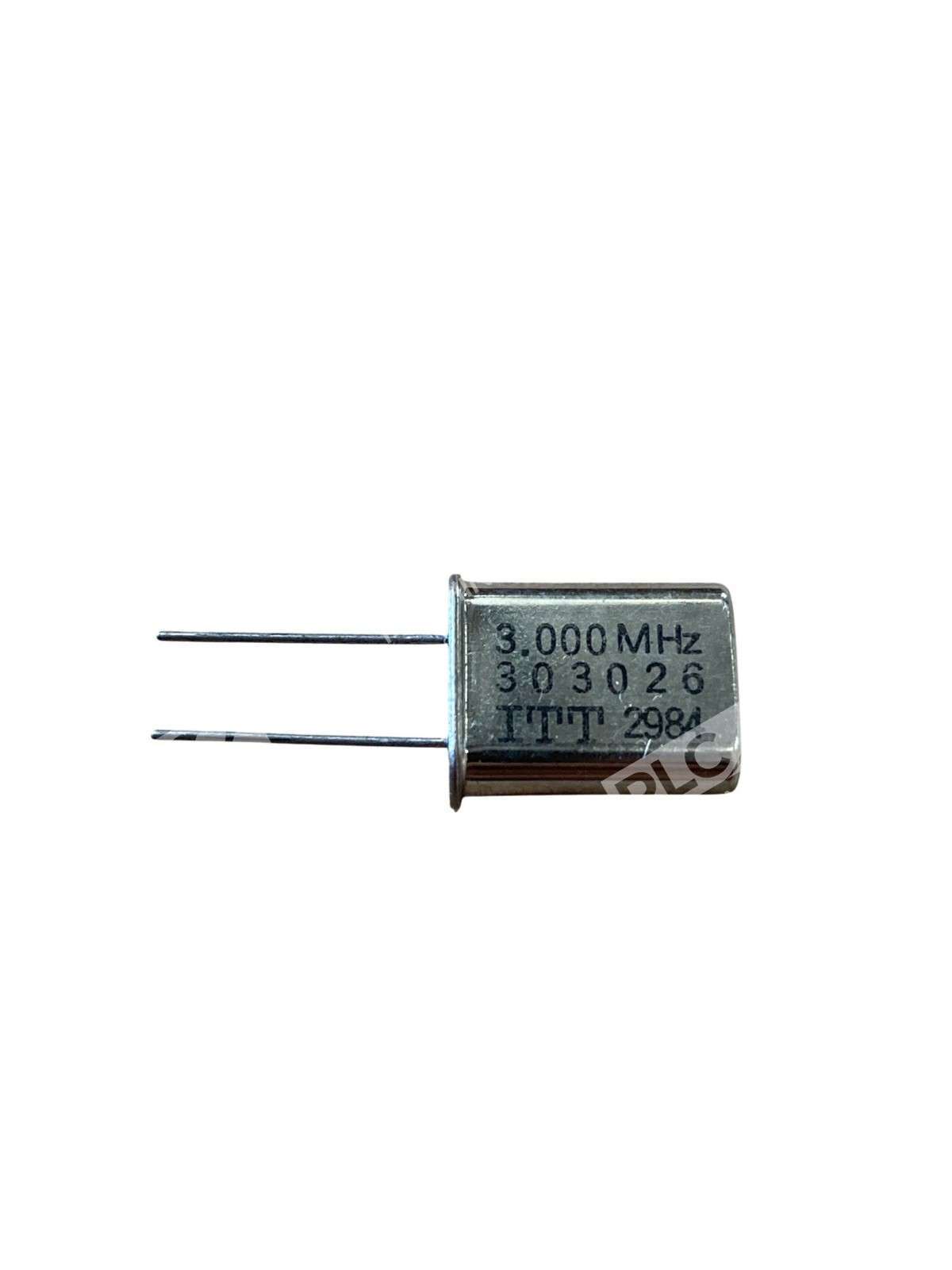

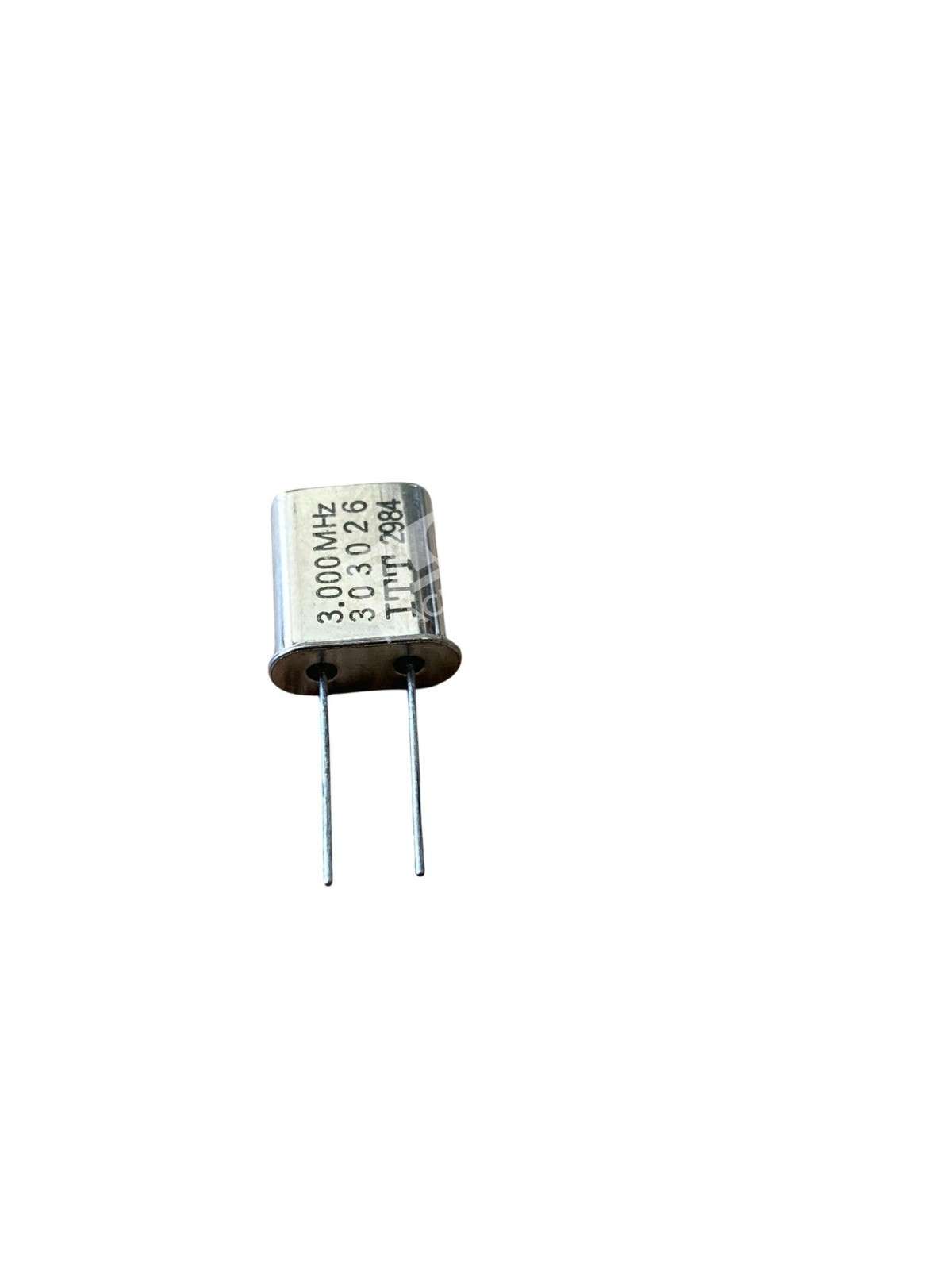

The ITT 303026 is a 3.000 MHz quartz crystal resonator housed in a durable metal can, designed for through-hole mounting. Key Features Frequency: 3.000 MHz Package Type: Metal can for through-hole mounting Oscillation Mode: AT-cut fundamental mode Load Capacitance: Typically 18 pF Frequency Tolerance: ±30 ppm at 25°C Operating Temperature Range: -20°C to +70°C Storage Temperature Range: -40°C to +85°C Equivalent Series Resistance (ESR): ?40? Drive Level: ?100 ?W Shunt Capacitance: ?5 pF Insulation Resistance: ?500 M? Aging: ±3 ppm/year Applications This crystal resonator is suitable for a variety of applications, including: Clock generation in microprocessor systems Timing devices in consumer electronics Frequency control in communication equipment Instrumentation and measurement devices Physical and Environmental Parameters Vibration Resistance: 10 to 55 Hz, 0.75 mm amplitude, in three directions for 30 minutes Shock Resistance: Natural dropping onto a 30 mm wooden board from a height of 30 cm, three times Solderability: Dipped terminals no closer than 2 mm into solder bath at 240 ±5°C for 3 ±0.5 seconds Thermal Shock: Temperature cycling from -40°C to +85°C, three cycles Humidity Resistance: Placed in a chamber with 90% to 95% relative humidity at 60 ±2°C for 48 hours The ITT 303026 crystal resonator offers reliable performance and stability, making it an excellent choice for precision timing applications.
