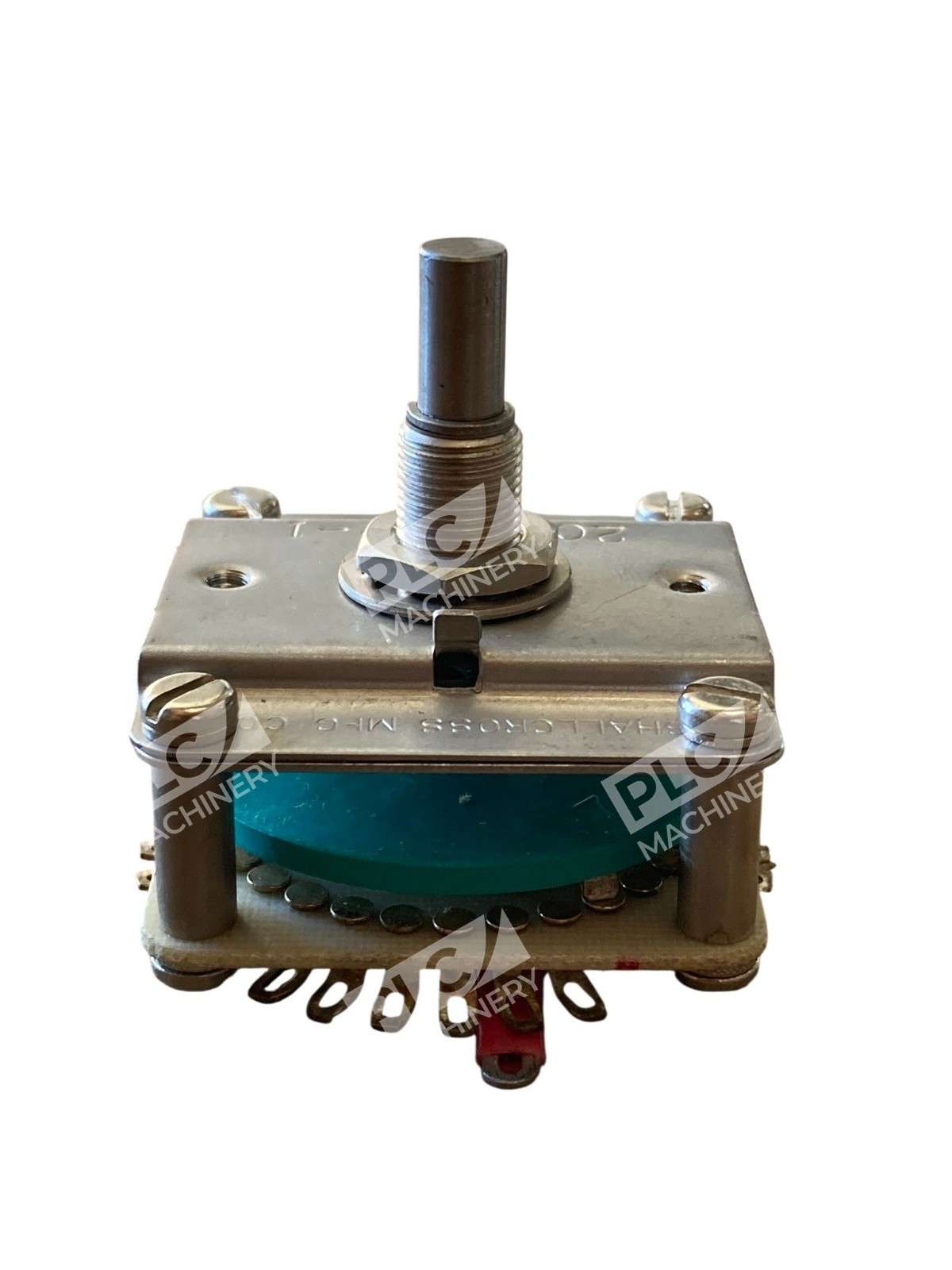

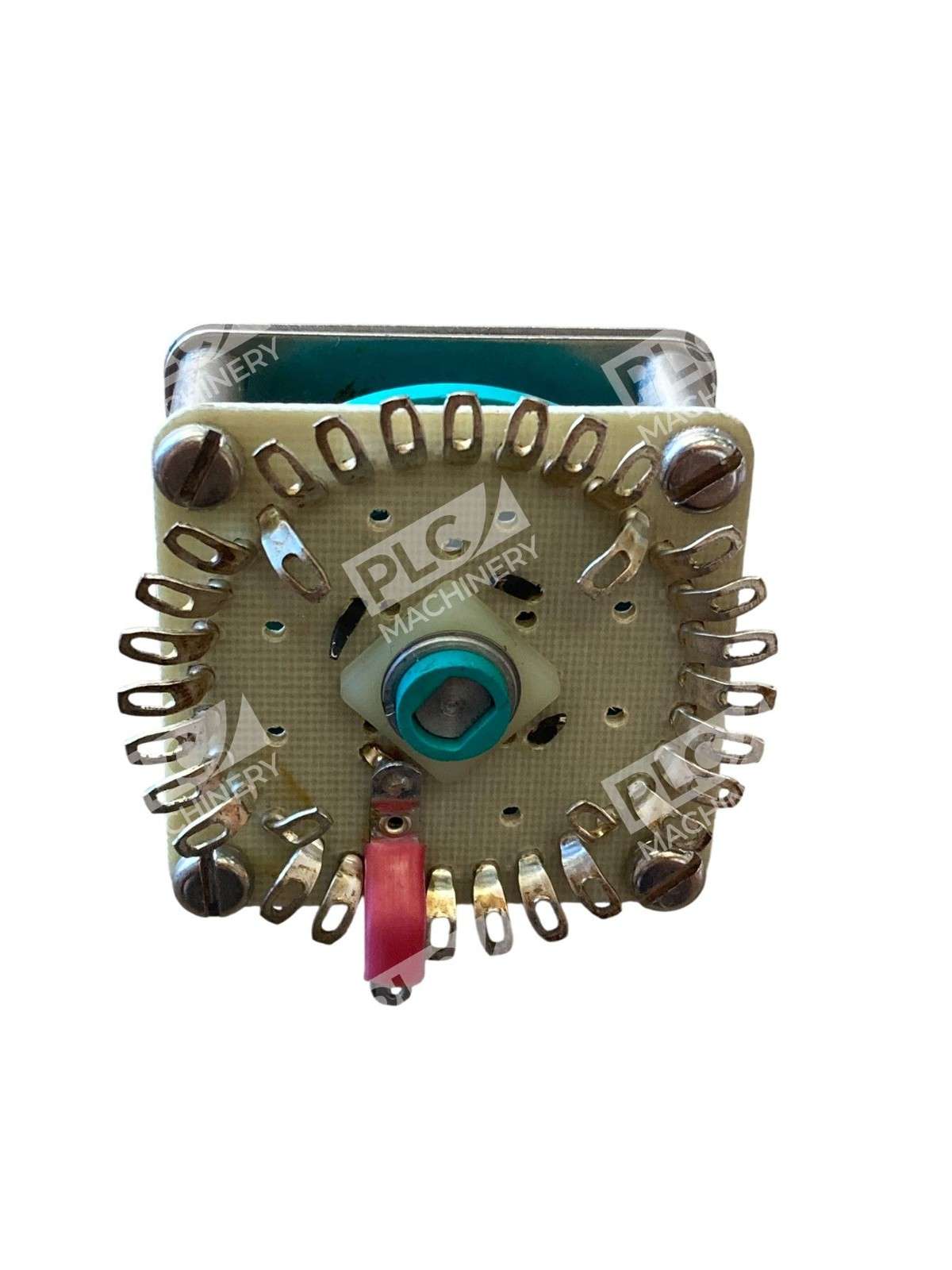

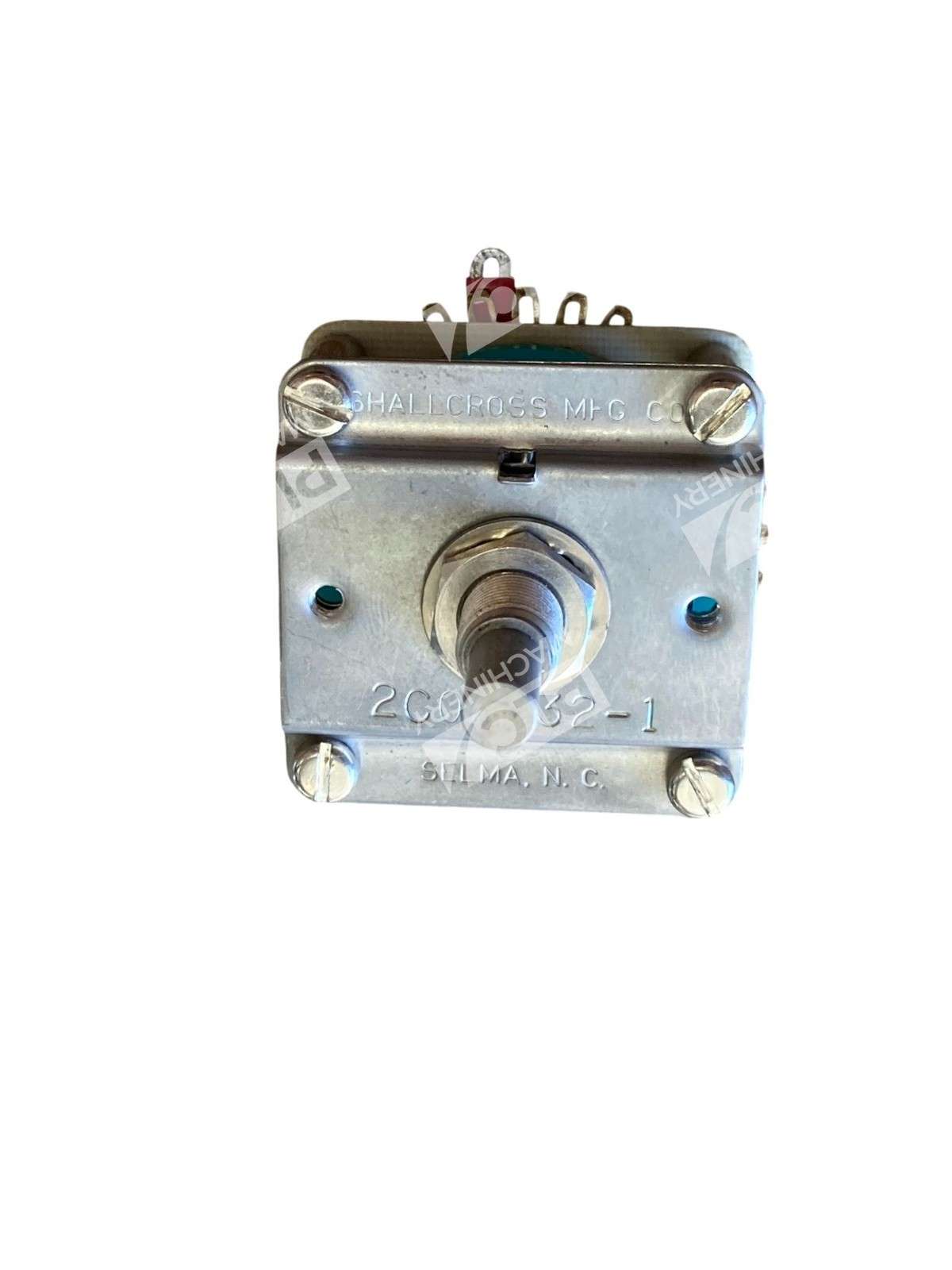

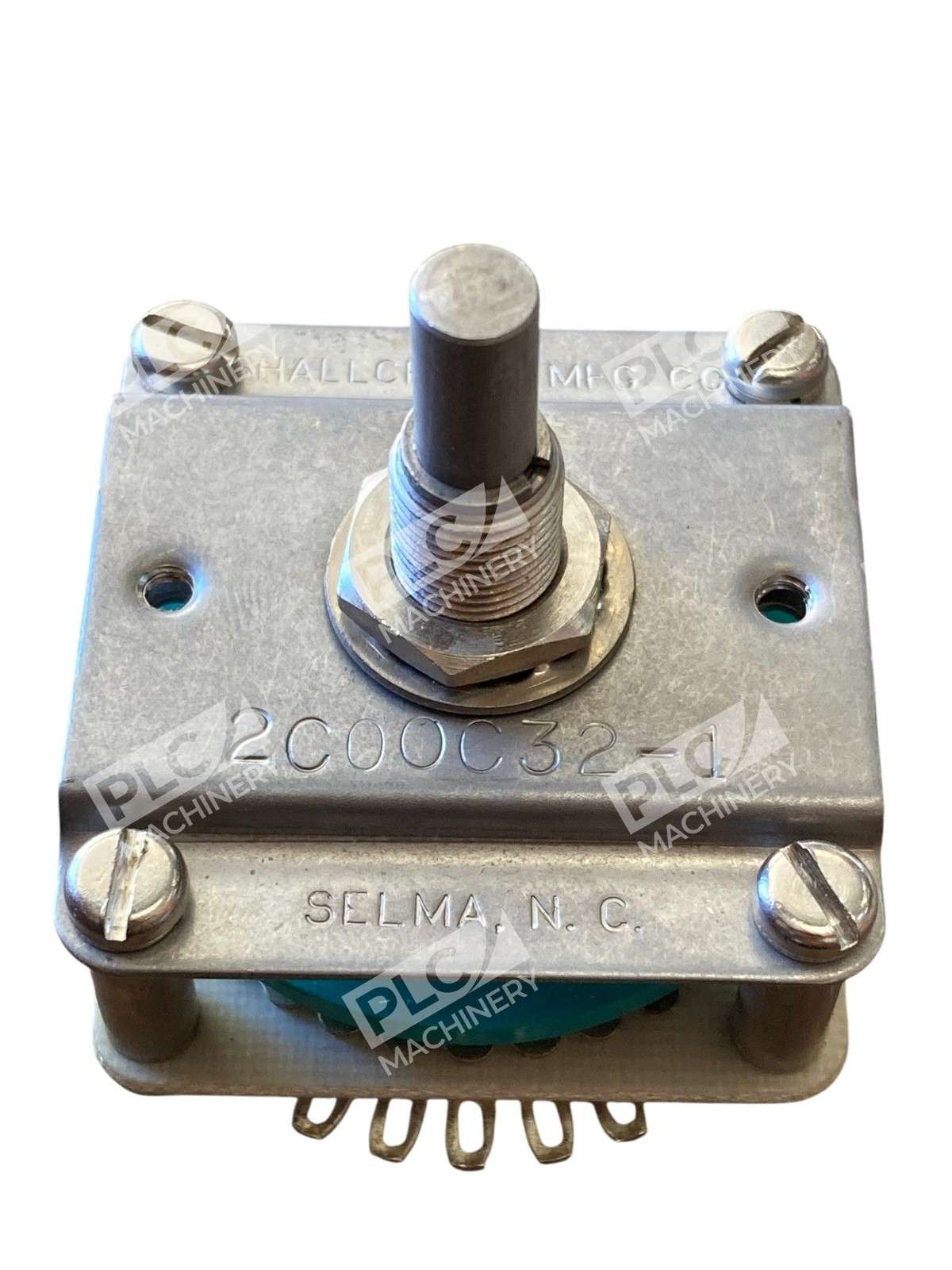

The Shallcross 2C00C32-1 Rotary Switch is a high-quality, open-frame rotary switch designed for industrial and military applications. Part of Shallco’s Series C, this switch offers versatility and reliability for various demanding environments. Key Features Poles and Positions: Available in configurations of one to four poles, with up to 32 positions per pole in shorting configurations and 12 positions per pole in non-shorting configurations. Construction: Open-frame design ensures durability and ease of maintenance. Contact Configuration: Offers both shorting (make-before-break) and non-shorting (break-before-make) options to suit different circuit requirements. Materials: Constructed with high-quality materials, including stainless steel for non-current carrying parts and coin silver for contacts and terminals, ensuring superior performance and longevity. Temperature Range: Operates effectively within a temperature range of -65°C to +125°C, making it suitable for extreme conditions. Electrical Ratings: Rated for continuous operation at 2 amperes (115 VAC or 28 VDC) for 5,000 cycles and 1 ampere (115 VAC or 28 VDC) for 25,000 cycles. Contact Resistance: Initial contact resistance is typically 2.5 milliohms maximum, maintaining stability over the switch’s lifespan. Indexing: Features 30° indexing with up to 12 positions per pole, providing precise control and flexibility. Applications The Shallcross 2C00C32-1 Rotary Switch is ideal for use in military equipment, industrial machinery, and other applications requiring reliable and precise rotary switching capabilities. Its robust construction and versatile configurations make it suitable for complex circuit designs and demanding operational environments. Additional Information Shallco, Inc. offers a comprehensive range of rotary switches, including the Series C, to meet various application needs. For detailed specifications and customization options, please refer to Shallco’s official product documentation.
