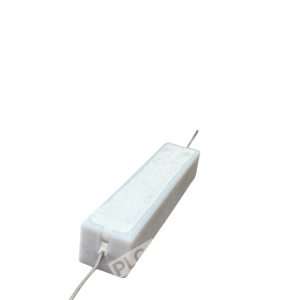

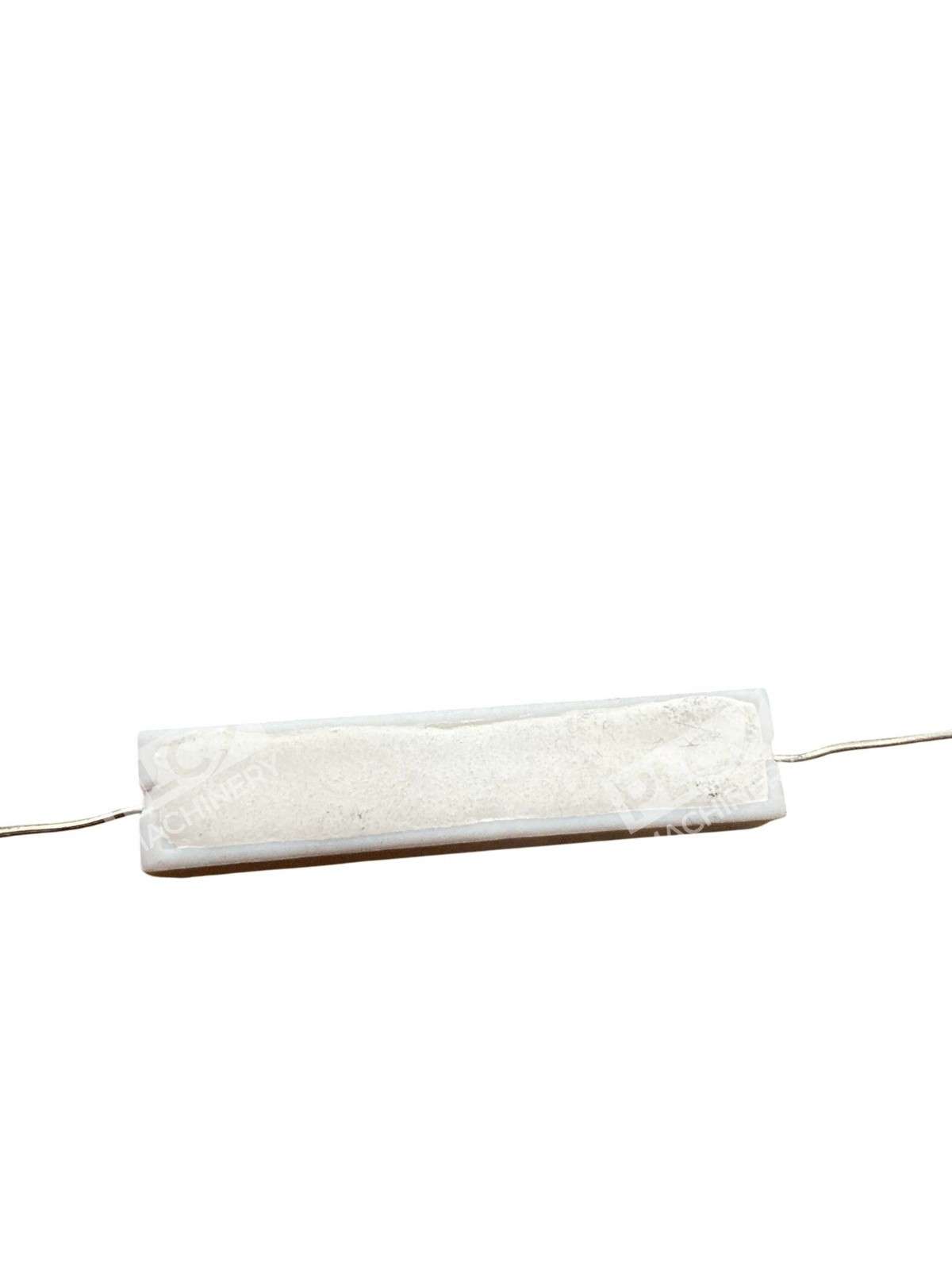

10W 0.51Ω Ceramic Cement Wirewound Resistor with Axial Leads (Model: TYH97.10)
The 10W 0.51Ω Ceramic Cement Wirewound Resistor, model TYH97.10, is engineered for applications requiring precise resistance and robust performance. Its wirewound construction ensures accurate resistance values, while the ceramic cement casing provides excellent heat dissipation and durability.
Key Features
- Power Rating: 10 watts
- Resistance: 0.51 ohms
- Tolerance: ±5%
- Construction: Wirewound resistor encased in ceramic cement
- Leads: Axial leads for easy PCB mounting
Dimensions
- Body Length: Approximately 48 mm
- Body Width: Approximately 9.5 mm
- Body Height: Approximately 9.5 mm
- Lead Diameter: 0.8 mm
- Lead Length: 27 mm (each end)
Applications
This resistor is suitable for various applications, including:
- Power supplies
- Amplifiers
- Industrial controls
- Audio equipment
- Other electronic circuits requiring precise current regulation
Performance Characteristics
- Temperature Coefficient: ±400 ppm/°C for resistance values between 0.01Ω and 20Ω
- Dielectric Withstanding Voltage: 1,000 VAC
- Short-Time Overload: Capable of withstanding 10 times the rated power for 5 seconds
The TYH97.10 resistor combines precision, durability, and ease of integration, making it an ideal choice for demanding electronic applications.
