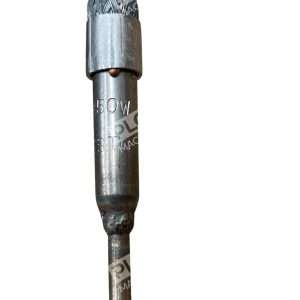

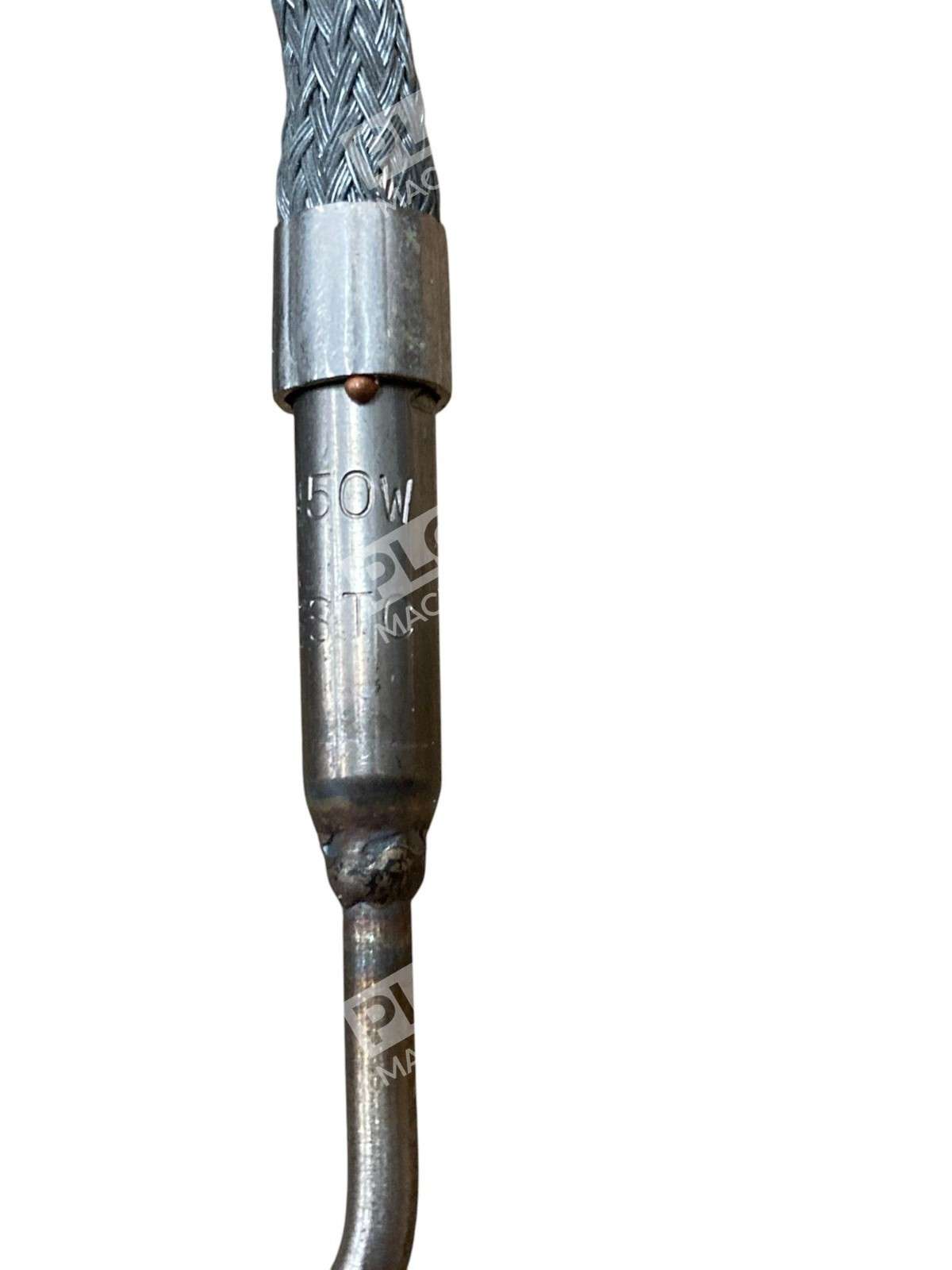

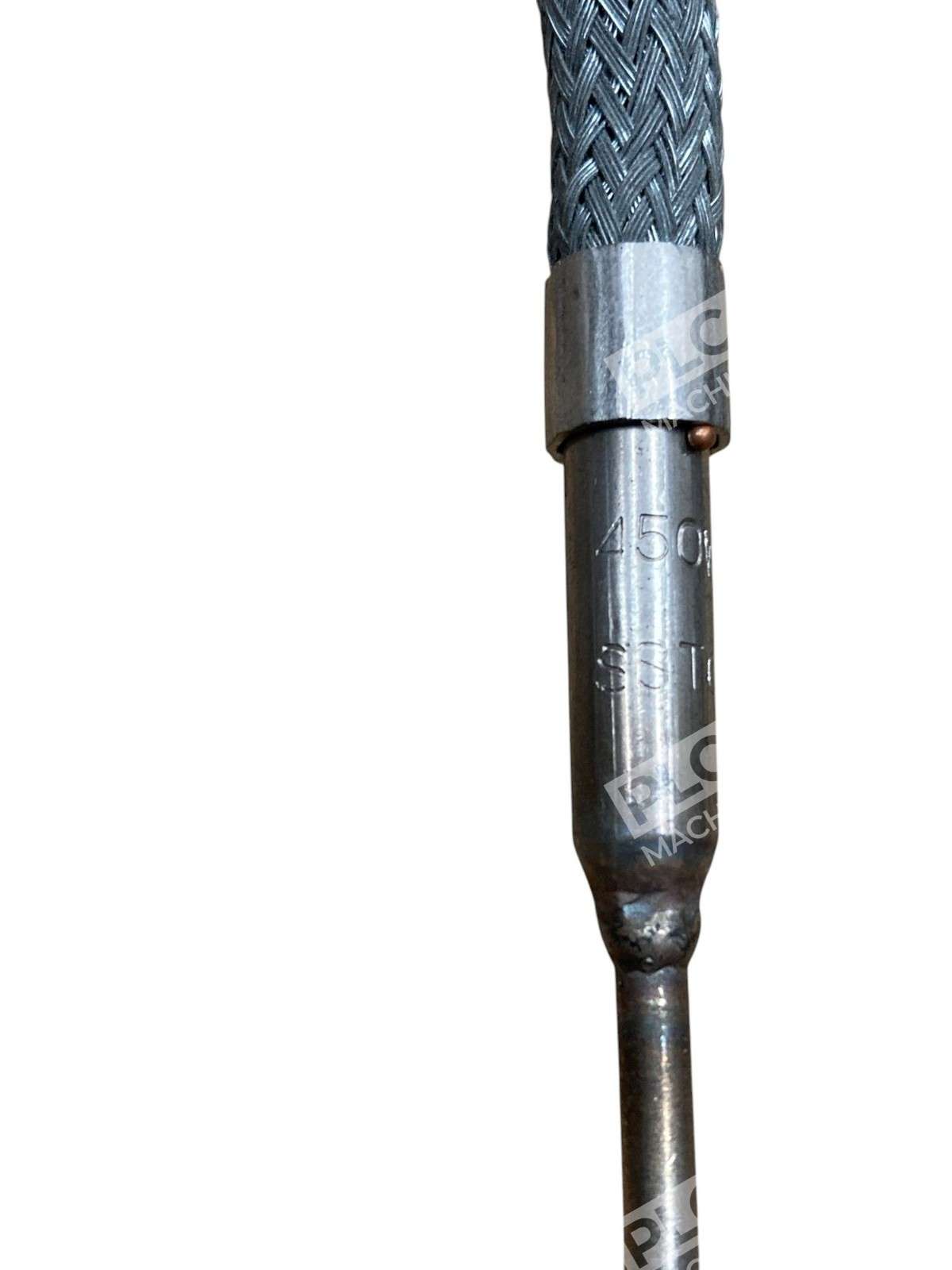

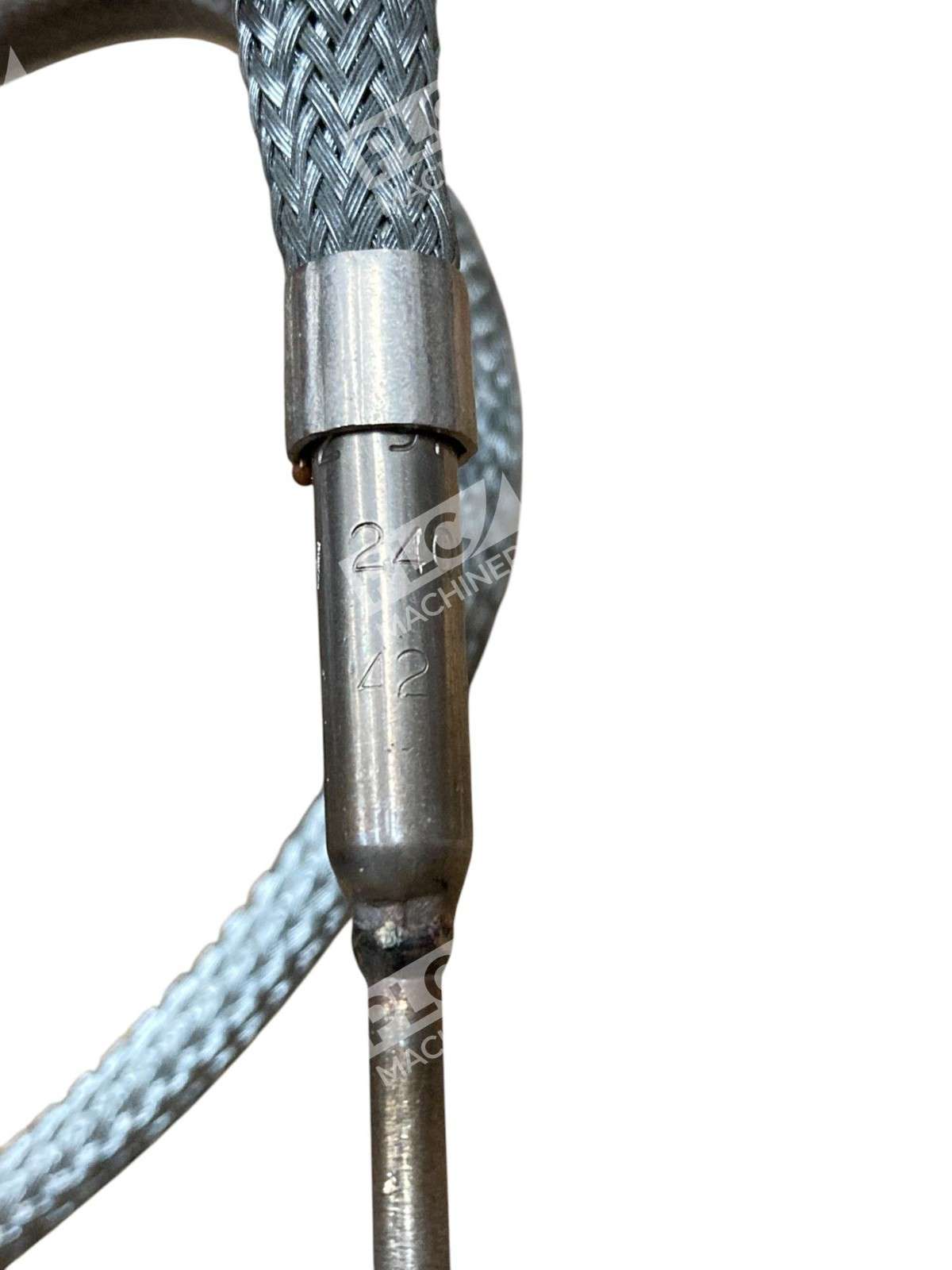

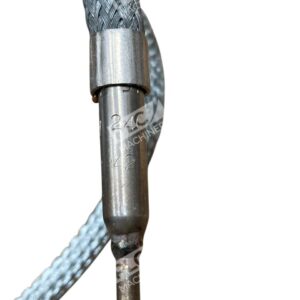

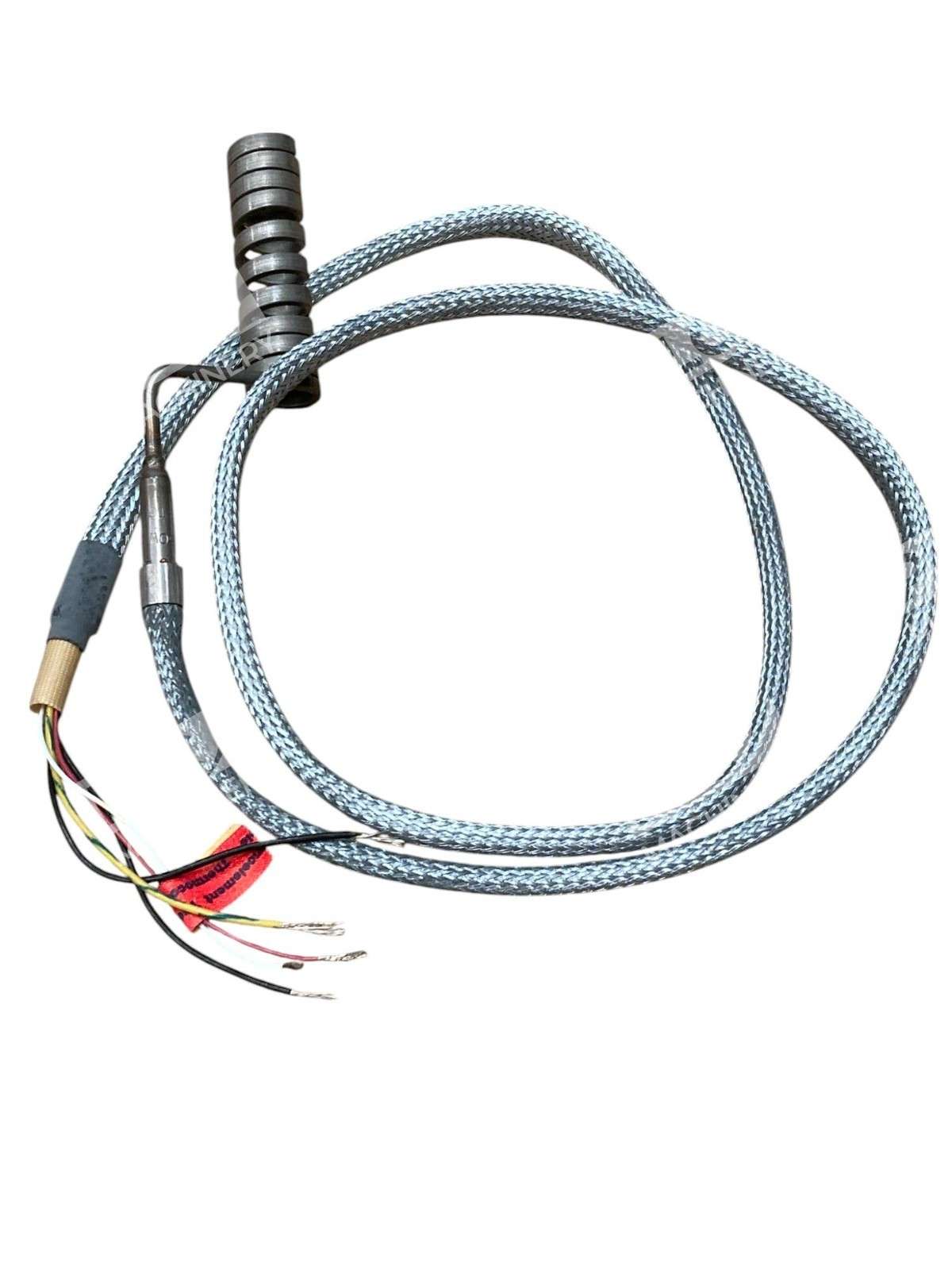

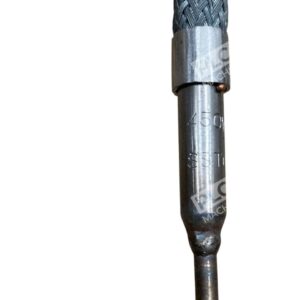

0.5″ ID x 2.5″ Coil Heater 450W 240V SSTC-42
The 0.5″ ID x 2.5″ Coil Heater, model SSTC-42, is a high-performance heating element designed for precision applications requiring efficient and uniform heat distribution. With a power rating of 450 watts and operating at 240 volts, this coil heater is engineered to meet the demands of various industrial processes.
Key Features
- Internal Diameter: 0.50 inches
- Coil Length: 2.5 inches
- Power Output: 450 watts
- Voltage: 240 volts
- Lead Length: 36 inches with stainless steel overbraid
- Lead Orientation: CL4 configuration
- Unheated Length at Lead End: 2.25 inches
- Thermocouple Type: Type J
Design and Construction
The SSTC-42 coil heater features a square cross-section measuring 0.13″ x 0.13″, ensuring optimal surface contact and efficient heat transfer. The stainless steel overbraid on the leads provides enhanced durability and protection against mechanical stress and environmental factors. The inclusion of a Type J thermocouple allows for accurate temperature monitoring and control, essential for maintaining process consistency.
Applications
This coil heater is suitable for a wide range of industrial applications, including but not limited to:
- Injection molding machines
- Hot runner systems
- Extrusion equipment
- Packaging machinery
- Medical and laboratory devices
Its compact design and robust construction make it an ideal choice for applications where space is limited, and reliable heating is critical.
Installation and Compatibility
The SSTC-42 is designed for easy installation, with flexible leads that can be routed as needed to accommodate various machine configurations. Its specifications align with standard industry requirements, ensuring compatibility with existing systems and facilitating straightforward replacement or integration.
For detailed installation guidelines and safety precautions, please refer to the manufacturer’s documentation or consult with a qualified technician to ensure optimal performance and longevity of the heater.
