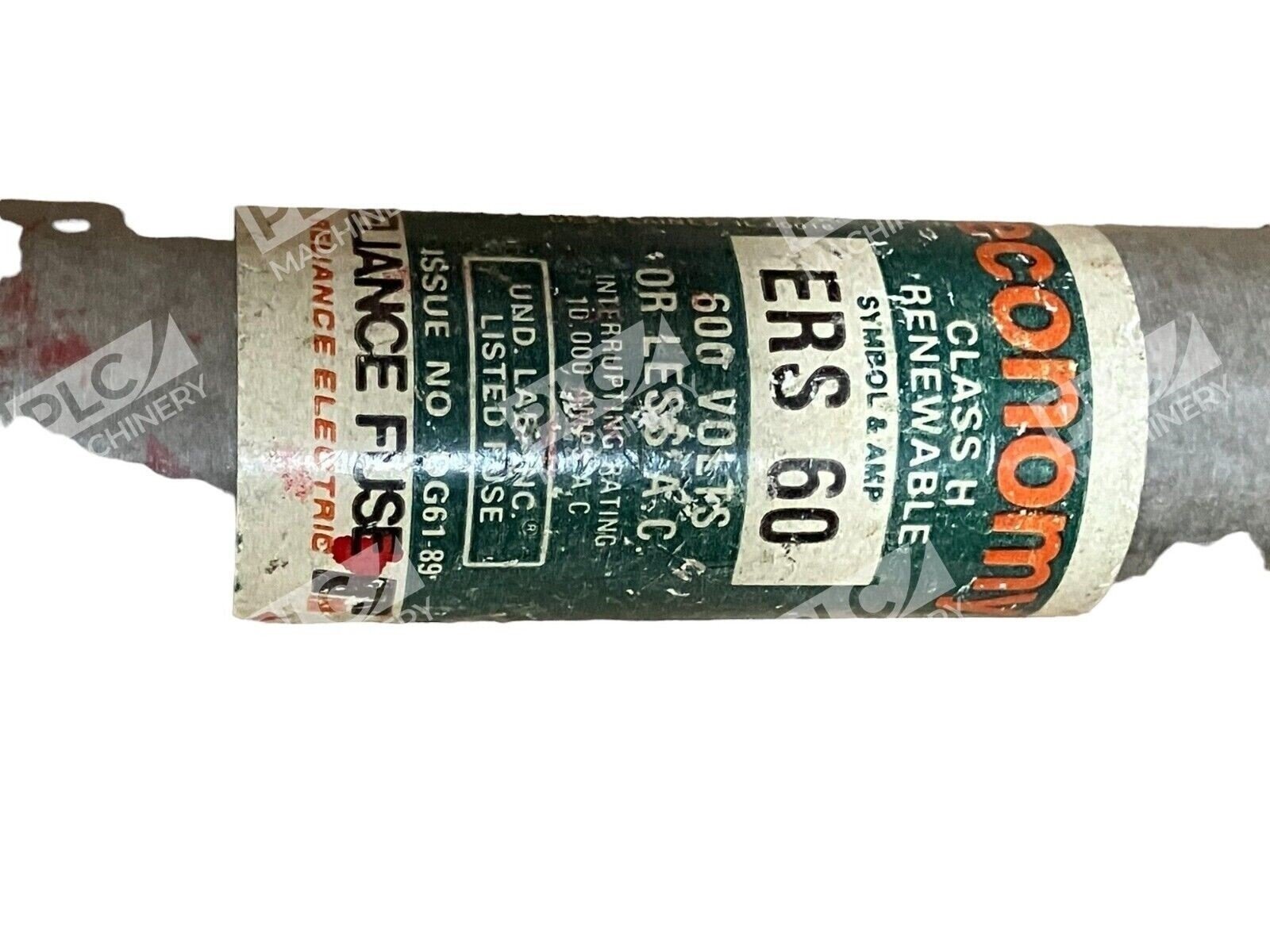

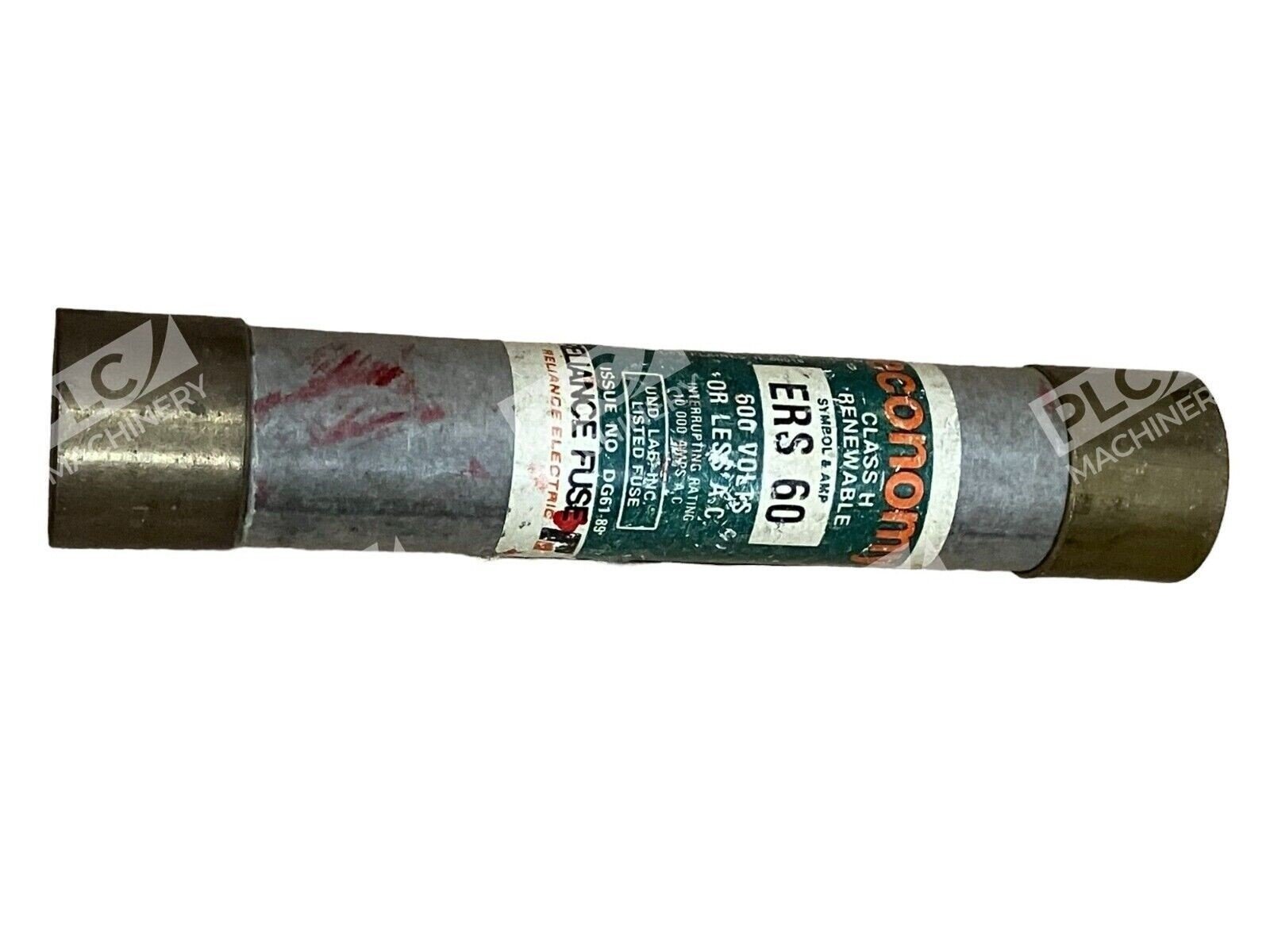

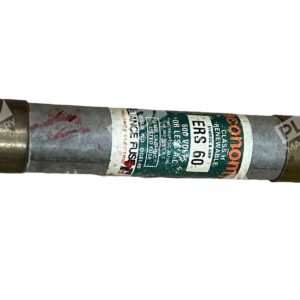

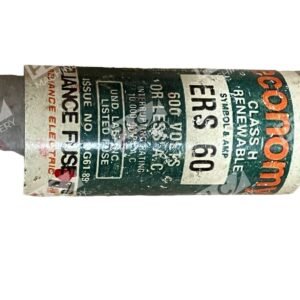

Reliance Fuse ERS60 60A 600V

The Reliance ERS60 is a 60-amp, 600-volt fuse designed for robust overcurrent protection in various electrical applications.

Key Features

• Amperage Rating: 60 Amps
• Voltage Rating: 600 Volts AC
• Fuse Type: Time-Delay
• Class: RK5
• Interrupting Rating: 200,000 Amps at 600V

Applications

The ERS60 fuse is suitable for protecting motor circuits, mains feeders, branch circuits, transformers, and general-purpose equipment. Its time-delay feature allows it to handle temporary inrush currents without nuisance tripping, making it ideal for circuits with motors and transformers.

Construction and Design

Constructed with a durable polyester body, the ERS60 fuse ensures dimensional stability in harsh industrial environments. The high-grade silica filler provides efficient arc quenching and high current limitation. Its rejection-style design prevents replacement errors when used with recommended fuse blocks.

Compliance and Standards

The ERS60 fuse complies with UL Standard 248-12 and is CSA certified to Standard C22.2 No. 248.12. It is also DC listed to UL Standard 248, ensuring adherence to industry safety and performance standards.

Dimensions

• Length: 5.5 inches (139.7 mm)
• Diameter: 1.06 inches (27 mm)

The Reliance ERS60 fuse offers reliable and efficient protection for electrical systems, ensuring safety and performance in demanding applications.
