ASCO 8262G208

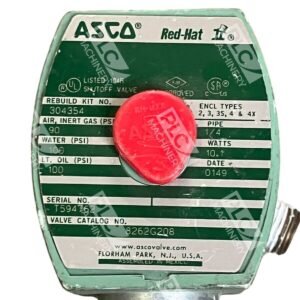

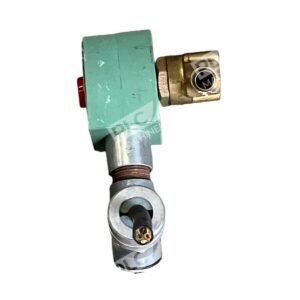

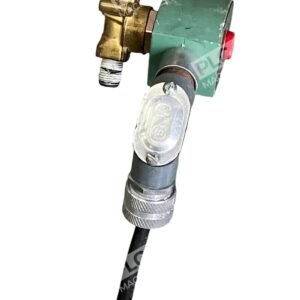

ASCO 8262G208 Solenoid Valve

The ASCO 8262G208 is a direct-acting, normally closed solenoid valve designed for efficient fluid control in various industrial applications. Its compact design and reliable performance make it suitable for handling air, water, and light oil in systems requiring precise flow regulation.

Key Features

• Direct-Acting Mechanism: Operates without the need for minimum operating pressure, ensuring immediate response upon energization.
• Normally Closed Configuration: Maintains a closed position when de-energized, preventing fluid flow until activated.
• High Flow Capacity: Offers a flow factor (Cv) of 0.72, facilitating efficient fluid transfer in compact systems.
• Poppet Valve Design: Ensures tight shutoff, minimizing leakage and enhancing system integrity.
• Versatile Mounting: Can be installed in any position, providing flexibility in system design and integration.

Technical Specifications

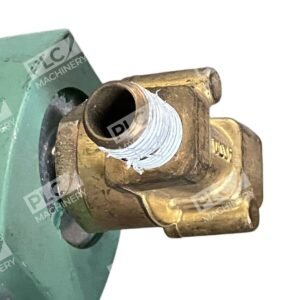

• Pipe Size: 1/4″ NPT
• Flow Factor (Cv): 0.72
• Operating Pressure Differential:
  • Air/Inert Gas: Up to 90 psi (AC), 25 psi (DC)
  • Water: Up to 100 psi (AC), 25 psi (DC)
  • Light Oil: Up to 100 psi (AC), 25 psi (DC)
• Maximum Fluid Temperature:
  • AC: 180°F (82°C)
  • DC: 150°F (66°C)
• Body Material: Brass
• Seal Material: NBR (Nitrile Butadiene Rubber)
• Voltage Options:
  • AC: 24V, 120V, 240V, 480V
  • DC: 6V, 12V, 24V, 120V, 240V
• Wattage:
  • AC: 10.1 W
  • DC: 11.6 W
• Solenoid Enclosure:
  • Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X
  • Optional: Explosion-proof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9

Applications

The ASCO 8262G208 is ideal for use in:

• Water treatment systems
• Compressed air systems
• Fuel skid modules
• Machine automation
• Process sampling rigs

Installation and Maintenance

• Ensure compatibility with system voltage and fluid type before installation.
• Mount the valve in any position; however, vertical orientation is recommended for optimal performance.
• Install a strainer at the inlet to prevent debris from entering the valve.
• Depressurize the system and disconnect power before servicing the valve.

The ASCO 8262G208 solenoid valve combines robust construction with reliable performance, making it a valuable component in various industrial fluid control applications.
