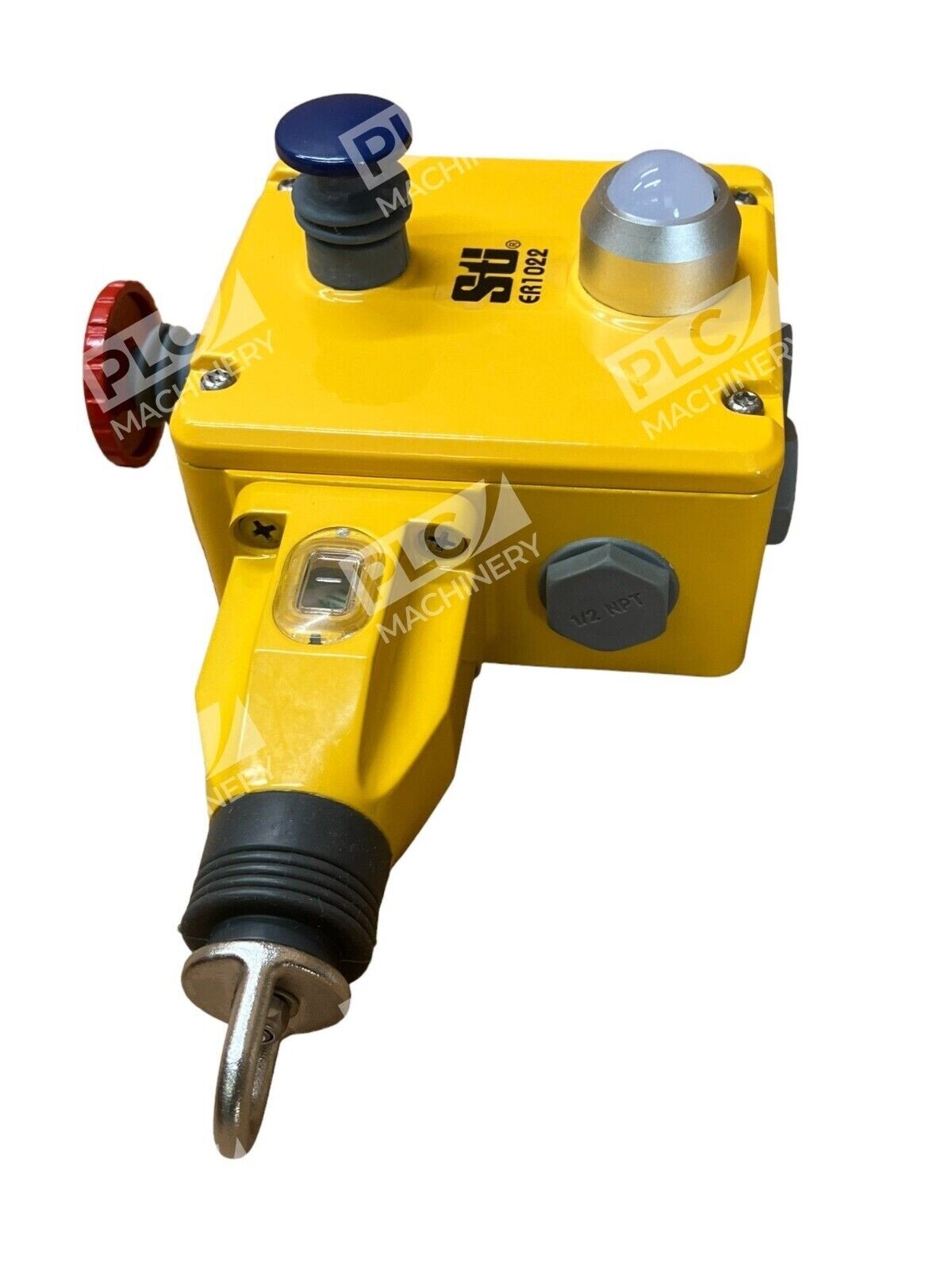

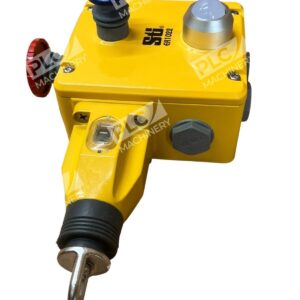

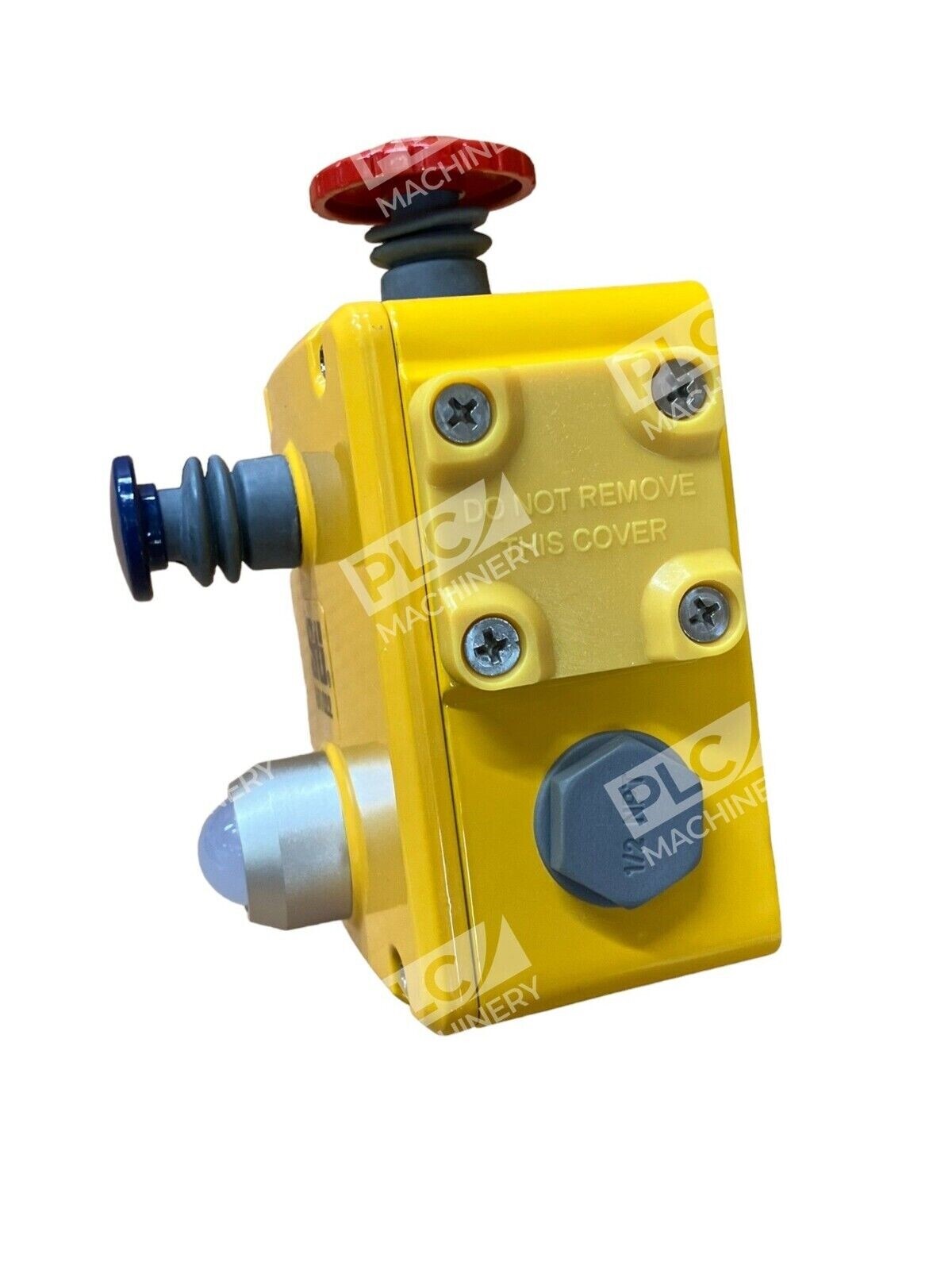

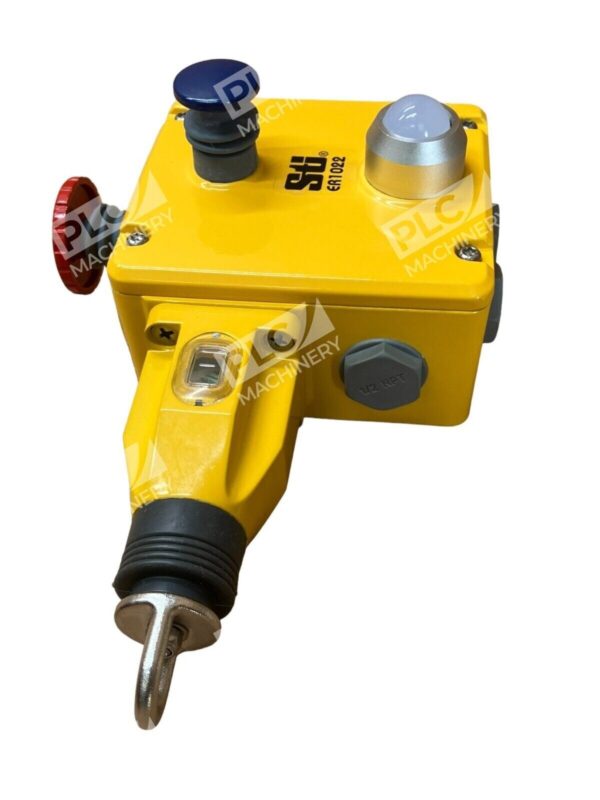

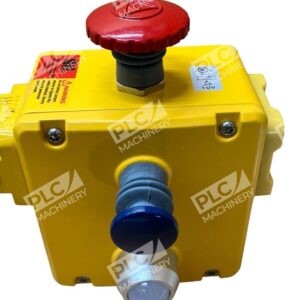

The STI 44506-6520 ER1022-042NELR Safety Switch is a robust rope pull emergency stop switch designed to enhance safety in industrial environments. It allows operators to initiate an immediate stop along the length of a conveyor or machine, ensuring rapid response to emergencies.
Key Features
- Extended Rope Span: Supports rope spans up to 125 meters (410 feet), making it suitable for large machinery and extensive conveyor systems.
- Durable Construction: Housed in a die-cast aluminum alloy casing, the switch is built to withstand harsh industrial conditions.
- High Protection Rating: With an IP67 (NEMA 6) rating, it is resistant to dust and water, ensuring reliable operation in challenging environments.

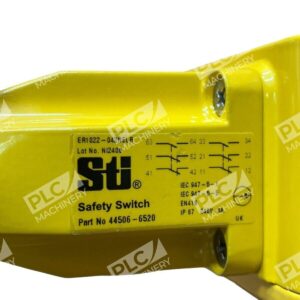

- Comprehensive Contact Configuration: Equipped with 4 normally closed (NC) safety contacts and 2 normally open (NO) auxiliary contacts to meet diverse application requirements.

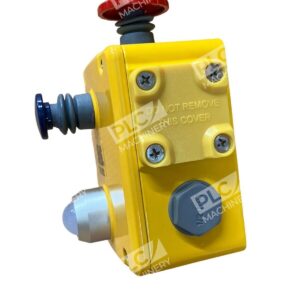

- Integrated E-Stop Button: Features an emergency stop button at the end of the rope span for immediate manual intervention.
- Indicator Beacon: Includes a 24 VDC indicator beacon that can be configured to flash red when the switch is tripped or glow green when properly reset, providing clear visual status indications.
- Vibration Tolerance: Designed to prevent nuisance tripping due to vibrations, ensuring consistent performance.
- Easy Installation and Maintenance: Features a tension indicator to simplify system setup and rope tension adjustments.
Technical Specifications
- Operating Temperature: -25°C to 80°C
- Electrical Ratings: 24V DC / 2.5A, 120V AC / 6A, 240V AC / 3A
- Wiring Entry: Four M20 entries for flexible wiring options
- Mechanical Durability: Rated for 1,000,000 cycles, ensuring long-term reliability
The STI 44506-6520 ER1022-042NELR Safety Switch is an essential component for enhancing safety measures in industrial settings, providing reliable and immediate emergency stop capabilities across extensive machinery setups.
