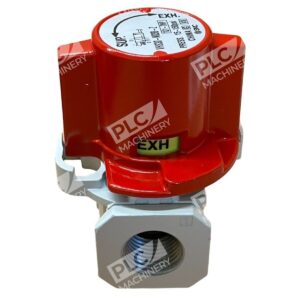

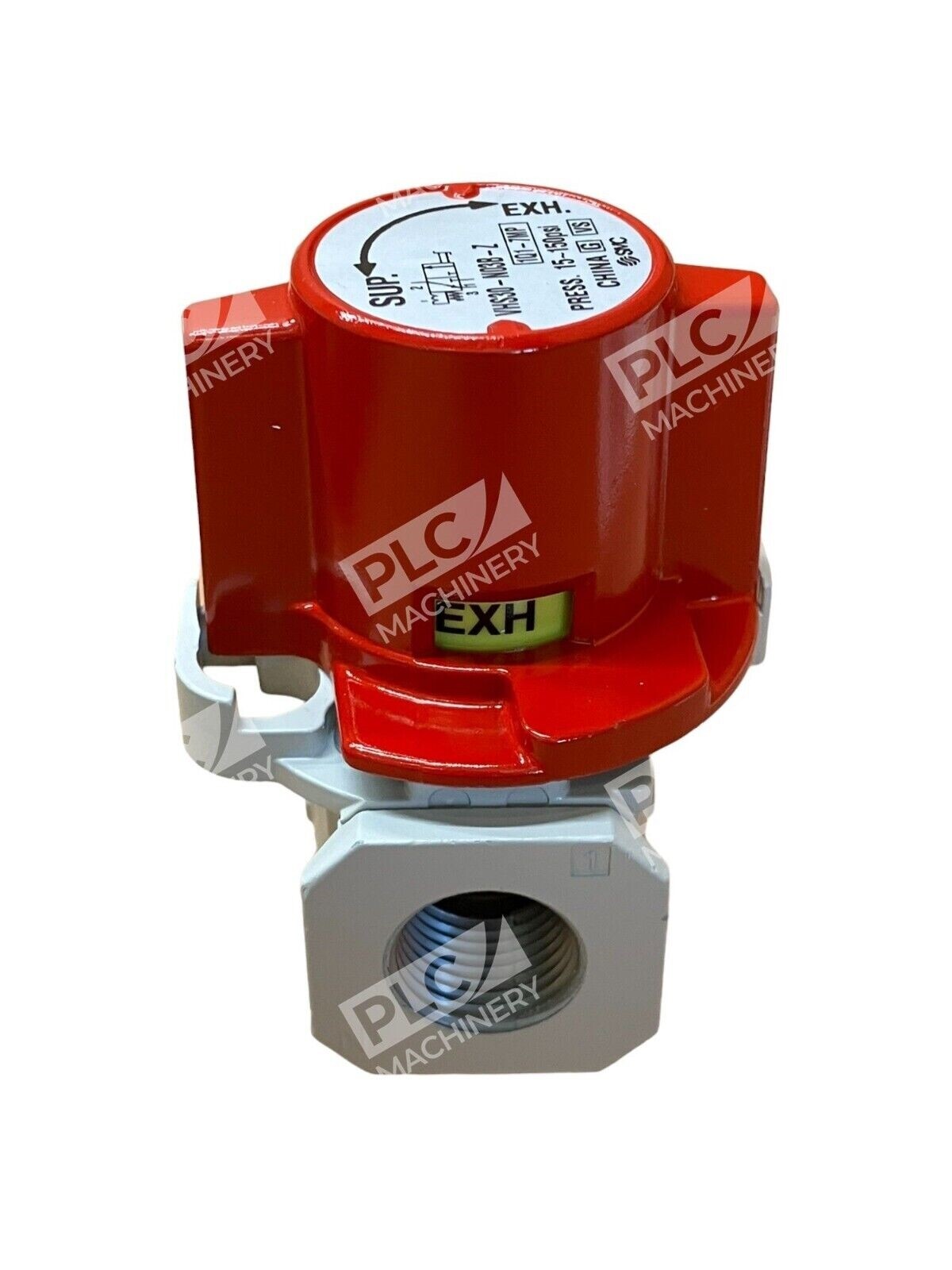

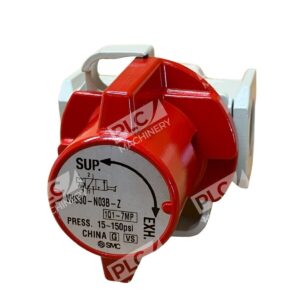

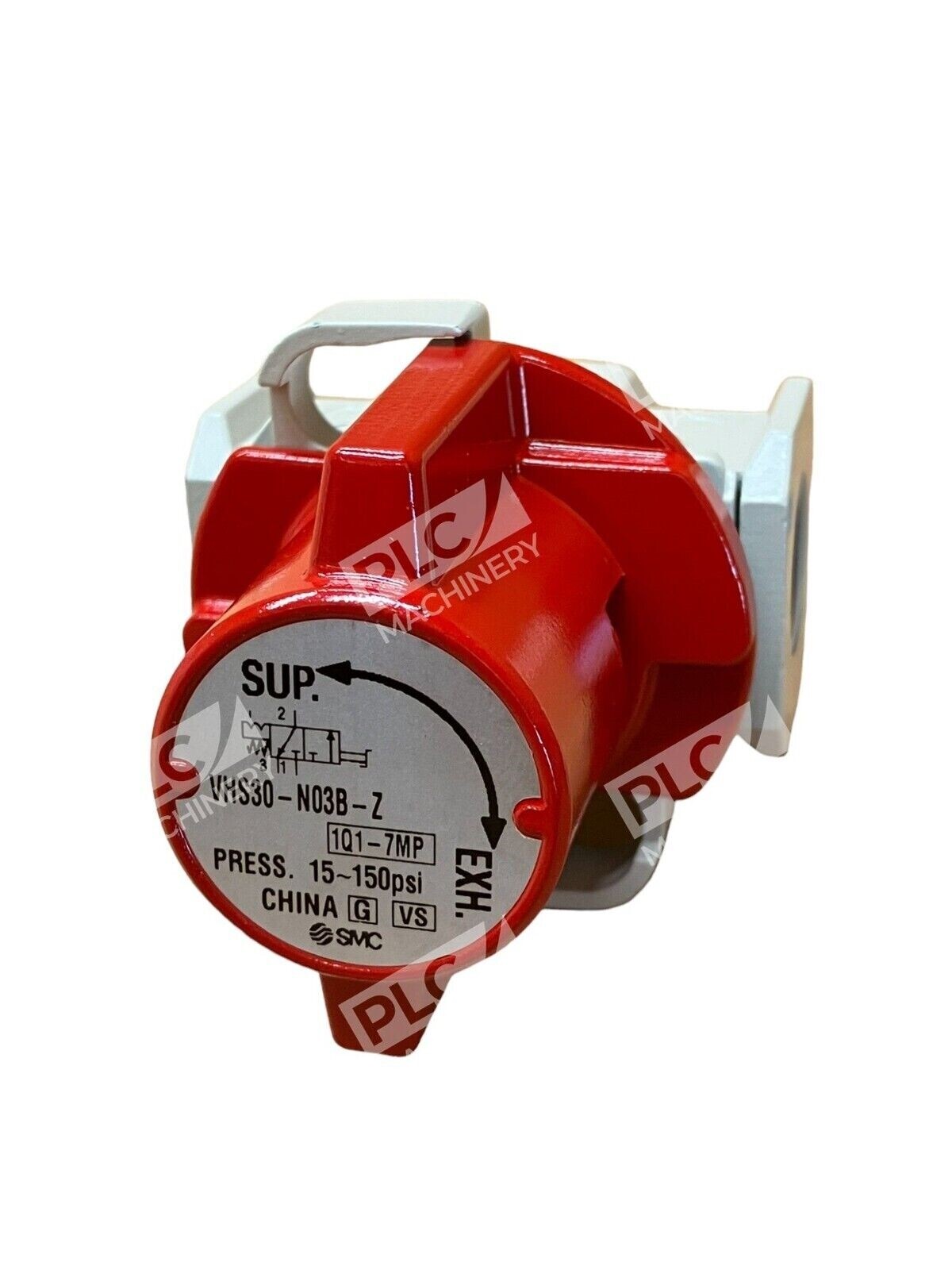

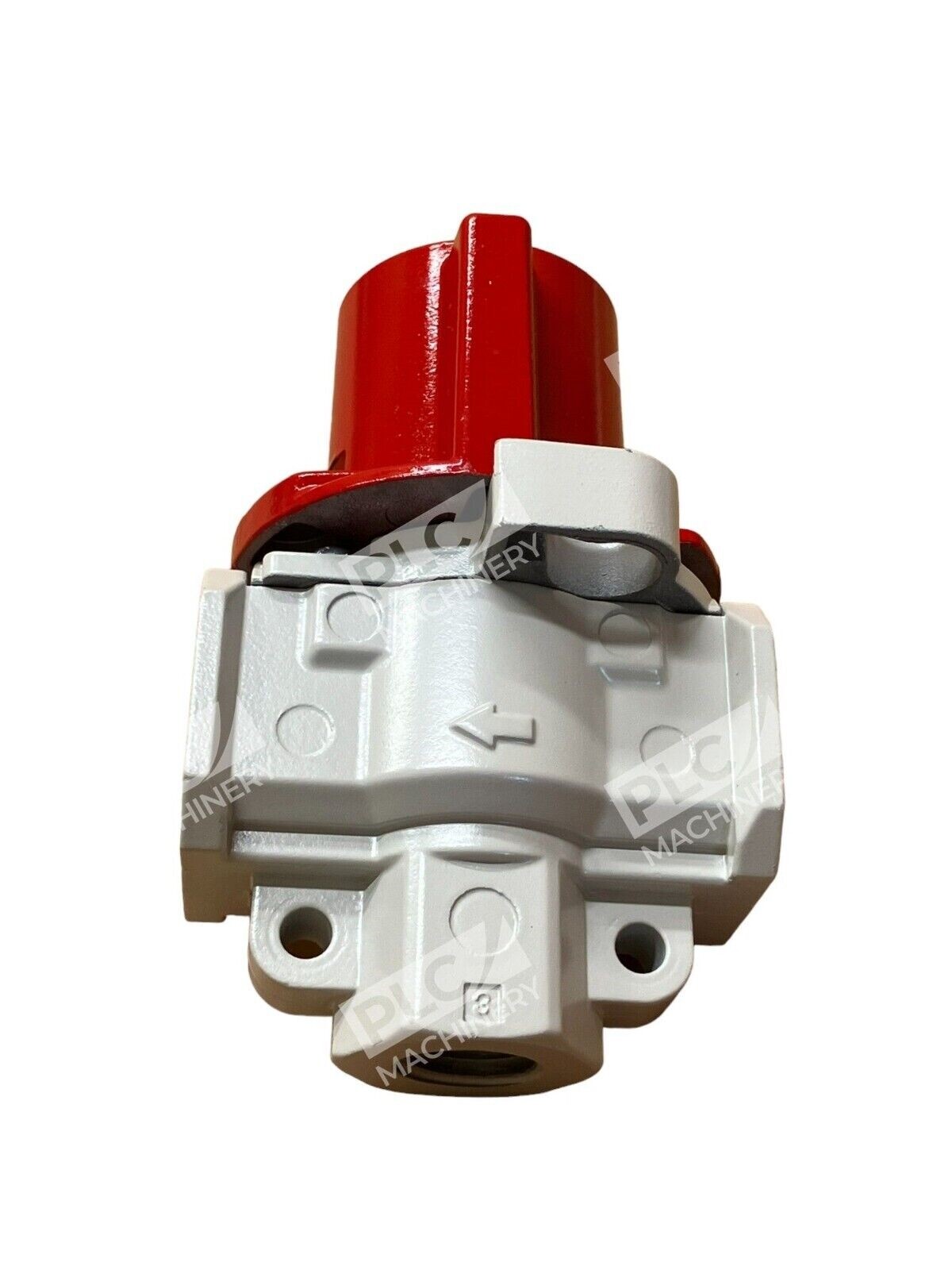

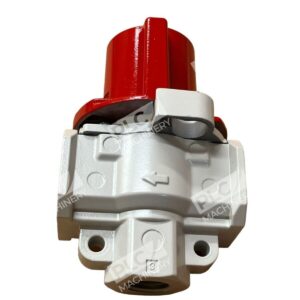

SMC VHS30-N03B-Z Pressure Relief Hand Valve

The SMC VHS30-N03B-Z is a 3-port pressure relief hand valve designed to enhance safety and efficiency in pneumatic systems.

Key Features

• OSHA Compliance: Meets Occupational Safety and Health Administration standards, ensuring workplace safety.
• Manual Operation: Allows for manual isolation of supplied pressure and exhausts downstream pressure, preventing accidents caused by residual pressure.
• Lockable Handle: Equipped with locking holes to secure the handle in the exhaust position, preventing accidental start-ups during maintenance.
• Visual Status Indication: The handle orientation and labeling provide a clear indication of the supply and exhaust status at a glance.
• Durable Construction: Features an aluminum body and handle for longevity and reliable performance.

Specifications

• Port Size: 3/8-inch FNPT
• Operating Pressure Range: 15 to 145 PSI
• Operating Temperature Range: 23°F to 140°F
• Flow Coefficient (Cv): 2.3 (inlet), 1.9 (outlet)
• Dimensions: Approximately 2.087 inches (length) x 2.047 inches (width) x 3.161 inches (height)

The SMC VHS30-N03B-Z is an ideal choice for applications requiring reliable pressure relief and manual control, offering a combination of safety, durability, and ease of use.
