SMC Automatic Switch D-Y7PW/DC24V

SMC Automatic Switch D-Y7PW/DC24V

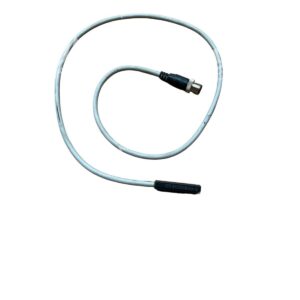

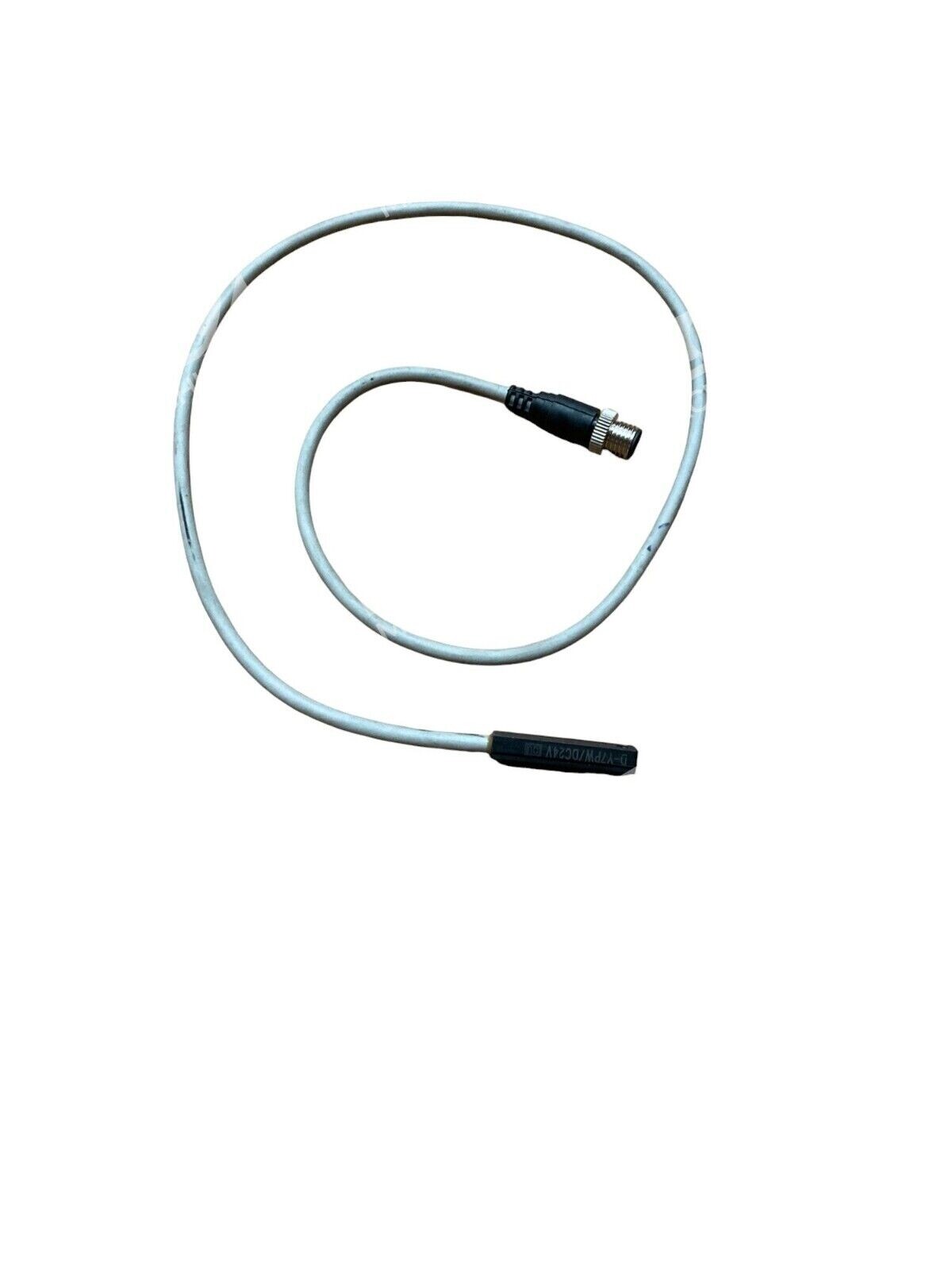

The SMC Automatic Switch D-Y7PW/DC24V is a solid-state auto switch engineered for precise position detection in pneumatic cylinders and actuators. Its two-color LED indicator system enhances operational accuracy by clearly displaying the switch’s status.

Key Features

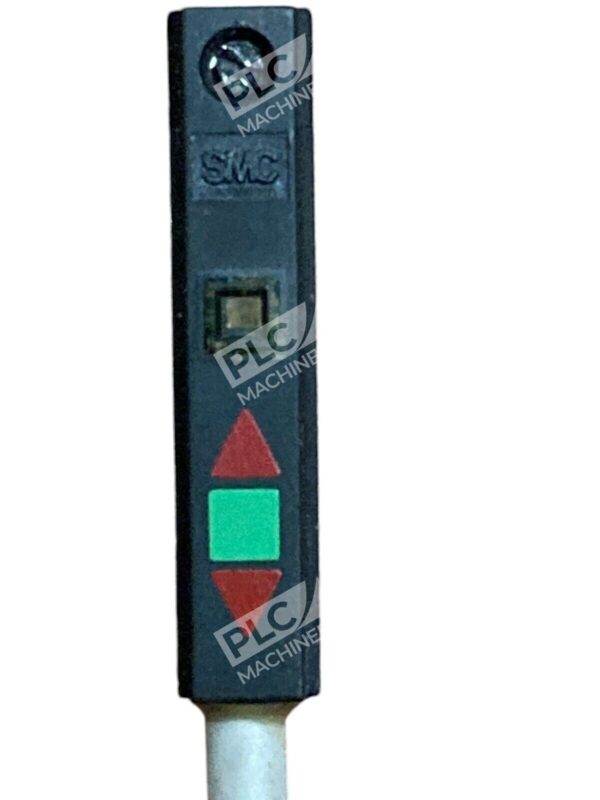

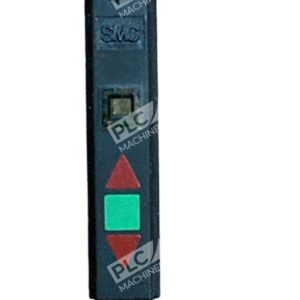

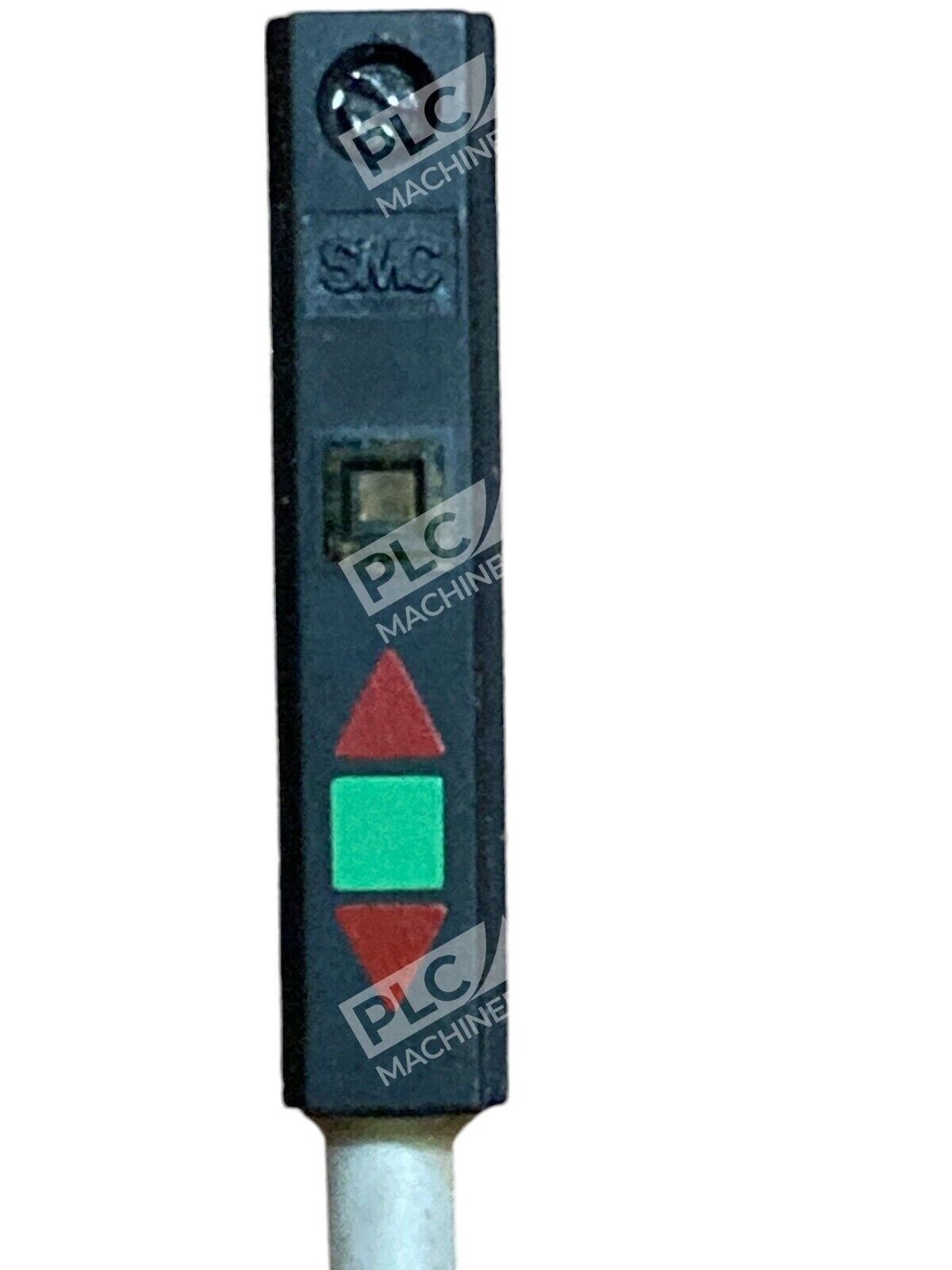

• Two-Color LED Indicator: Provides clear visual feedback, facilitating accurate positioning during setup and operation.
• Electrical Entry: Features a grommet-style in-line connection for secure and straightforward wiring.
• Output Configuration: Utilizes a 3-wire PNP output, ensuring compatibility with various control systems, including IC circuits, relays, and PLCs.
• Operating Voltage: Supports a wide range from 4.5V to 28V DC, accommodating diverse application requirements.
• Load Current Capacity: Handles load currents between 5mA and 80mA, offering flexibility for different load conditions.
• Lead Wire Length: Comes with a standard 0.5-meter lead wire, facilitating easy installation.
• Operating Temperature Range: Designed to function effectively within temperatures ranging from -10°C to +60°C, suitable for various industrial environments.
• Mounting Compatibility: Compatible with actuator series such as CXS, MGQ, MVGQ, MGP, MY1B, MY1C, MY1M, MY1H, and RSH, ensuring versatile application.

Applications

The D-Y7PW auto switch is ideal for applications requiring precise position sensing in pneumatic systems. Its robust design and versatile compatibility make it suitable for various industrial automation processes, ensuring reliable performance and ease of integration.

Specifications

• Model: D-Y7PW
• Type: Solid State Auto Switch
• Indicator Light: Two-color LED (Red/Green)
• Electrical Entry: Grommet (In-line)
• Output Type: PNP (3-wire)
• Operating Voltage: 4.5V to 28V DC
• Load Current: 5mA to 80mA
• Lead Wire Length: 0.5 meters
• Operating Temperature: -10°C to +60°C
• Mounting Style: Direct
• Applicable Actuator Series: CXS, MGQ, MVGQ, MGP, MY1B, MY1C, MY1M, MY1H, RSH

For more detailed information and technical specifications, please refer to the manufacturer’s official documentation.
