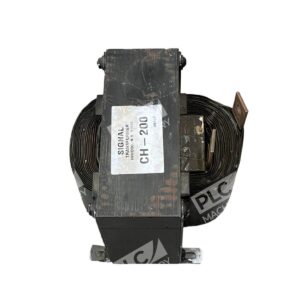

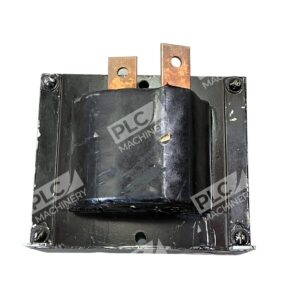

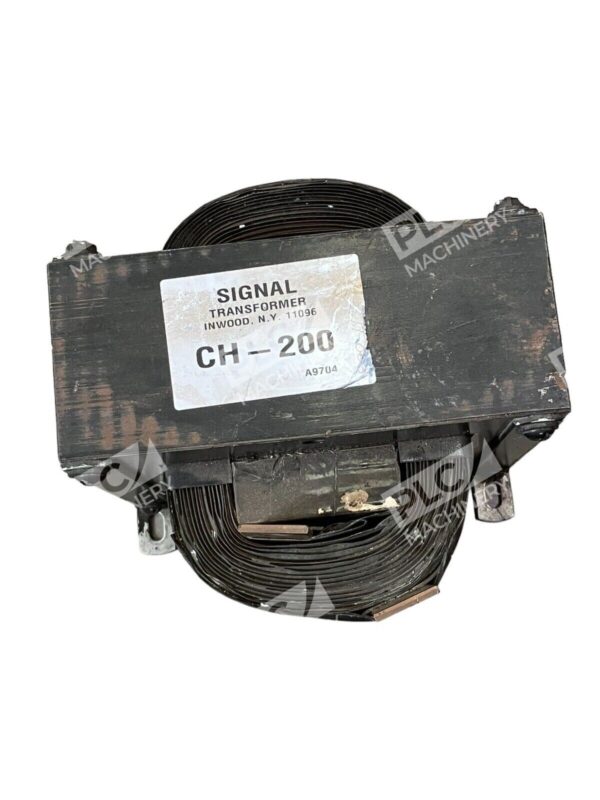

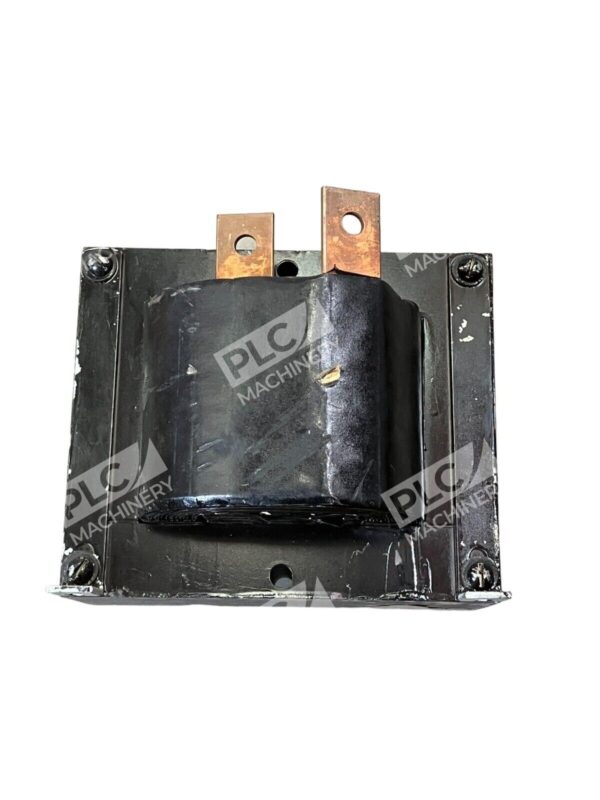

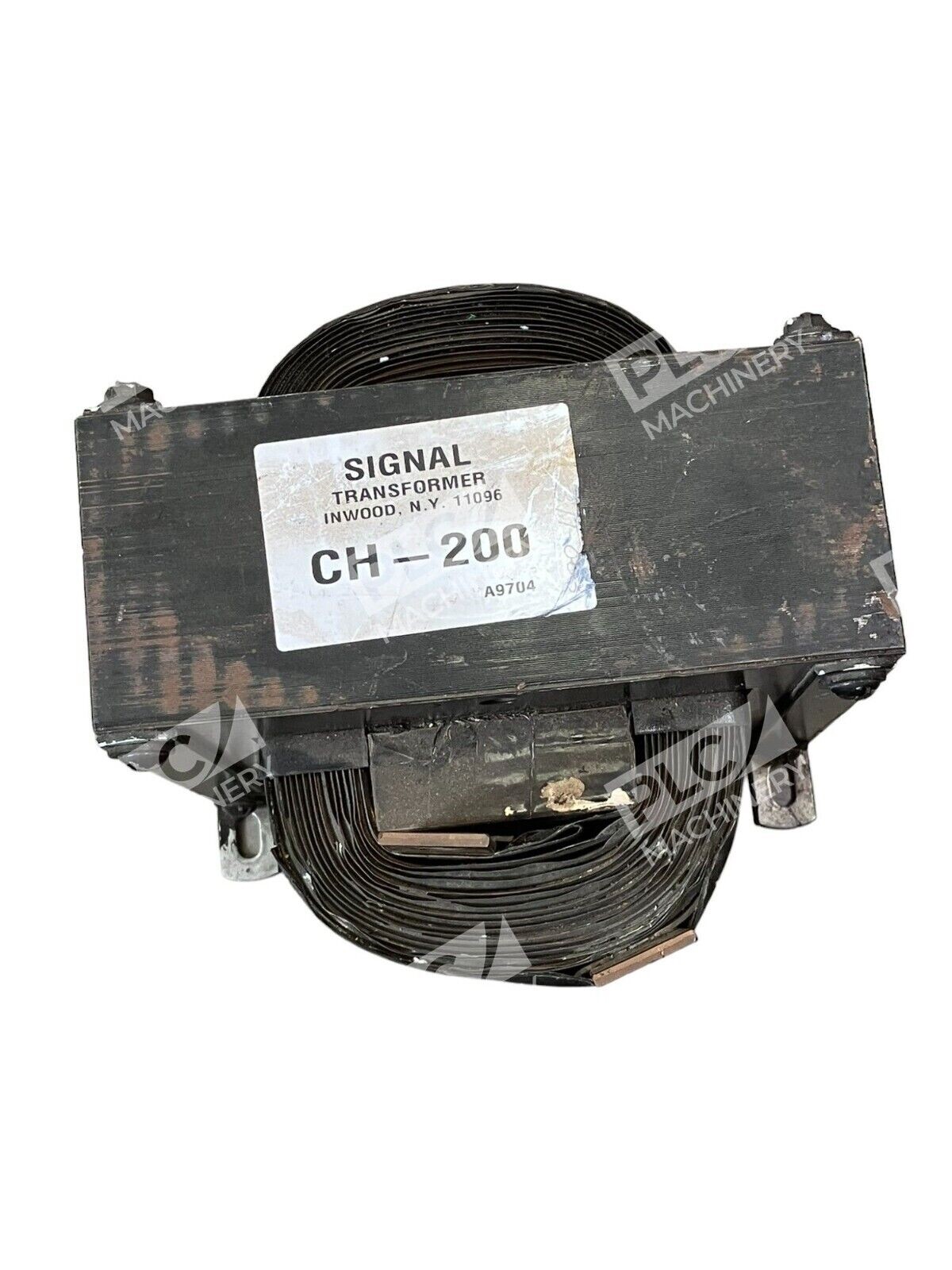

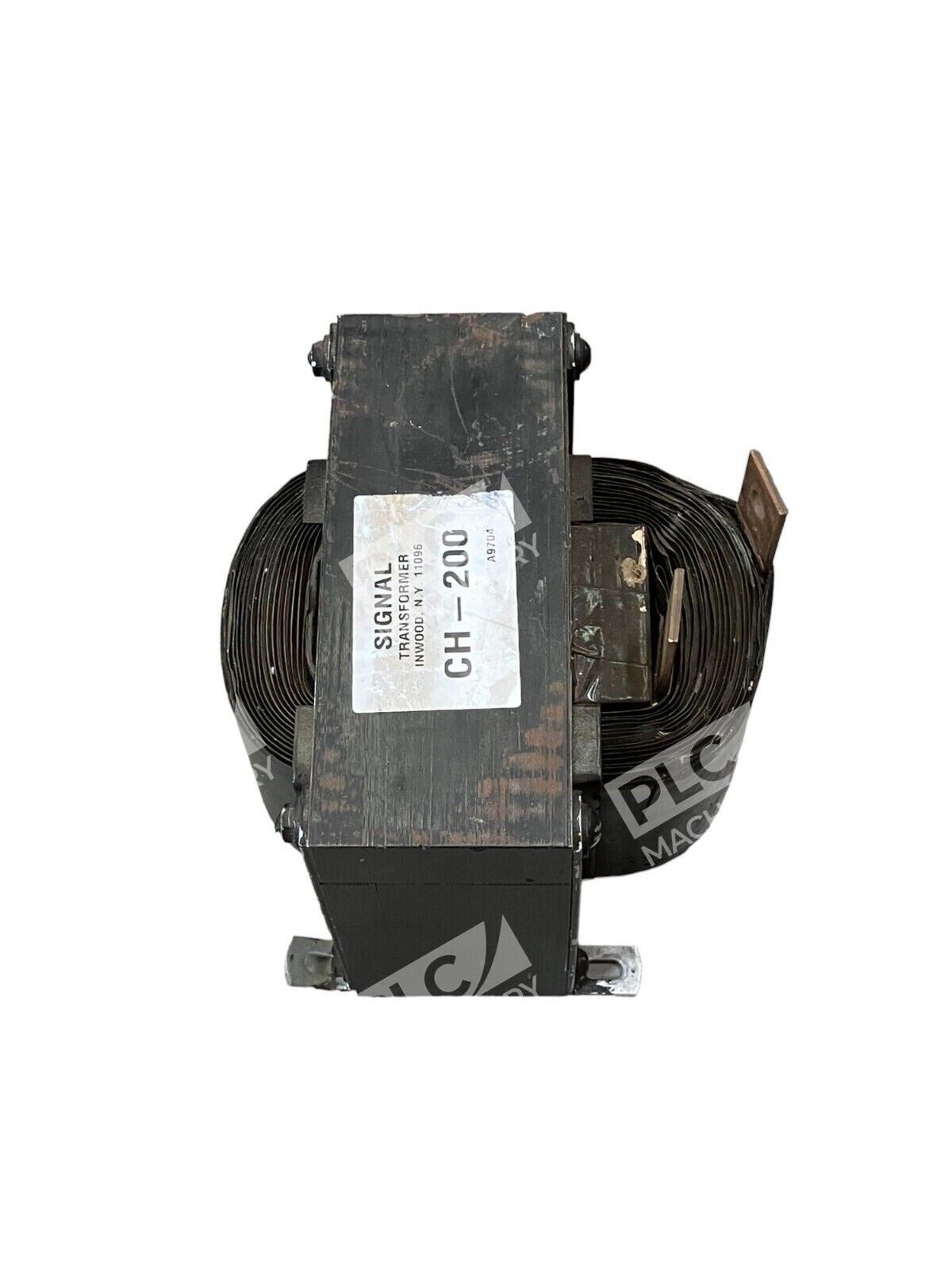

Signal CH-200 Transformer A9704

The Signal CH-200 Transformer A9704 is a high-performance, chassis-mounted inductor designed to meet the demands of various industrial applications.

Key Features

• Inductance: 300 µH
• Current Rating: 200 A
• DC Resistance (DCR): 1 mΩ
• Shielding: Unshielded
• Mounting Type: Chassis Mount
• Dimensions: 7.500″ L x 7.500″ W x 6.252″ H (190.50mm x 190.50mm x 158.80mm)

Applications

The CH-200 is ideal for use in power supplies, inverters, and other high-current applications where efficient energy transfer and minimal power loss are critical. Its robust design ensures reliable performance in demanding environments.

Additional Information

This transformer is part of Signal Transformer’s CH series, known for their durability and efficiency. The A9704 designation refers to the specific model variant, ensuring compatibility with various industrial systems.

For more detailed specifications and availability, please refer to the manufacturer’s datasheet or contact authorized distributors.
