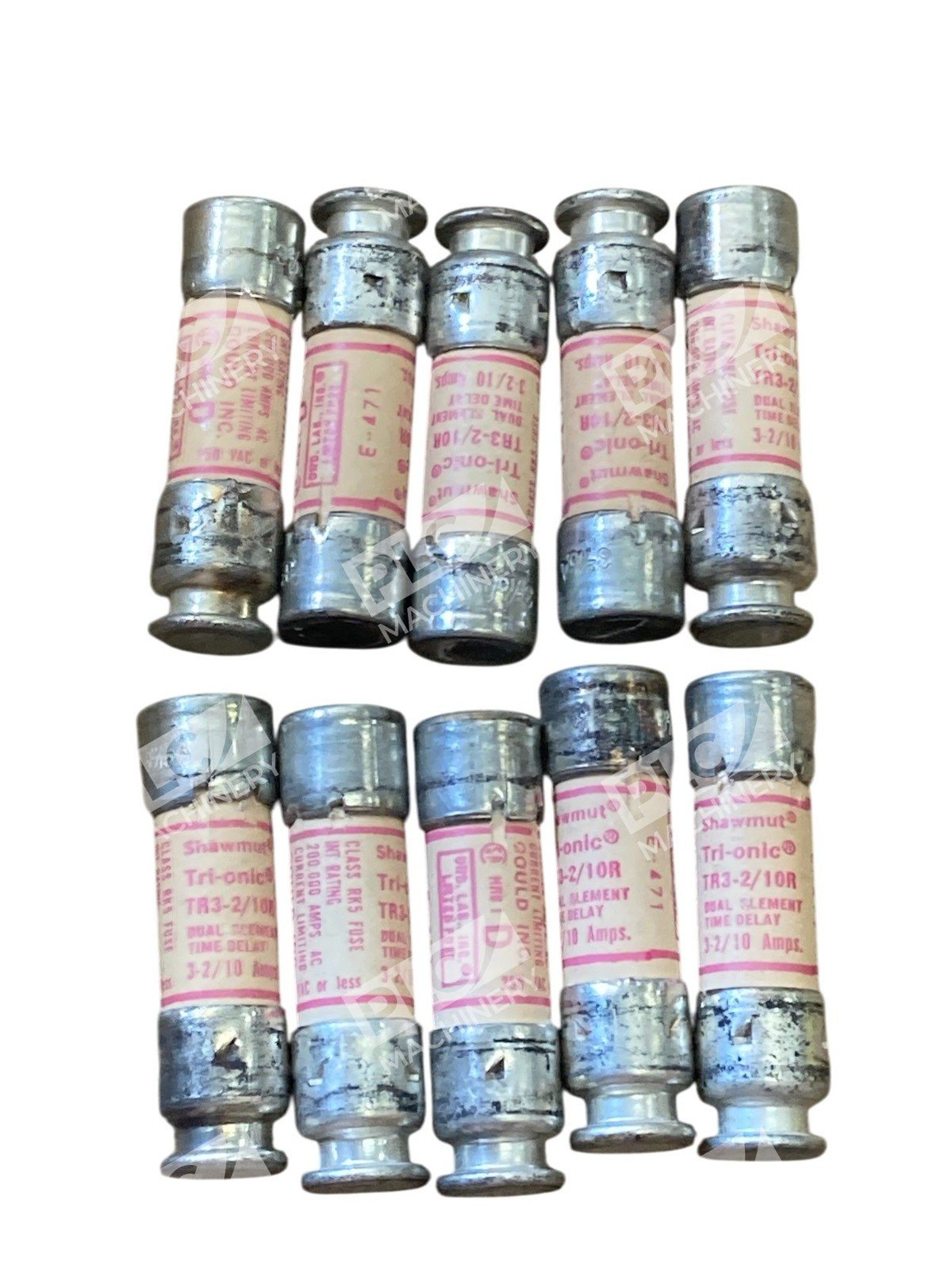

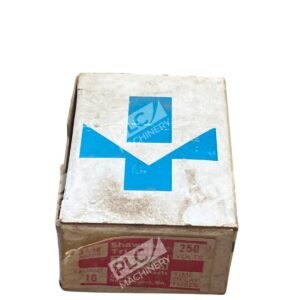

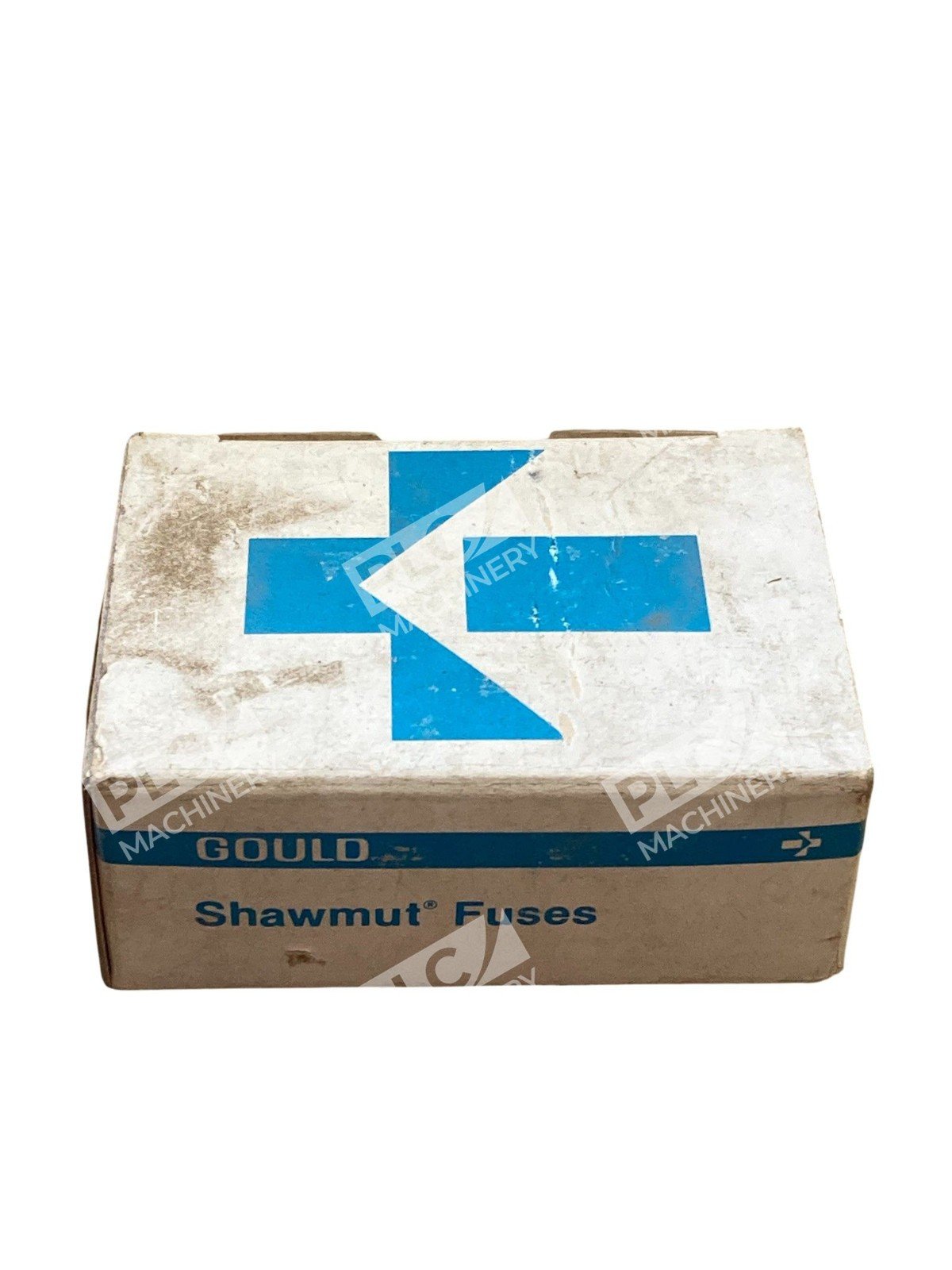

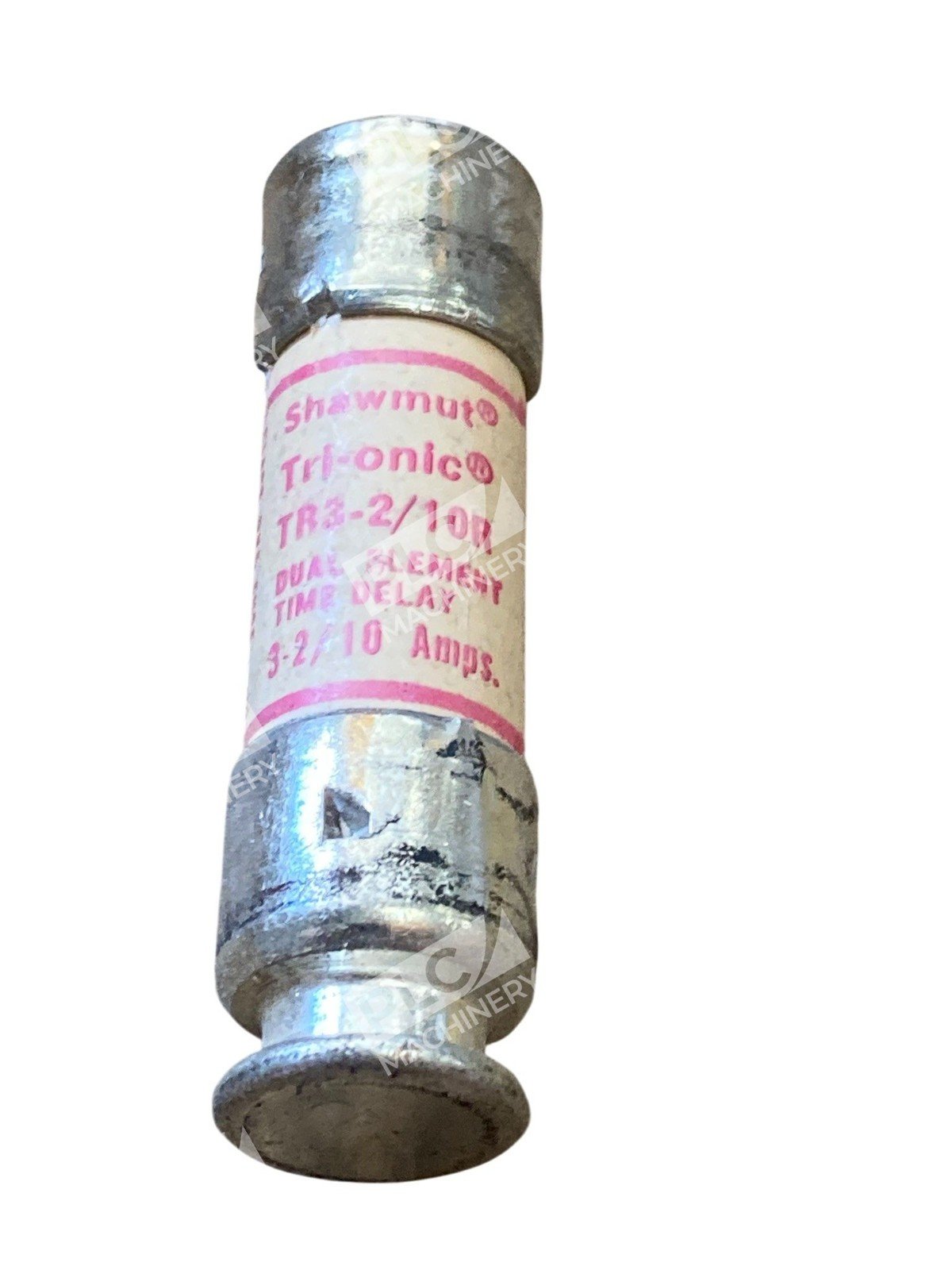

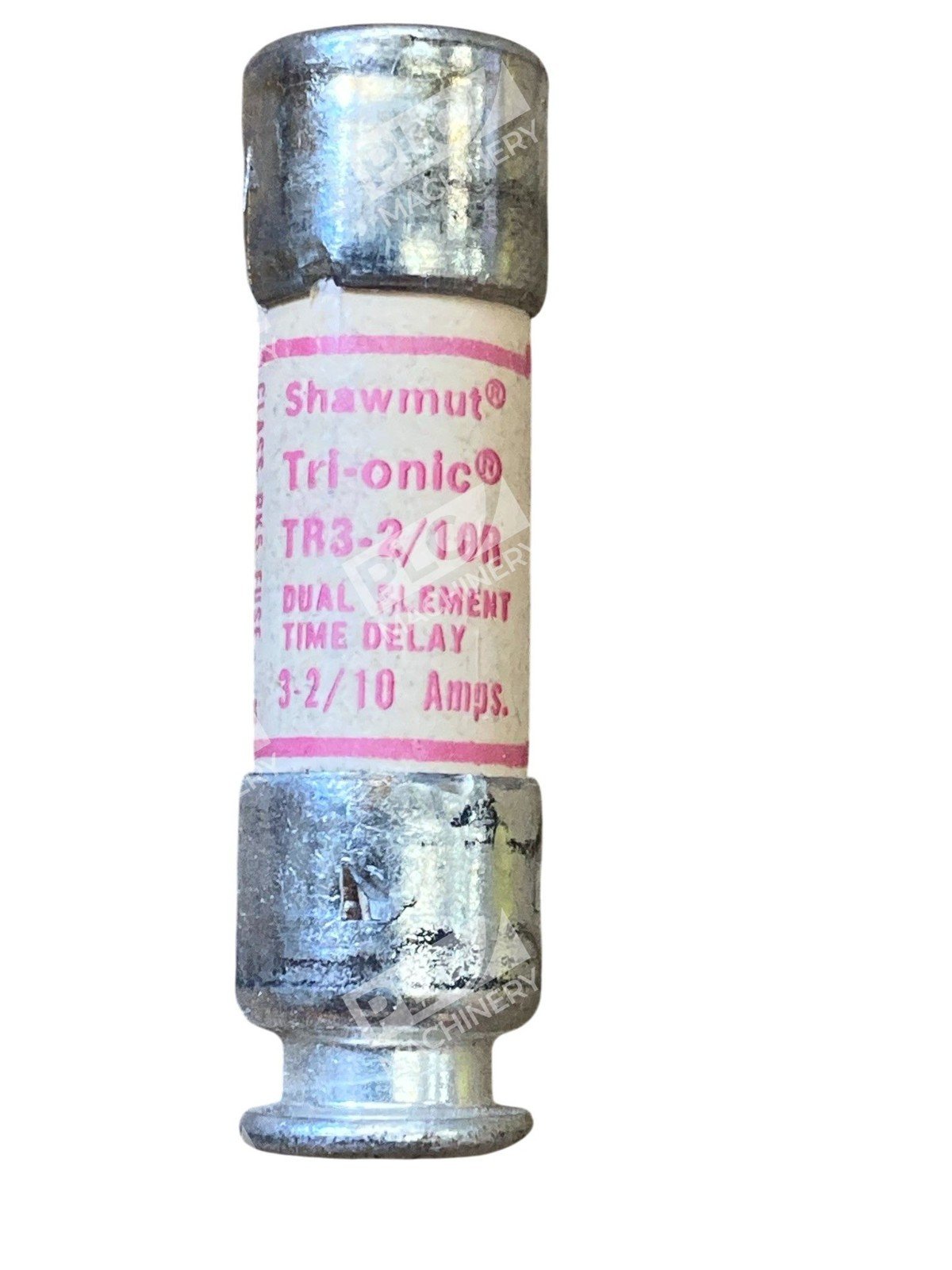

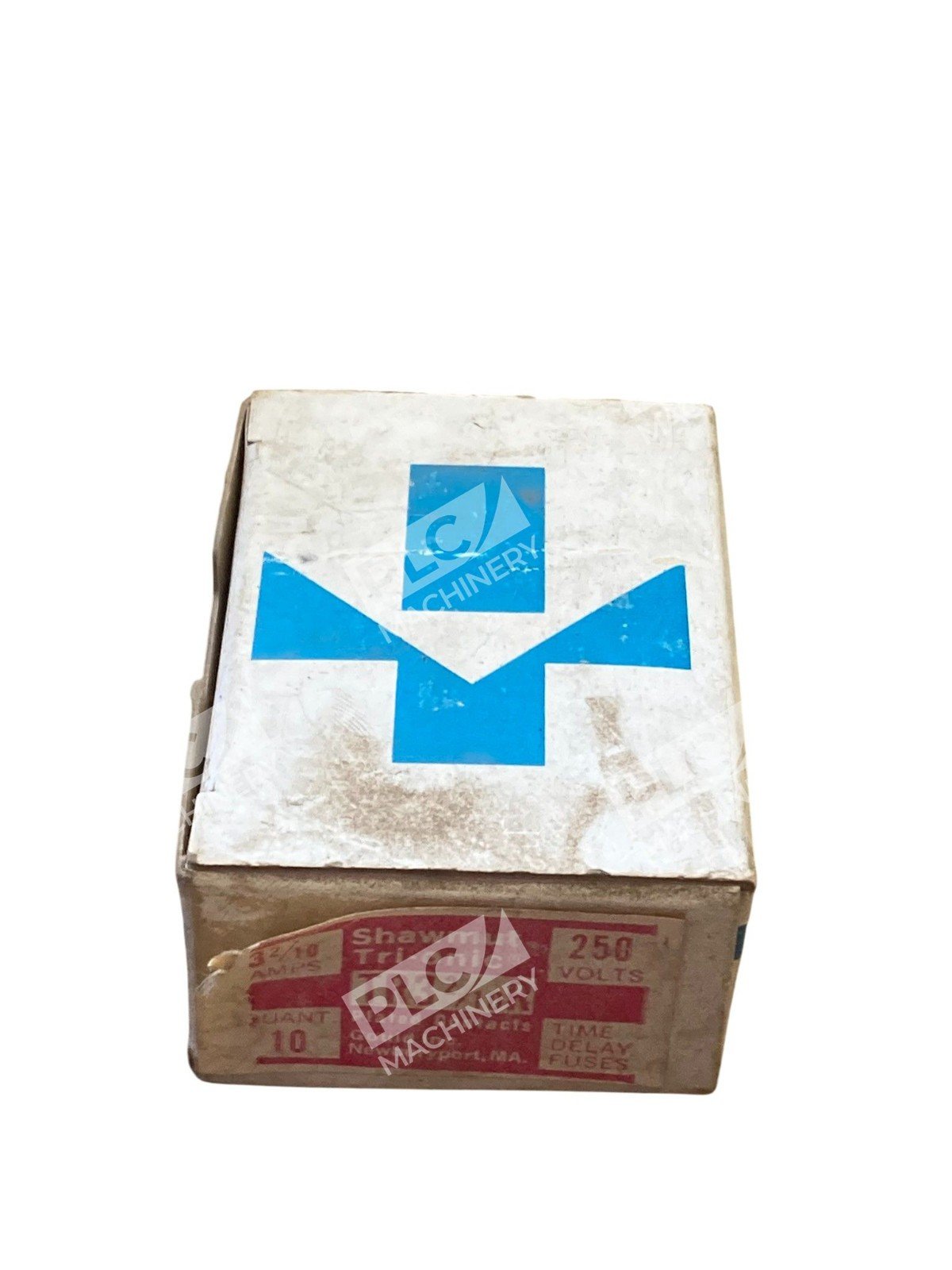

Shawmut Tri-Onic TR3-2/10R Dual-Element Time-Delay Fuse Box of 10
The Shawmut Tri-Onic TR3-2/10R is a high-performance, dual-element time-delay fuse designed to provide reliable overcurrent protection for various electrical applications. This box contains 10 fuses, each engineered to handle the demands of modern electrical systems.
Key Features
- Amperage Rating: 3.2 Amps
- Voltage Rating: 250 VAC / 160 VDC
- Interrupting Rating: 200 kA at 250 VAC; 20 kA at 160 VDC
- Fuse Class: RK5
- Element Type: Dual
- Body Type: Cylindrical
- Material: Polyester
- Mounting Type: Clip
- Terminal Type: Ferrule
- Overall Dimensions: 9/16 inch (14.3 mm) diameter x 2 inches (50.8 mm) length
Applications
The TR3-2/10R fuses are ideal for protecting motors, transformers, service entrance equipment, feeders, and branch circuits. Their time-delay characteristics allow them to handle harmless inrush currents associated with motor startups and transformer energization without nuisance opening.
Compliance and Standards
These fuses comply with UL 248-12 and CSA C22.2 No. 248.12 standards, ensuring they meet rigorous safety and performance requirements. They are also RoHS compliant, reflecting a commitment to environmental responsibility.
Additional Information
The rejection-style design of the TR3-2/10R prevents replacement errors when used with recommended fuse blocks. The fiberglass body provides dimensional stability in harsh industrial settings, and the high-grade silica filler ensures fast arc quenching and high current limitation.
For detailed specifications and installation guidelines, please refer to the product datasheet.
