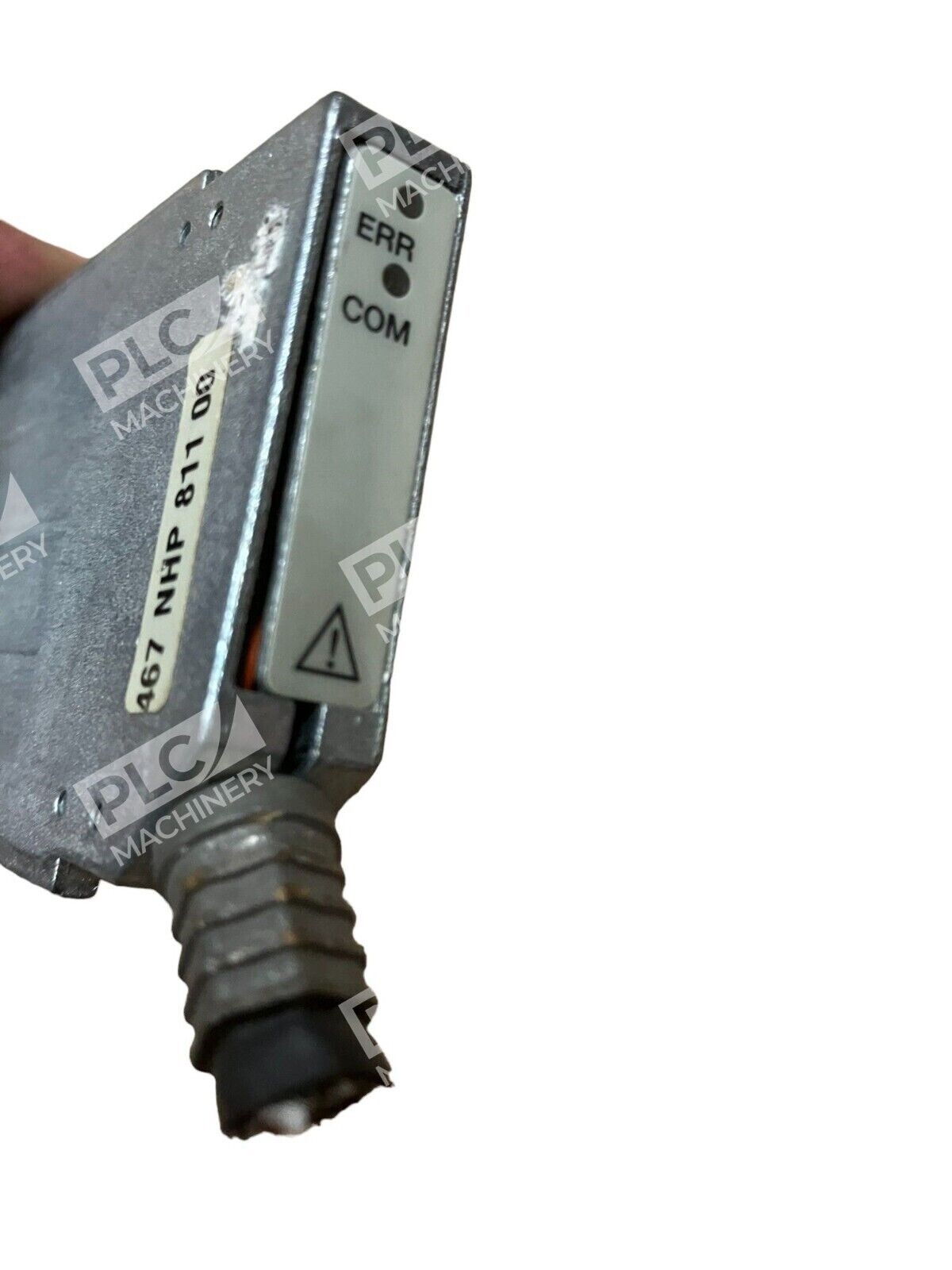

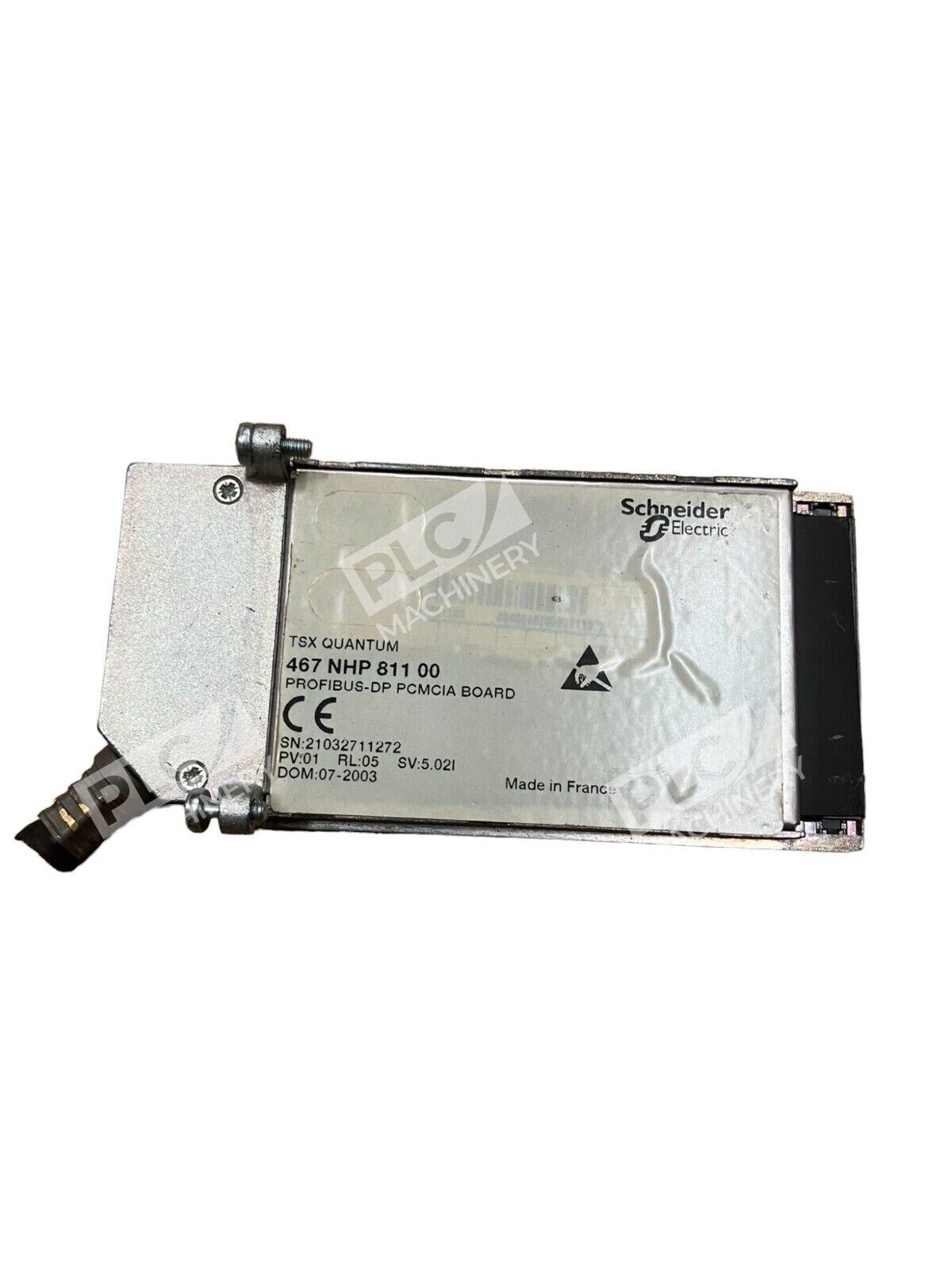

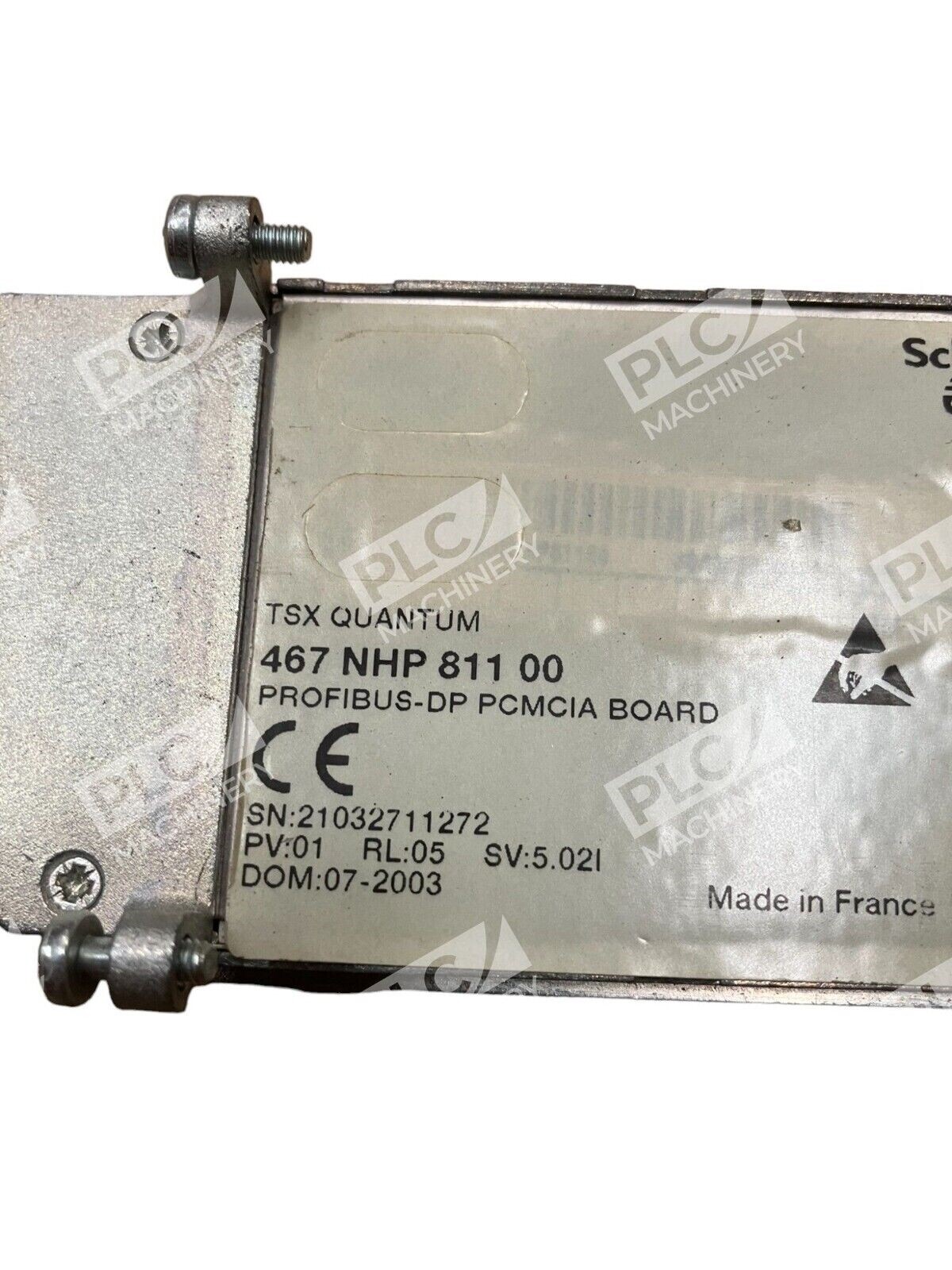

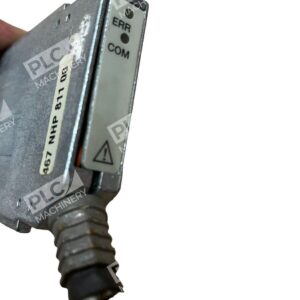

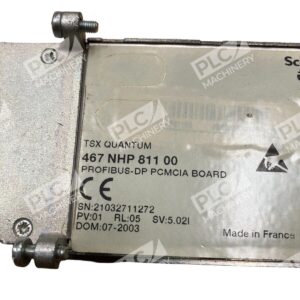

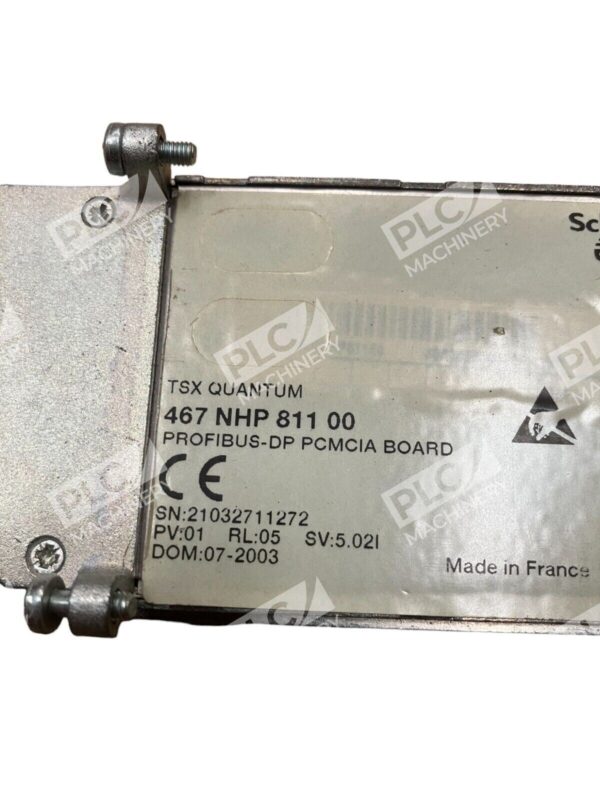

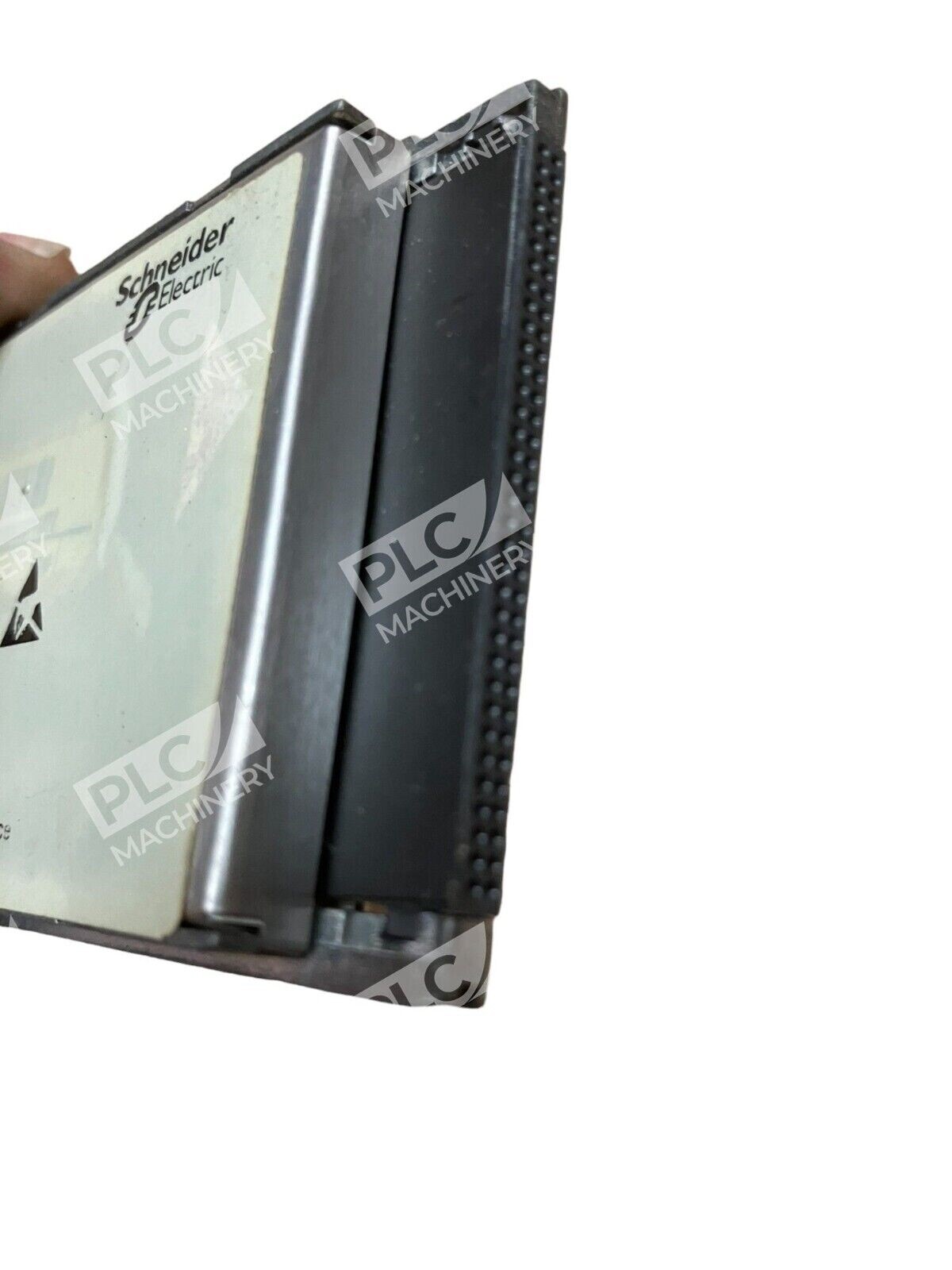

The Schneider Electric 467 NHP 811 00 Profibus-DP PCMCIA Board is a communication module designed to enhance the connectivity of TSX Quantum programmable logic controllers (PLCs) within industrial automation systems.
Key Features
- Profibus-DP Compatibility: Facilitates seamless communication between TSX Quantum PLCs and various devices on the Profibus-DP network, ensuring efficient data exchange.
- PCMCIA Form Factor: The compact design allows for straightforward installation into existing systems without occupying significant space.
- High-Speed Communication: Supports rapid data transfer rates, enhancing the responsiveness and efficiency of industrial processes.
- Robust Construction: Built to withstand demanding industrial environments, ensuring durability and long-term reliability.
Technical Specifications
- Product Type: Profibus-DP PCMCIA Communication Board
- Part Number: 467 NHP 811 00
- Compatible Platform: TSX Quantum
- Communication Protocol: Profibus-DP
- Connector Type: 9-pin D-sub (DB9)
- Power Supply: 5 V DC (supplied via I/O base)
- Current Consumption: ≤ 350 mA at 24 V DC
- Battery Type: Lithium (2/3 AA), with a lifespan of 5 years
- Battery Backup: Up to 30 days after low battery warning at 40°C
- Material: Lexan (impact-resistant plastic)
- Local Signaling: 1 LED indicating communication status
- Dimensions (H × W × D): 25 × 143.1 × 60.06 mm (0.98 × 5.63 × 2.36 inches)
- Weight: Approximately 291 g (10.3 oz)
- Mounting: PCMCIA slot in the Quantum communication module
- Included Cable: Profibus-DP cable with DB9 connector (length varies by kit)
- Cable Connector: 15-position female connector
- Cable Length: 2 feet
- Cable Weight: 0.57 lbs
Applications
This Profibus-DP PCMCIA Board is ideal for industries requiring robust and efficient communication solutions, including:
- Manufacturing
- Process Automation
- Material Handling
- Energy Management
By integrating this board into your TSX Quantum PLC system, you can achieve enhanced control and monitoring capabilities, leading to improved operational efficiency and productivity.
