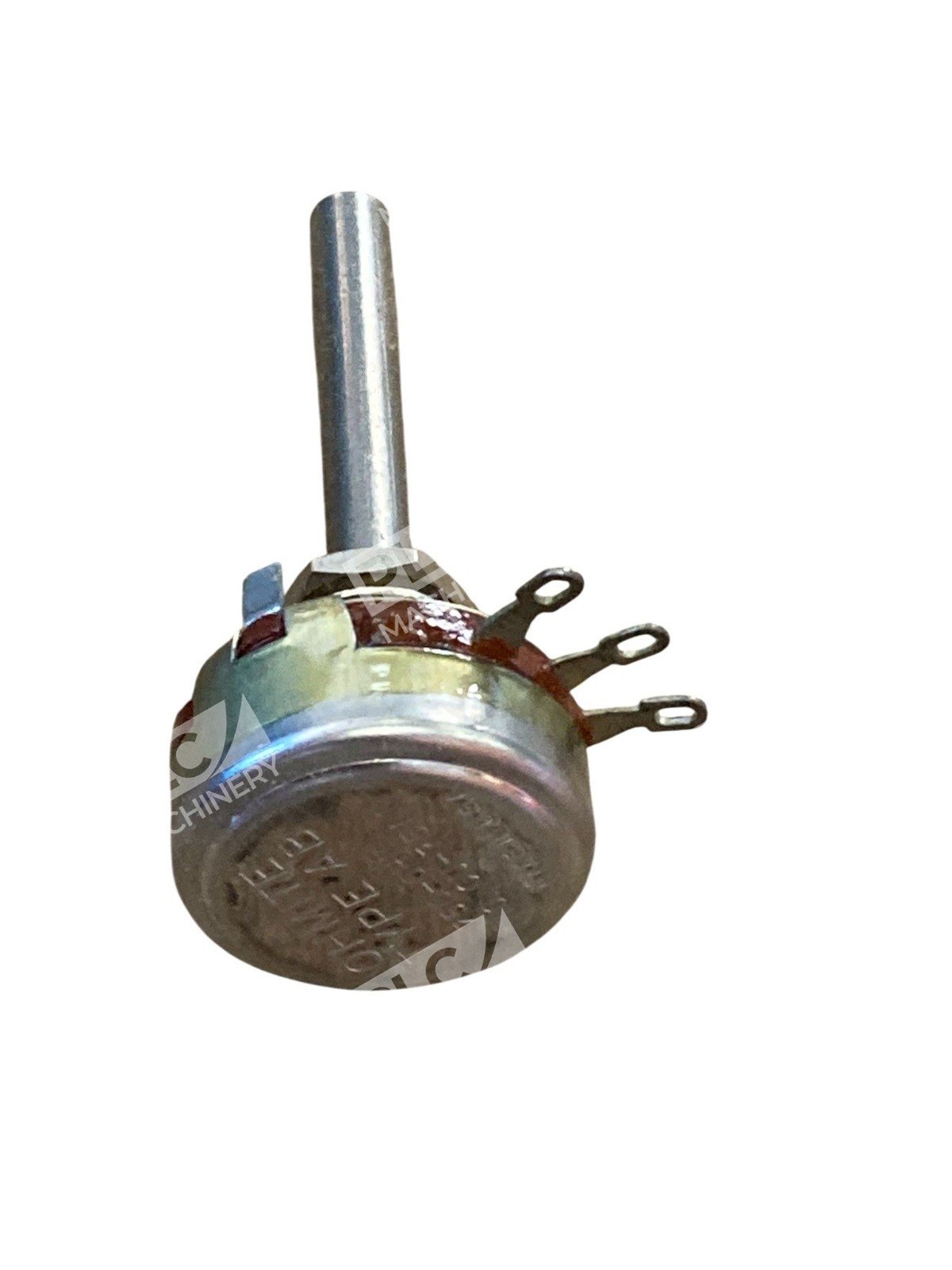

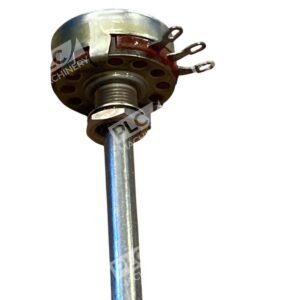

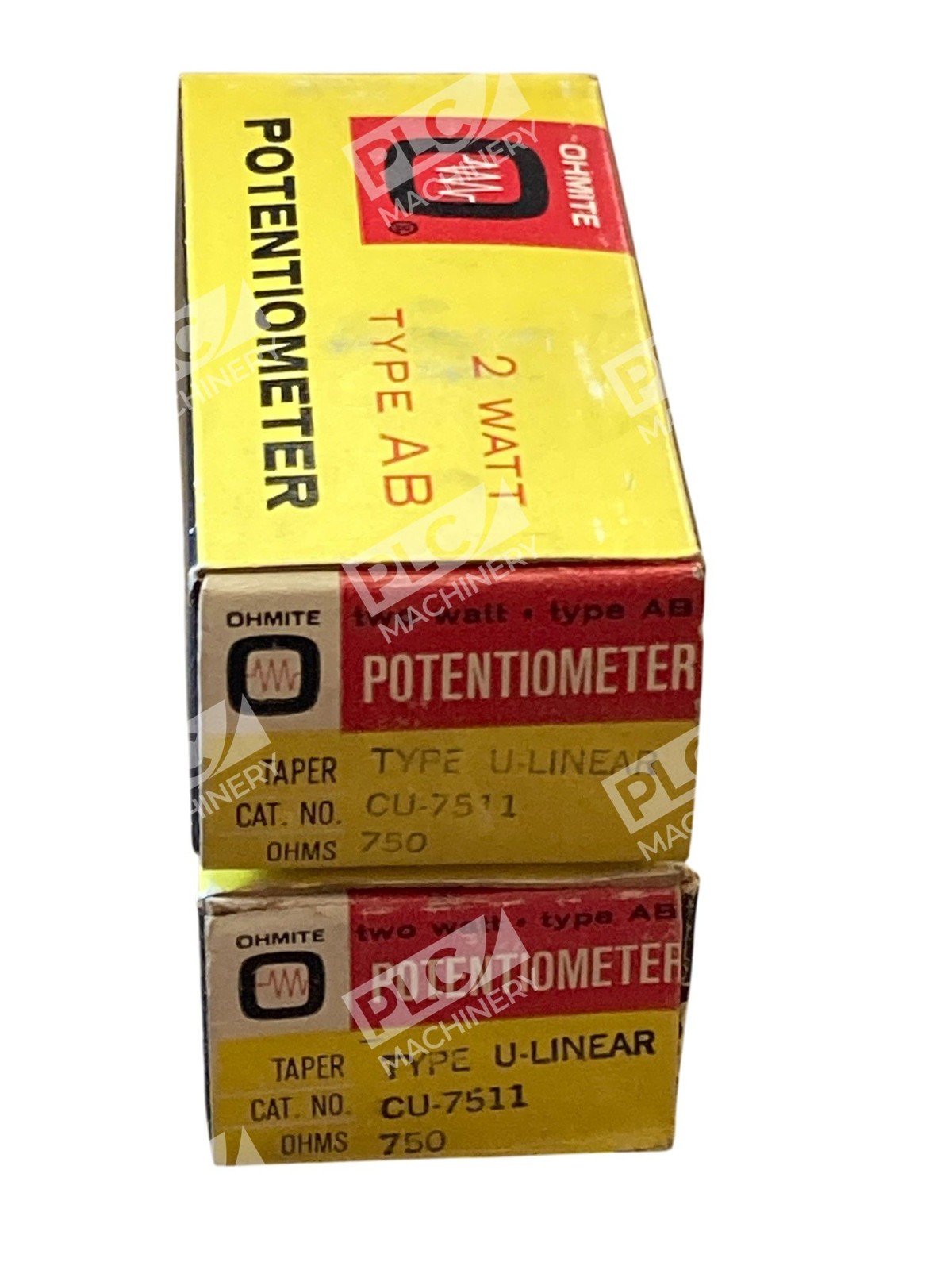

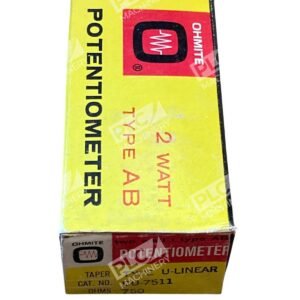

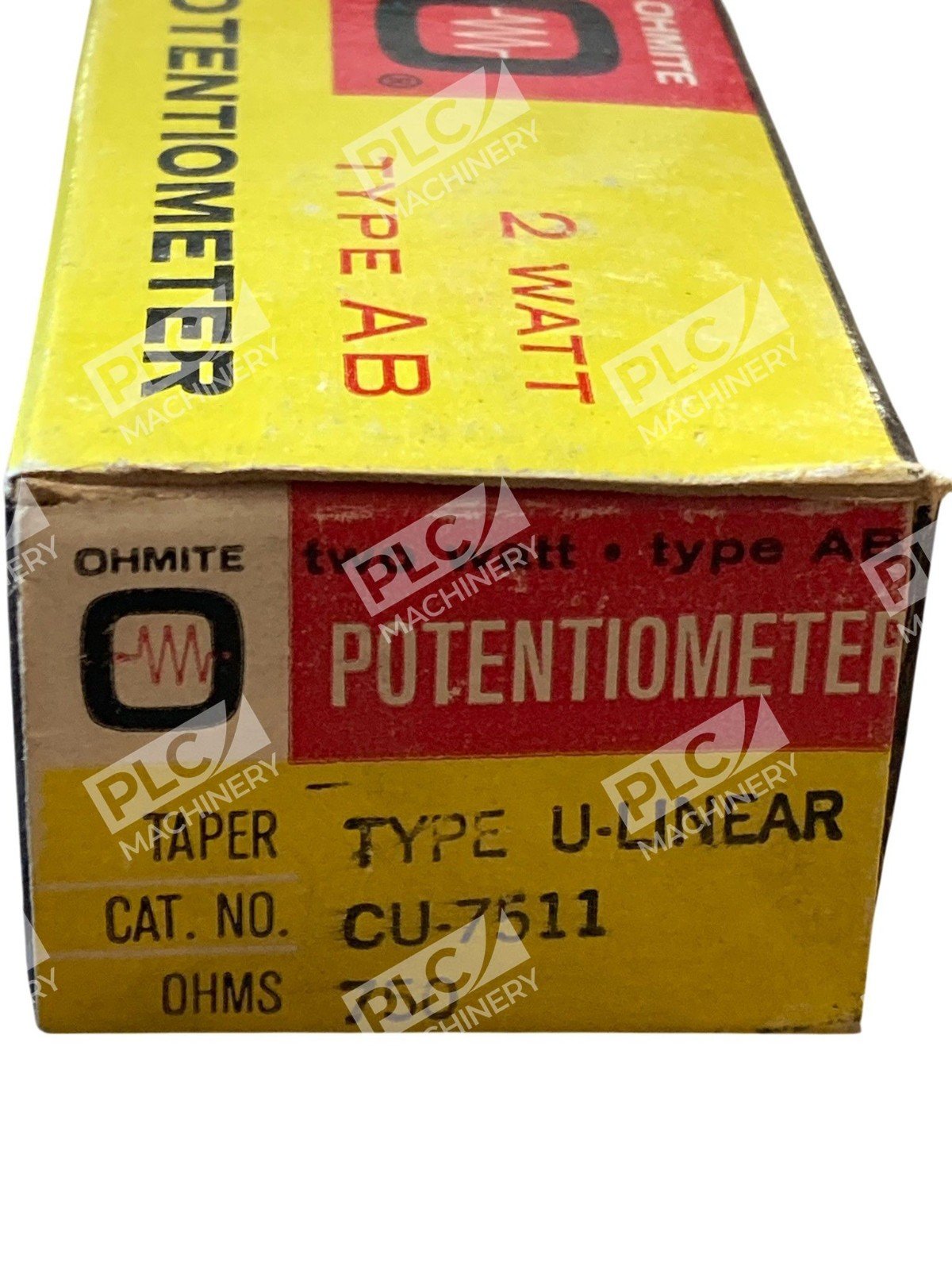

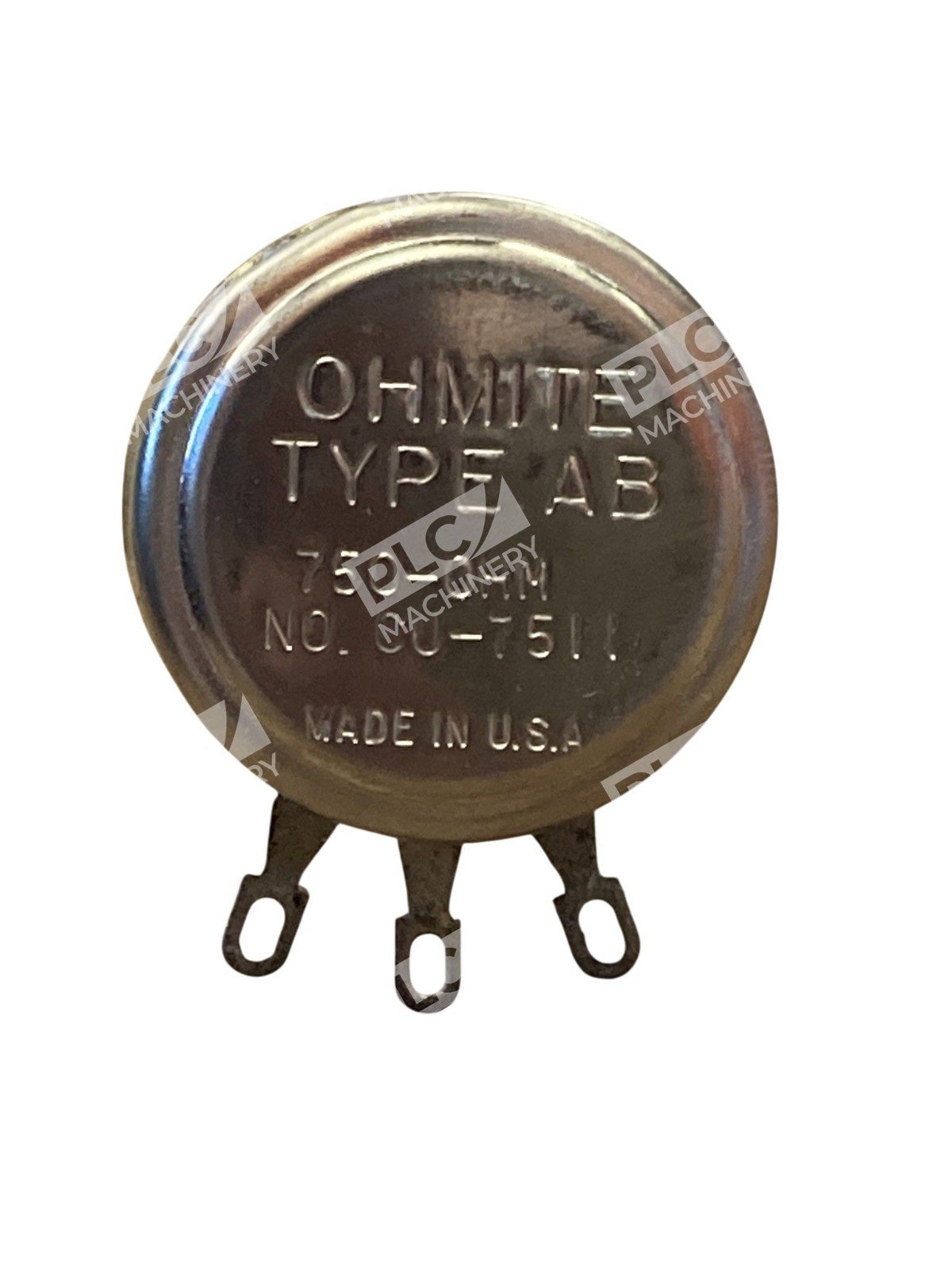

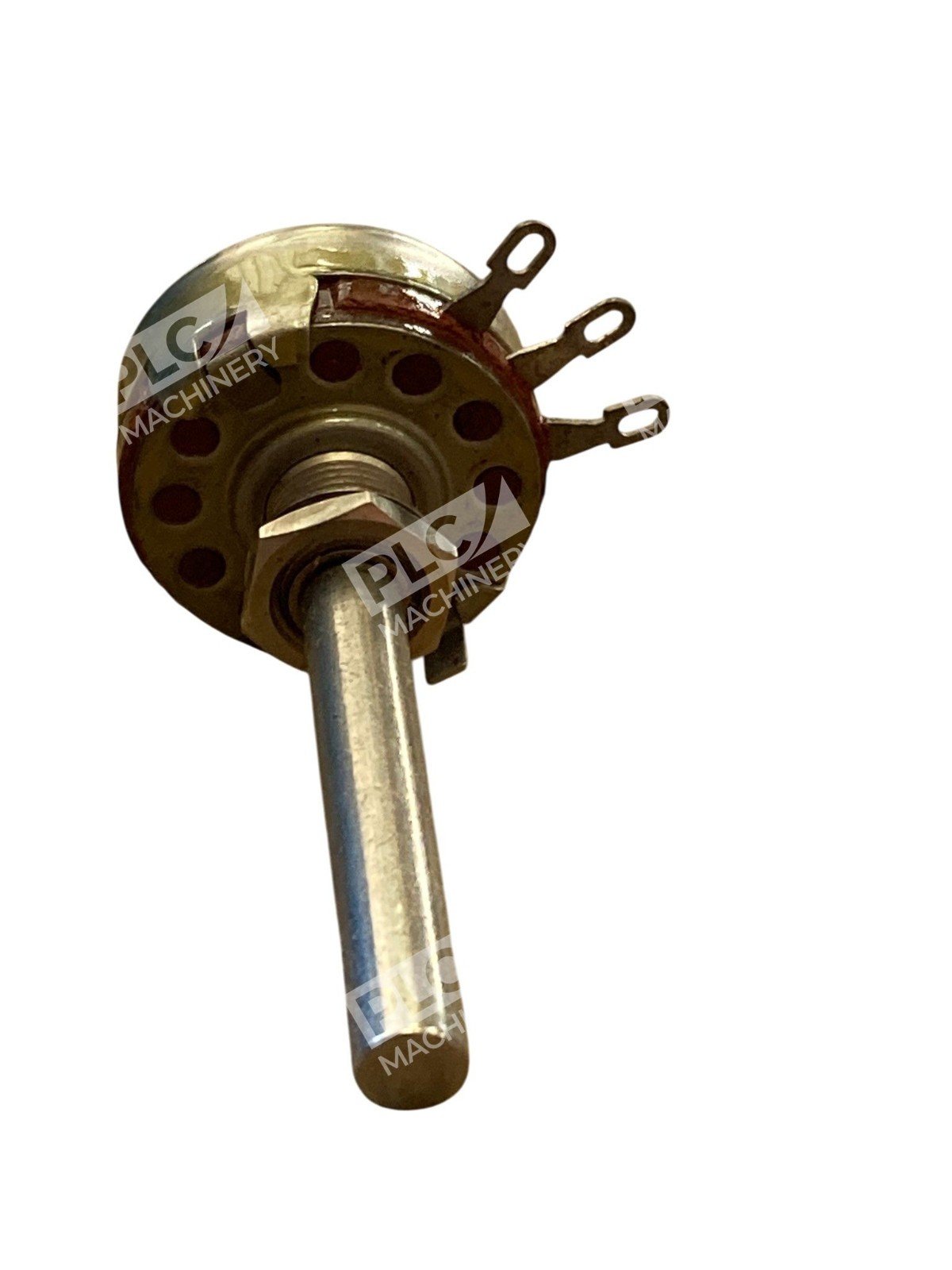

The Ohmite CU-7511 Type AB U-Linear Potentiometer is a high-quality, 750-ohm, 2-watt variable resistor designed for precise control in electronic circuits. This potentiometer features a linear taper, ensuring a consistent change in resistance relative to the rotation angle, making it ideal for applications requiring smooth and predictable adjustments.
**Key Features:**
– **Resistance and Power Rating:** 750 ohms with a 2-watt power capacity, suitable for various electronic applications.
– **Tolerance:** ±10%, providing reliable performance within specified limits.
– **Construction:** Molded composition element for durability and stability.
– **Dimensions:** The potentiometer has a diameter of approximately 1.16 inches (29.4mm) and extends 0.625 inches (15.9mm) behind the panel, accommodating standard mounting requirements.
– **Shaft and Mounting:** Equipped with a long shaft featuring a 0.375-32 thread, a round 1/4-inch (6.35mm) diameter, and a 2-inch (50.8mm) bushing and shaft length, facilitating easy panel mounting.
– **Rotation and Voltage Rating:** Offers a rotation of 312 degrees with a voltage rating of 500V, ensuring versatility in various applications.
– **Termination Style:** Solder terminals for secure and reliable connections.
This potentiometer is designed for panel mounting and is suitable for applications where precise resistance adjustment is required. Its robust construction and reliable performance make it a valuable component in electronic design and maintenance.
