Ohmite CU-1521 Type AB U-Linear Potentiometer Panel Mount 1.5KΩ 2W

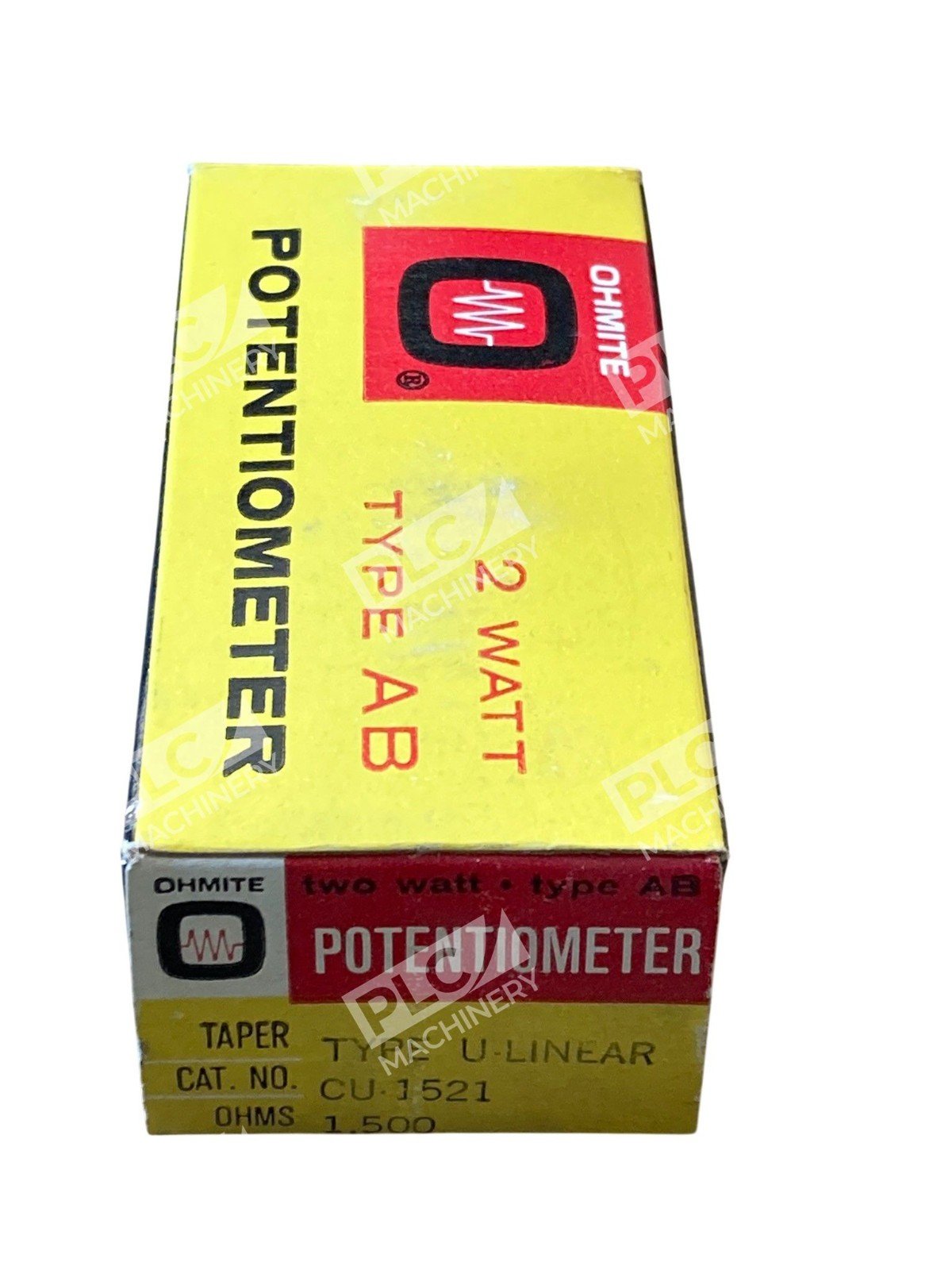

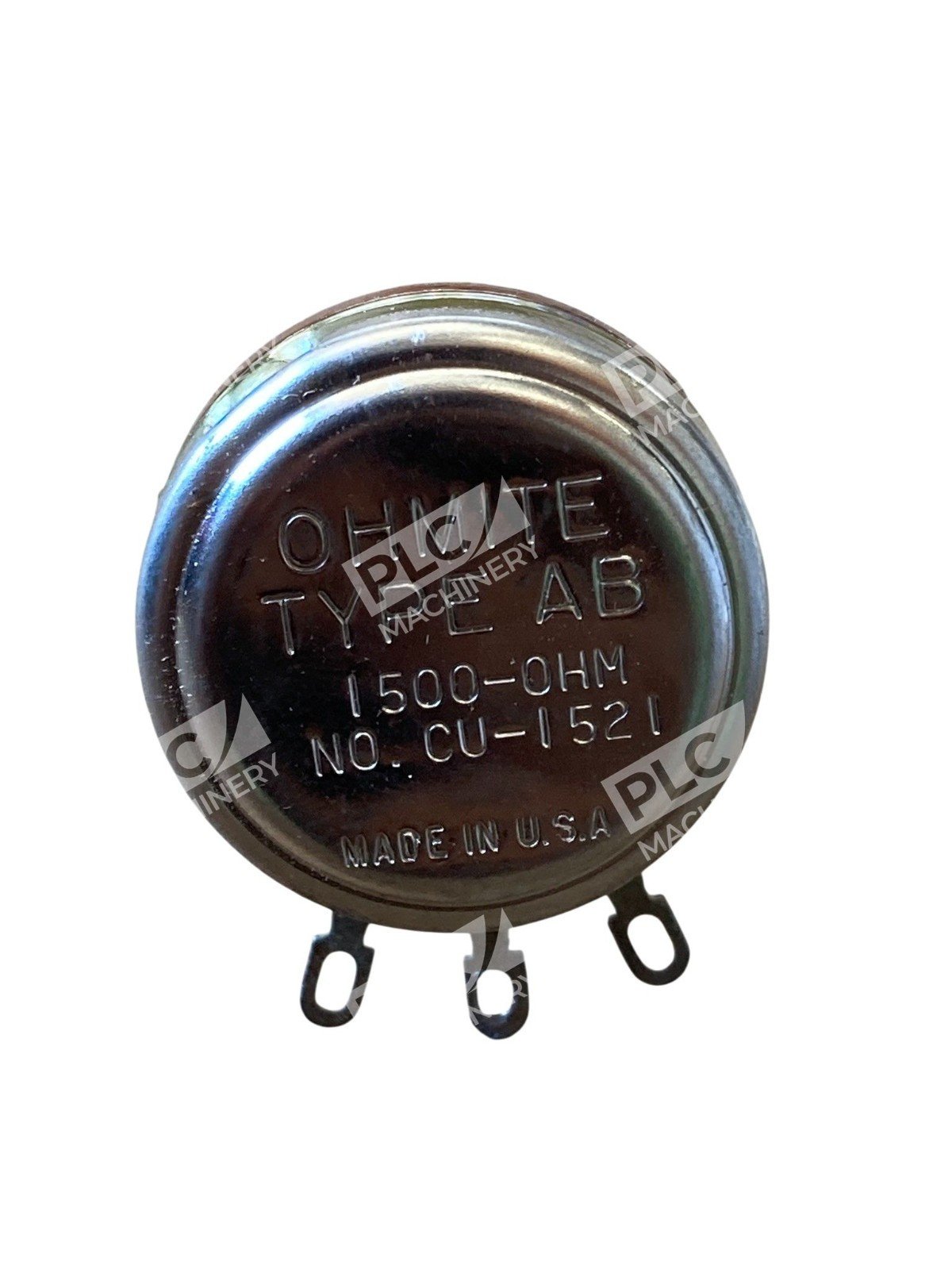

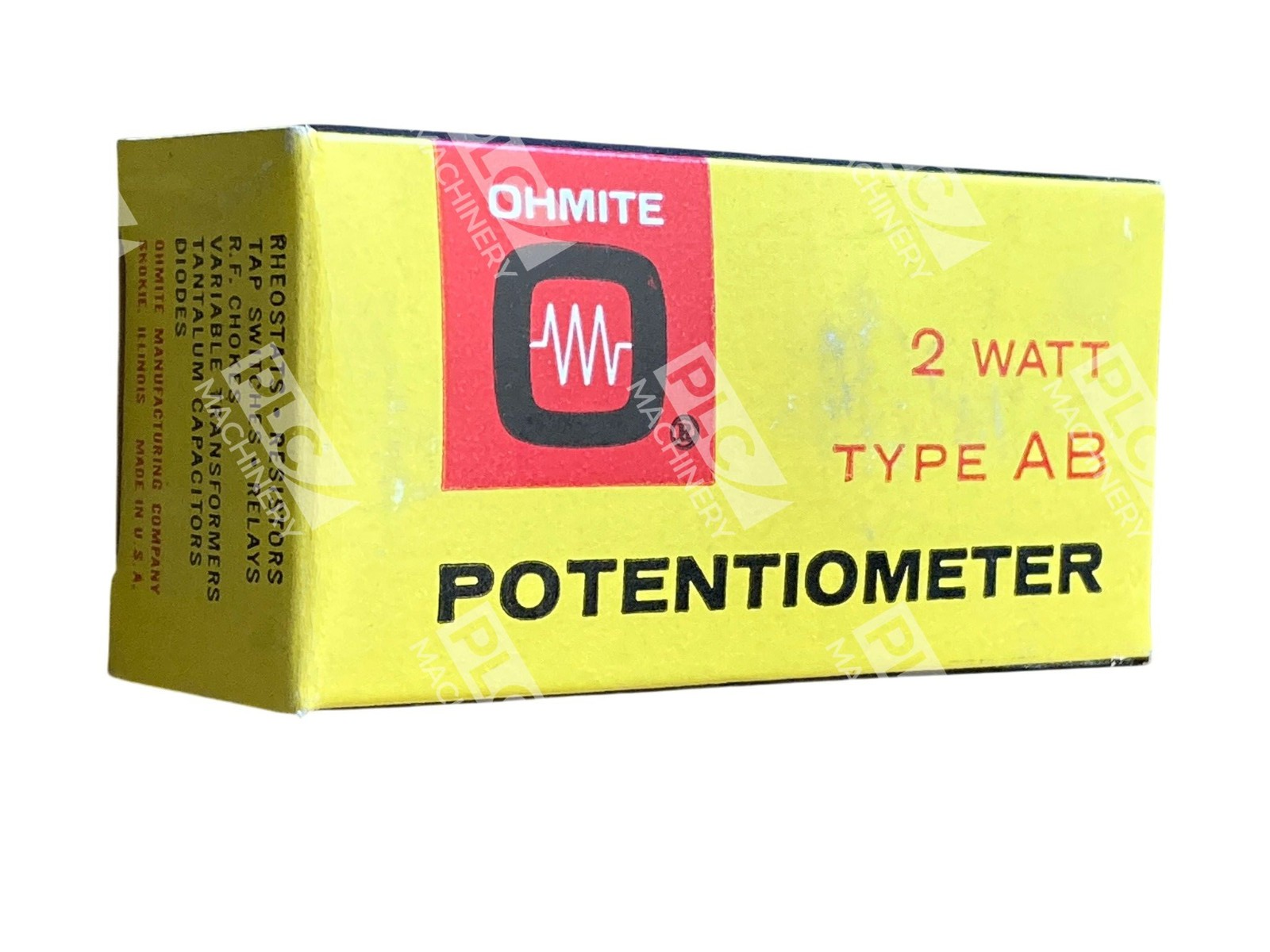

Ohmite CU-1521 Type AB U-Linear Potentiometer

The Ohmite CU-1521 is a high-quality, panel-mount potentiometer designed for precise resistance control in various electronic applications. With a resistance of 1.5KΩ and a power rating of 2 watts, this potentiometer offers reliable performance and durability.

Key Features

• Resistance: 1.5KΩ
• Power Rating: 2 watts
• Tolerance: ±10%
• Technology: Wirewound with carbon element
• Mounting Type: Panel mount
• Adjustment Type: Single-turn, linear taper
• Termination Style: Solder lugs
• Voltage Rating: 500V

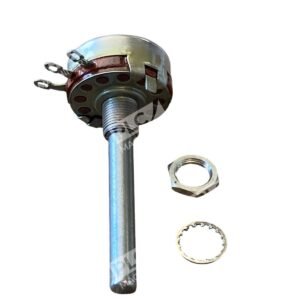

Physical Specifications

• Body Dimensions: 1.1230″ diameter x 0.536″ height (28.45mm x 13.61mm)
• Shaft: 1/4″ diameter x 1.626″ length
• Rotation: 312°
• Bushing Thread: 3/8-32

Manufactured in the USA, the Ohmite CU-1521 potentiometer is built to meet high standards of quality and performance, making it suitable for a wide range of industrial and commercial applications.
