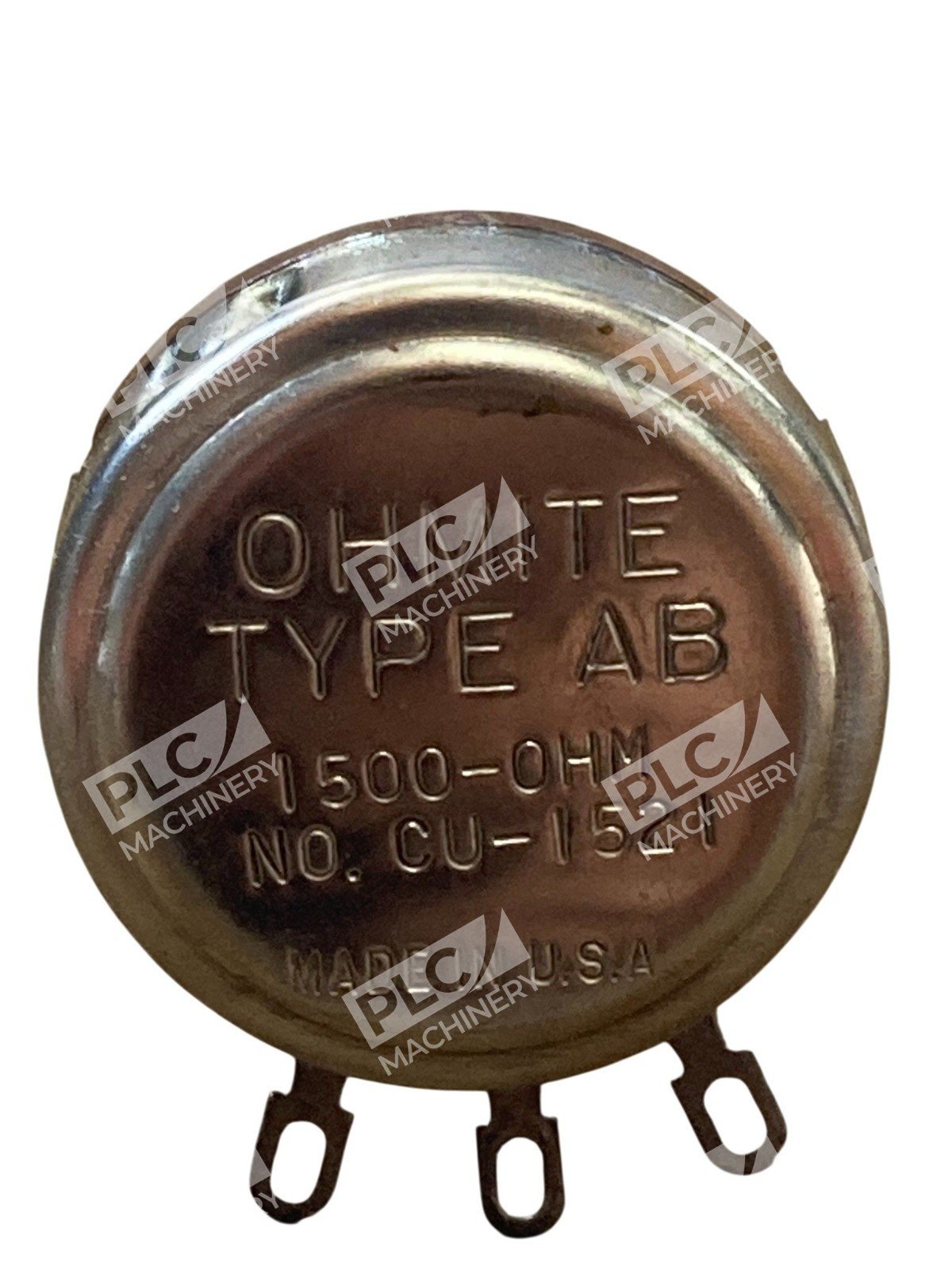

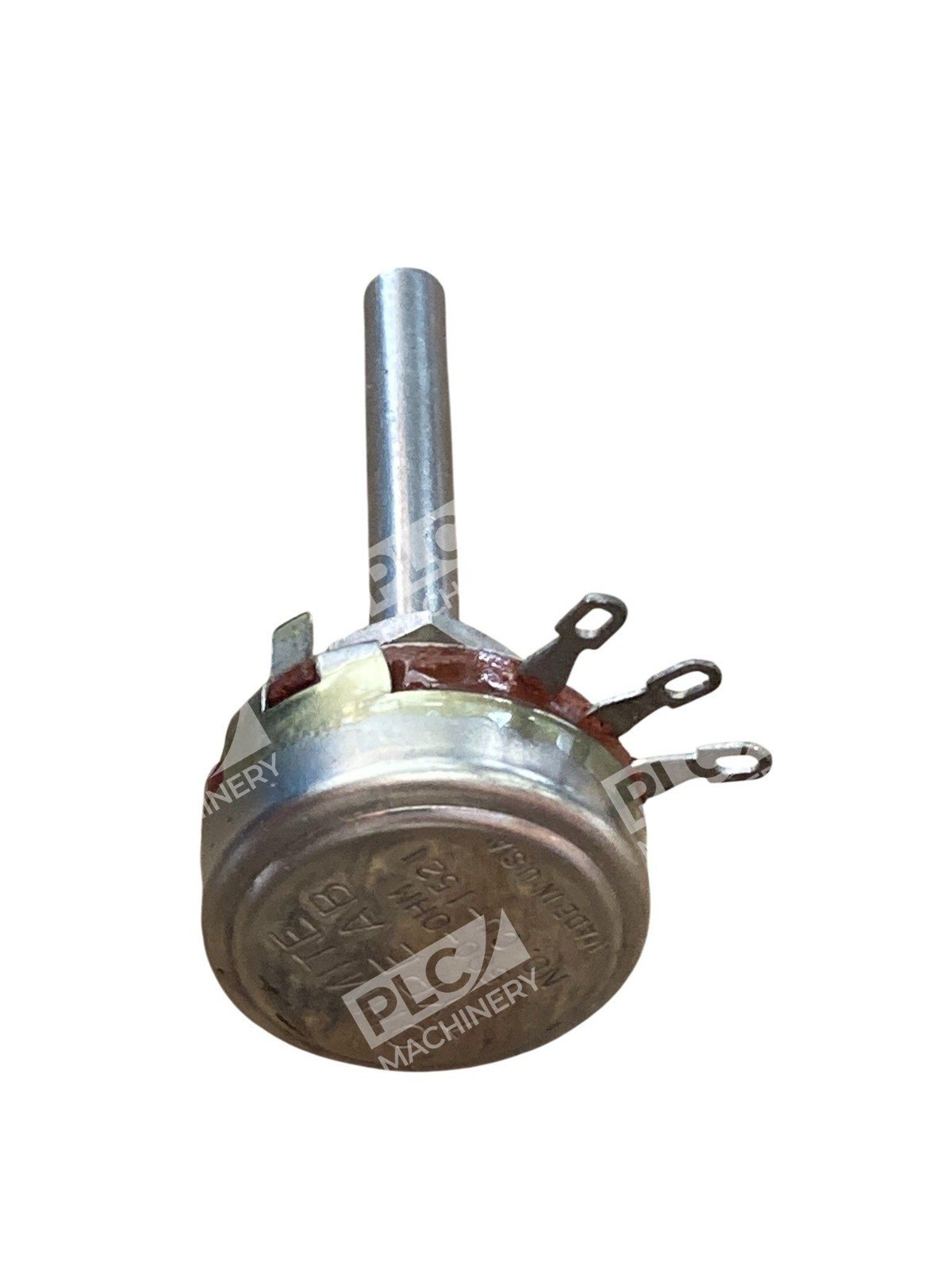

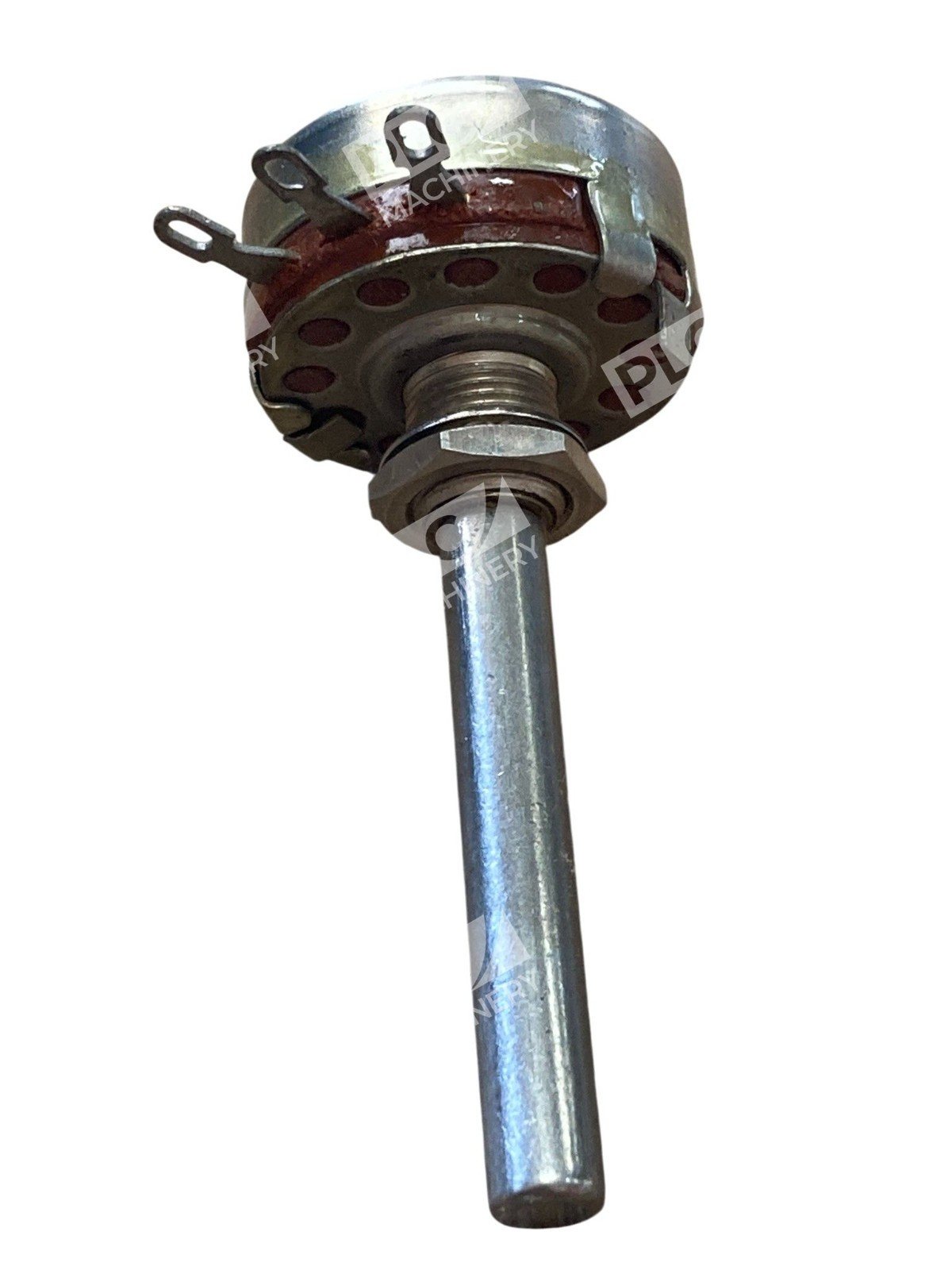

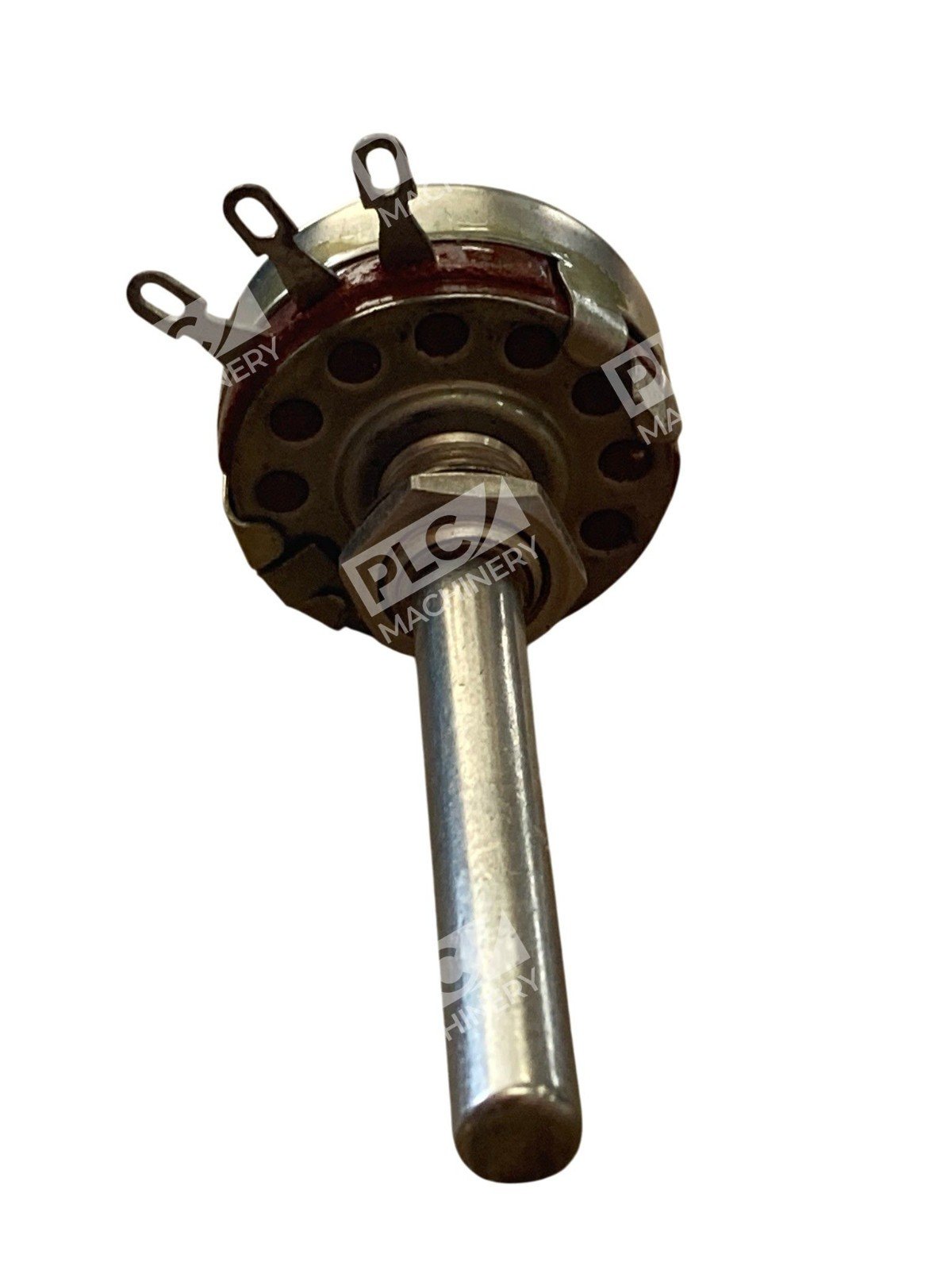

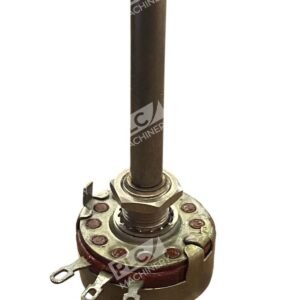

Ohmite CU-1521 Type AB 1.5KΩ 2W U-Linear Wirewound Potentiometer

Ohmite CU-1521 Type AB 1.5KΩ 2W U-Linear Wirewound Potentiometer

The Ohmite CU-1521 is a high-quality wirewound potentiometer designed for precise control in electronic circuits. With a resistance of 1.5K ohms and a power rating of 2 watts, it offers reliable performance for various applications.

Key Features

• Resistance: 1.5K ohms
• Power Rating: 2 watts
• Tolerance: ±10%
• Technology: Wirewound
• Mounting Style: Panel mount
• Termination Style: Solder lugs
• Adjustment Type: Single turn
• Taper: Linear

Physical Specifications

• Dimensions: 1.1230″ diameter x 0.536″ height (28.45mm x 13.61mm)
• Shaft Diameter: 0.25″ (6.35mm)
• Shaft Length: 1.626″ (41.3mm)
• Bushing Thread: 3/8-32

Applications

The CU-1521 potentiometer is suitable for various applications, including:

• Audio equipment
• Industrial controls
• Instrumentation
• Test equipment

Its robust construction and precise control make it an excellent choice for both commercial and industrial environments.
