Ohmite CU-1041 Type AB Potentiometer 0.1 MΩ 2W Wirewound Panel Mount

Ohmite CU-1041 Type AB Potentiometer 0.1 MΩ 2W Wirewound Panel Mount

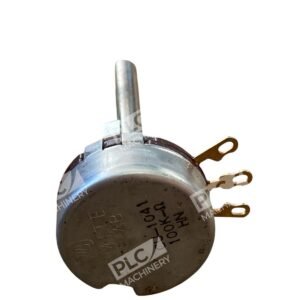

The Ohmite CU-1041 Type AB Potentiometer is a high-quality, wirewound variable resistor designed for precise control in electronic circuits. With a resistance of 100 kΩ (0.1 MΩ) and a power rating of 2 watts, this potentiometer is suitable for applications requiring reliable performance and durability.

Key Features

• Resistance Value: 100 kΩ (0.1 MΩ)
• Power Rating: 2 watts
• Technology: Wirewound
• Tolerance: ±10%
• Taper: Linear
• Mounting Type: Panel Mount
• Termination Style: Solder Lug
• Shaft Diameter: 0.25 inches (6.35 mm)
• Shaft Length: 2 inches (50.8 mm), including bushing
• Bushing Thread: 3/8-32
• Rotation: 312°
• Voltage Rating: 500V

Design and Construction

The CU-1041 features a robust wirewound construction, ensuring stability and longevity in various operating conditions. Its linear taper provides consistent and predictable resistance changes, making it ideal for applications where precise adjustments are necessary.

Mounting and Installation

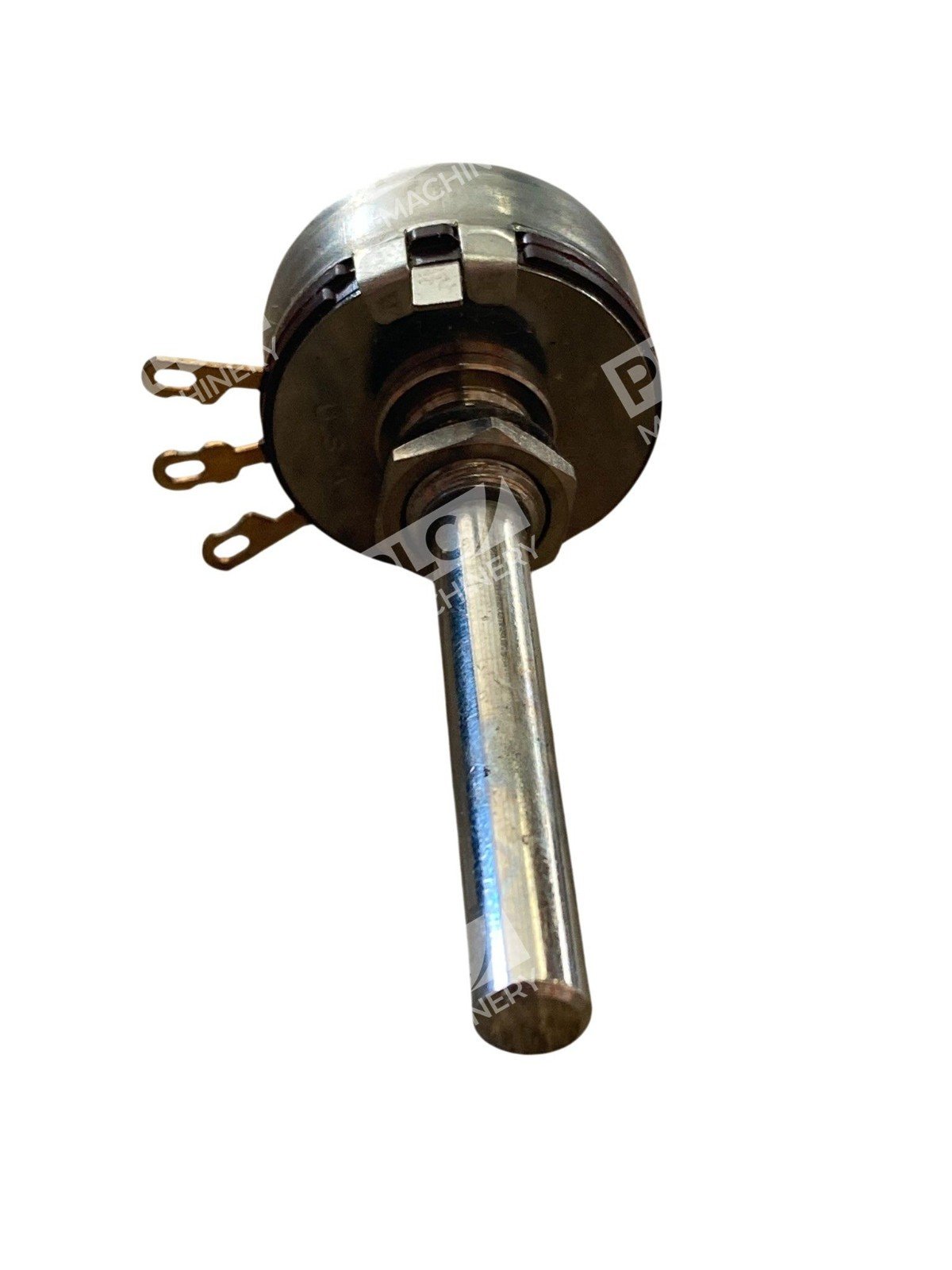

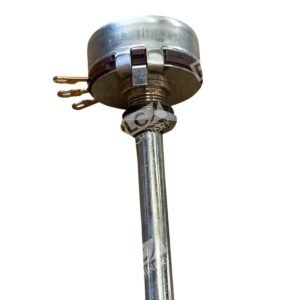

Designed for panel mounting, the potentiometer includes a threaded bushing and a 0.25-inch diameter shaft, facilitating secure and straightforward installation. The solder lug terminals allow for reliable electrical connections, suitable for various electronic projects and equipment.

Applications

This potentiometer is well-suited for use in audio equipment, instrumentation, and other electronic devices where precise control of resistance is required. Its durable design and reliable performance make it a preferred choice for both hobbyists and professionals.

For detailed technical specifications, please refer to the manufacturer’s datasheet.
