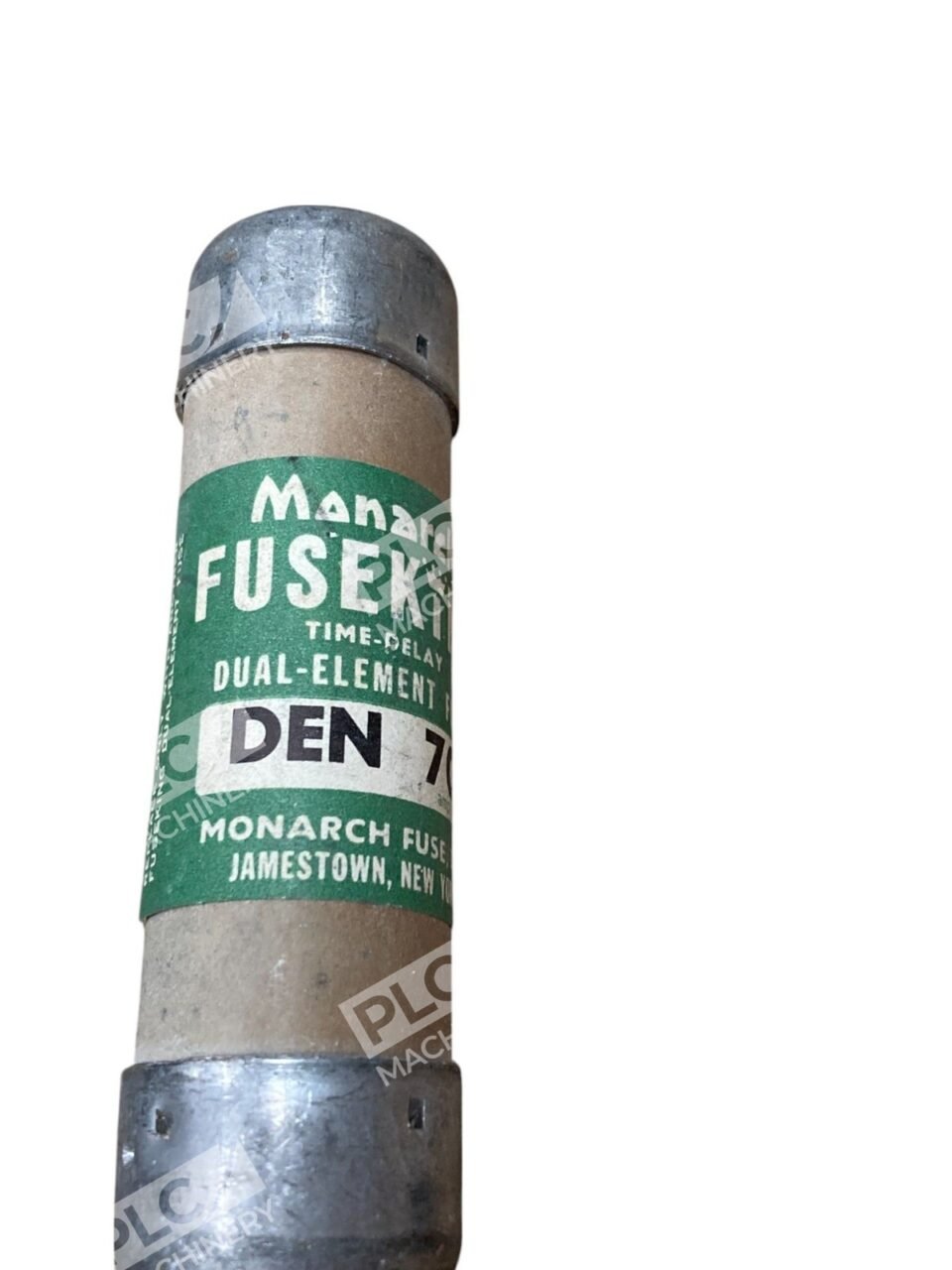

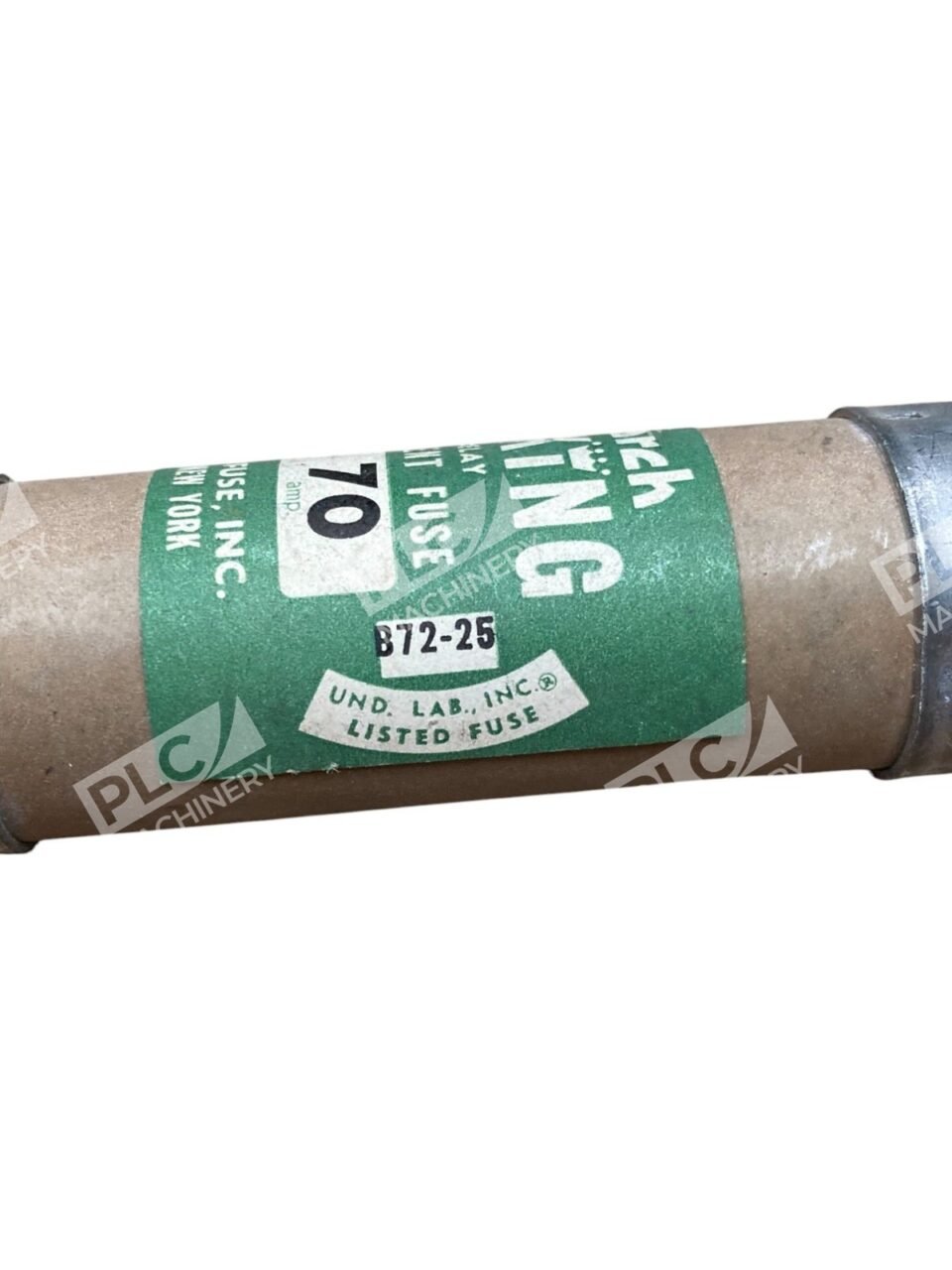

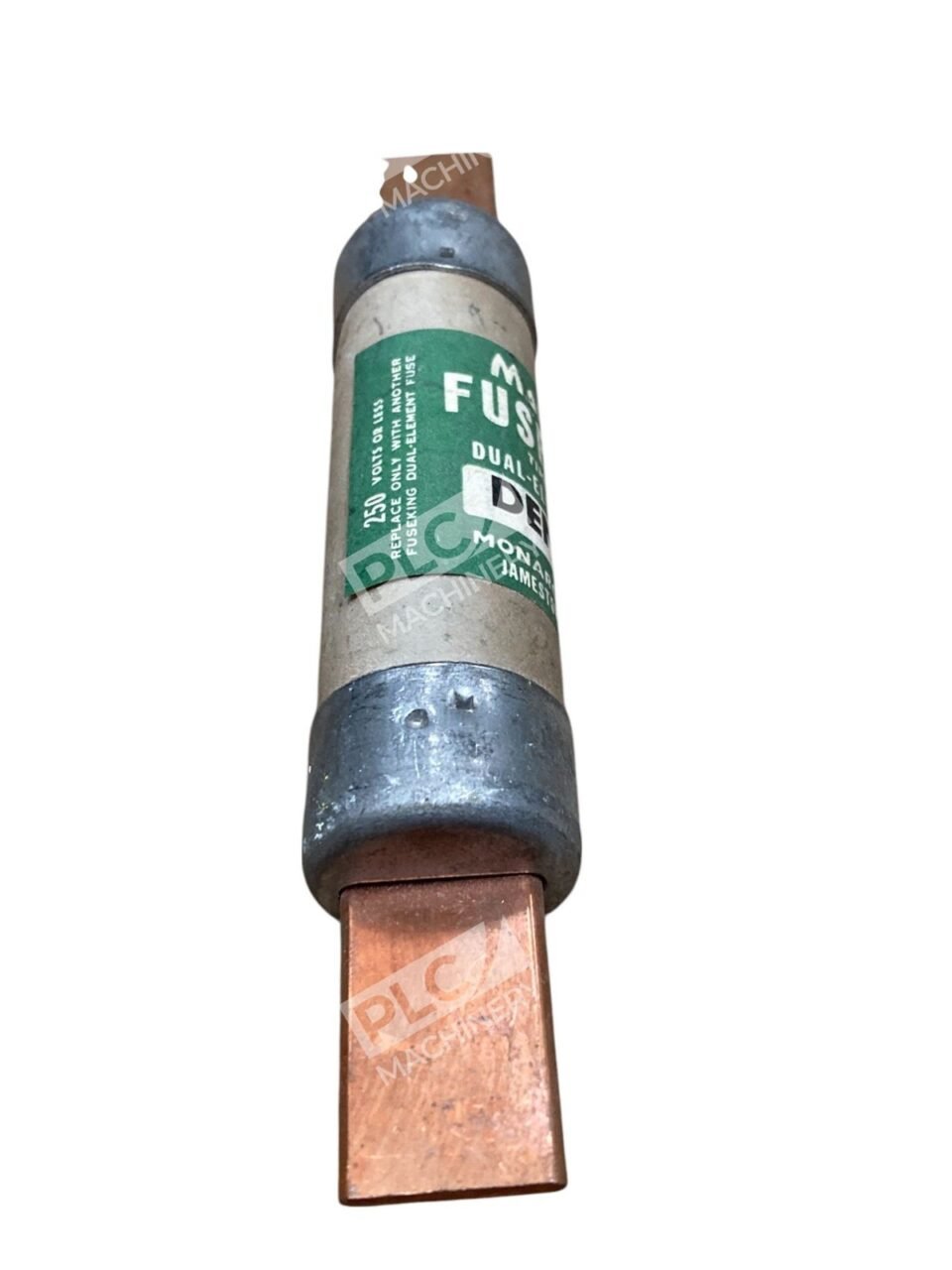

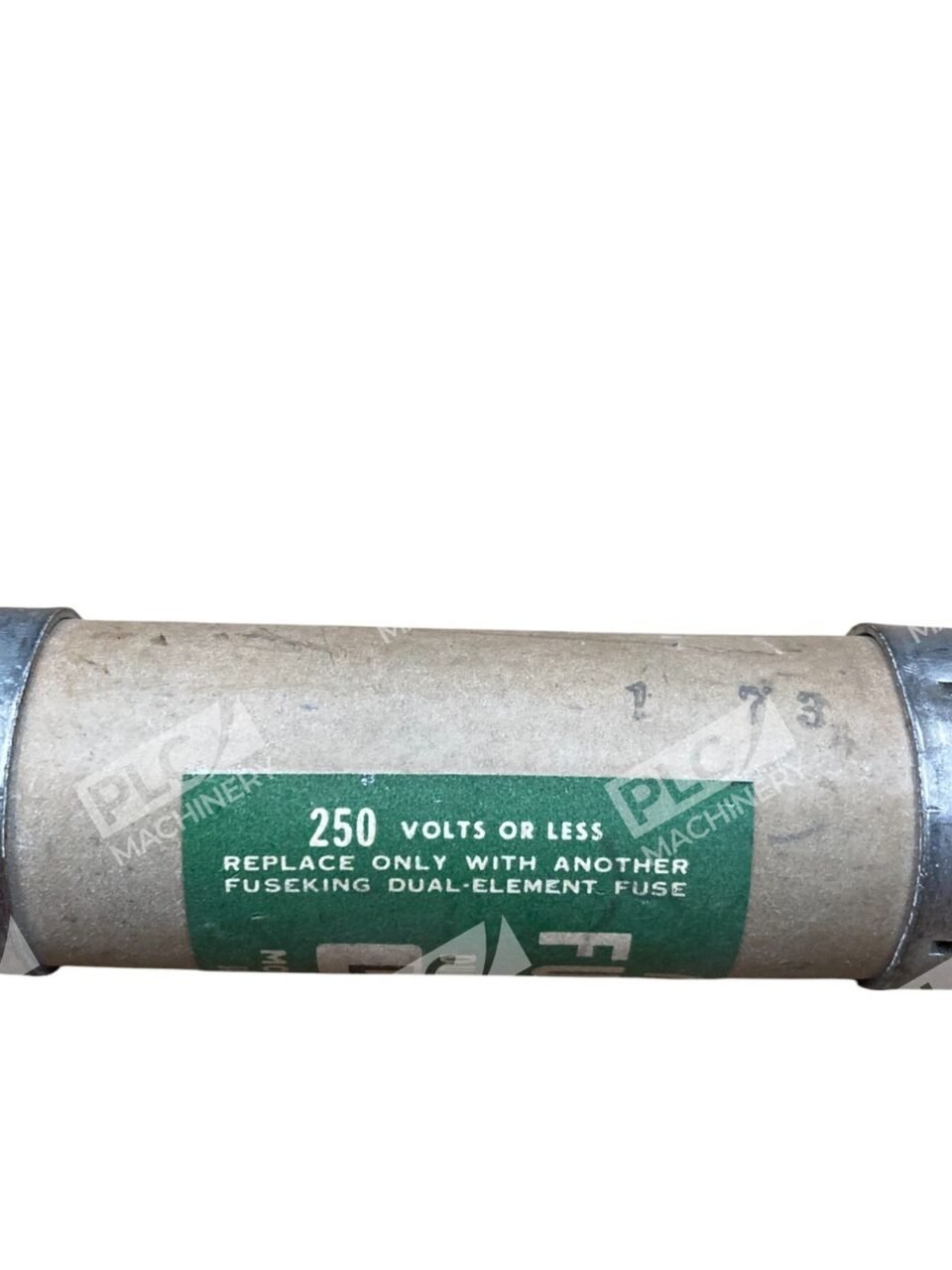

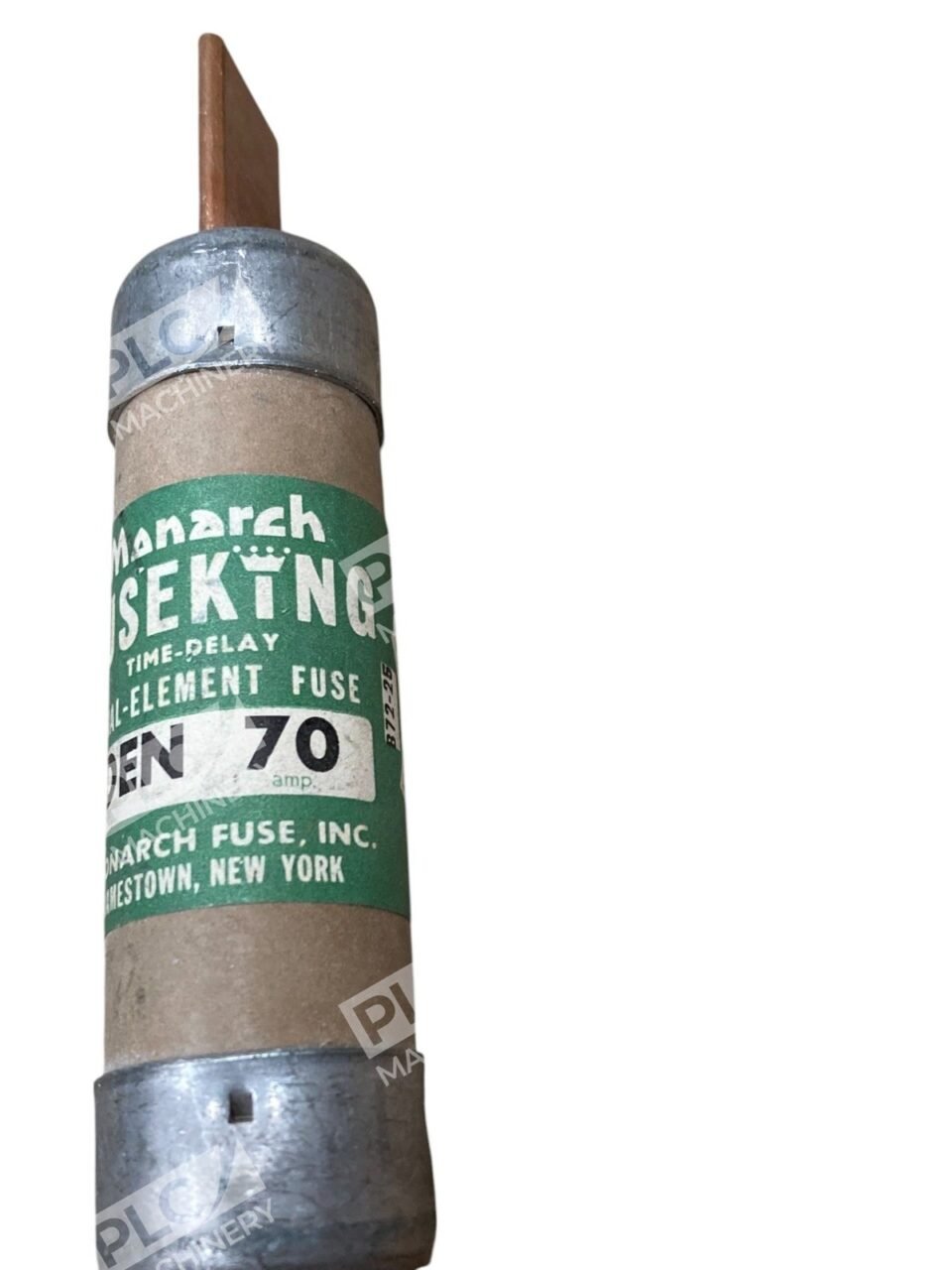

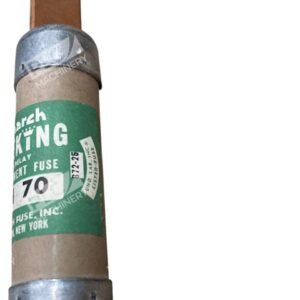

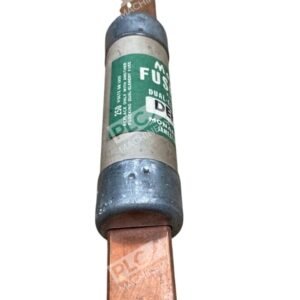

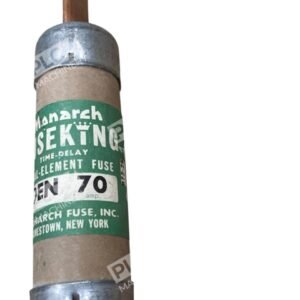

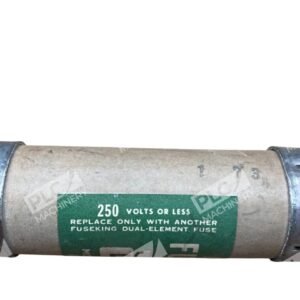

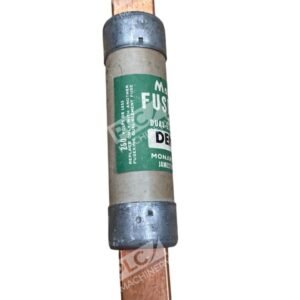

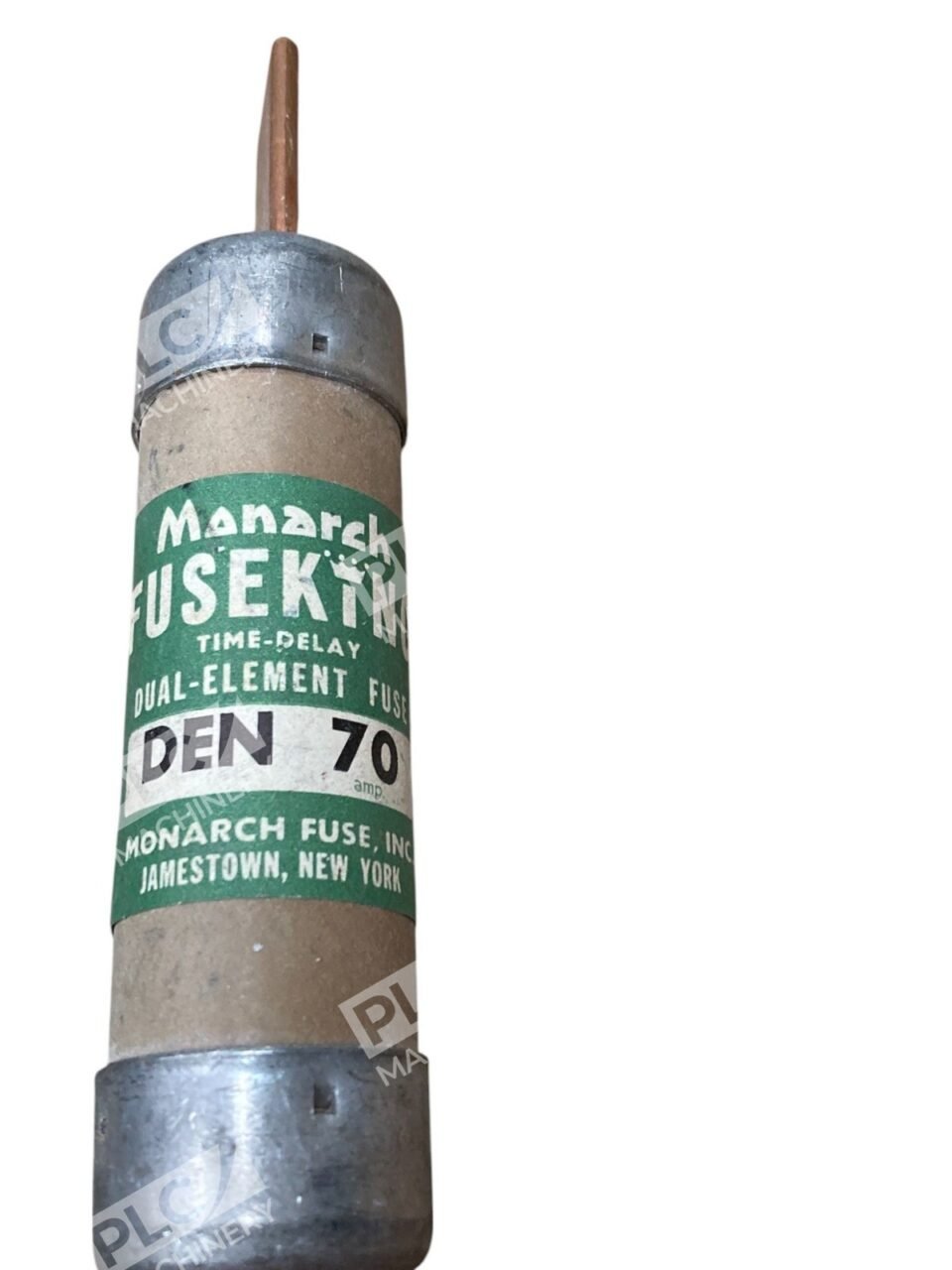

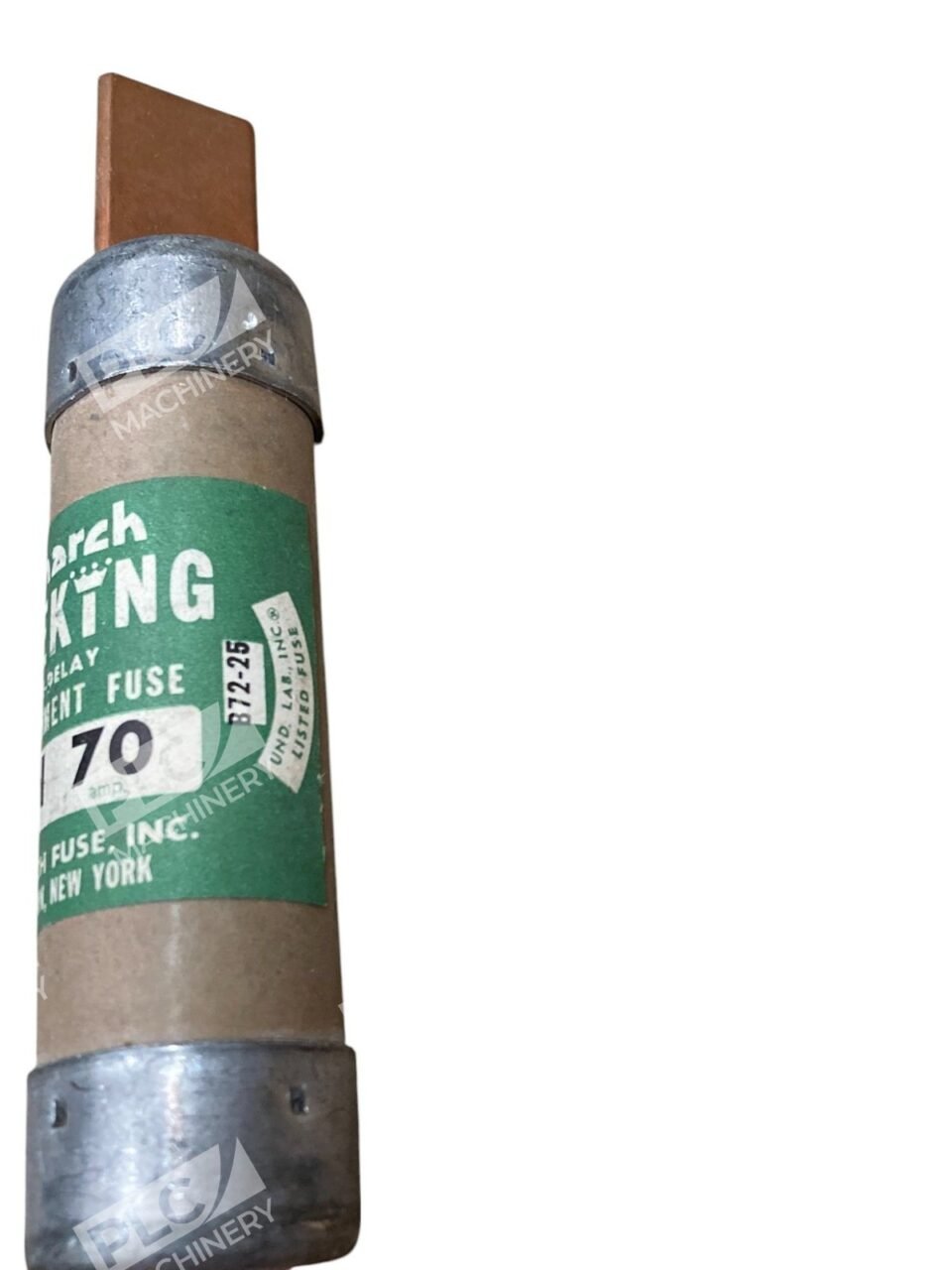

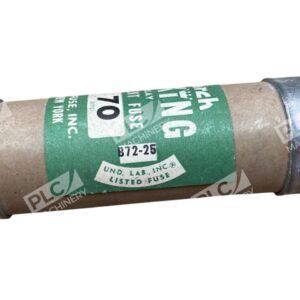

Monarch Fuse-King DEN 70 Time-Delay Dual-Element Fuse

Monarch Fuse-King DEN 70 Time-Delay Dual-Element Fuse

The Monarch Fuse-King DEN 70 is a 70-amp, time-delay, dual-element fuse designed to provide reliable overcurrent protection in electrical circuits. Engineered for both industrial and commercial applications, this fuse ensures the safety and longevity of electrical systems by effectively managing overloads and short circuits.

Key Features

• Time-Delay Functionality: Allows temporary inrush currents, such as those during motor startups, to pass without tripping, while still protecting against prolonged overloads.
• Dual-Element Design: Combines two separate elements to provide both short-circuit and overload protection, enhancing system reliability.
• High Interrupting Capacity: Capable of safely interrupting high fault currents, minimizing potential damage to equipment.
• Voltage Rating: Suitable for systems operating at up to 250 volts AC.
• Amperage Rating: Rated for 70 amps, accommodating a range of electrical loads.

Applications

The Monarch Fuse-King DEN 70 is ideal for use in:

• Motor control centers
• Power panelboards
• Machinery disconnects
• Combination starters

Its time-delay feature makes it particularly suitable for circuits with inductive loads, such as motors and transformers, where temporary current surges are common.

Specifications

• Amperage: 70 A
• Voltage: 250 V AC
• Fuse Class: RK5
• Interrupting Rating: 200 kA at 250 V AC
• Dimensions: Approximately 1.06 inches in diameter and 5.88 inches in length

By incorporating the Monarch Fuse-King DEN 70 into your electrical system, you ensure robust protection against overcurrent conditions, thereby enhancing operational safety and equipment longevity.
