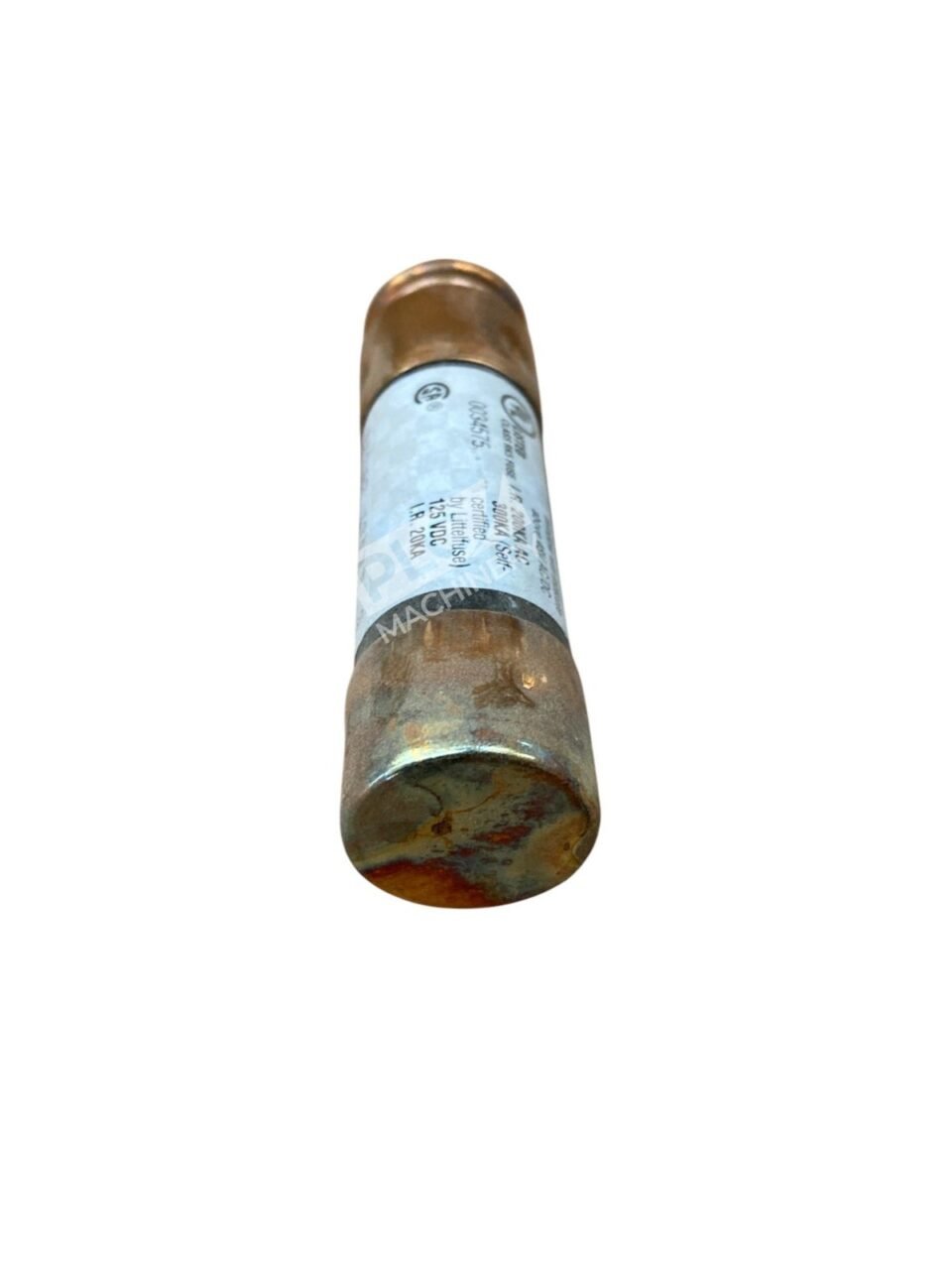

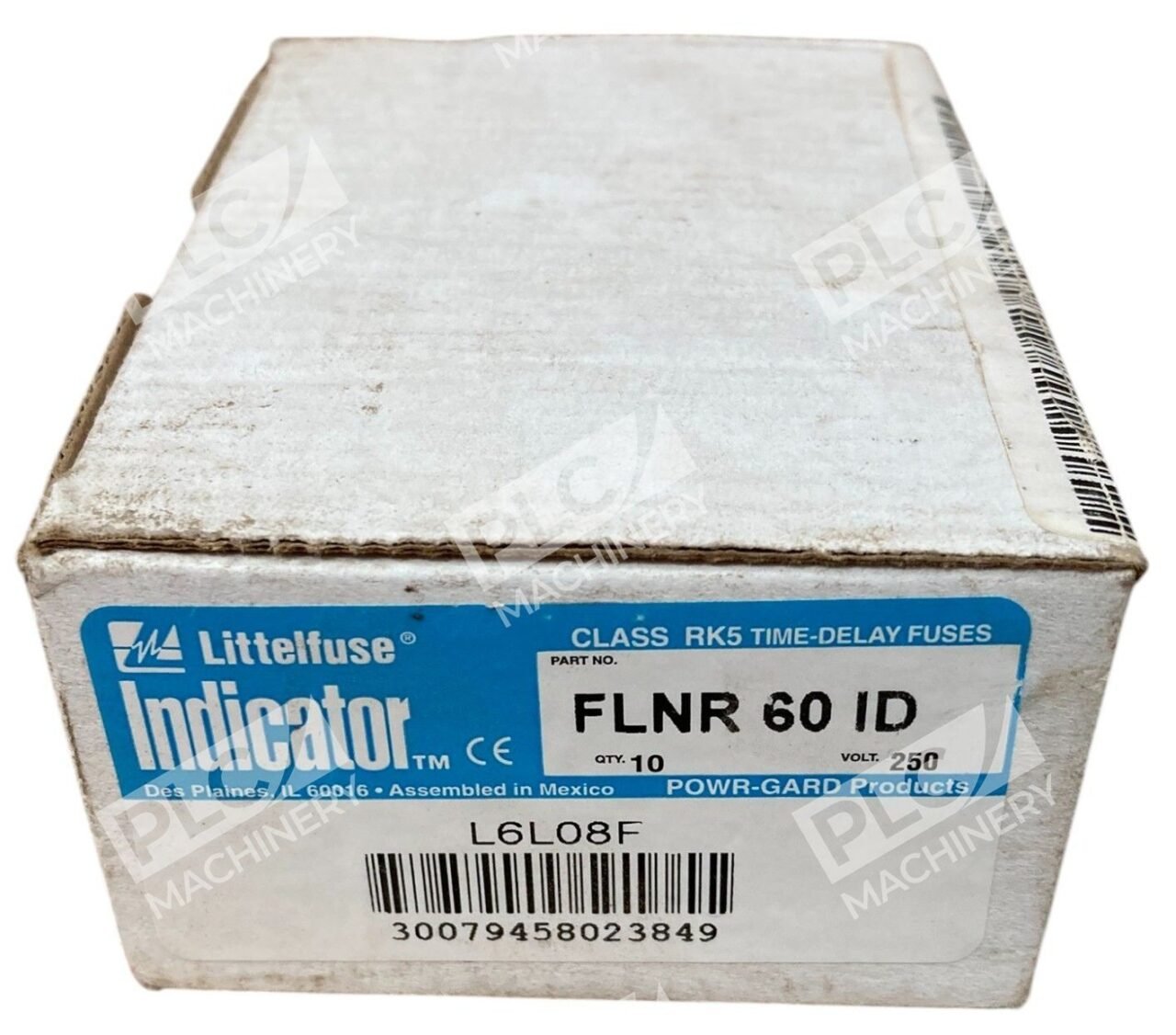

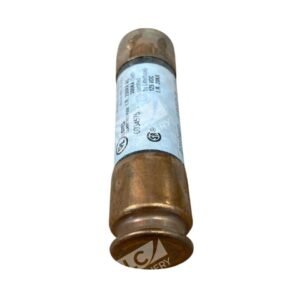

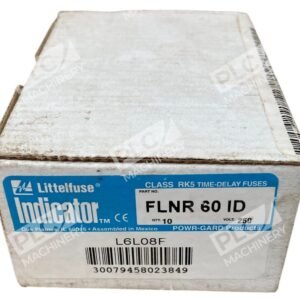

Littelfuse FLNR 60 ID Class RK5 250V 60A Time Delay Fuses FLNR60ID (Box of 10)

Littelfuse FLNR 60 ID Class RK5 250V 60A Time Delay Fuses (Box of 10)

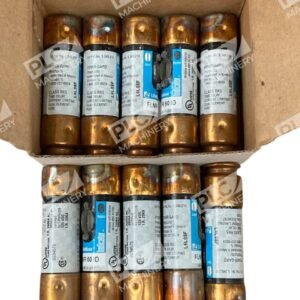

The Littelfuse FLNR 60 ID fuses are UL Class RK5 dual-element time-delay fuses, designed to provide superior overcurrent protection for a wide range of industrial applications. This box contains ten 60-amp fuses, each rated for 250 volts AC and 125 volts DC.

Key Features

• Dual-Element Design: Enhances performance by offering advanced short-circuit and overload protection.
• Time-Delay Functionality: Allows temporary overloads, such as motor startups, without unnecessary fuse operation.
• Current-Limiting Capability: Restricts fault current, providing a high degree of circuit protection.

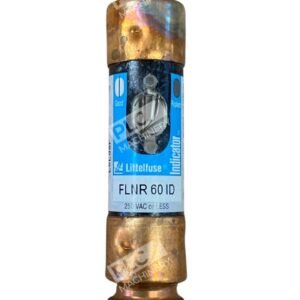

• Indicating Feature: Visual indication of fuse status facilitates quick identification and replacement of blown fuses.

Specifications

• Amperage Rating: 60 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupting Rating: 300 kA AC; 20 kA DC
• Response Time: 10 seconds
• Body Dimensions: 13/16 inch diameter x 3 inches length
• Material: Fiber body with bronze caps
• Mounting Type: Holder
• Terminal Type: Ferrule

Applications

These fuses are ideal for use in:

• Service entrance switches
• Transformers
• Switchboard mains and feeders
• Motor control center mains and motor branch circuits
• General-purpose circuits

Compliance and Standards

The FLNR 60 ID fuses comply with the following standards:

• UL 248-12
• CSA LR29862
• Federal Specification WF-1814

Ensure reliable and efficient circuit protection with the Littelfuse FLNR 60 ID Class RK5 fuses, designed to meet the demands of various industrial applications.
