Issc 1014-1-G-1-B Time Delay Relay On Delay .06-10.0 Sec B Output

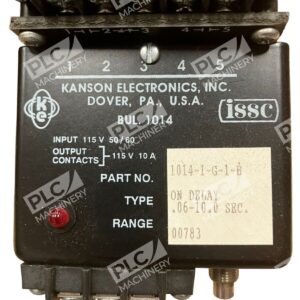

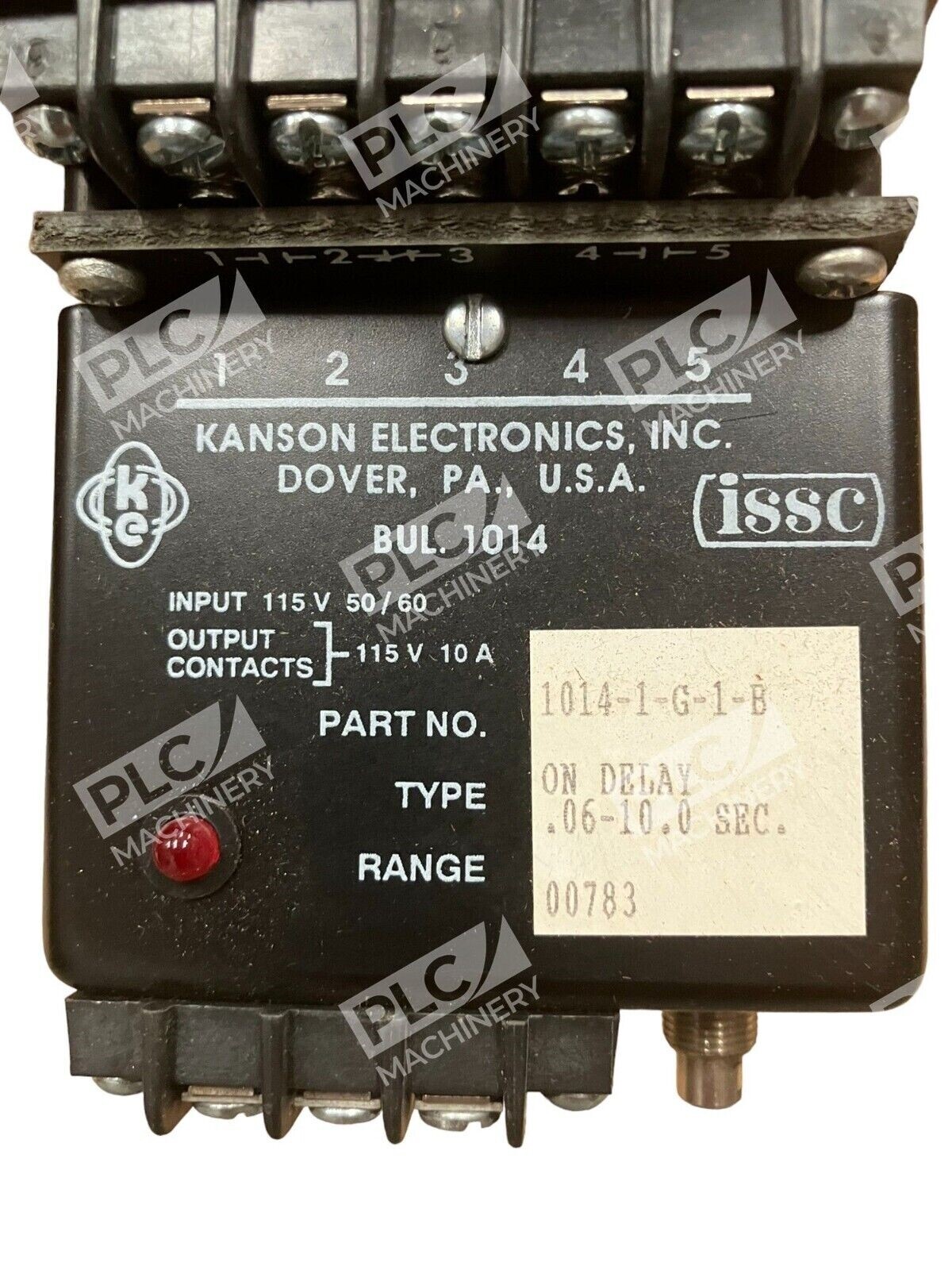

ISSC 1014-1-G-1-B Time Delay Relay

The ISSC 1014-1-G-1-B is a base-mounted time delay relay designed for on-delay applications, offering precise control over timing functions in industrial settings.

Key Features

• Timing Function: On-delay operation with a time range adjustable from 0.06 to 10.0 seconds.
• Input Voltage: Operates at 120VAC with a frequency of 50/60 Hz.
• Output: Equipped with two electromechanical relays, each rated for 10A at 240VAC maximum.
• Repeat Accuracy: ±1% of the set time, ensuring consistent performance.
• Reset Time: Minimum of 50 milliseconds.
• Indication: LED indicator illuminates when timing is active.
• Control: Compatible with isolated contact closures or AC proximity sensors.
• Mounting: Base mount with terminal blocks on the face of the timer for easy installation.
• Operating Temperature: Suitable for environments ranging from 0° to 50°C (32° to 120°F).

Applications

This time delay relay is ideal for applications requiring precise timing control, such as machinery sequencing, process control, and automation systems.

Additional Information

For detailed specifications, wiring diagrams, and ordering information, please refer to the product sheet.
