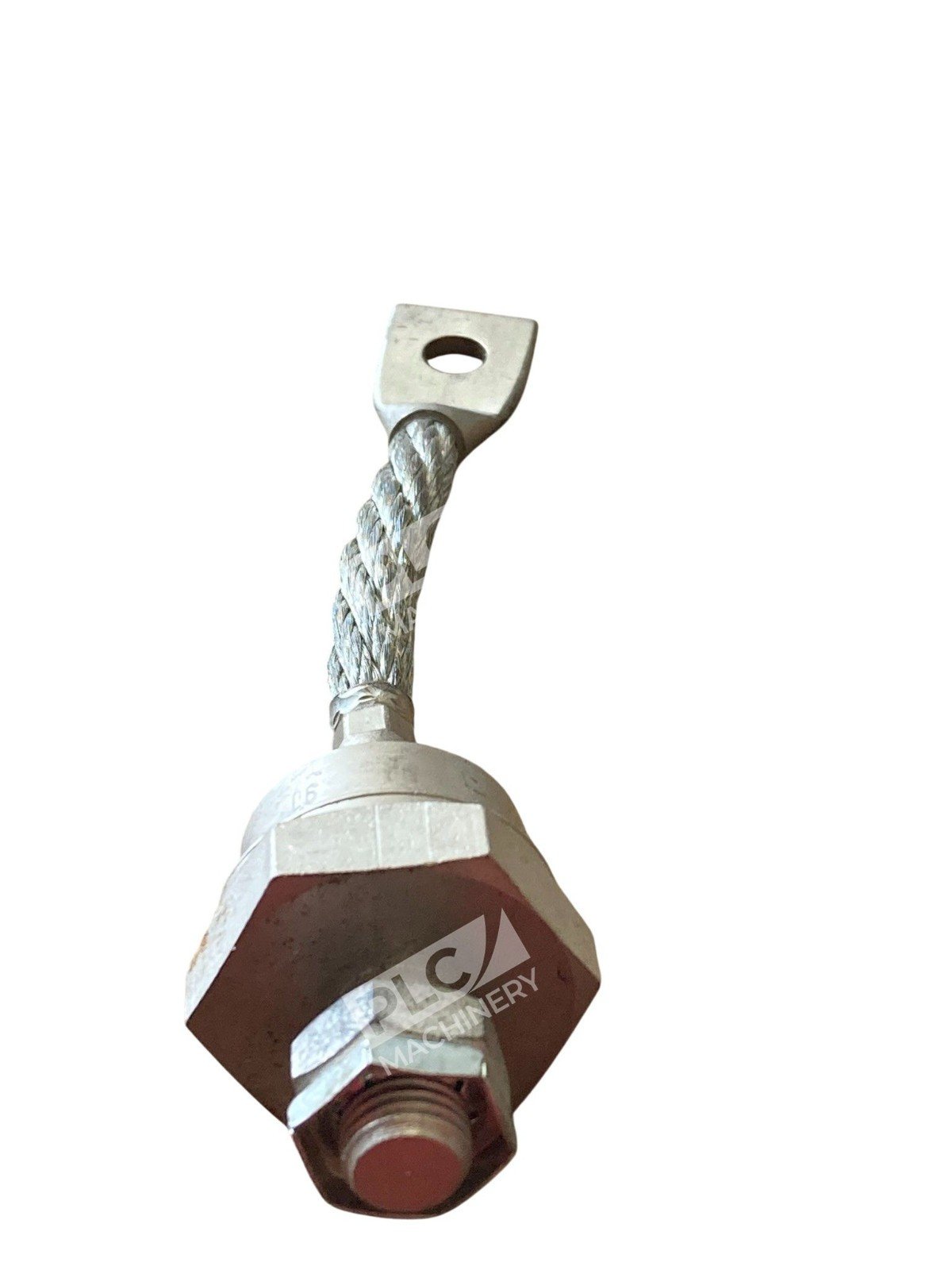

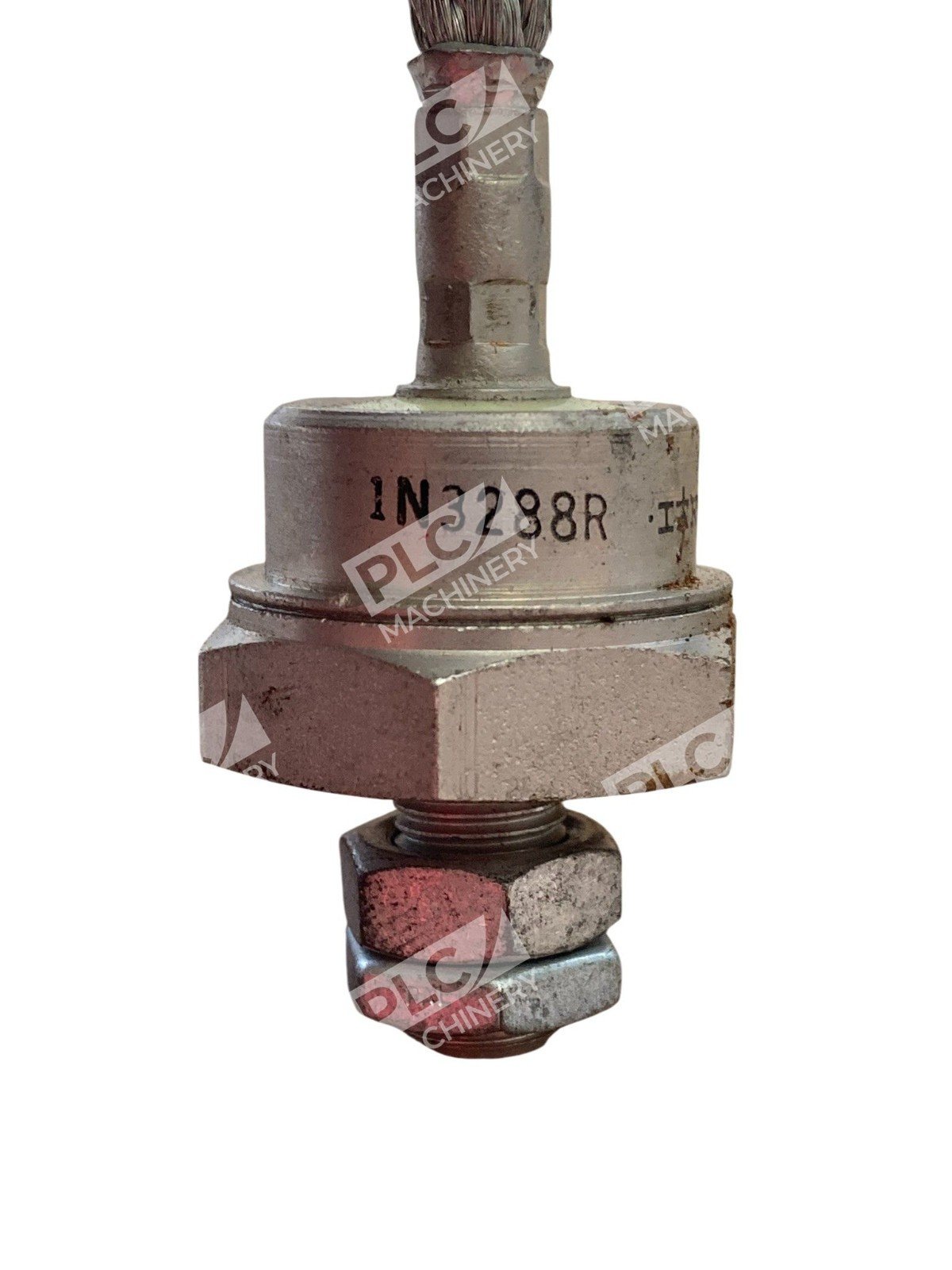

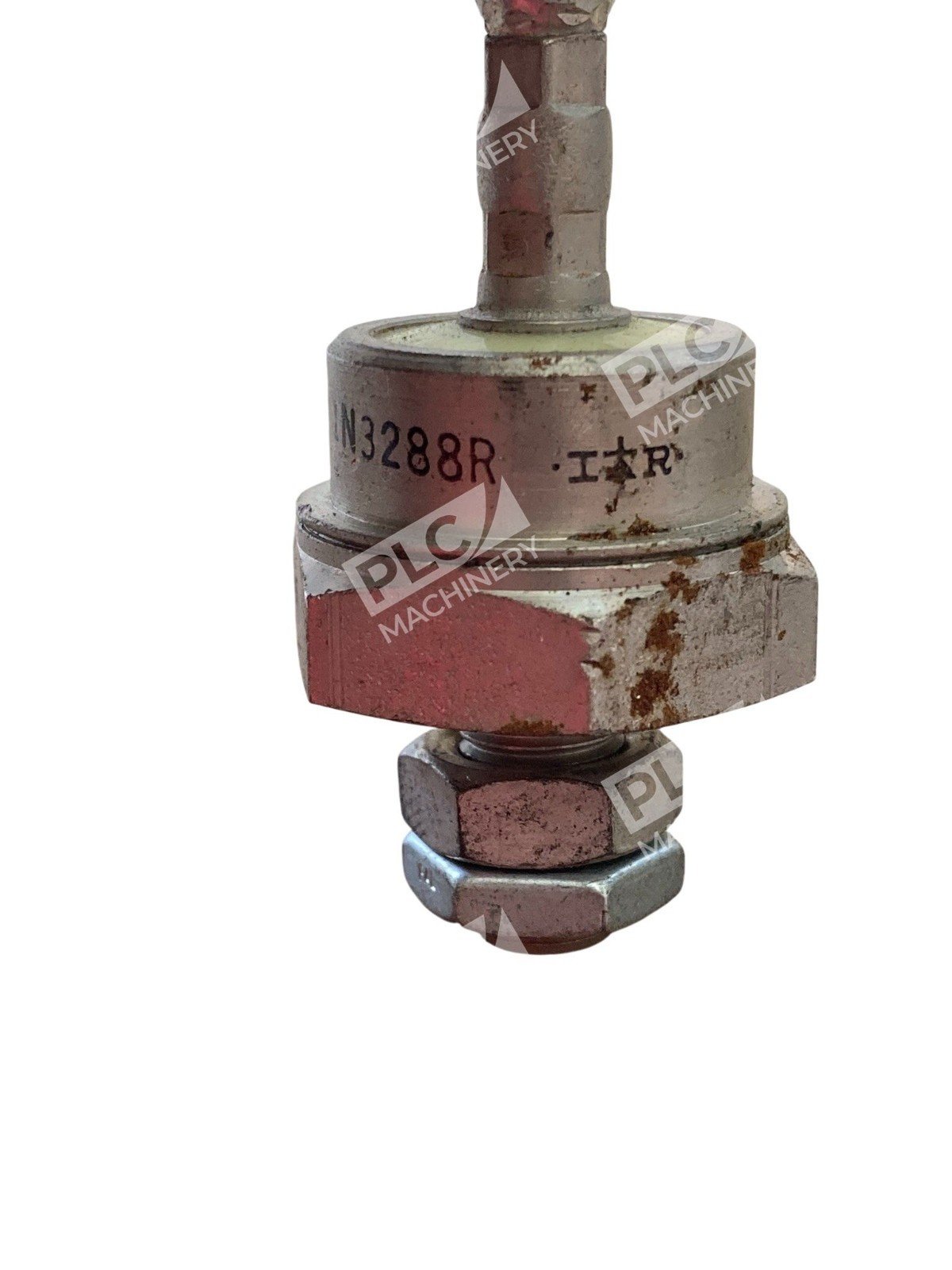

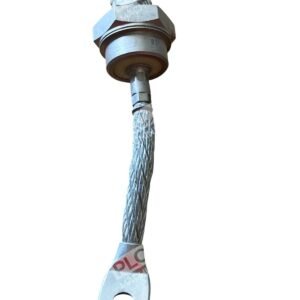

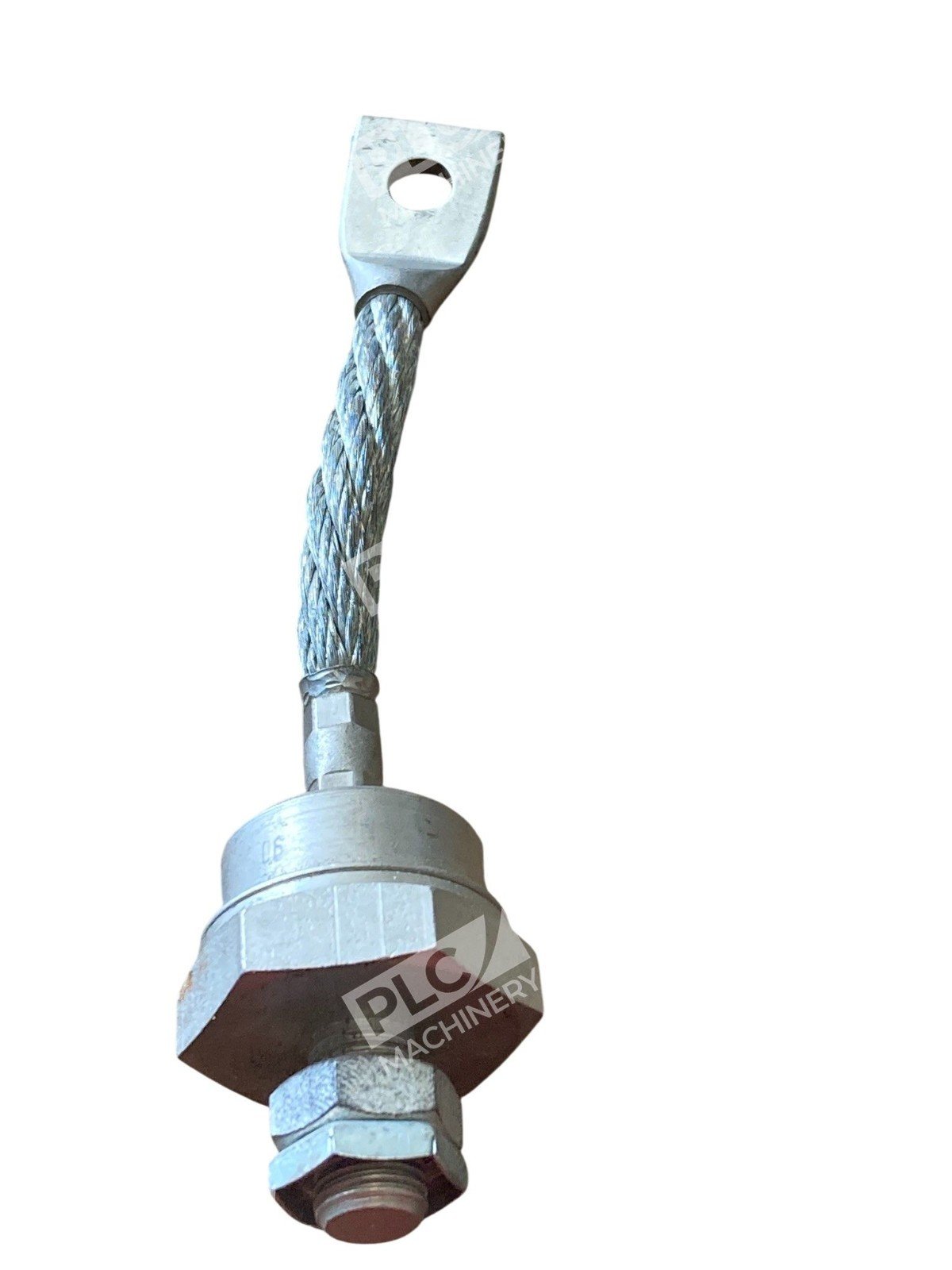

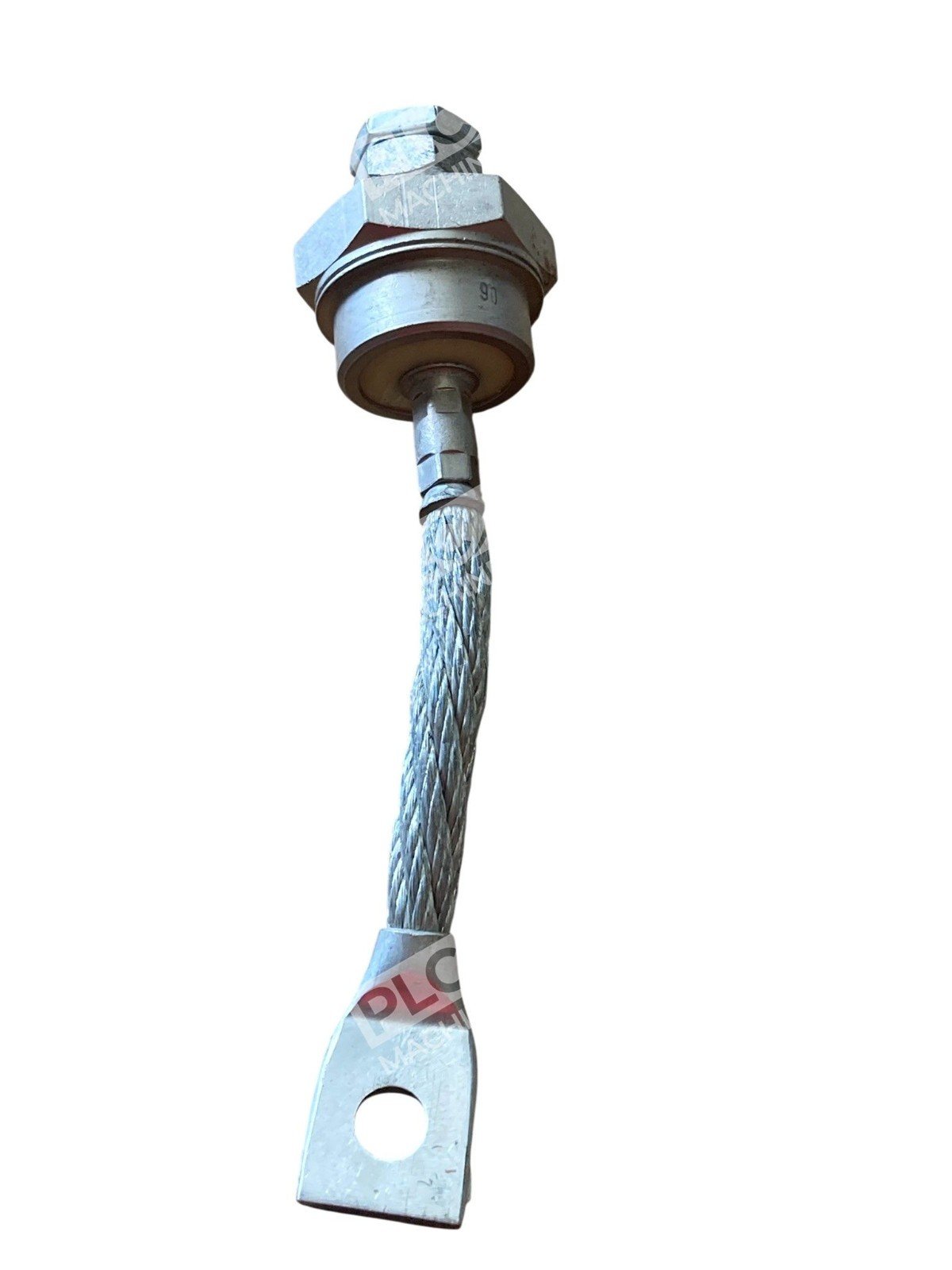

IR 1N3288R Stud-Mount Rectifier Diode
The IR 1N3288R is a high-performance stud-mount rectifier diode designed for demanding power rectification applications. Engineered to handle substantial current loads, this diode is ideal for industrial and commercial power systems.
Key Features
- High Current Capacity: Capable of delivering an average rectified current of 100A, making it suitable for high-power applications.
- Voltage Ratings: Supports a maximum DC reverse voltage of 100V, ensuring reliable operation under various conditions.
- Standard Recovery Time: Designed with a standard recovery time greater than 500ns, suitable for applications where rapid switching is not critical.
- Stud-Mount Design: The DO-205AA (DO-8) package with a stud mount facilitates secure and efficient thermal management.
- Operating Temperature Range: Functions effectively within a junction temperature range of -65°C to 200°C, accommodating diverse environmental conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Average Rectified Current (Io) | 100A |
| Maximum DC Reverse Voltage (Vr) | 100V |
| Forward Voltage (Vf) at 200A | 1.2V |
| Reverse Leakage Current at 100V | 50 µA |
| Package / Case | DO-205AA (DO-8), Stud Mount |
| Operating Junction Temperature | -65°C to 200°C |
Applications
The IR 1N3288R is well-suited for various applications, including:
- Industrial power supplies
- Motor control circuits
- Battery charging systems
- Welding equipment
- Uninterruptible Power Supplies (UPS)
Its robust design and high current handling make it a reliable choice for systems requiring efficient and durable rectification solutions.
