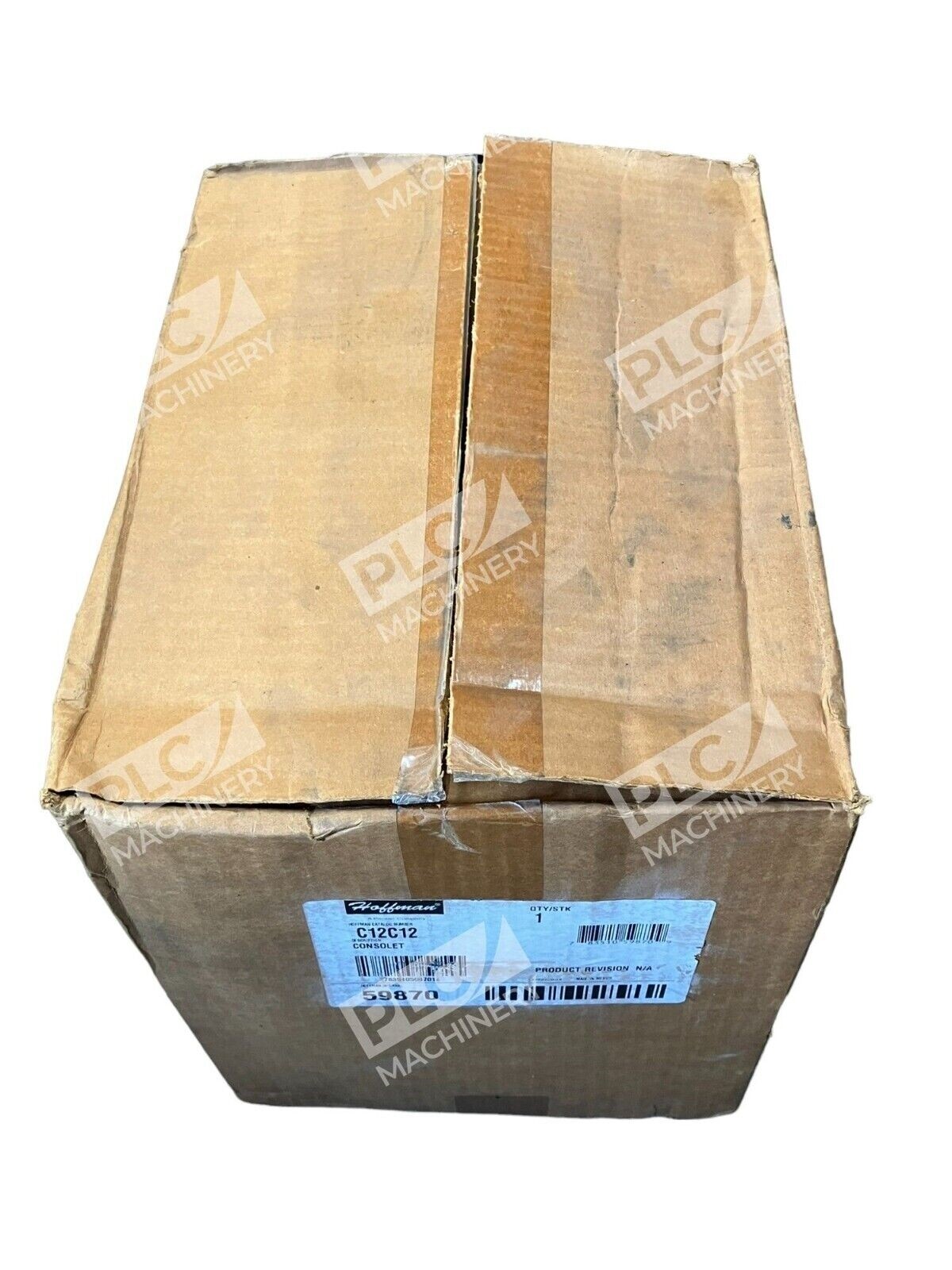

Hoffman C12C12 Consolet 59870

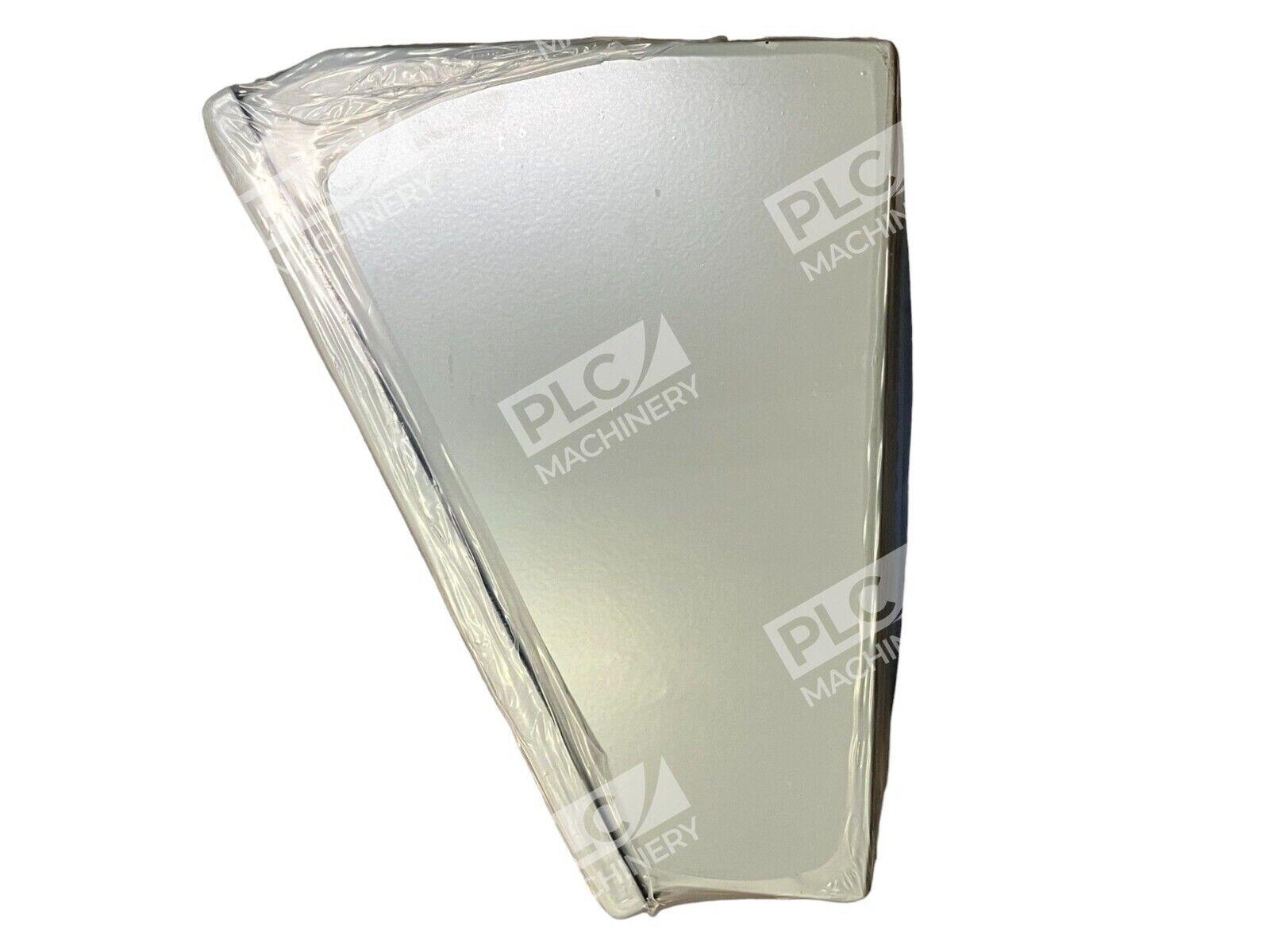

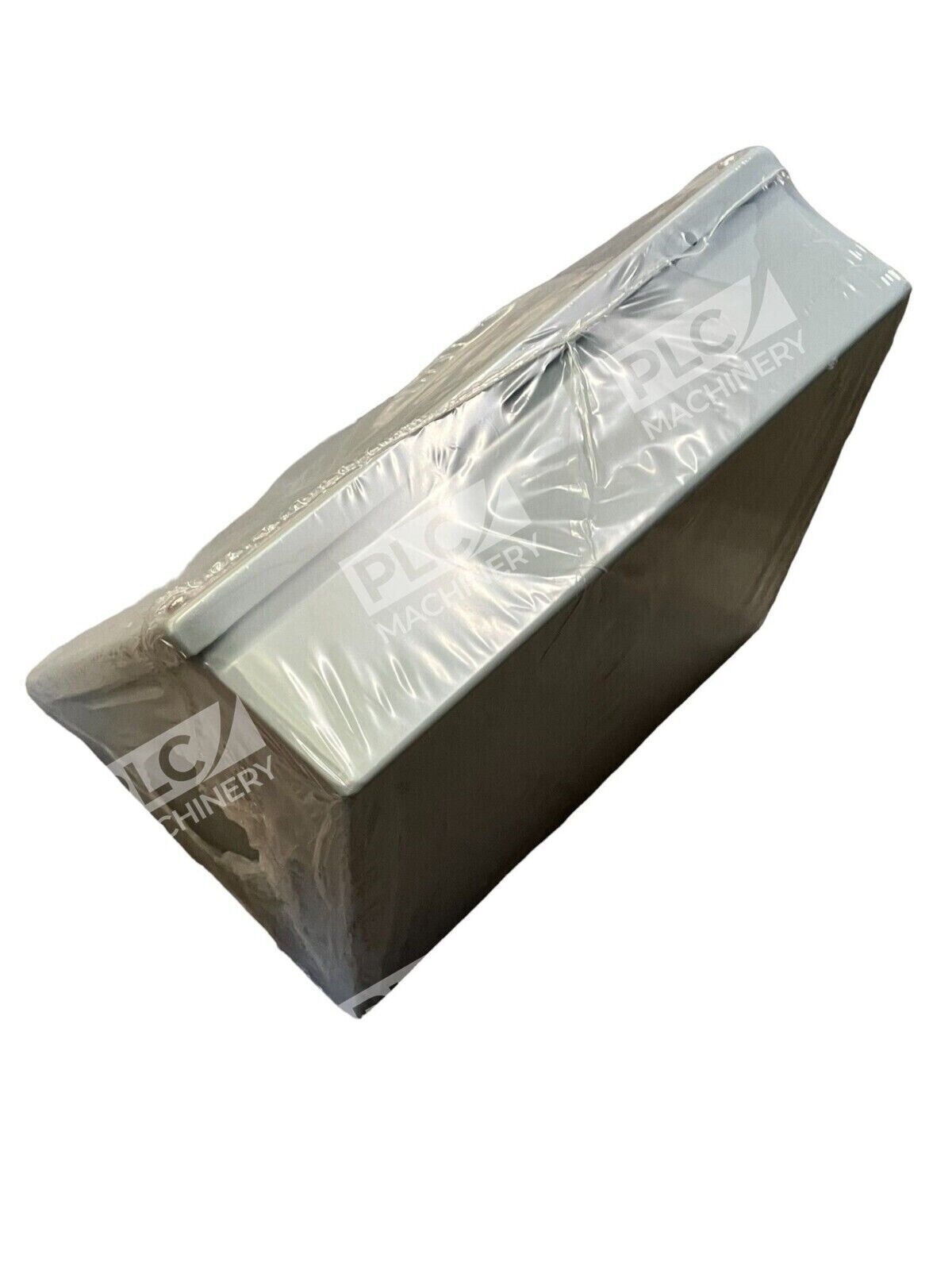

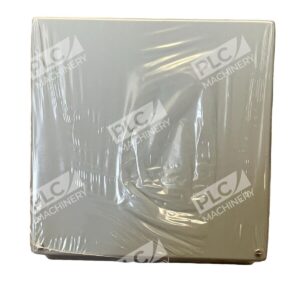

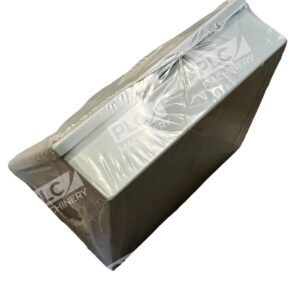

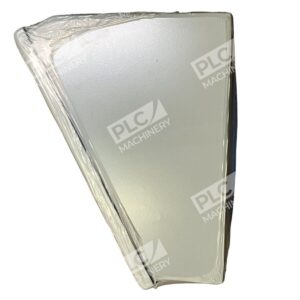

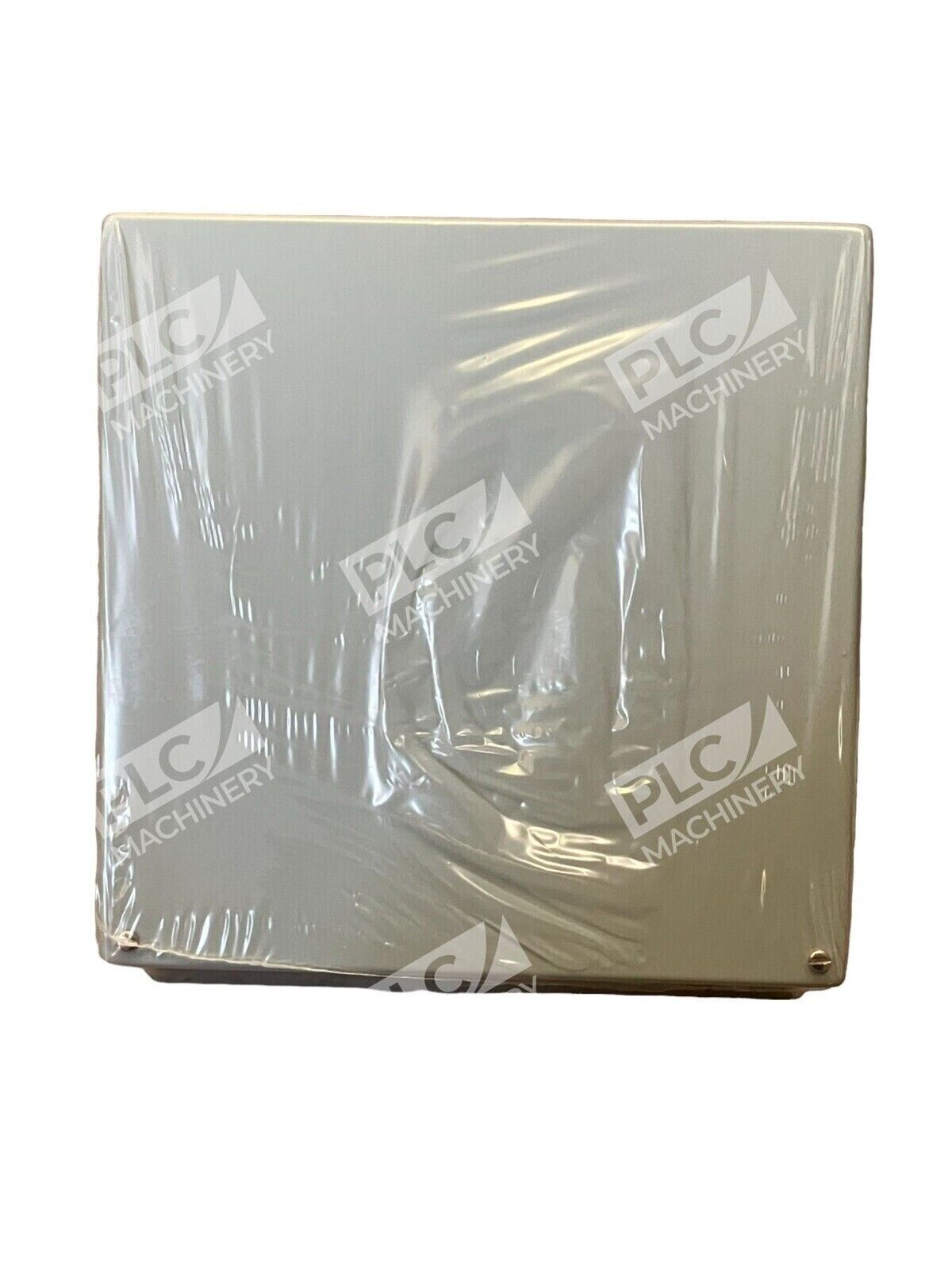

Hoffman C12C12 Consolet Enclosure

The Hoffman C12C12 Consolet Enclosure is expertly designed for mounting small control or instrumentation devices, offering a versatile solution for applications requiring a 30- or 60-degree surface access. Its adaptable design allows for mounting on either of two sides, facilitating placement on desktops, pedestals, or other flat surfaces to achieve optimal flexibility.

Key Features

• Flexible Mounting Options: Can be positioned to provide either a 30-degree or 60-degree inclined surface, enhancing accessibility and usability.
• Robust Construction: Fabricated from 14-gauge mild steel with seams that are continuously welded and ground smooth, ensuring durability and a clean finish.
• Secure Enclosure: Equipped with captivated cover screws that thread into sealed wells, providing a secure and tamper-resistant enclosure.
• Environmental Protection: Features an oil-resistant gasket and adhesive, offering protection against contaminants and ensuring a reliable seal.
• Continuous Hinge Design: The control panel is attached with a continuous hinge along the bottom edge, facilitating easy access and maintenance.

Specifications

• Dimensions: 12.00 inches (L) x 12.00 inches (W) x 9.09 inches (D)
• Material: 14-gauge mild steel
• Finish: ANSI 61 gray polyester powder paint applied over pretreated surfaces
• NEMA Rating: Type 12 and 13
• Ingress Protection: IEC 60529, IP65
• Certifications: UL 508A Listed; cUL Listed per CSA C22.2 No. 94

The Hoffman C12C12 Consolet Enclosure is an ideal choice for applications requiring a compact, durable, and flexible enclosure for control or instrumentation devices, ensuring both functionality and protection in industrial environments.
