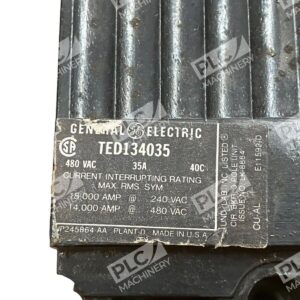

GE TED134035 35A 480V 3-Pole Molded Case Circuit Breaker
The GE TED134035 is a 3-pole molded case circuit breaker designed for industrial and commercial electrical distribution systems. With a current rating of 35 amps and a voltage rating of 480 volts AC, it provides reliable protection against overloads and short circuits.
Key Features
- Thermal-Magnetic Trip Unit: Combines both thermal and magnetic trip elements to offer protection against overloads and short circuits.
- Interrupting Capacity: Rated at 18 kA at 480V AC, ensuring effective fault current interruption.
- Frame Type: E150 frame, suitable for various applications.
- Connection Type: Equipped with load lugs for straightforward installation; line lugs can be added if required.
- Temperature Rating: Operates efficiently within a temperature range of 10 to 50 degrees Celsius.
- Dimensions: Measures 4-1/8 inches in width, 3-3/8 inches in depth, and 6-5/16 inches in height.
Applications
The GE TED134035 circuit breaker is suitable for a wide range of applications, including:
- Industrial facilities
- Commercial buildings
- Switchboards
- Motor control centers
- Lighting panels
- Power distribution units
Its robust design and reliable performance make it an ideal choice for protecting electrical circuits in demanding environments.
