Overview
The FMS EMGZ306A tension measuring amplifier is a compact, single-channel analog signal conditioner designed for precision force measurement in industrial automation and control systems. This 24VDC-powered amplifier converts strain gauge signals into standardized analog outputs, making it essential for applications requiring reliable tension monitoring across production lines, testing equipment, and packaging systems.
Key Features
- Single-channel analog tension measuring amplifier for force sensor integration
- Standardized output options: ±10V and 0…20mA or 4…20mA (switchable by jumpers)

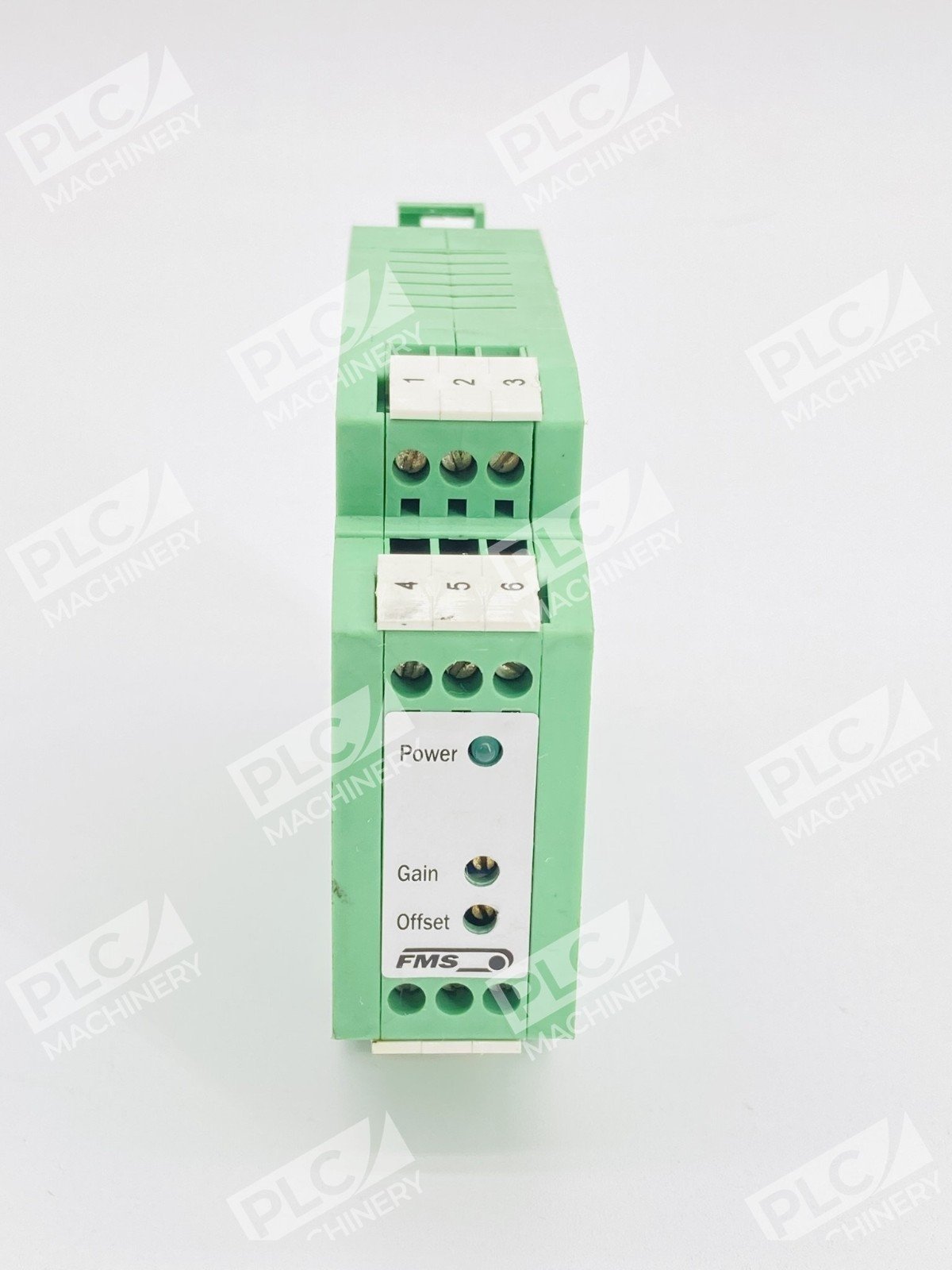

- Front-accessible 20-turn trimmers for precise gain and offset adjustment
- DIN rail mountable for space-efficient panel integration
- Supplies regulated 5V sensor excitation voltage (standard) to connected force sensors
- Optional 10V sensor supply voltage and compound-filled vibration-protected versions available
Technical Specifications
- Power Supply: 24VDC
- Output Voltage: ±10V (switchable analog)
- Output Current: 0…20mA or 4…20mA (selectable by jumper)
- Sensor Supply: 5V regulated (standard), 10V optional
- Mounting: DIN rail
- Control Interface: 20-turn trimmers (gain and offset)
- Sensor Channels: Two force sensors can be connected to single channel
- Manufacturer: FMS Technology (Force Measuring Systems AG)
- Series: EMGZ 306A
Typical Applications
- Web tension control and monitoring in printing and converting machinery
- Load cell signal conditioning in packaging and labeling equipment
- Strain gauge bridge completion and amplification in test fixtures
- Industrial process control requiring stable 4-20mA instrumentation loops
- Rotating machinery tension measurement with optional compound-filled versions
- Material handling systems requiring real-time force feedback
Compatibility & Replacements
Compatible With
- FMS force sensors (load cells, tension transducers)
- Strain gauge-based force measurement systems
- PLC/DCS systems accepting 4-20mA or 0-10V analog inputs
- Industrial displays and monitoring equipment with analog input modules
- Standard 24VDC industrial power supplies
Replaces / Drop-In Replacement For
- Other single-channel analog tension measuring amplifiers with ±10V and 4-20mA outputs
- Verify connector type and sensor supply voltage (5V standard vs. 10V optional) with your system integrator before ordering
Works With
- Analog input modules in Allen-Bradley, Siemens, Mitsubishi, and Omron PLCs
- 4-20mA instrumentation networks and industrial process controllers
- Force measurement software platforms compatible with analog ±10V and current loop inputs
- FMS digital and analog measuring systems requiring single-channel analog output conversion
