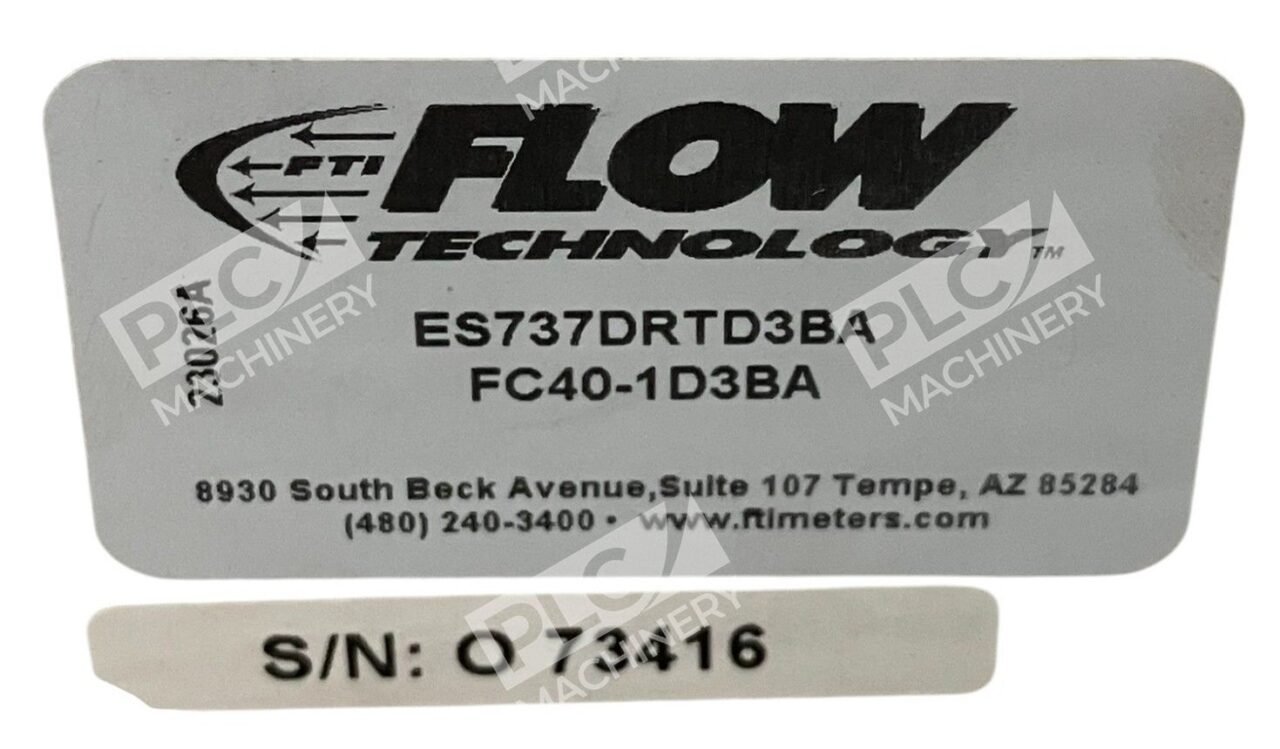

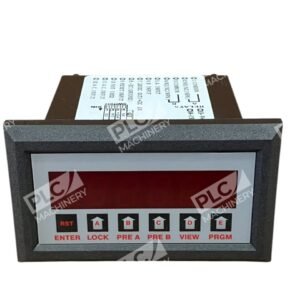

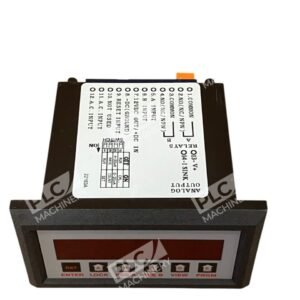

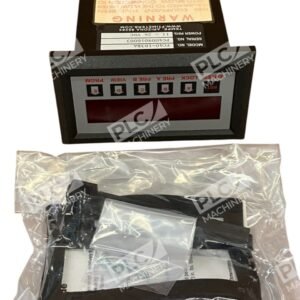

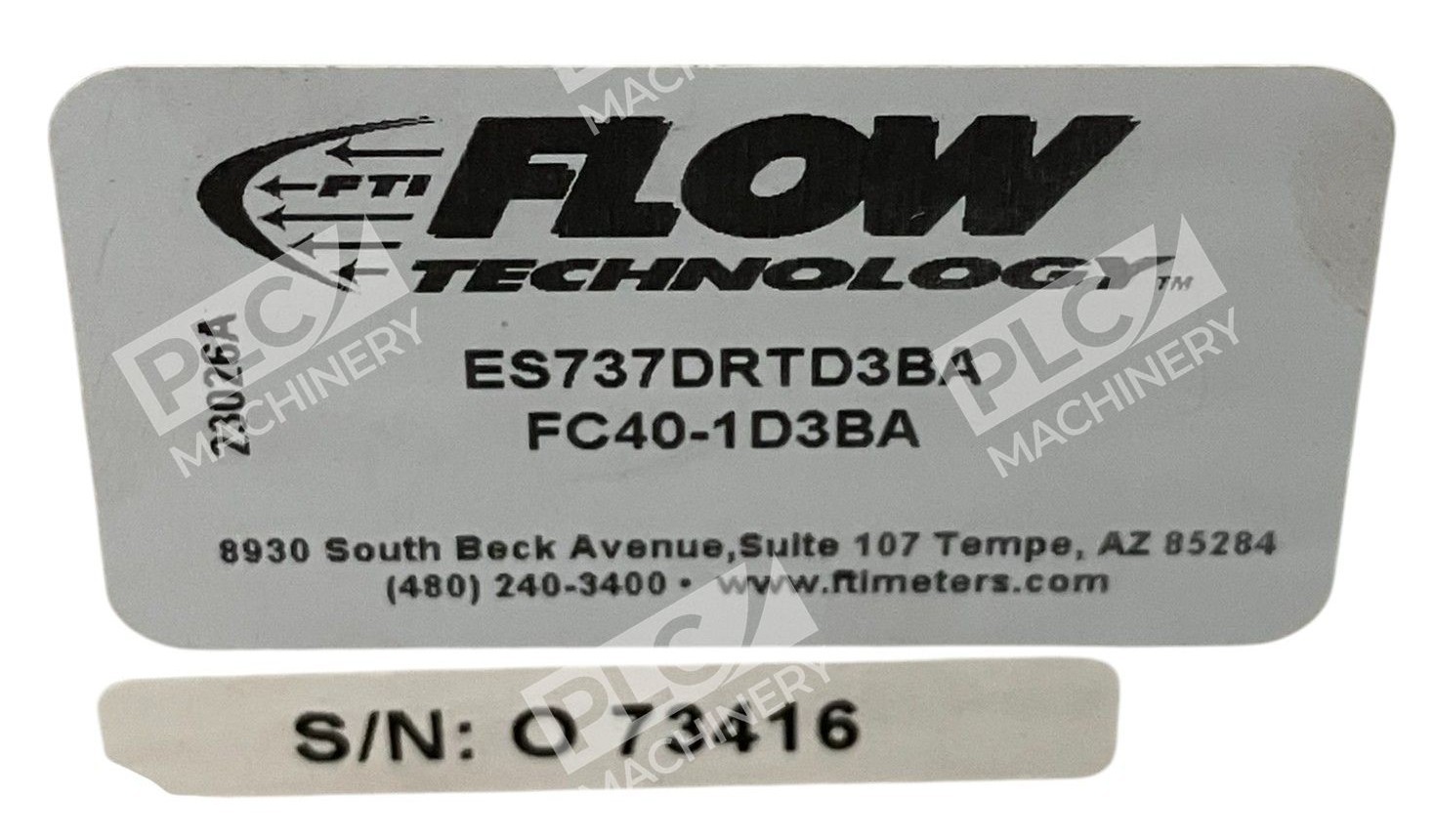

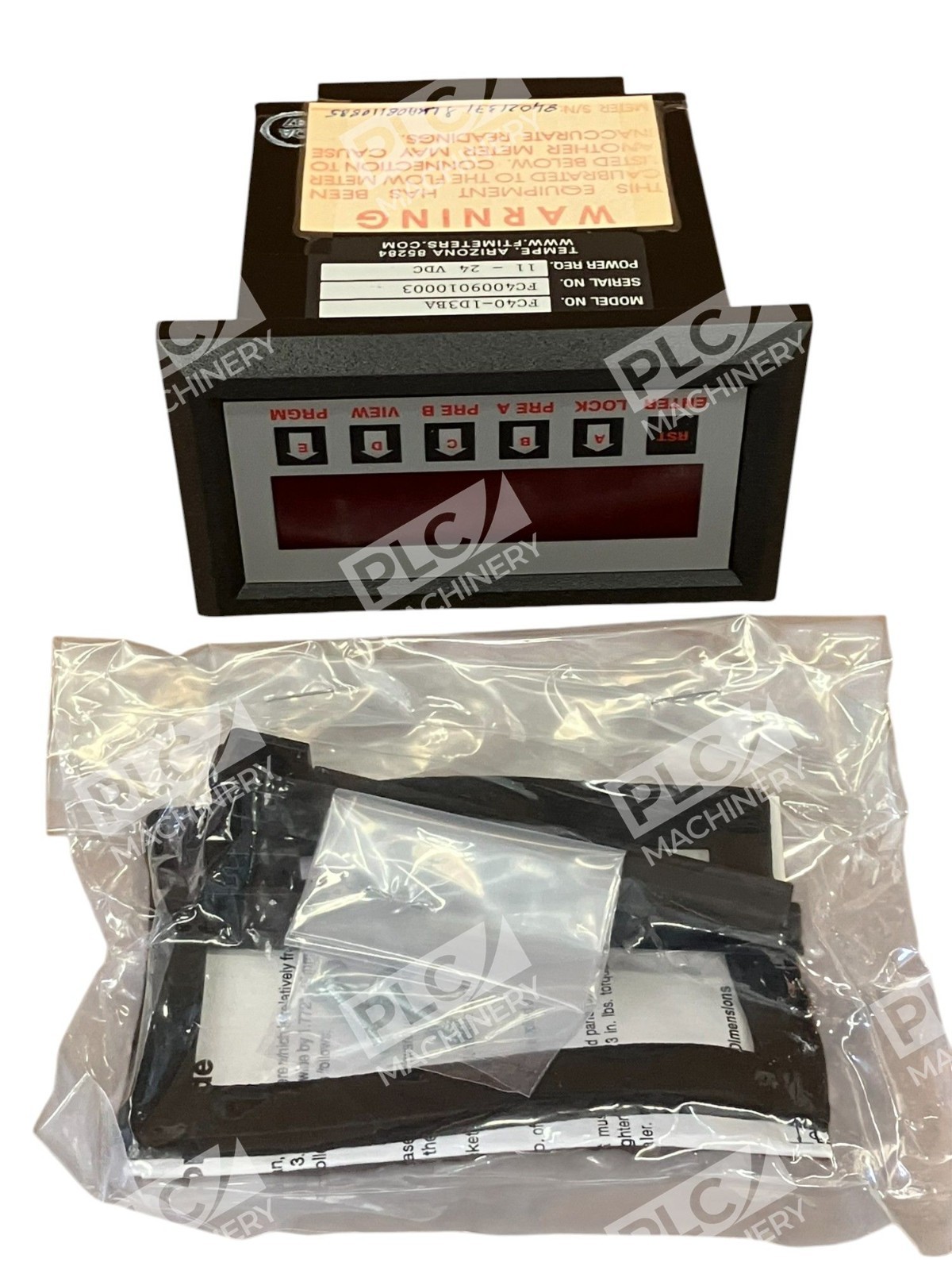

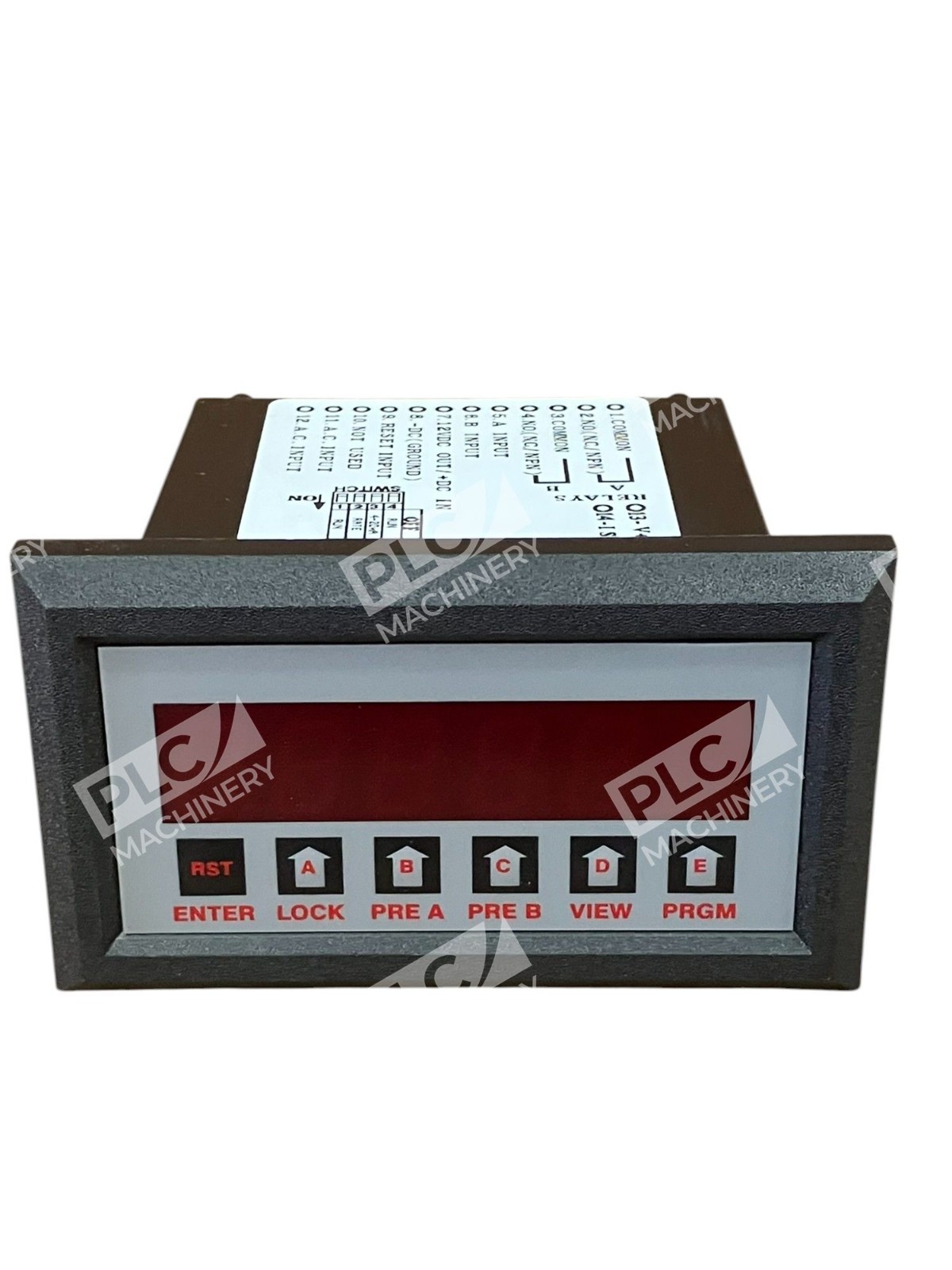

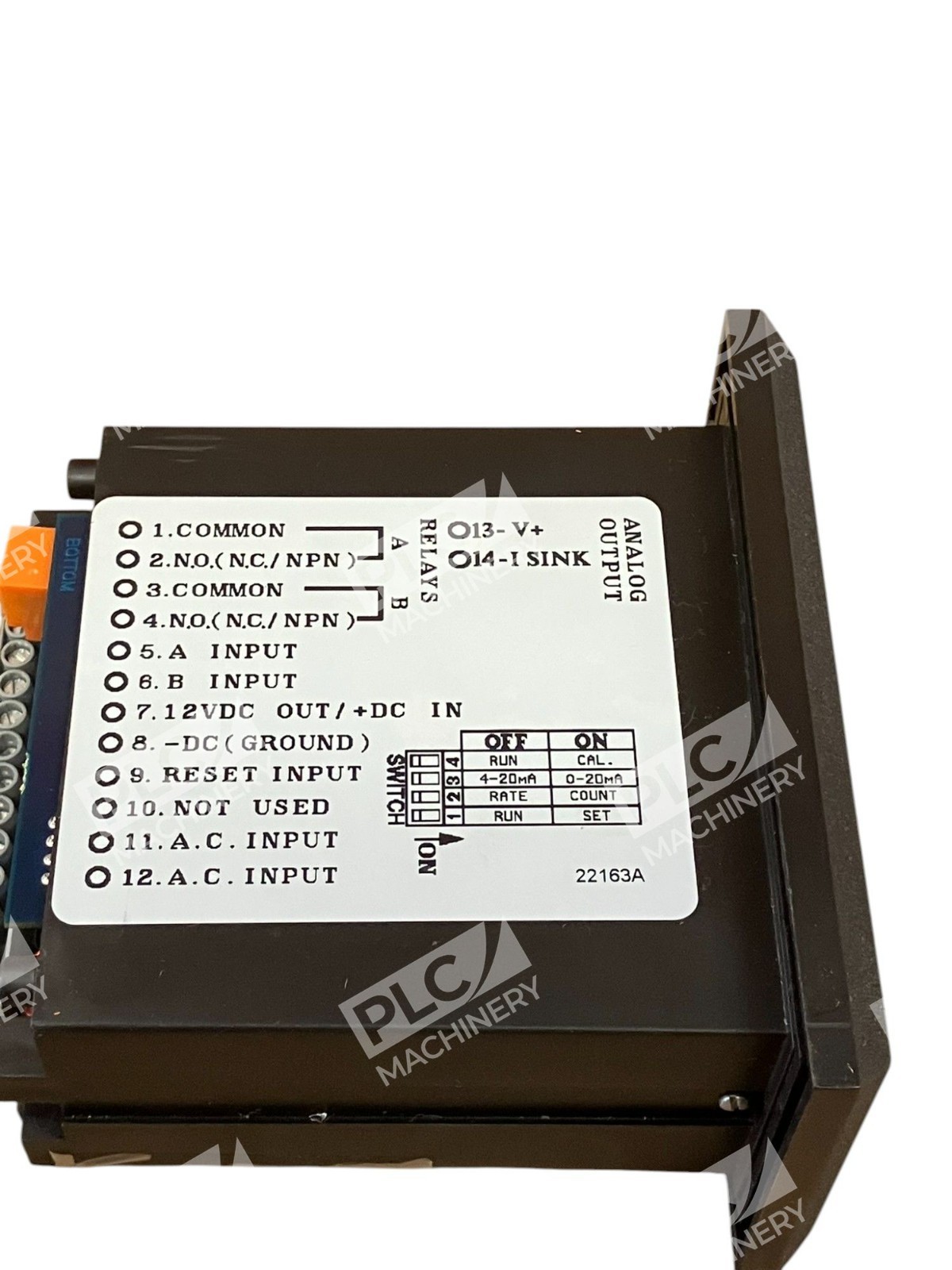

The Flow Technology ES737DRTD3BA FC4010 Dual and Net Rate Totalizer FC40-1D3BA is a sophisticated flow measurement device designed to provide precise monitoring and control of fluid flow rates and totals.
Key Features
- Dual Flow Rate and Totalization: Simultaneously measures and displays two separate flow rates and their corresponding totals, allowing for comprehensive monitoring of multiple flow streams.
- Net Flow Calculation: Calculates the net flow by subtracting one measured flow from another, providing valuable data for applications requiring differential flow analysis.
- High-Resolution Display: Equipped with a clear, easy-to-read display that shows real-time flow rates and totalized values, ensuring operators have immediate access to critical information.
- Versatile Input Compatibility: Accepts inputs from various flow sensors, including pulse-producing flowmeters such as turbine, positive displacement, and Coriolis meters, enhancing its adaptability across different systems.
- Advanced Linearization Methods: Utilizes Universal Viscosity Curve (UVC) and Strouhal/Roshko techniques to improve measurement accuracy across a wide range of fluid viscosities and flow conditions.
- Robust Construction: Designed for durability, the unit features a rugged enclosure suitable for demanding industrial environments, ensuring reliable performance over time.
- Flexible Power Options: Operates on internal battery power or external DC power, providing flexibility in installation and ensuring continuous operation even in remote locations.
- Comprehensive Outputs: Offers isolated scaled pulse and 4-20mA analog outputs, facilitating seamless integration with control systems and data acquisition platforms.
- Safety and Compliance: Meets industry standards for hazardous locations, with approvals such as Class 1, Division 1, Groups B, C, D, ensuring safe operation in explosive atmospheres.
Applications
The FC4010 Dual and Net Rate Totalizer is ideal for industries requiring precise flow measurement and control, including:
- Oil and Gas
- Chemical Processing
- Water and Wastewater Treatment
- Pharmaceutical Manufacturing
- Food and Beverage Production
Its dual measurement capability and net flow calculation make it particularly useful in applications such as fuel consumption monitoring, blending processes, and differential flow analysis.
Technical Specifications

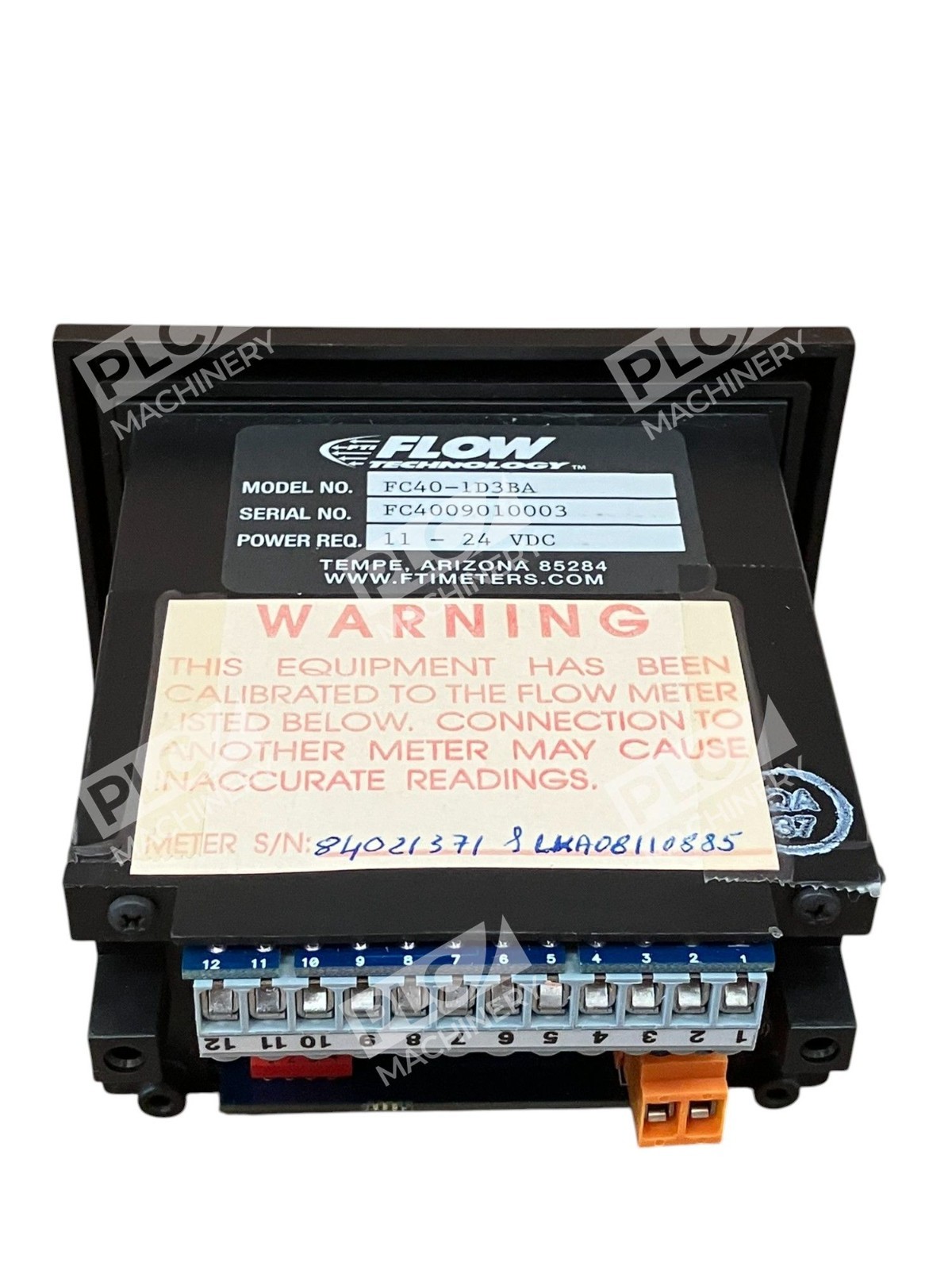

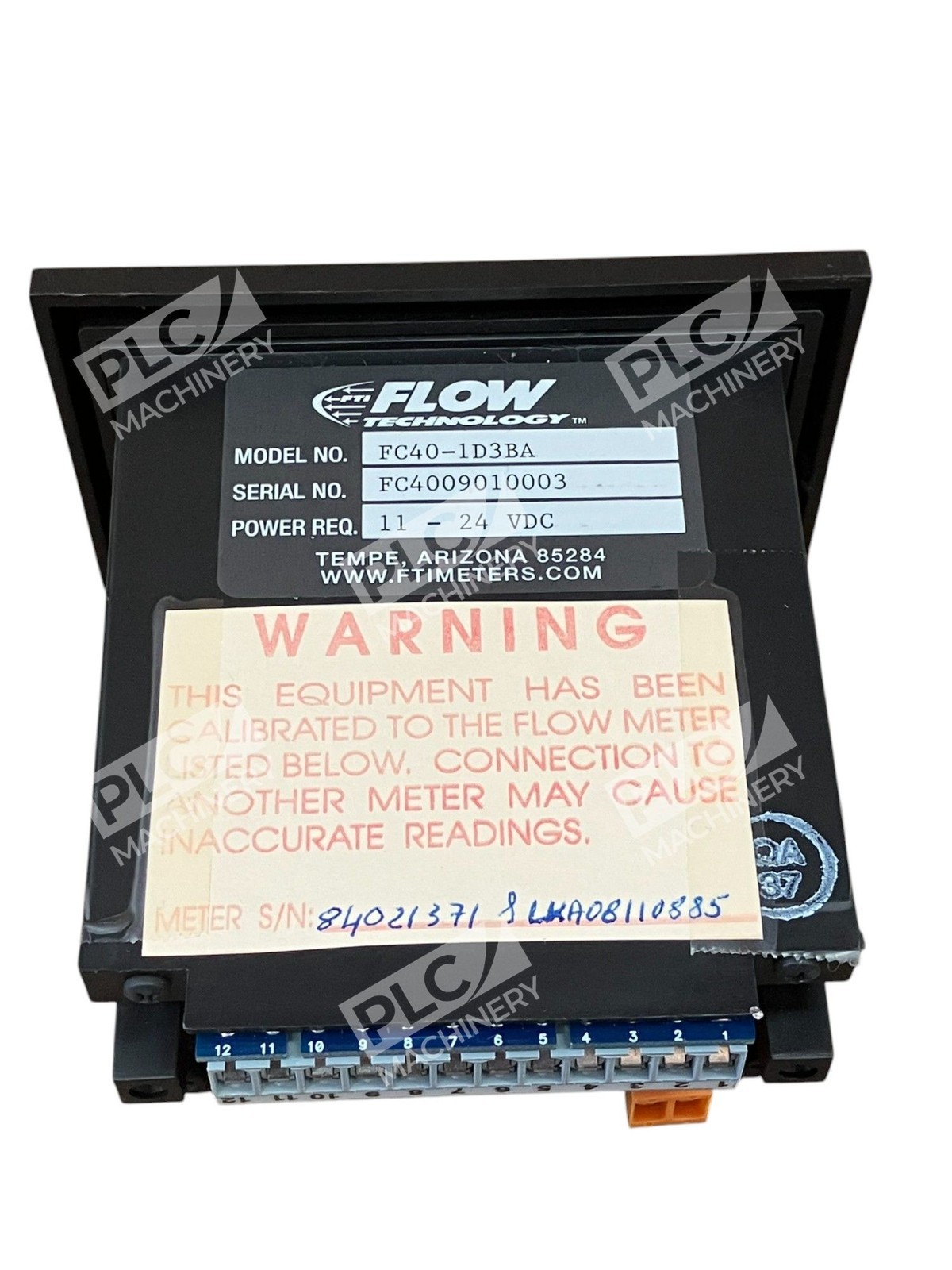

- Input Power: Internal Battery, External DC, or 4-20mA Loop

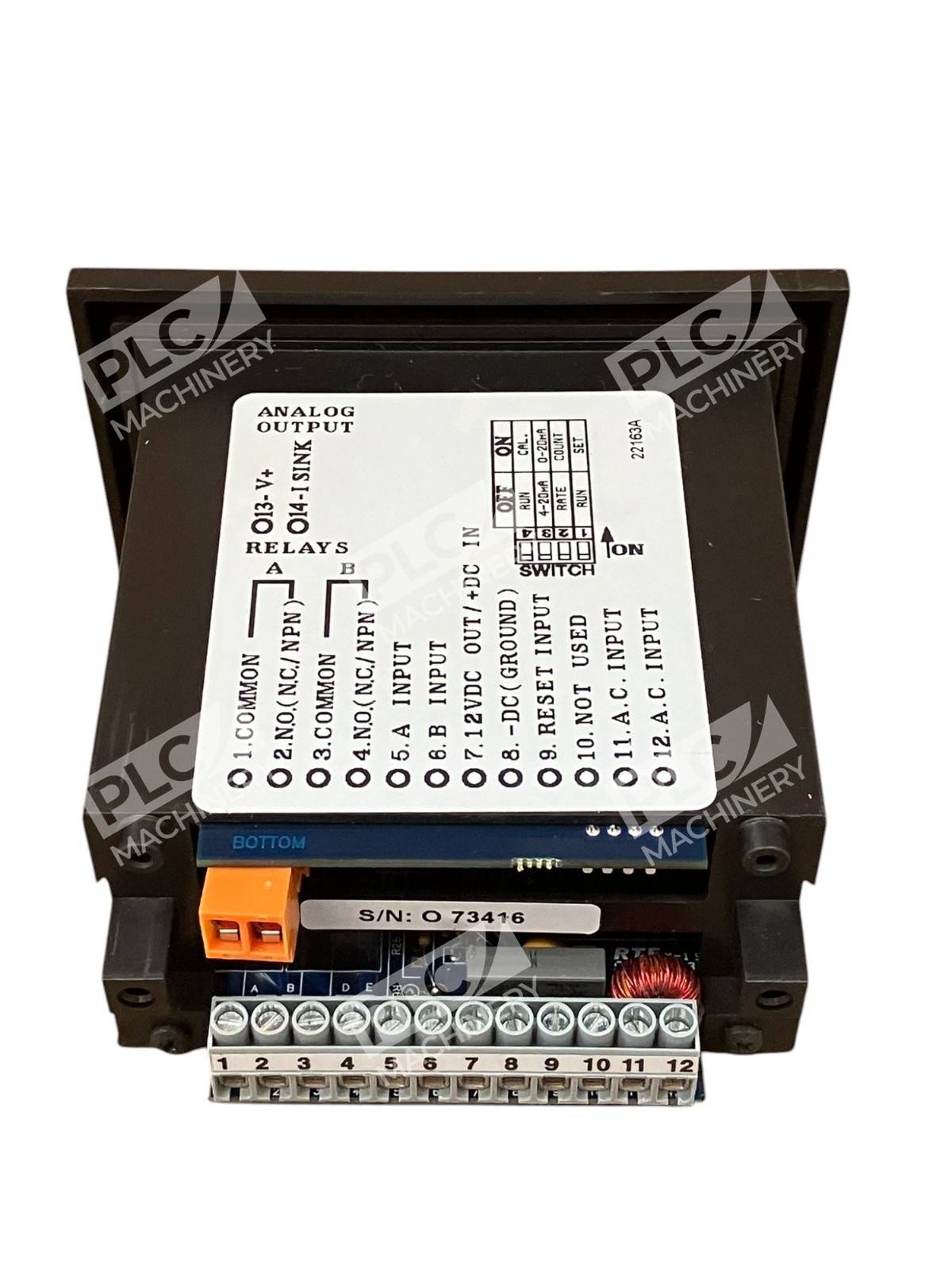

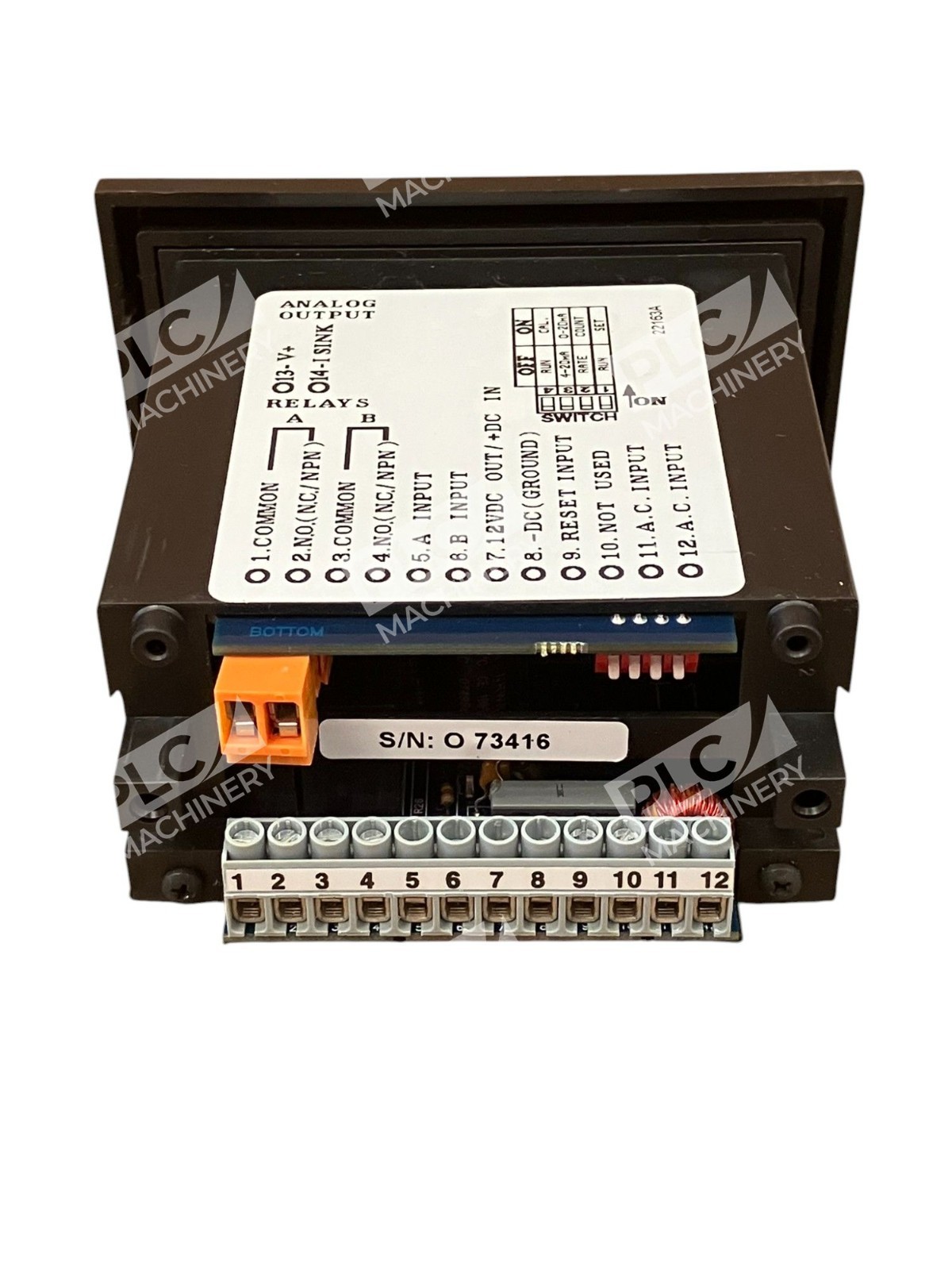

- Flow Sensor Inputs: Optically isolated pulse or sine wave

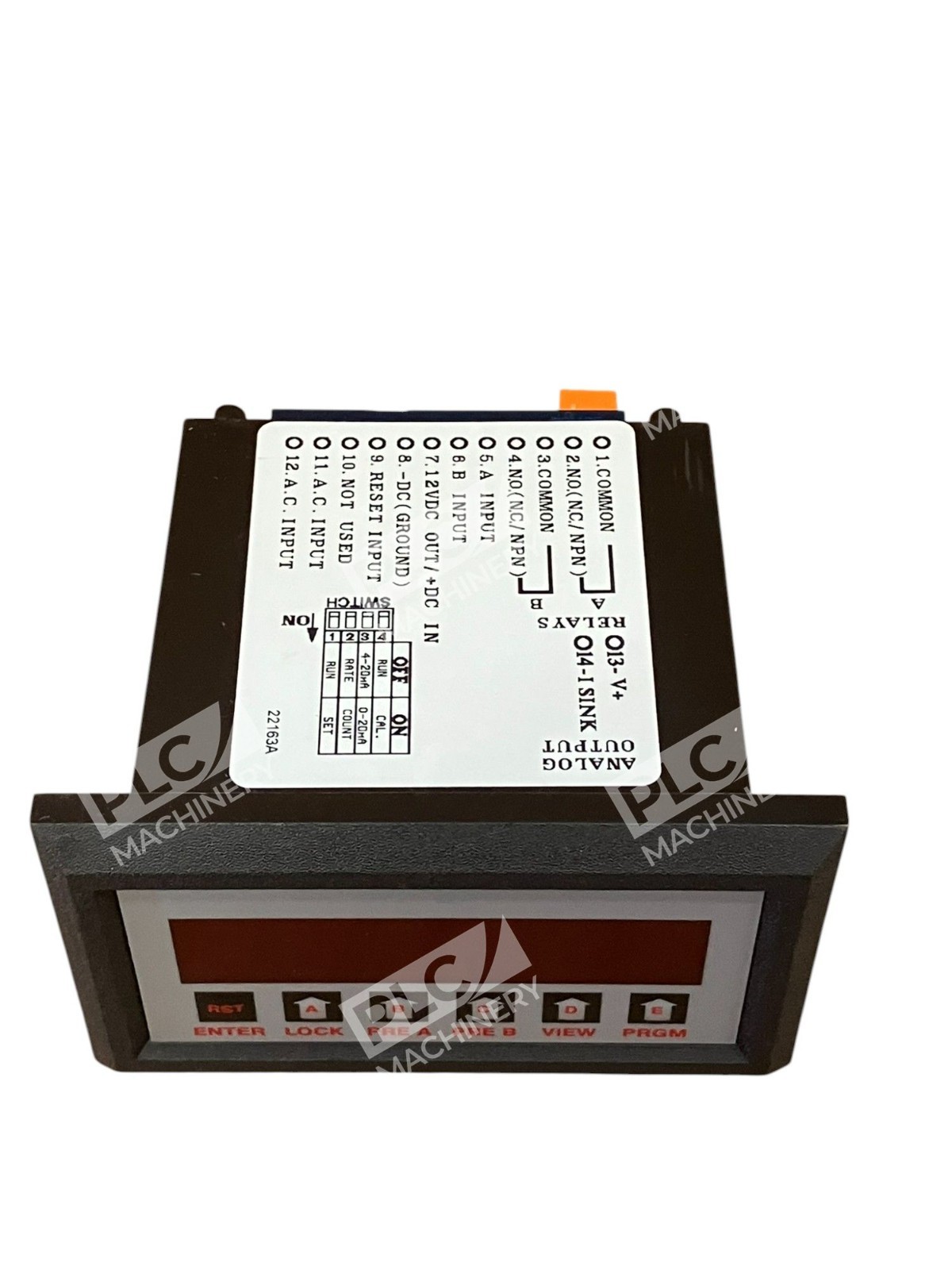

- Display: Simultaneous 8-digit totalizer and 5-digit rate
- Linearization: 20 points
- Outputs: Isolated scaled pulse or 4-20mA analog output
- Enclosures: Explosion-proof or NEMA 4X
- Approvals: Class 1, Division 1, Groups B, C, D or CE EMC optional

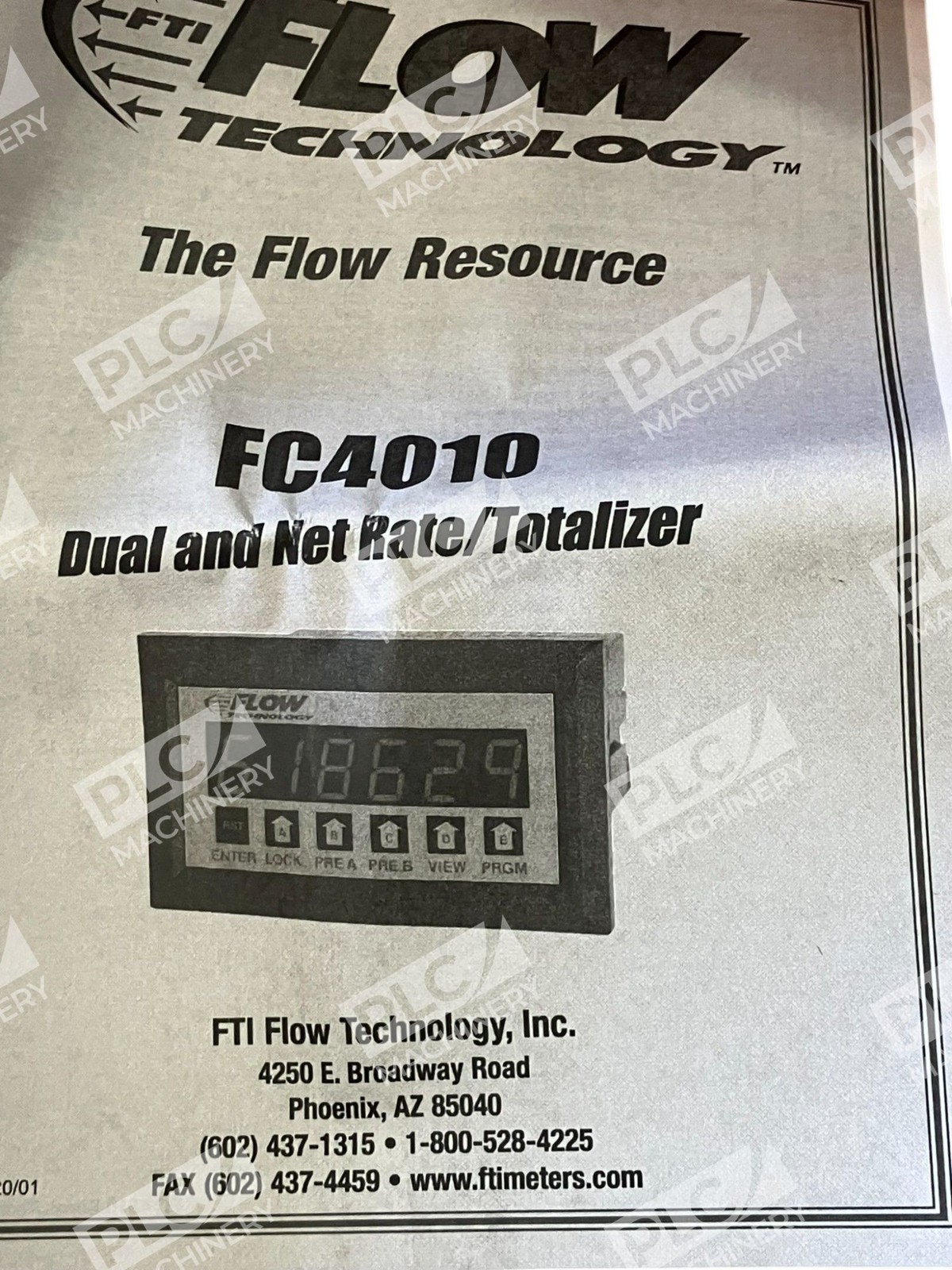

For detailed technical data and installation guidelines, please refer to the product’s specification sheet and installation manual.
The Flow Technology ES737DRTD3BA FC4010 Dual and Net Rate Totalizer FC40-1D3BA stands as a reliable and versatile solution for accurate flow measurement and control in diverse industrial applications.
