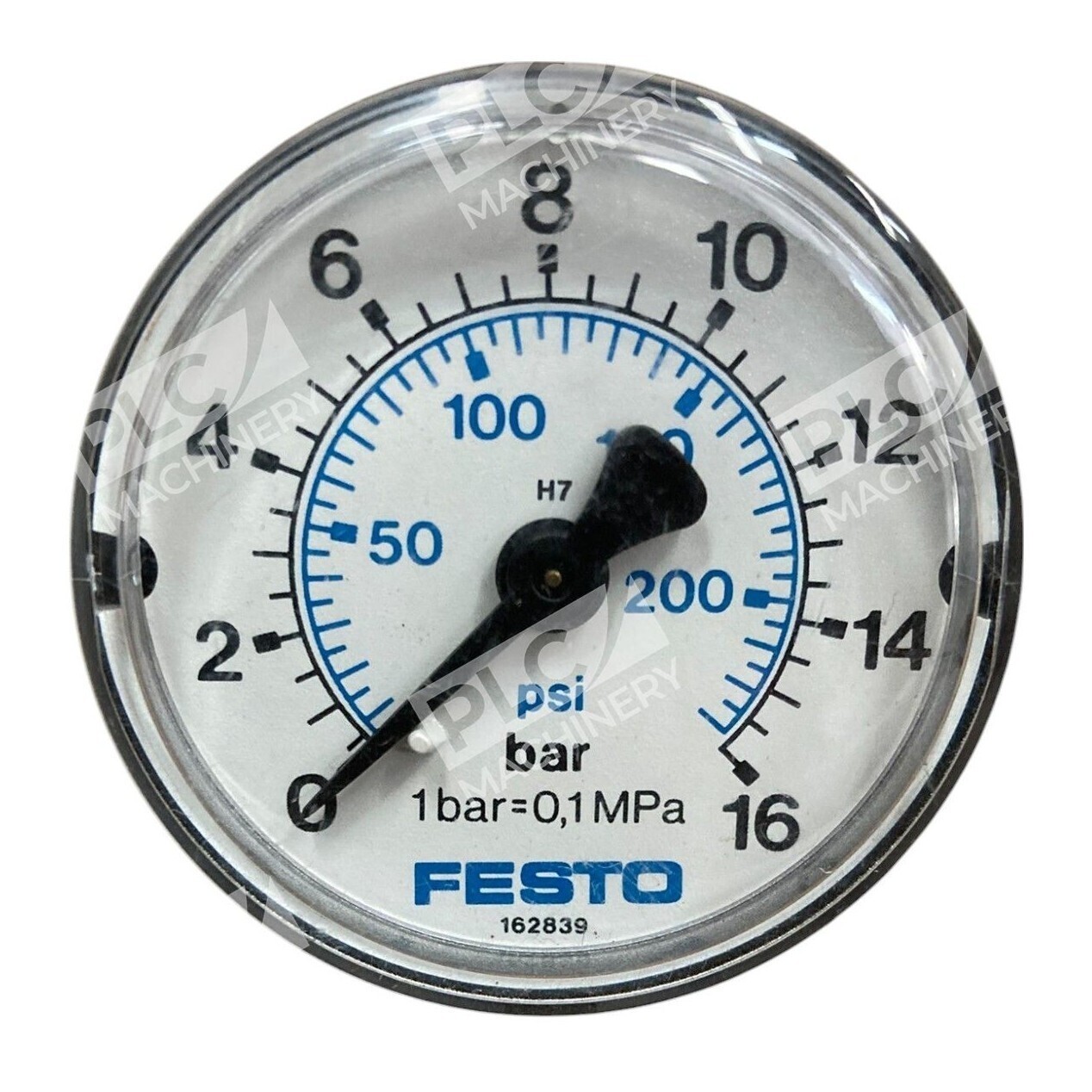

Festo MA-50-16-1/4-EN Pressure Gauge
The Festo MA-50-16-1/4-EN is a precision pressure gauge designed for accurate monitoring of pneumatic systems. With a measurement range from 0 to 16 bar (0 to 232 psi), it is suitable for various industrial applications.
Key Features
- Measurement Range: 0 to 16 bar (0 to 232 psi)
- Nominal Size: 50 mm diameter dial

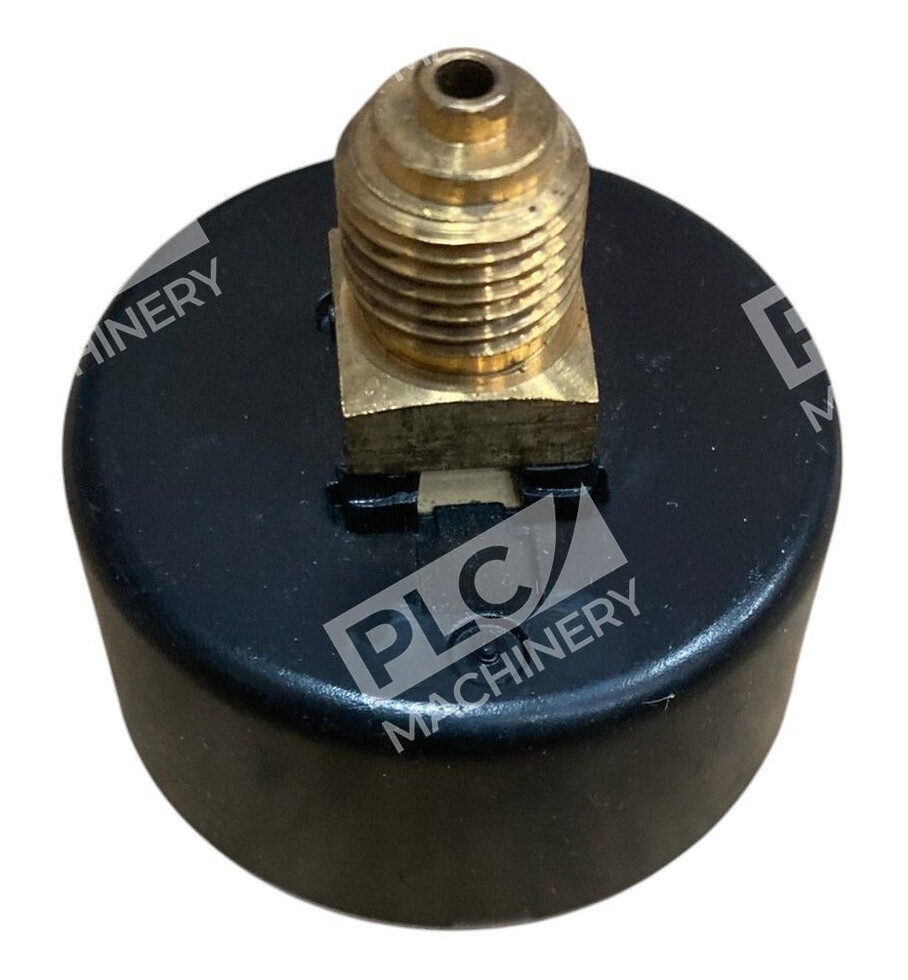

- Connection Size: G1/4″ pneumatic connection
- Design Structure: Bourdon-tube pressure gauge
- Mounting Type: In-line installation
- Operating Medium: Inert gases and neutral fluids
- Operating Temperature: -20°C to 60°C
- Measurement Accuracy Class: 2.5
- Protection Class: IP43
- Materials: Brass (medium-contact parts), ABS housing, PS screen
Applications
This pressure gauge is ideal for monitoring pneumatic systems in various industrial settings, ensuring accurate pressure readings and enhancing operational safety.
Compliance and Standards
- Conforms to EN 837-1 standard
- RoHS-compliant materials
For detailed specifications and installation guidelines, please refer to the product datasheet.
