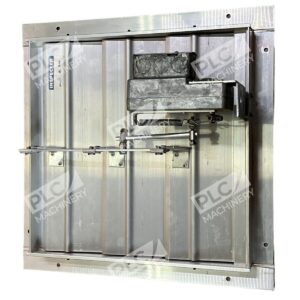

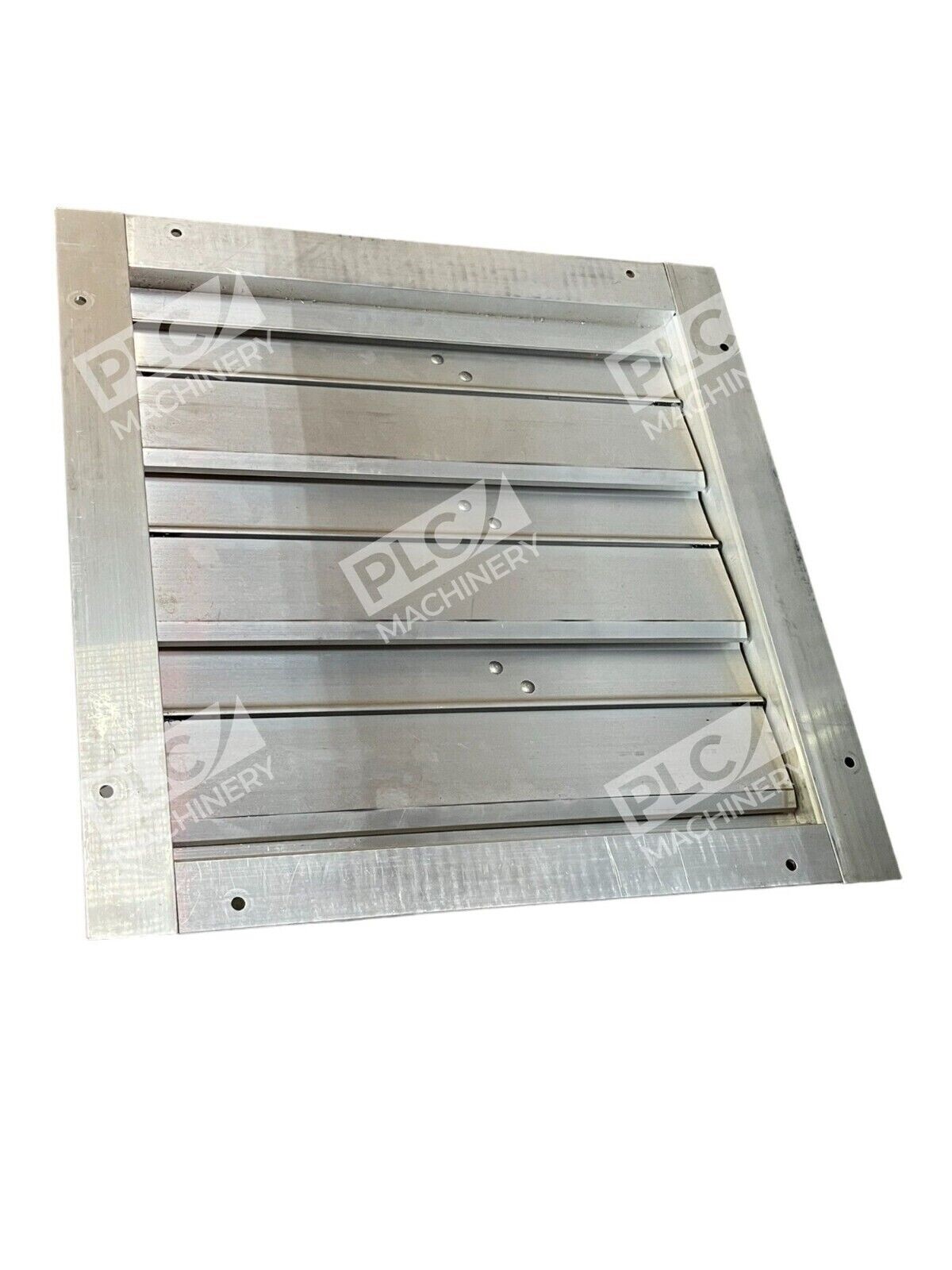

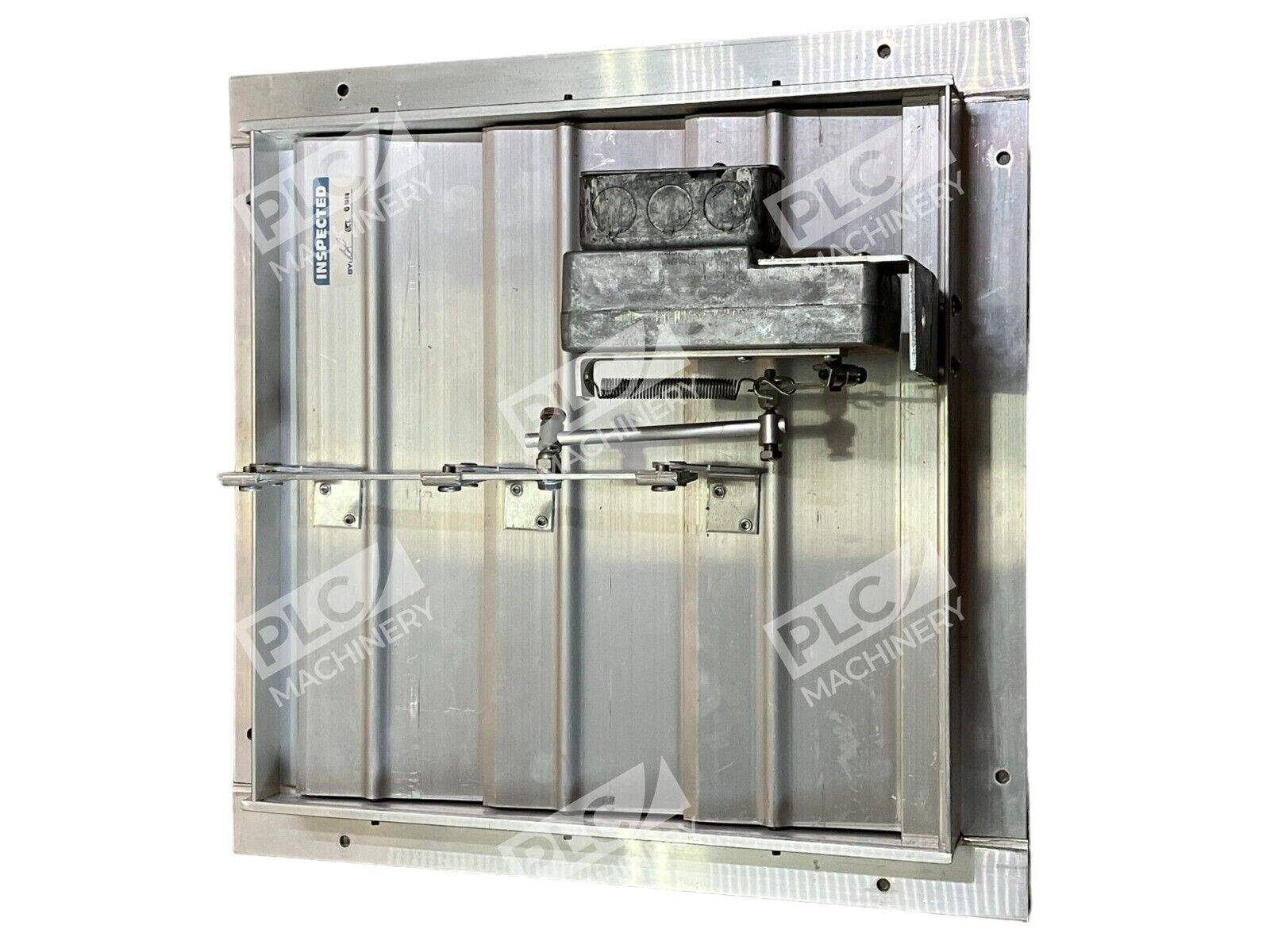

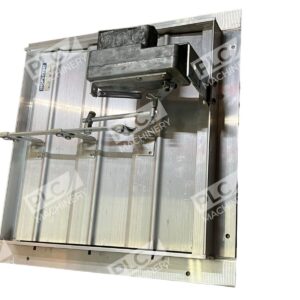

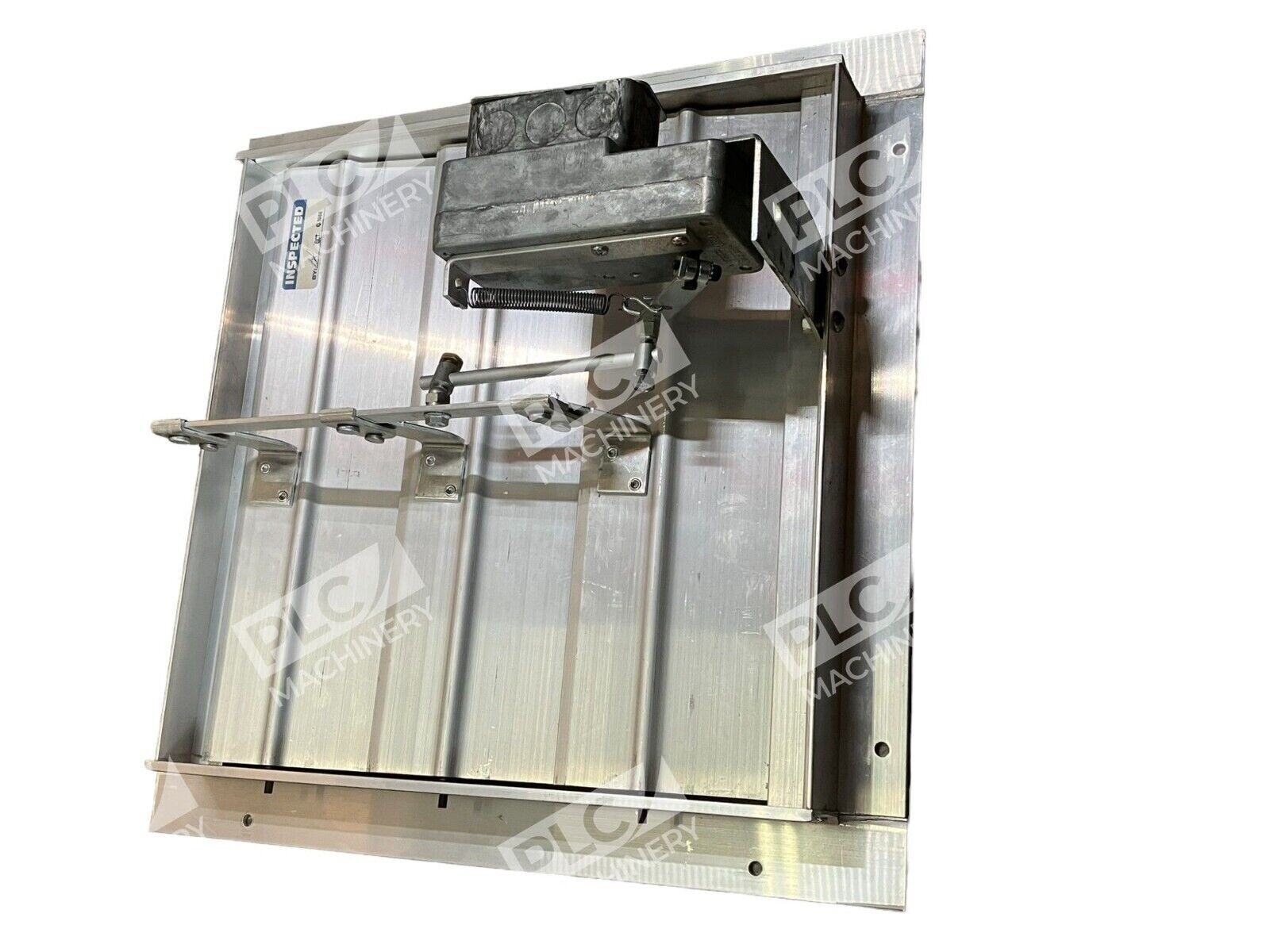

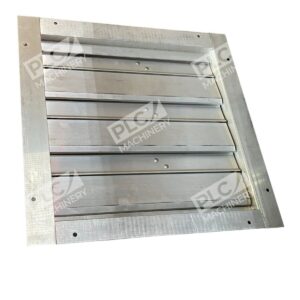

The Dayton 4C560A Motorized Damper is engineered to enhance airflow control in HVAC systems, ensuring efficient ventilation management.
Key Features
- Fan Compatibility: Designed for 16-inch fan diameters.
- Voltage Range: Operates on 100 to 240 volts, accommodating various power supplies.
- Construction: Built with extruded aluminum for durability and lightweight performance.

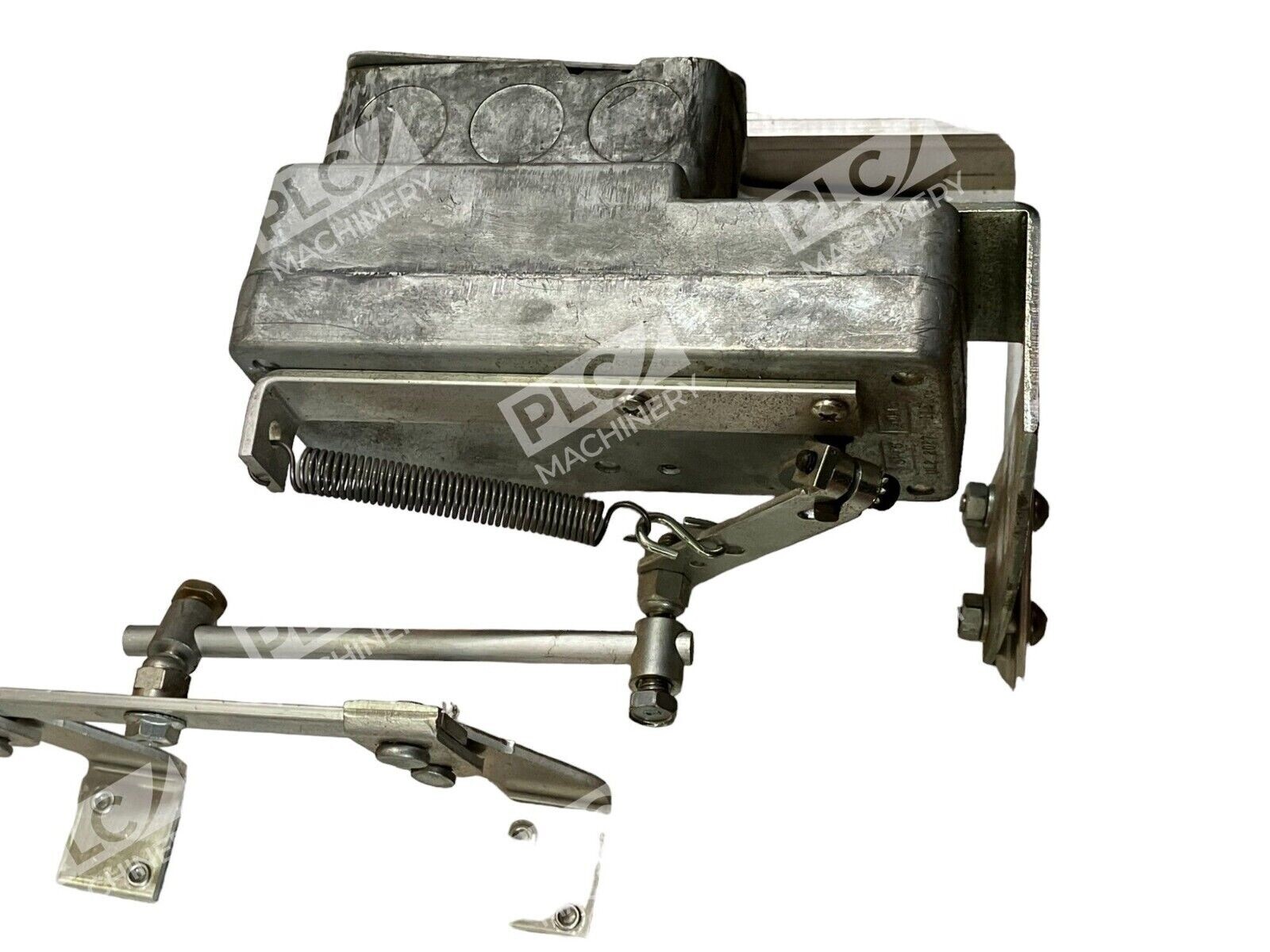

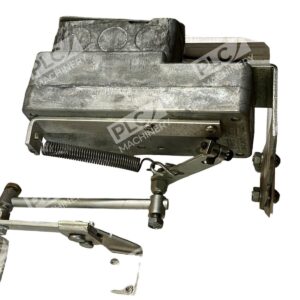

- Operation: Features a power-open mechanism with spring return for reliable functionality.
- Mounting Flexibility: Suitable for both horizontal and vertical installations.
Specifications
- Overall Dimensions: 19 inches square.
- Required Opening: 17 inches square.
- Free Area: 1.7 square feet, facilitating optimal airflow.
- Frame Thickness: 0.125 inches.
- Blade Thickness: 0.080 inches.
- Maximum Air Pressure: 4 inches water gauge.
- Maximum Air Velocity: 3500 feet per minute.
- Temperature Rating: Up to 122°F.
Additional Details
- Flange Width: 1.5 inches.
- Motor Bracket Extension: 6.875 inches.
- Jamb Seal Material: Stainless steel, enhancing sealing efficiency.
- Electrical Connection: Hardwired setup.
- Compliance: Meets NEC and OSHA standards.
The Dayton 4C560A Motorized Damper is a robust solution for controlling airflow in various ventilation applications, offering reliability and adaptability to meet diverse system requirements.
