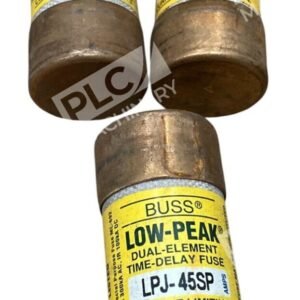

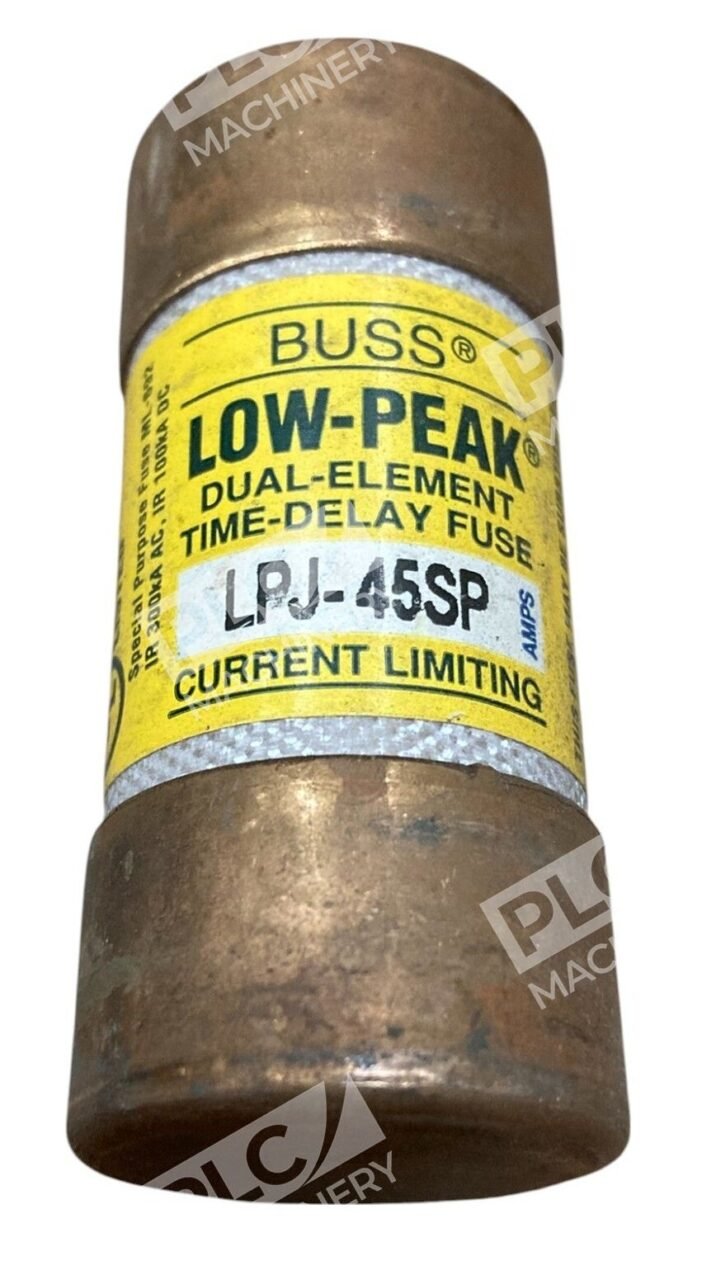

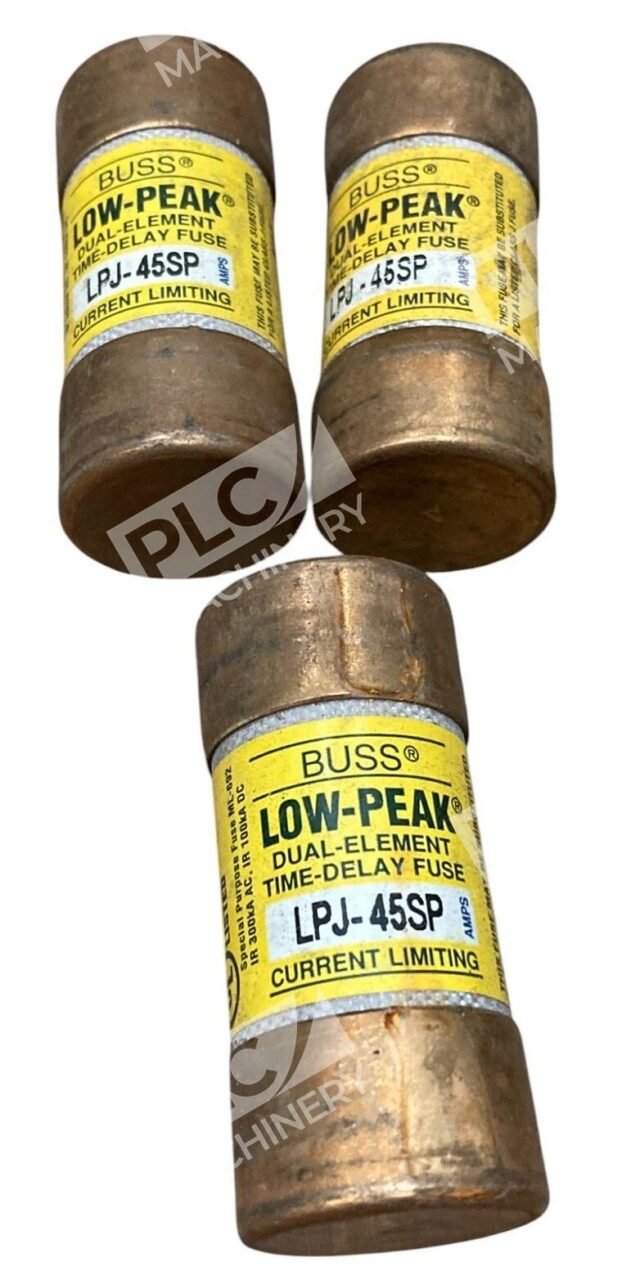

Buss 45A 600VAC Low-Peak Dual Element Time-Delay Fuse LPJ-45SP (lot of 3)

Bussmann LPJ-45SP Low-Peak™ Dual-Element Time-Delay Fuse (Lot of 3)

The Bussmann LPJ-45SP Low-Peak™ fuse is a 45-amp, 600V AC/300V DC, Class J, dual-element, time-delay fuse designed for superior protection in various industrial applications. This lot includes three fuses, ensuring you have the necessary components for your electrical systems.

Key Features

• Dual-Element Design: Provides both overload and short-circuit protection, enhancing system reliability.
• Time-Delay Capability: Offers a minimum of 10 seconds delay at 500% of rated current, accommodating high inrush currents without nuisance openings.
• High Interrupting Rating: Rated at 300,000 AIC at 600V AC and 100,000 AIC at 300V DC, ensuring robust protection against high fault currents.
• Current Limiting: Reduces the let-through energy, protecting downstream components from damage due to short circuits.
• Compact Size: Measures 2.38 inches in length and 1.06 inches in diameter, allowing for space-saving installations.
• Non-Indicating: Designed without an indicator for applications where visual indication is not required.

Applications

Ideal for use in branch circuit breaker panelboard mains, industrial control systems, machinery disconnects, and power panelboard applications. The LPJ-45SP fuse is suitable for protecting motors, transformers, and other critical equipment.

Compliance and Certifications

• UL Listed
• CSA Certified
• CE Marked
• RoHS Compliant

Ensure your electrical systems are safeguarded with the reliable performance of the Bussmann LPJ-45SP Low-Peak™ fuses, designed to meet the demands of modern industrial applications.
