Belden-M E108998 AWM 2464 53087 Cable 9544-CMB 30C24

Belden-M E108998 AWM 2464 53087 Cable 9544-CMB 30C24

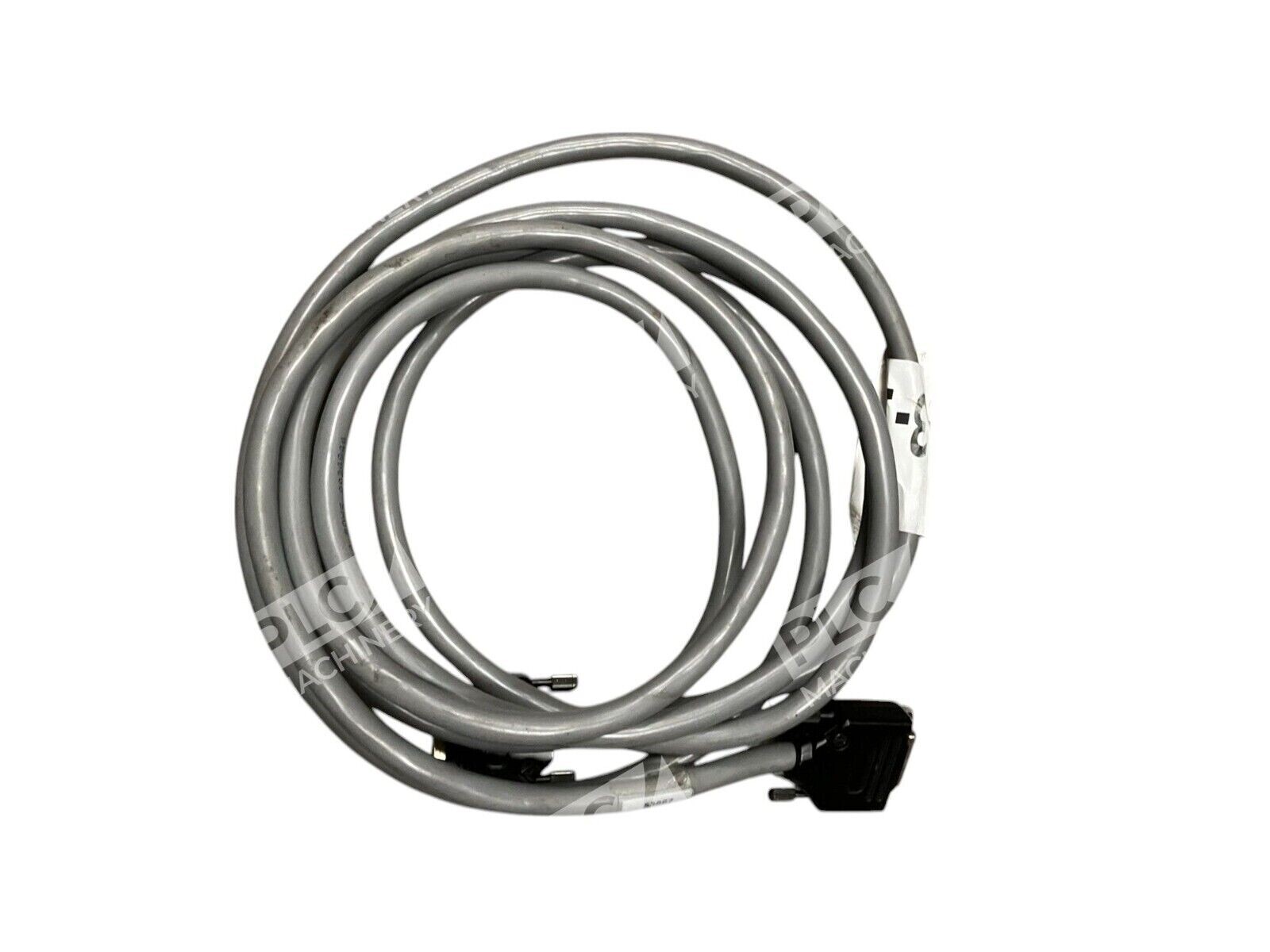

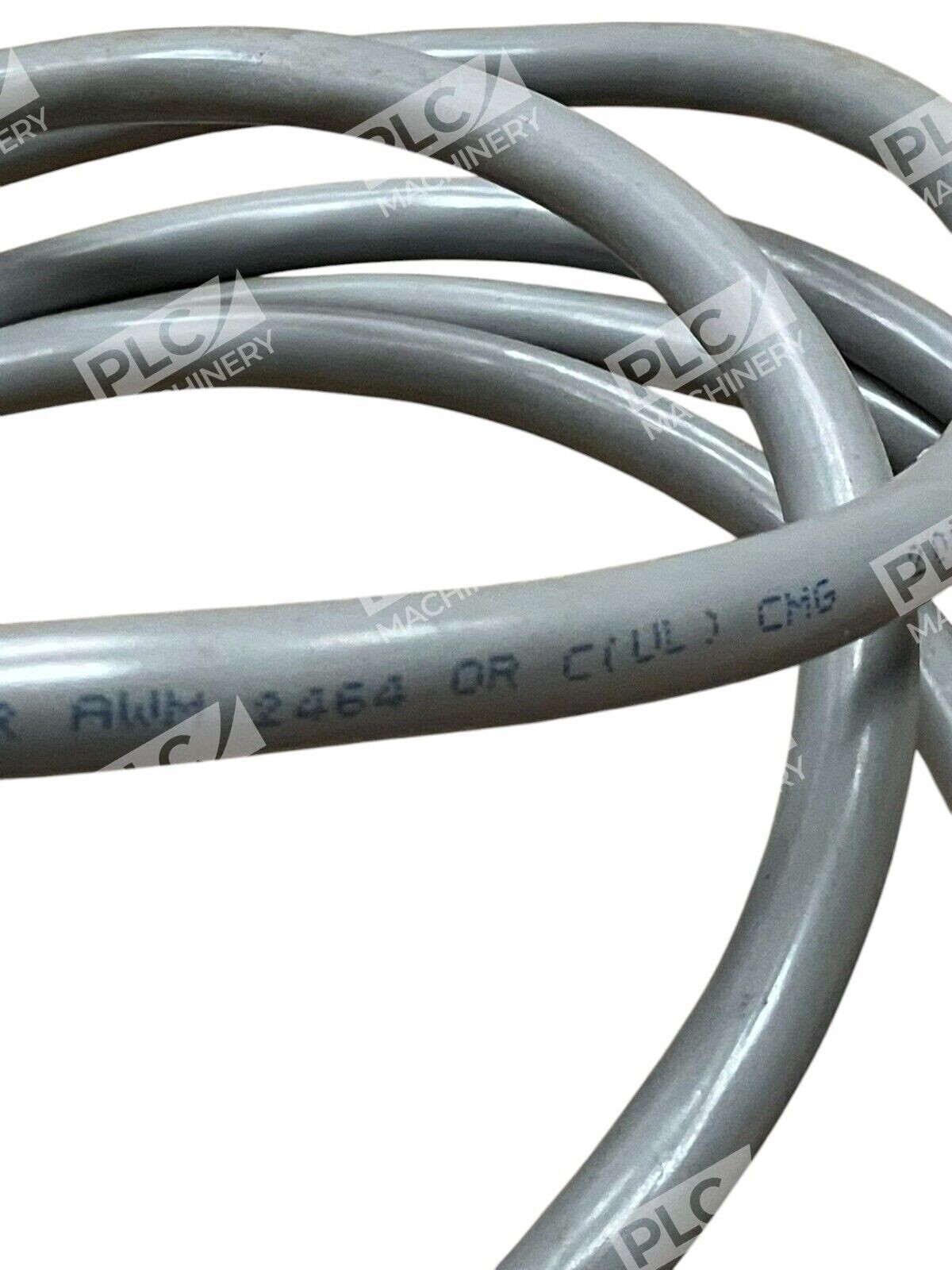

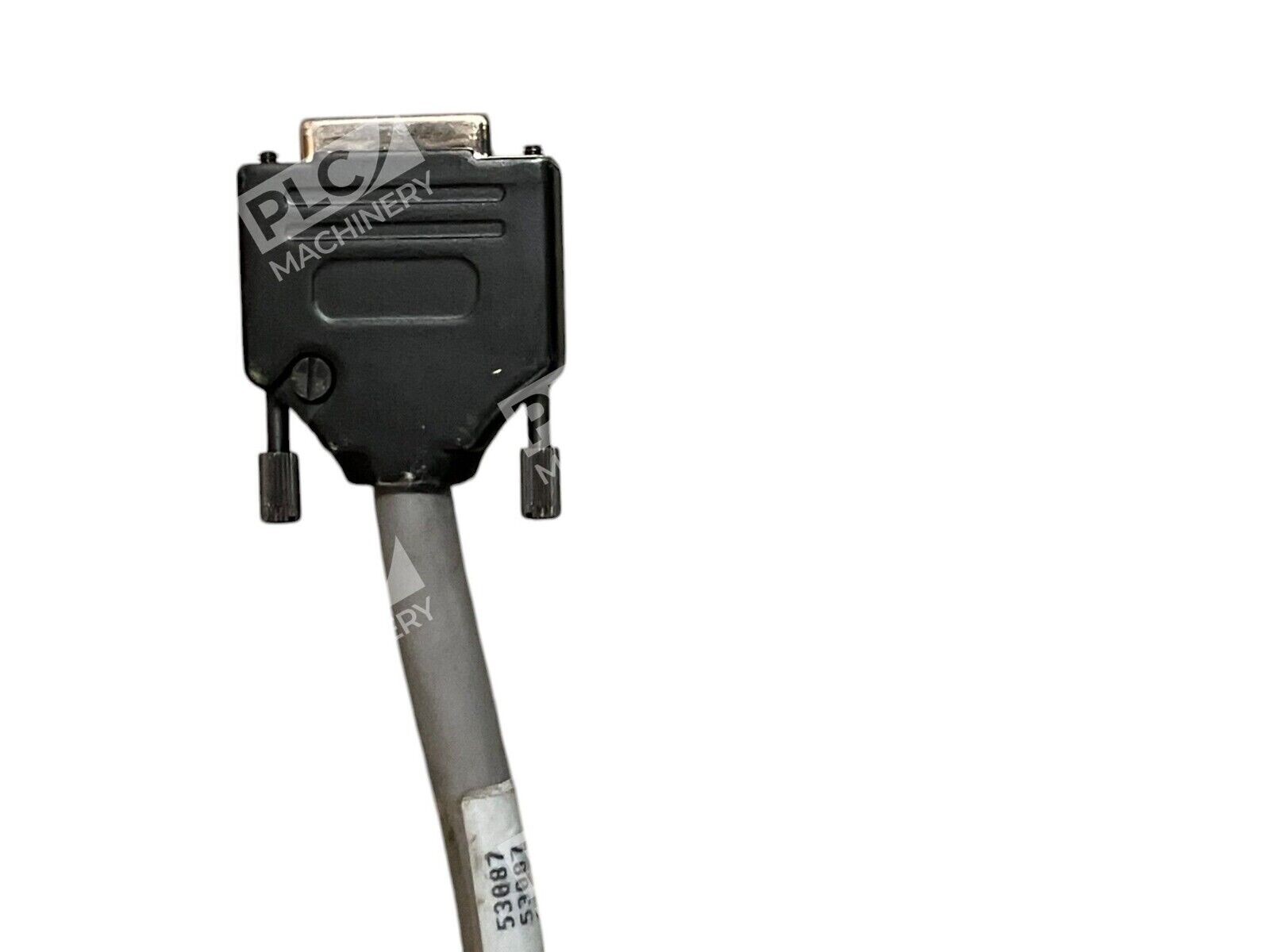

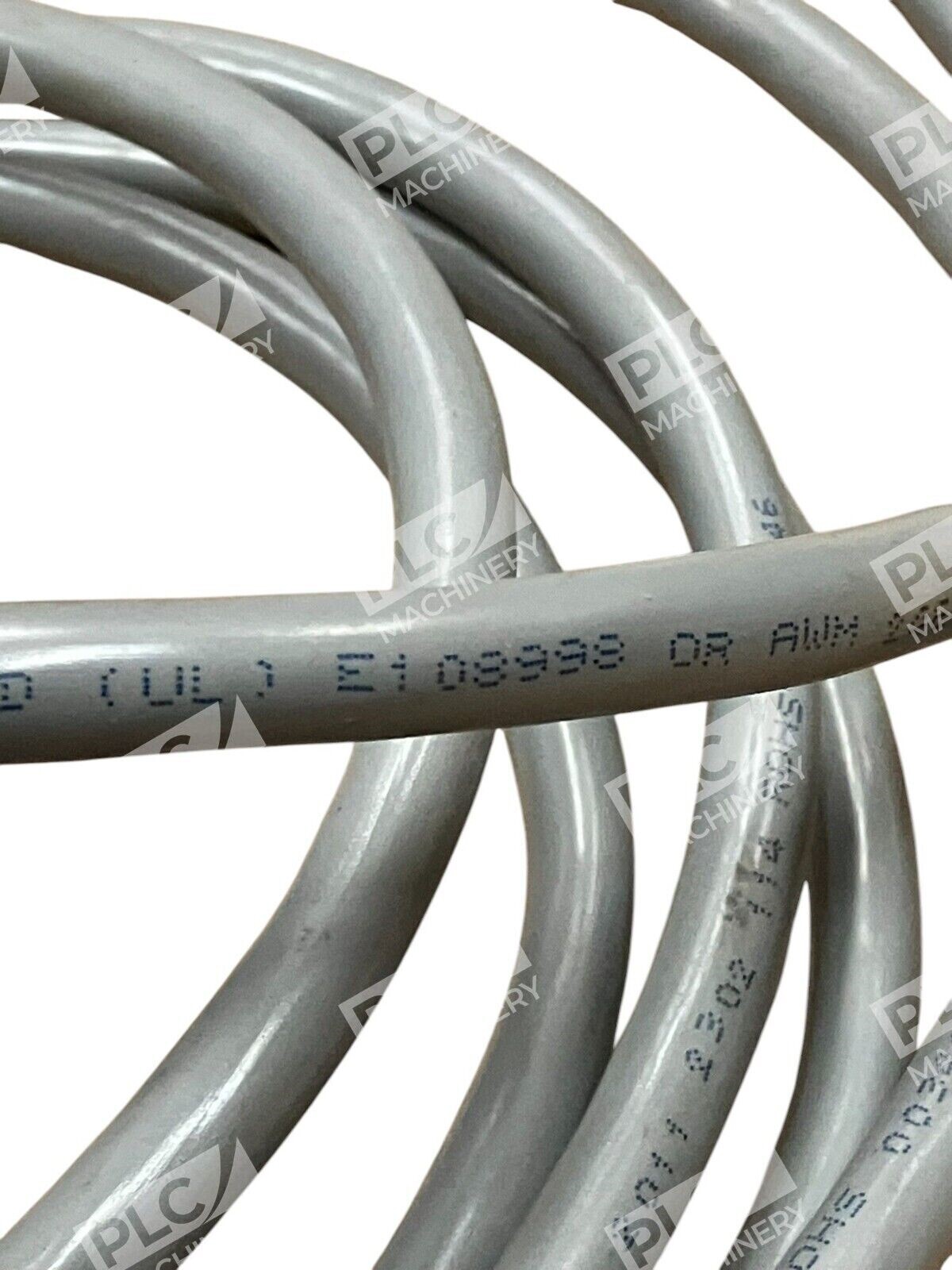

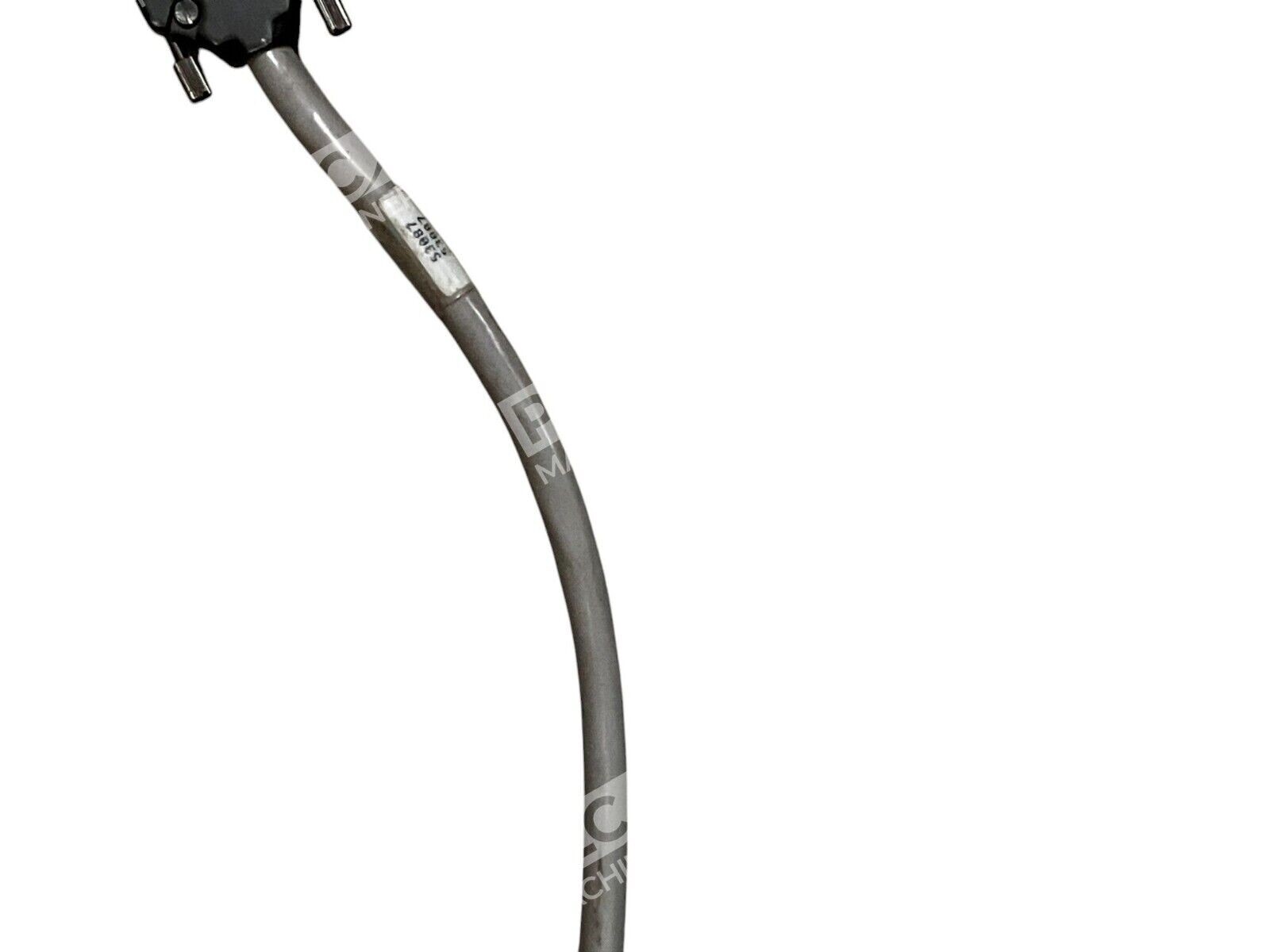

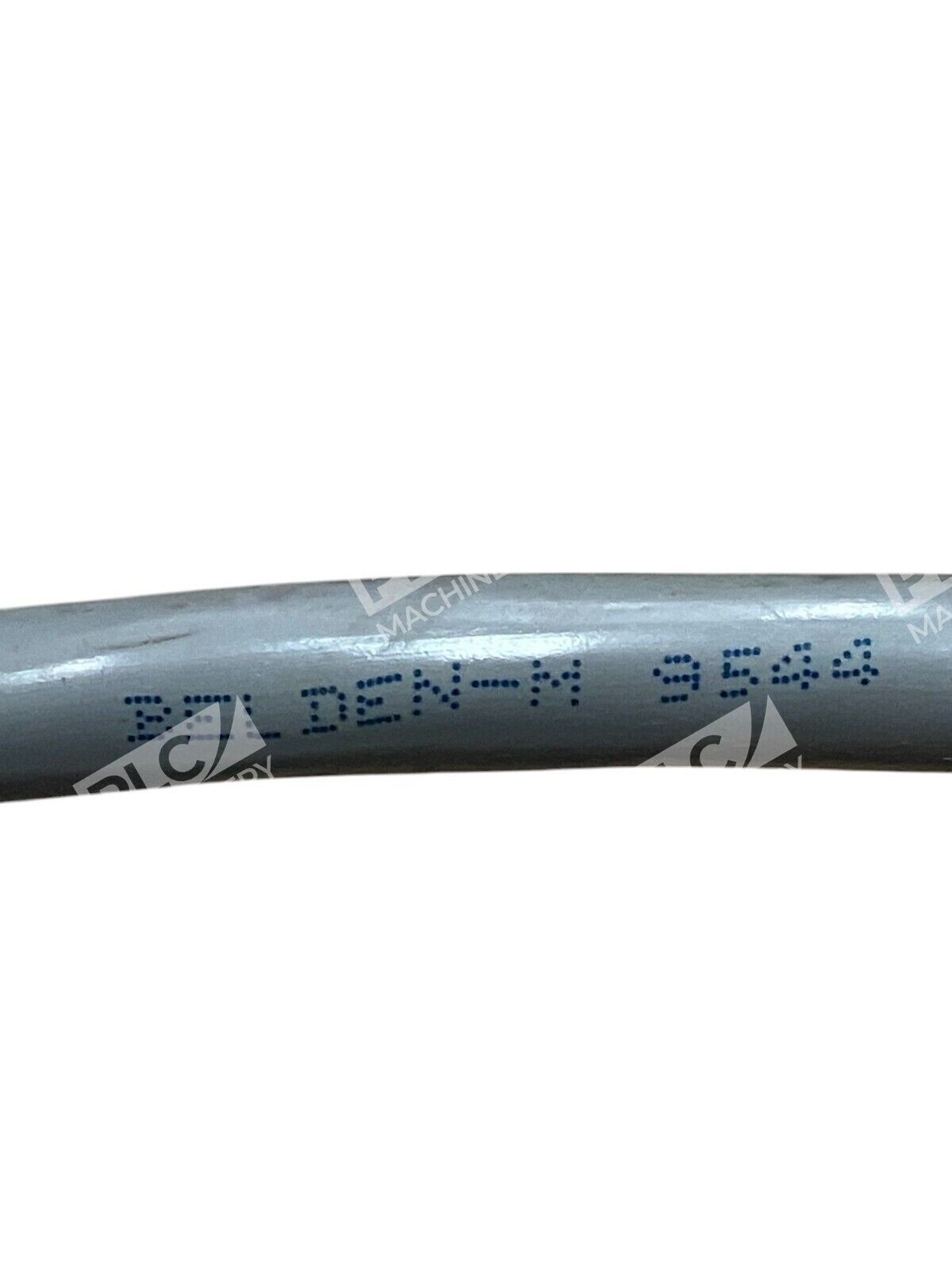

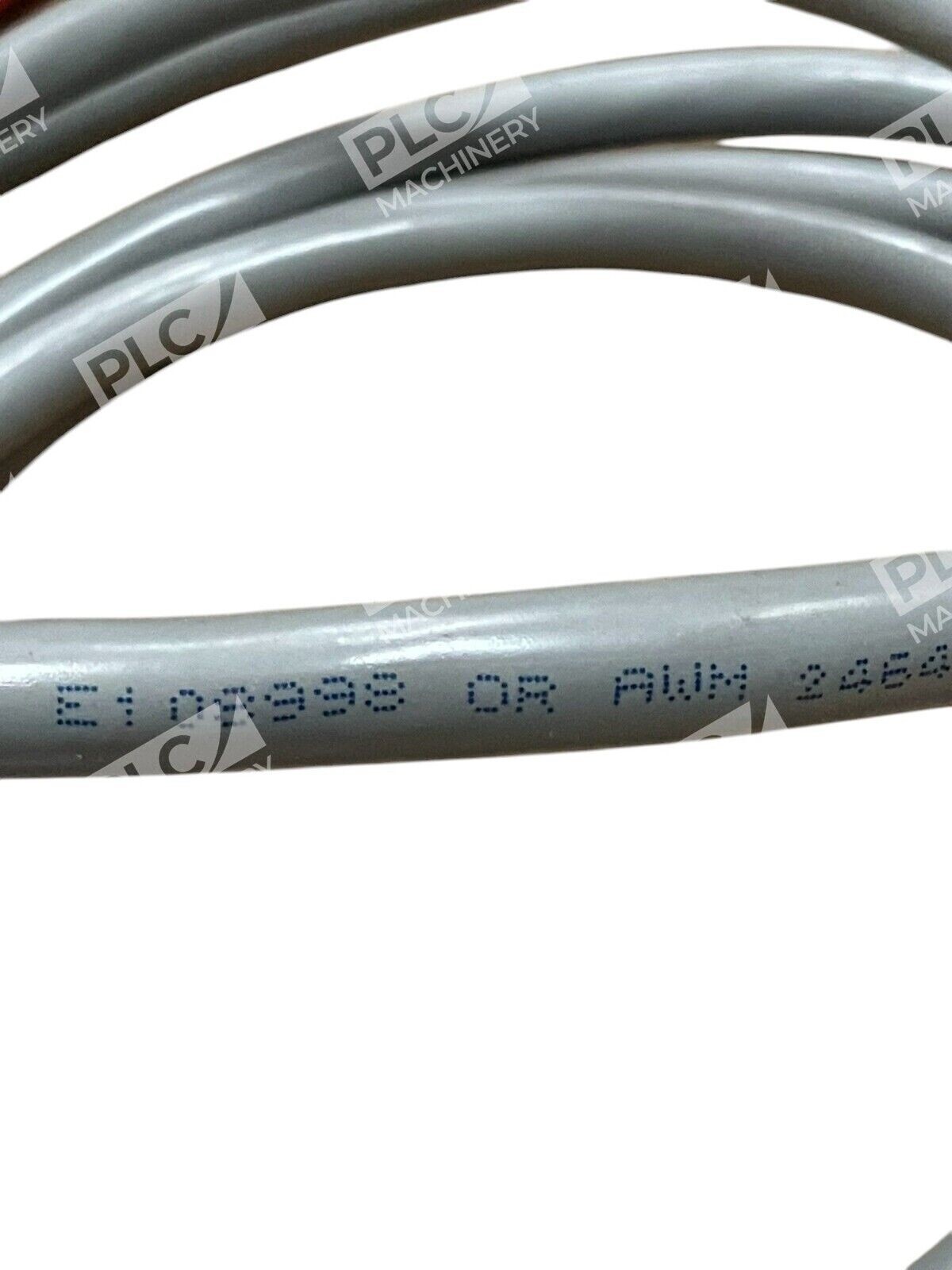

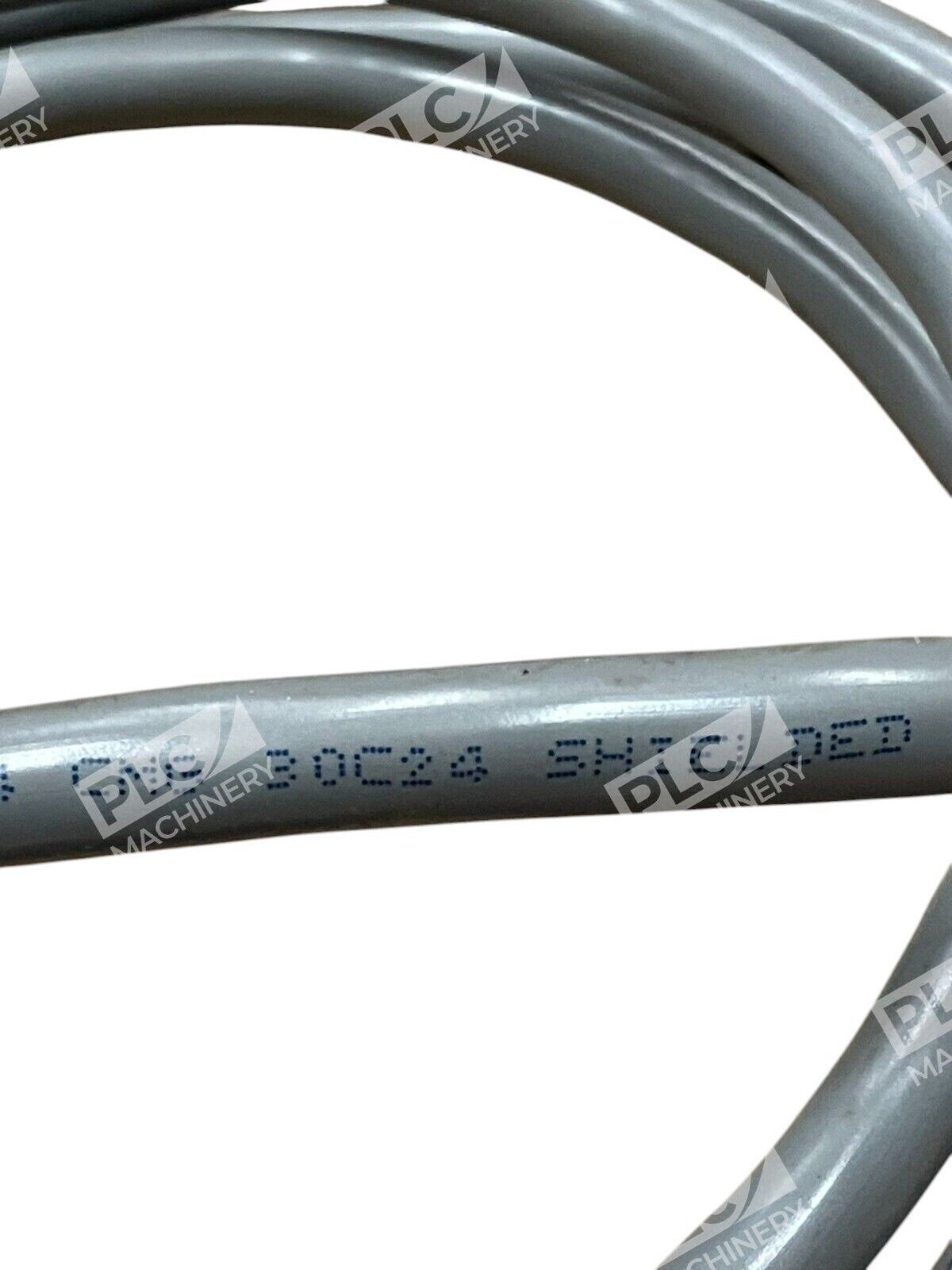

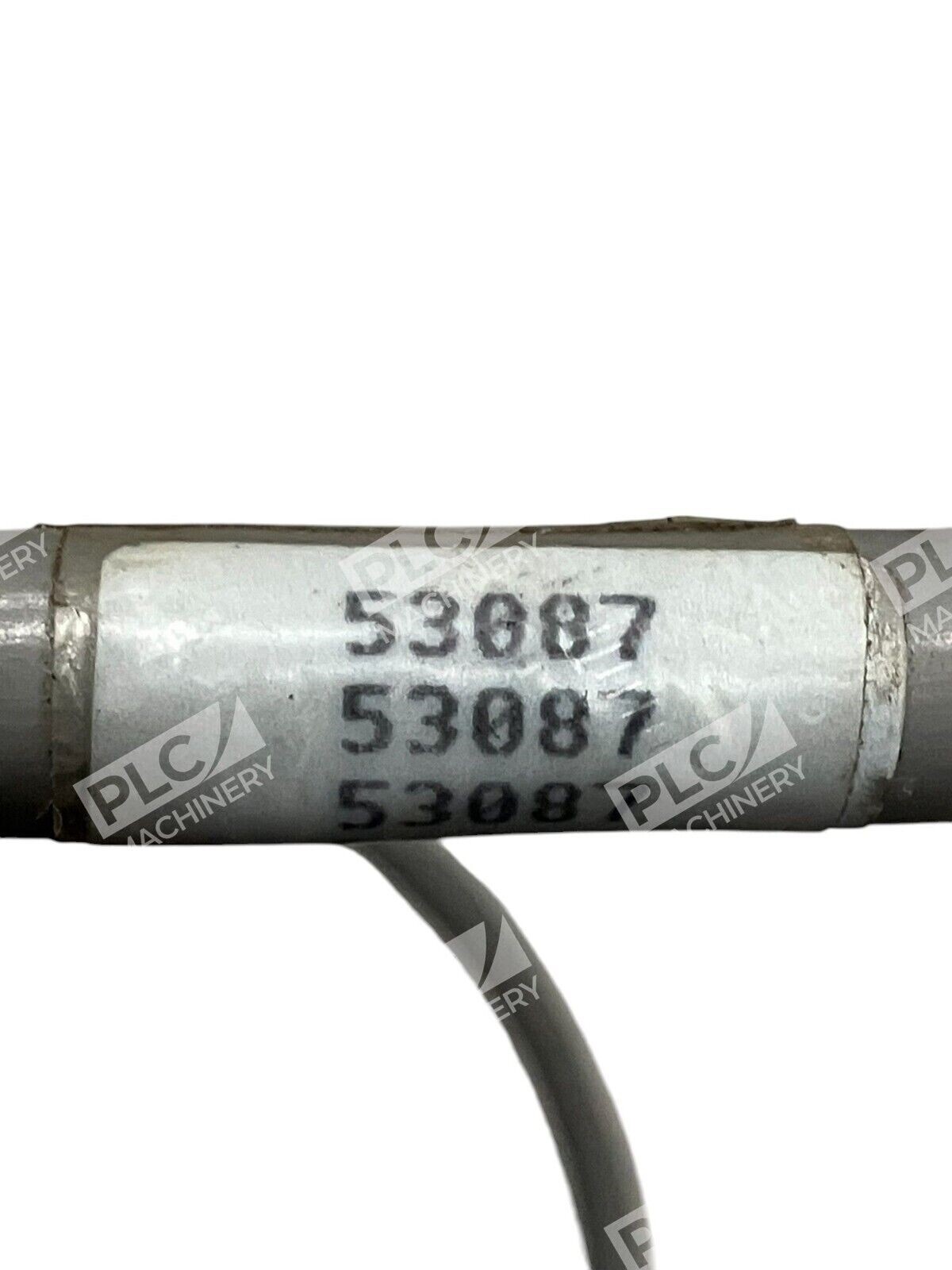

The Belden-M E108998 AWM 2464 53087 Cable 9544-CMB 30C24 is a high-quality multi-conductor cable designed for reliable performance in various electronic applications. This cable features 30 conductors of 24 AWG stranded tinned copper, ensuring excellent conductivity and flexibility.

Key Features

• Conductor Composition: 30 conductors of 24 AWG stranded (7×32) tinned copper.
• Insulation: Semi-rigid PVC insulation provides durability and resistance to environmental factors.
• Shielding: Overall Beldfoil® shield offers 100% coverage, enhancing protection against electromagnetic interference.
• Drain Wire: 24 AWG stranded tinned copper drain wire facilitates effective grounding.
• Jacket: PVC jacket ensures additional mechanical protection and flexibility.

Applications

This cable is suitable for a range of applications, including:

• RS-232 communications
• Computer communications
• Low voltage analog signals (4-20mA, 0-10V)
• Low voltage digital control (24V)
• Line level audio
• Panel wiring

Electrical Characteristics

• Nominal Conductor DC Resistance: 25 Ohm/1000ft
• Nominal Capacitance: 30 pF/ft between conductors; 55 pF/ft between conductor and other conductors plus shield
• Maximum Current: 1.3 Amps per conductor at 25ºC
• Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)

Mechanical Characteristics

• Operating Temperature Range: -30°C to +80°C
• Minimum Bend Radius: 4.6 inches (120 mm)
• Maximum Pull Tension: 171 lbs (77.6 kg)
• Overall Cable Diameter: 0.380 inches (9.65 mm)

Standards and Compliance

• Environmental Suitability: Indoor use
• Flammability: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
• Compliance: NEC Article 800, CMG; UL AWM 2464; CEC CMG; EU CE Mark; RoHS 2; WEEE

The Belden-M E108998 AWM 2464 53087 Cable 9544-CMB 30C24 combines robust construction with superior electrical performance, making it an ideal choice for demanding electronic applications.
