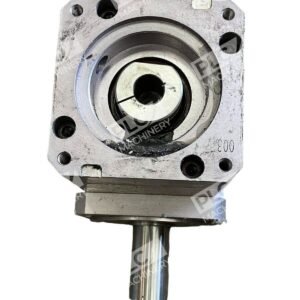

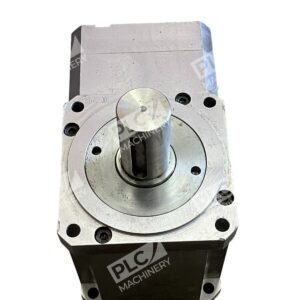

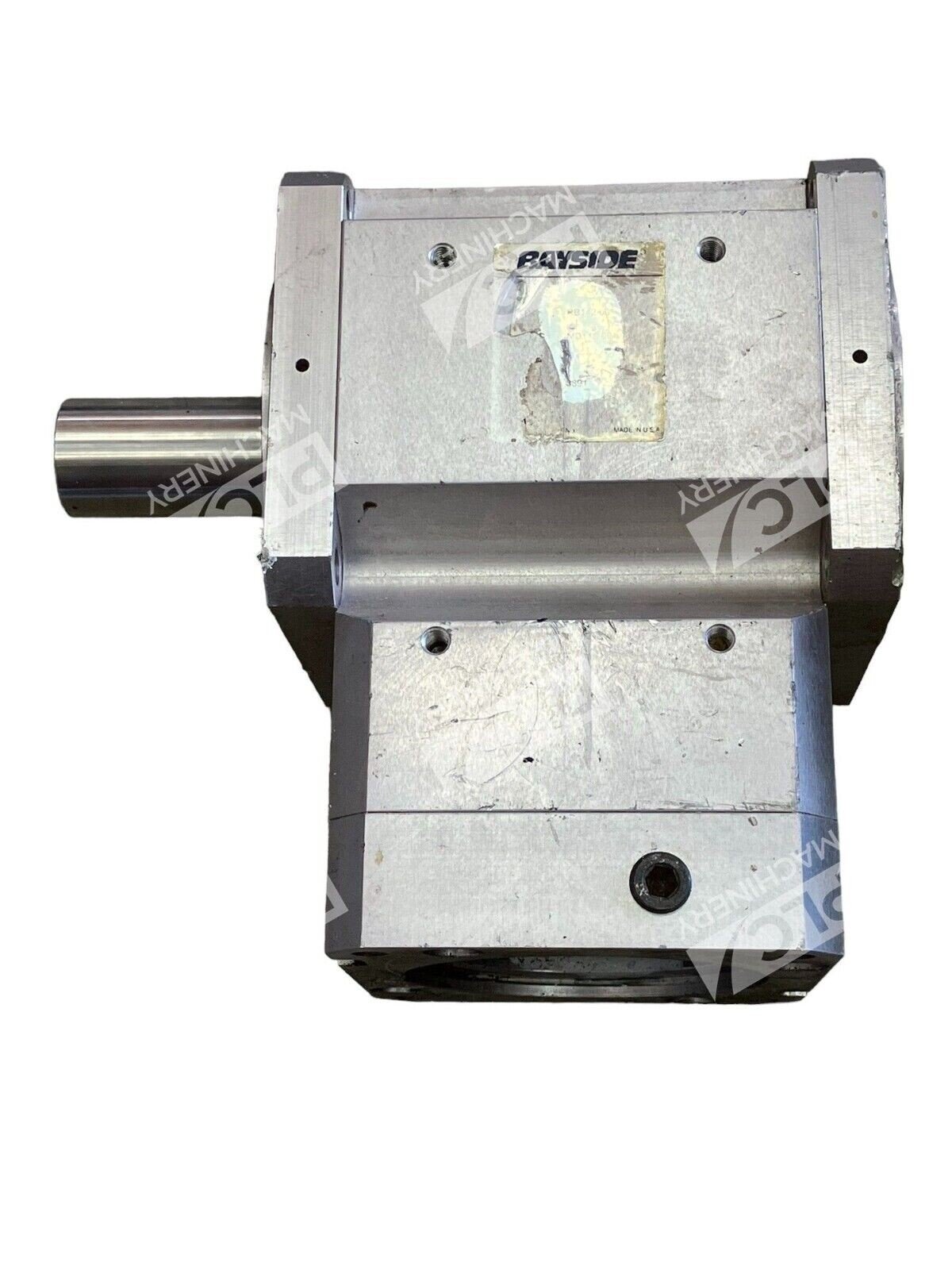

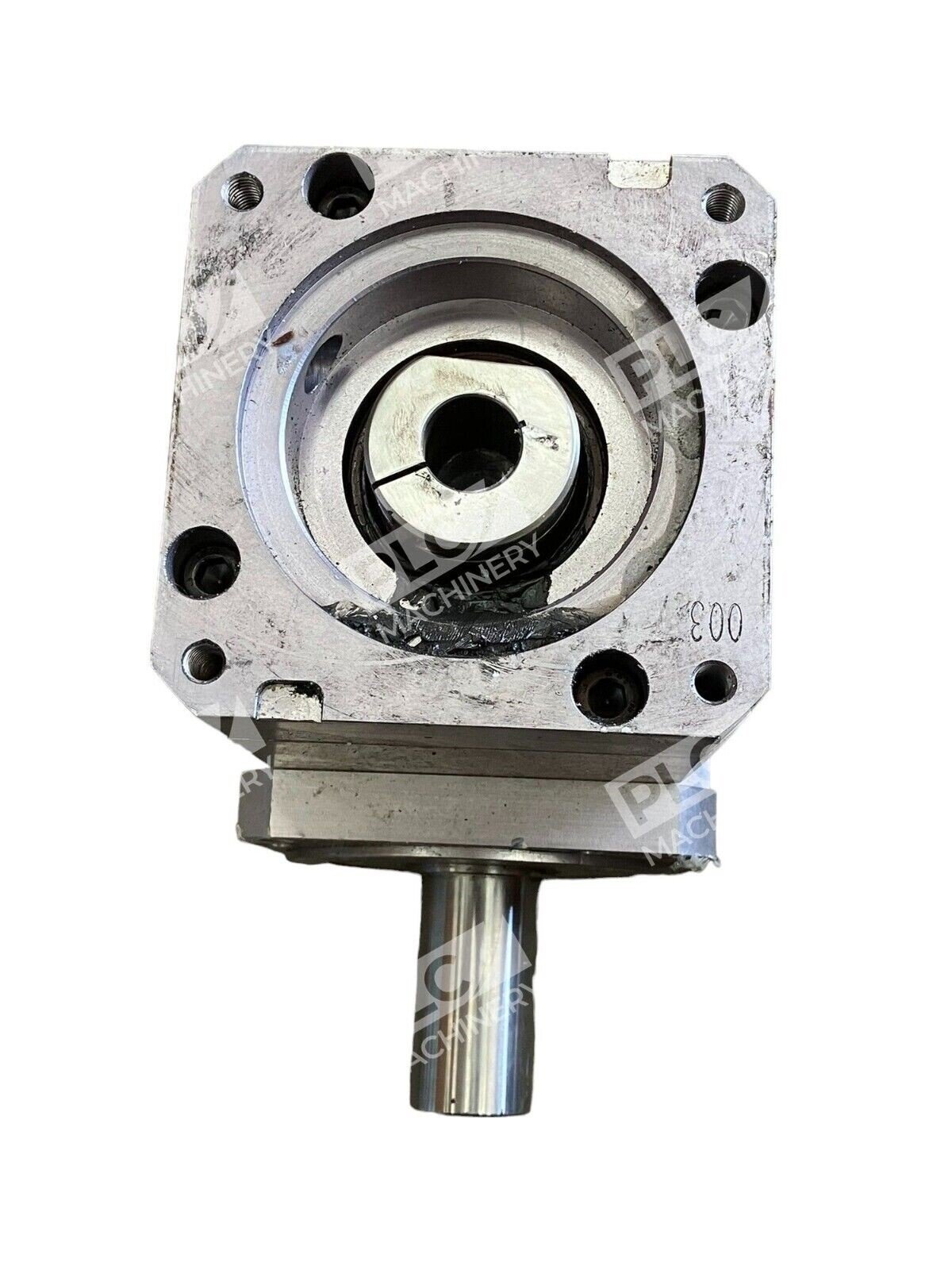

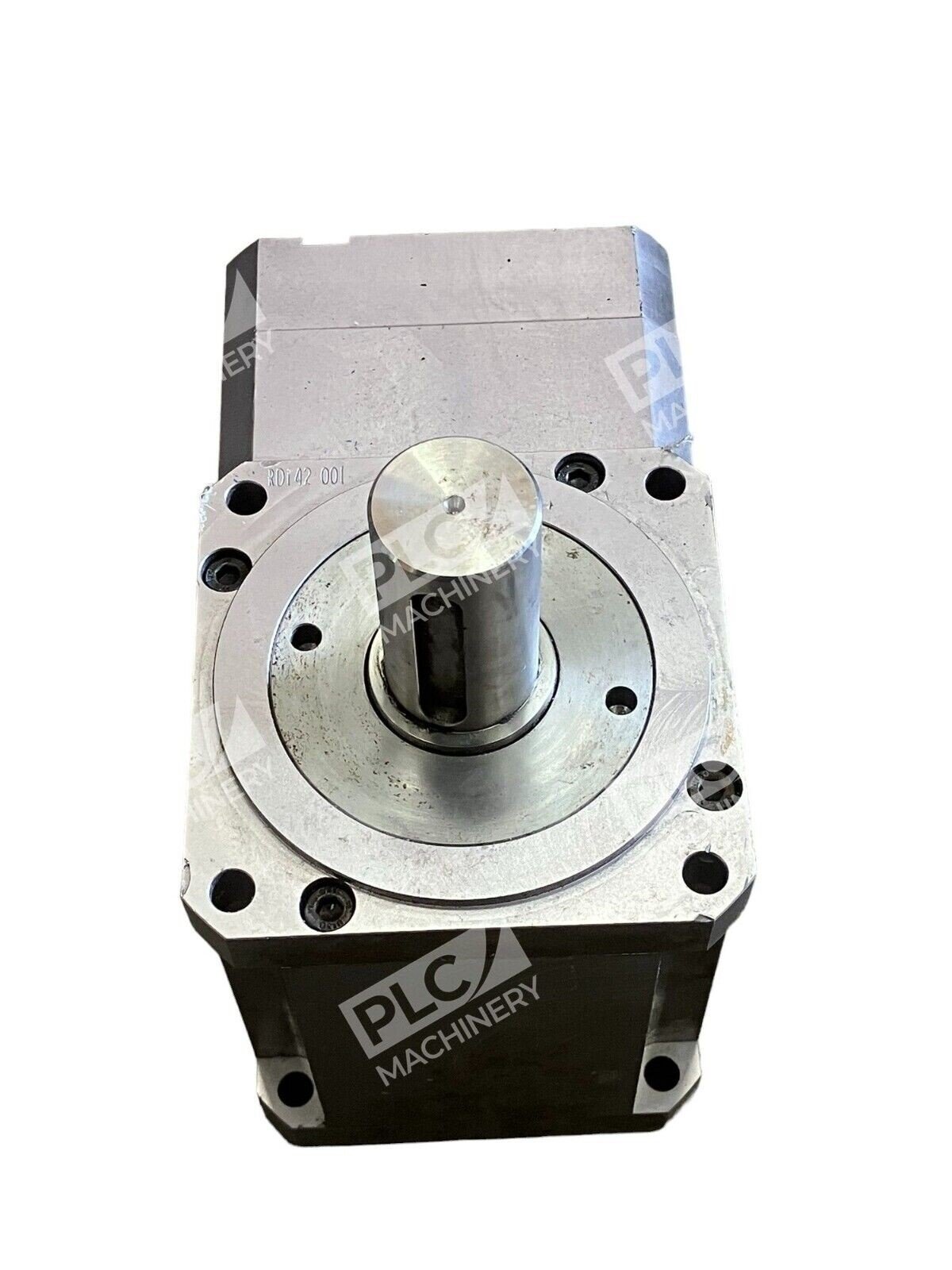

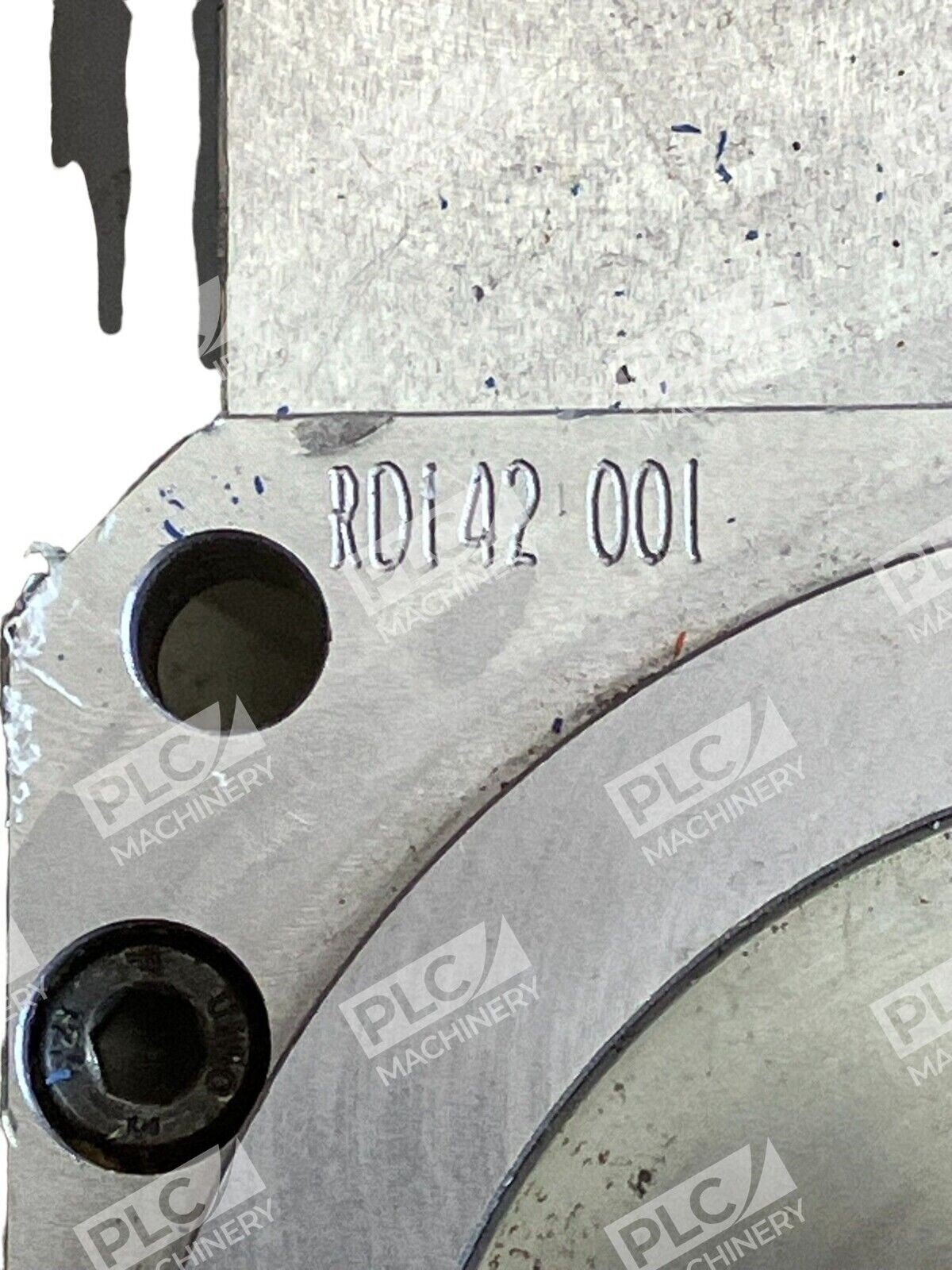

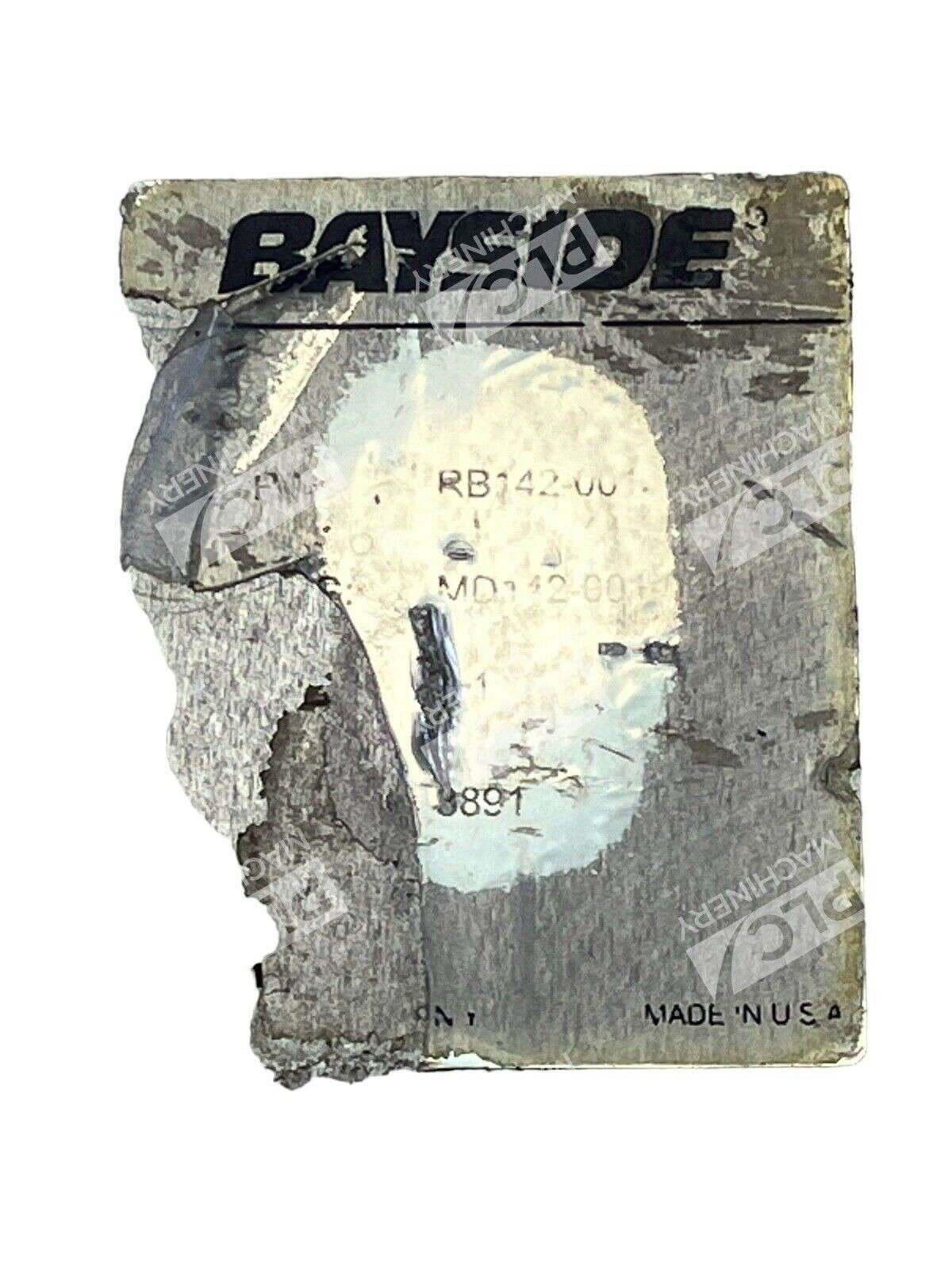

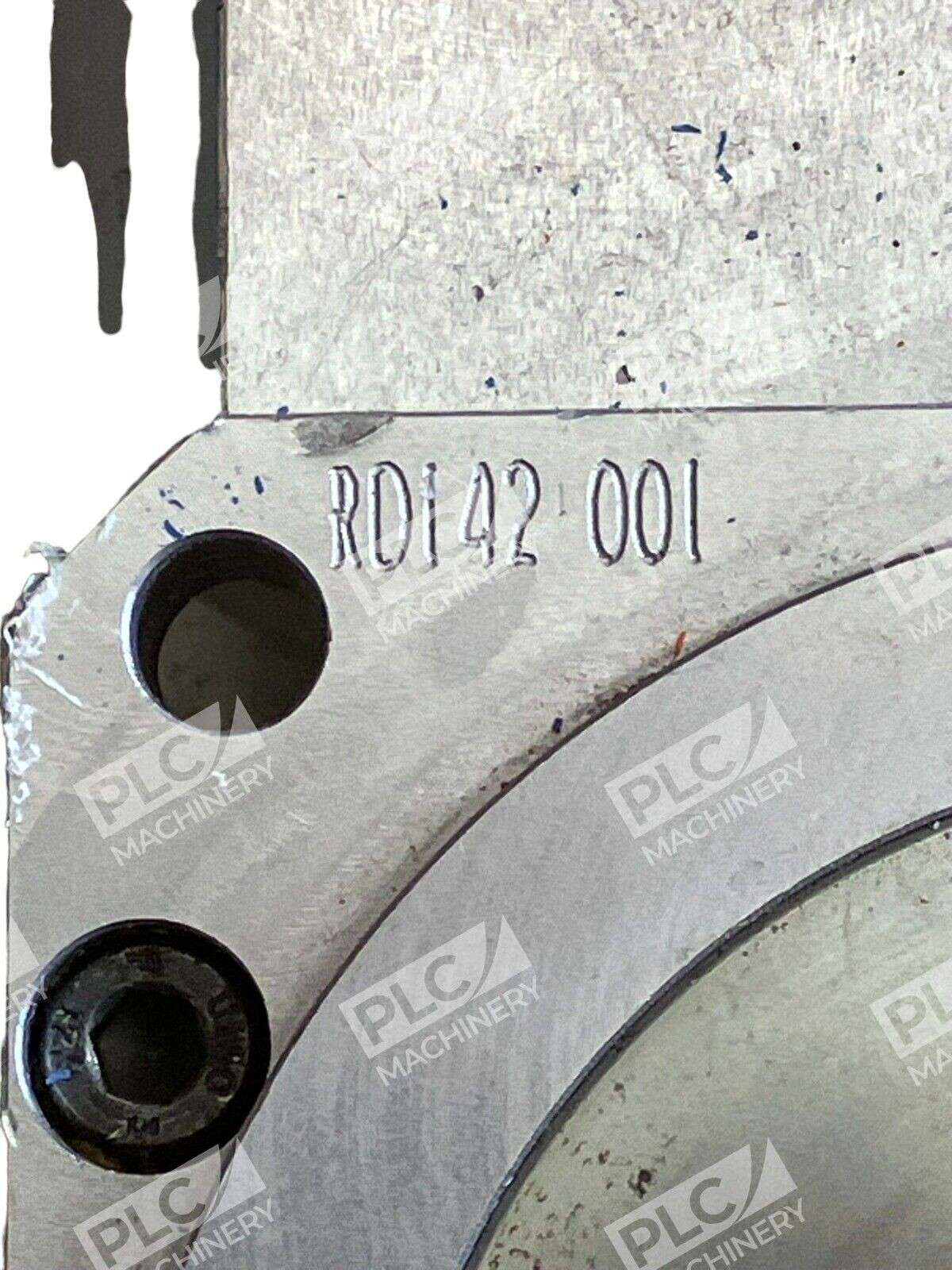

Bayside RB142-001 Single Shaft Gearhead 1:1 RD142-001

Bayside RB142-001 Single Shaft Gearhead 1:1 RD142-001

The Bayside RB142-001 is a high-precision right-angle gearhead designed to deliver exceptional performance in demanding applications. Featuring a 1:1 gear ratio, this gearhead ensures consistent torque transmission without altering input speed, making it ideal for systems requiring precise motion control.

Key Features

• Frame Size: 142 mm
• Gear Ratio: 1:1
• Configuration: Right-angle, single shaft
• Backlash: Standard as low as 8 arc minutes, with optional reduction to 4 arc minutes
• Efficiency: Up to 95%
• Input Speed: Up to 3,000 RPM
• Noise Level: Operates at less than 72 dB, ensuring quiet performance
• Protection: Sealed unit with IP65 rating, safeguarding against harsh environments

Design and Performance

Incorporating helical planetary and spiral bevel gear geometry, the RB142-001 offers high torque output with minimal backlash. Its compact, right-angle design is space-efficient, making it suitable for applications where installation space is limited. The hardened, precision spiral bevel gears contribute to smooth and quiet operation, enhancing the longevity of the system.

Applications

The RB142-001 is versatile and can be utilized in various industries, including:

• Automotive
• Machine Tool
• Material Handling
• Medical
• Packaging
• Paper Converting
• Robotics
• Semiconductor

Its robust construction and high precision make it an excellent choice for applications requiring reliable and accurate motion control.

Mounting and Compatibility

The gearhead is designed for quick and error-free mounting to various servo or stepper motors using Parker’s Servo Mount design. It is compatible with multiple motor models, ensuring flexibility in system integration.

For detailed specifications and mounting options, refer to the manufacturer’s catalog or consult with an application engineer to ensure compatibility with your specific requirements.
