ATI VGA 109P014210 Integra Graphics Card

ATI VGA 109P014210 Integra Graphics Card

The ATI VGA Integra Graphics Card, part number 109P014210, is a 16-bit ISA card introduced in 1990. Designed as a cost-effective solution, it offers robust performance for various display standards.

Key Features

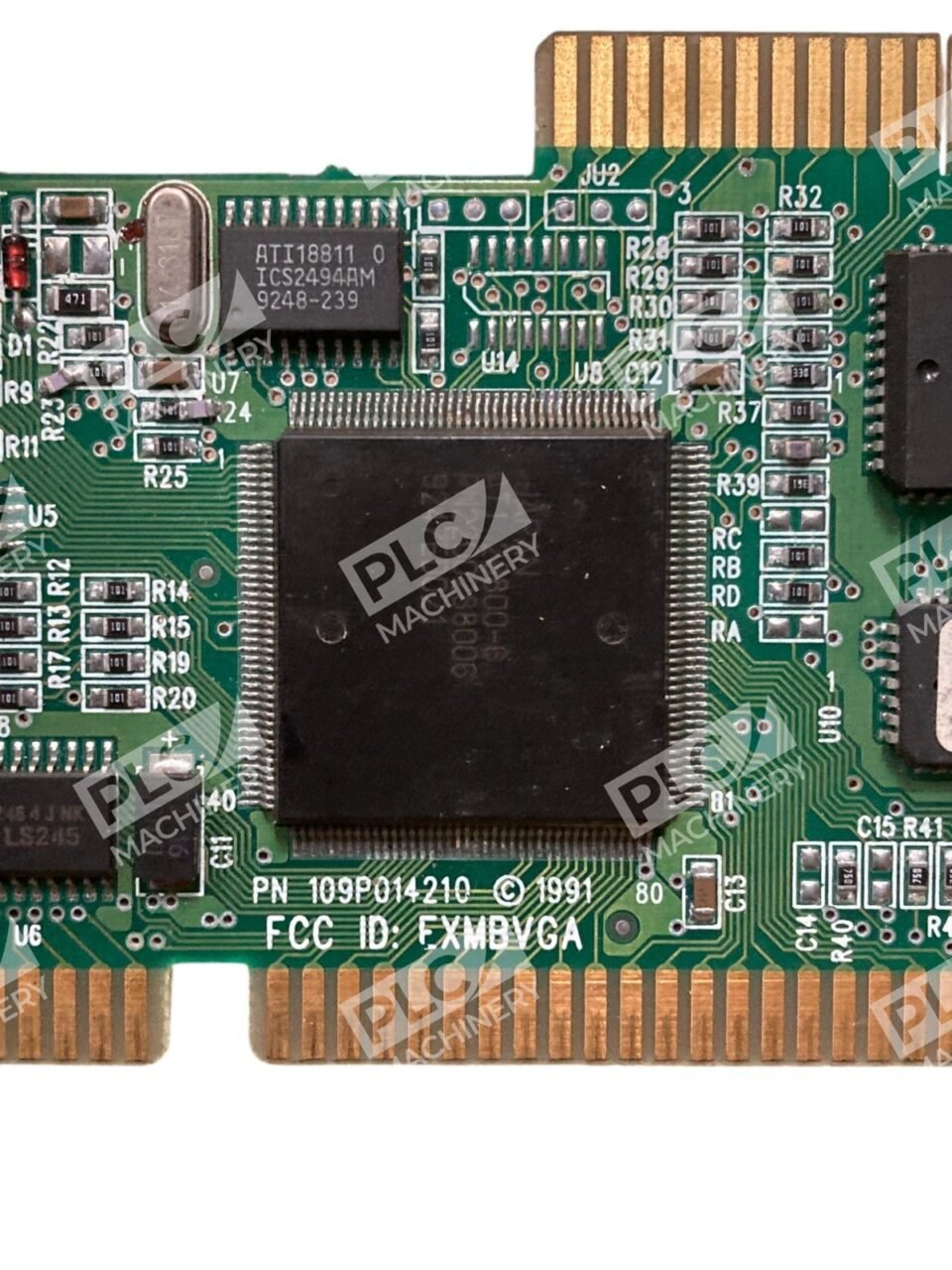

• Chipset: ATI 28800-2
• Memory: 512 KB DRAM
• Supported Standards: Hercules, CGA, EGA, VGA, and SVGA
• Refresh Rates: Supports SVGA graphics with 72 Hz refresh rates

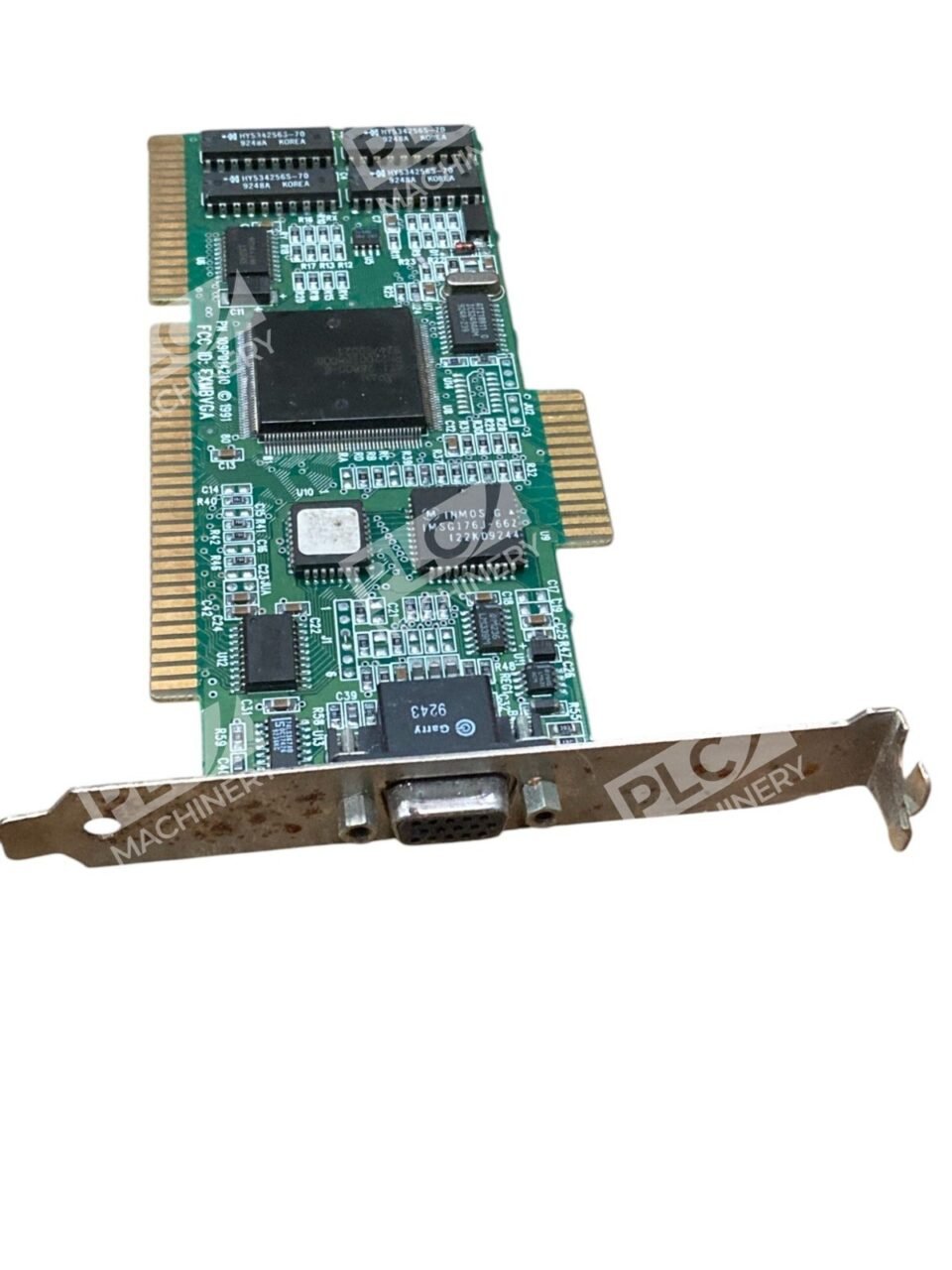

• Ports: 15-pin DSUB (RGB analogue) and VESA Feature Connector

Design and Performance

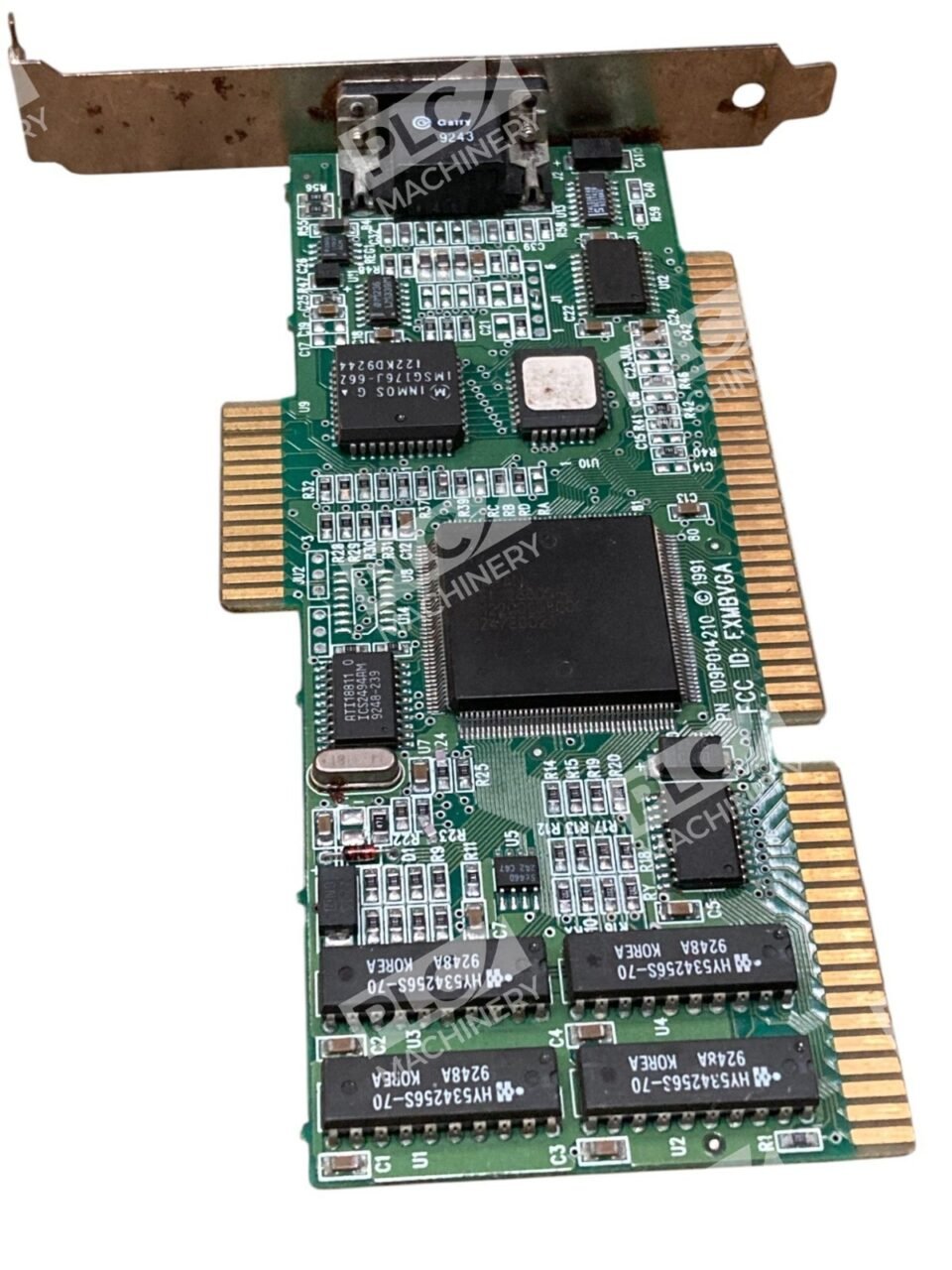

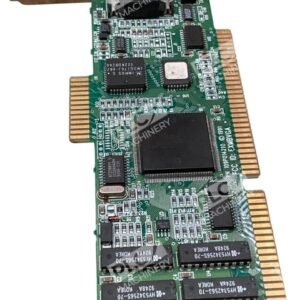

The VGA Integra features a compact PCB layout with surface-mounted BIOS and RAMDAC chips, eliminating the bus mouse connector to reduce costs. It supports 256-color displays at 800×600 resolution and 16-color displays at 1024×768 non-interlaced mode. The card’s 512 KB memory efficiently manages these resolutions, providing a balance between performance and affordability.

Installation and Compatibility

Installation is straightforward, with auto-switching capabilities that require no manual configuration. The card includes utilities to force display modes if necessary, ensuring compatibility with a wide range of monitors and systems.

Historical Context

Upon its release, the VGA Integra was priced at $189, offering an attractive option for users seeking higher resolutions without significant investment. Its design and features made it a competitive choice in the early 1990s graphics card market.

For users interested in vintage computing or seeking a reliable graphics solution for legacy systems, the ATI VGA Integra Graphics Card remains a noteworthy option.
