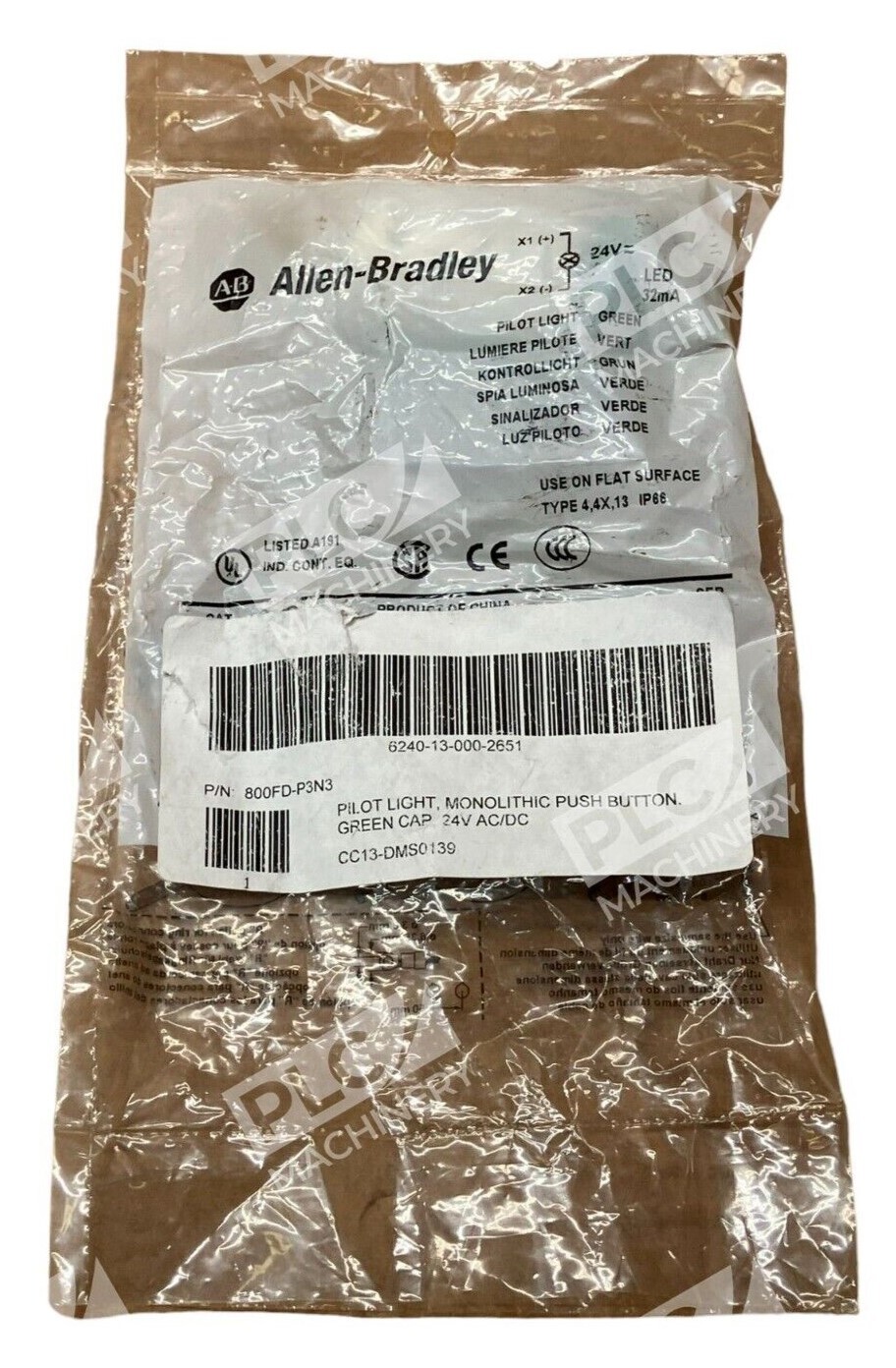

Allen Bradley 800FD-P3N3 Pilot Light Green

Allen-Bradley 800FD-P3N3 Green Pilot Light

The Allen-Bradley 800FD-P3N3 is a 22mm green pilot light designed for industrial control applications. Its monolithic plastic construction ensures durability and compliance with IP66 and NEMA Type 4/13 standards, providing robust protection against dust and water ingress.

Key Features

• Illumination: Integrated LED module operating at 24V AC/DC, offering energy efficiency and long service life.
• Design: Round, diffuse green lens cap for clear visibility.
• Construction: Monolithic plastic build for enhanced durability.
• Mounting: Fits standard 22.5 mm panel cutouts, facilitating easy installation.
• Termination: Screw terminals for secure and reliable connections.

Environmental and Mechanical Specifications

• Operating Temperature: -25°C to 60°C.
• Humidity: Up to 95% relative humidity from 25°C to 60°C.
• Vibration Resistance: Withstands up to 10 G.
• Shock Resistance: Withstands up to 100 G.

Certifications

The 800FD-P3N3 pilot light is certified by UL, UR, CSA, CCC, and CE, ensuring compliance with international safety and performance standards.

For detailed technical information, refer to the product’s technical data sheet.
