Allen Bradley 2093 5Axis Power Rail 2093-PRS5 /A

Allen-Bradley 2093-PRS5: Kinetix 2000 5-Axis Slim Power Rail

The Allen-Bradley 2093-PRS5 is a 5-axis slim power rail designed for the Kinetix 2000 servo drive system. It facilitates the integration and power distribution for up to five servo drive modules, streamlining multi-axis motion control applications.

Key Features

• Multi-Axis Support: Accommodates up to five servo drive modules, enabling coordinated control in complex motion systems.
• Compact Design: The slim profile conserves panel space, making it suitable for installations with limited room.
• Efficient Power Distribution: Simplifies wiring by consolidating power connections, reducing installation time and potential points of failure.
• Seamless Integration: Designed specifically for compatibility with the Kinetix 2000 series, ensuring reliable performance and ease of use.

Specifications

• Dimensions:
  • Length (A): 250 mm (9.84 inches)
  • Width (B): 160 mm (6.30 inches)
• Mounting: Utilizes M4 screws for secure attachment.

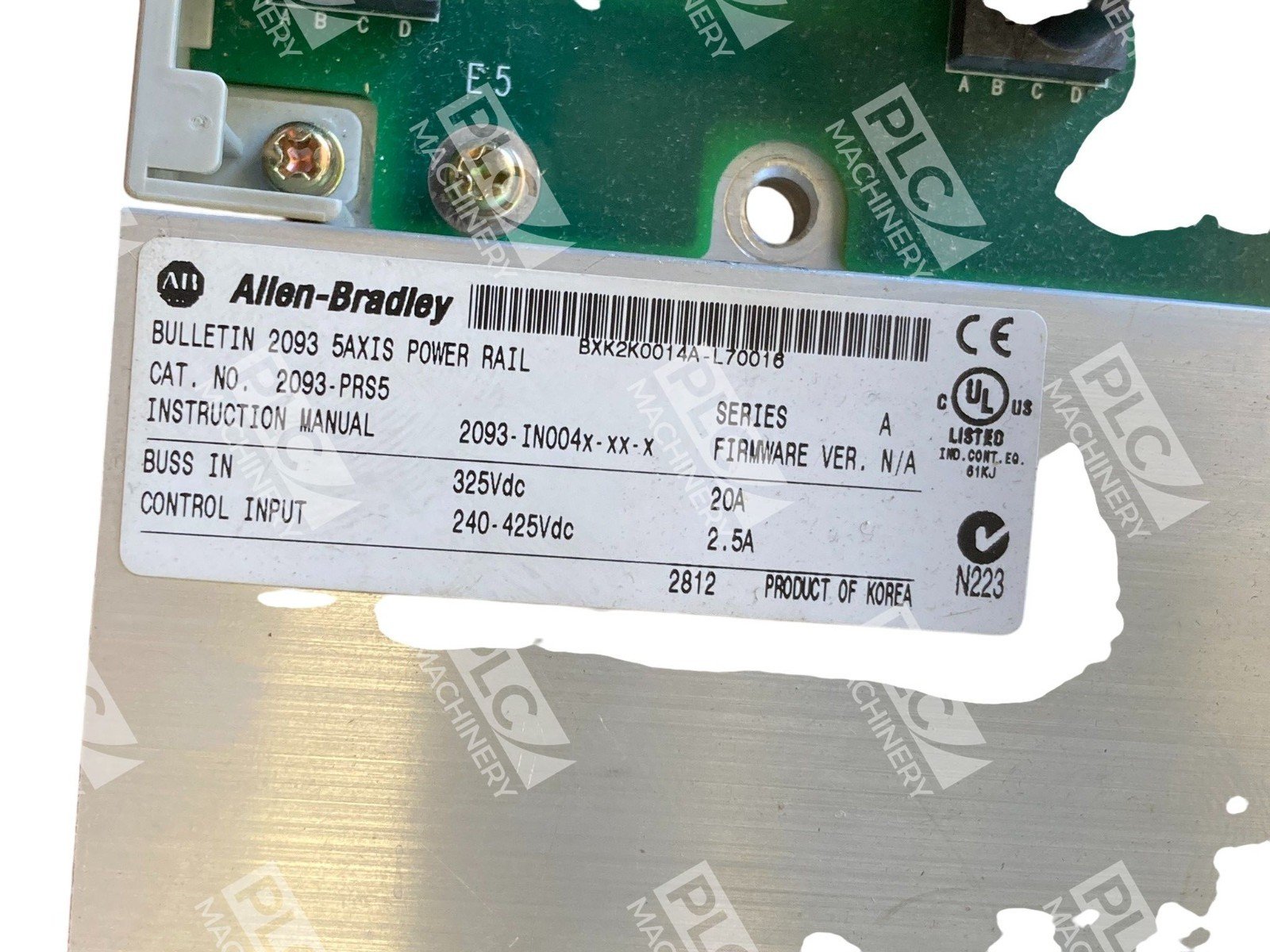

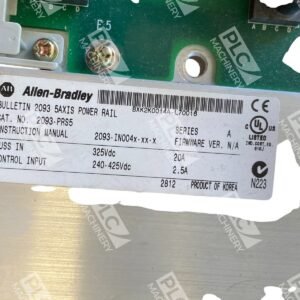

• Certifications: Compliant with industry standards, including C-TICK, CE, cUL, KC, and UL.

Applications

The 2093-PRS5 is ideal for applications requiring precise multi-axis motion control, such as packaging machinery, material handling systems, and automated assembly lines. Its design ensures efficient power management and simplifies the setup of complex motion control systems.

Installation and Compatibility

Installation involves mounting the power rail using M4 screws and connecting compatible Kinetix 2000 servo drive modules. The design ensures proper mechanical alignment and electrical connectivity between modules, facilitating a streamlined setup process.

For detailed installation instructions and technical data, refer to the Kinetix Servo Drives Specifications document.
