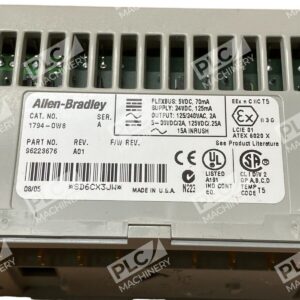

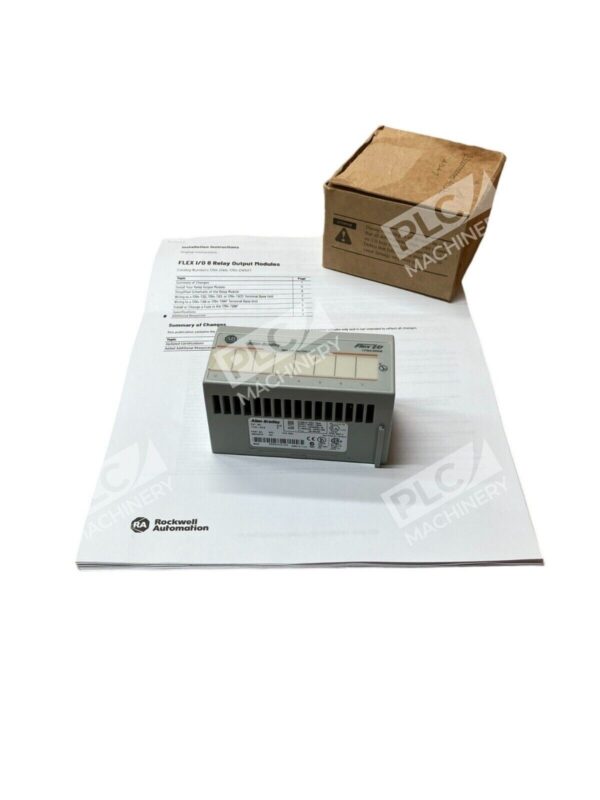

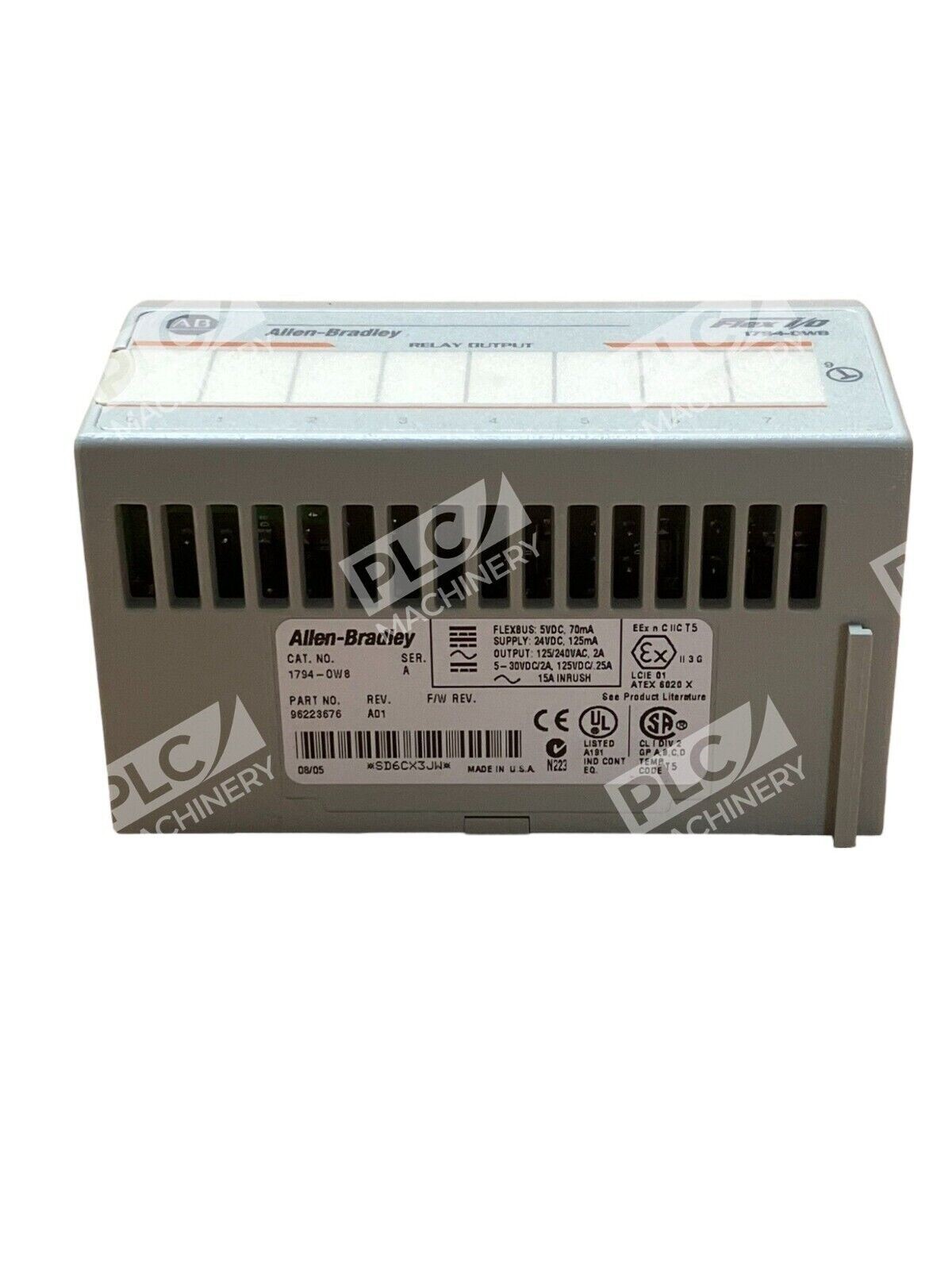

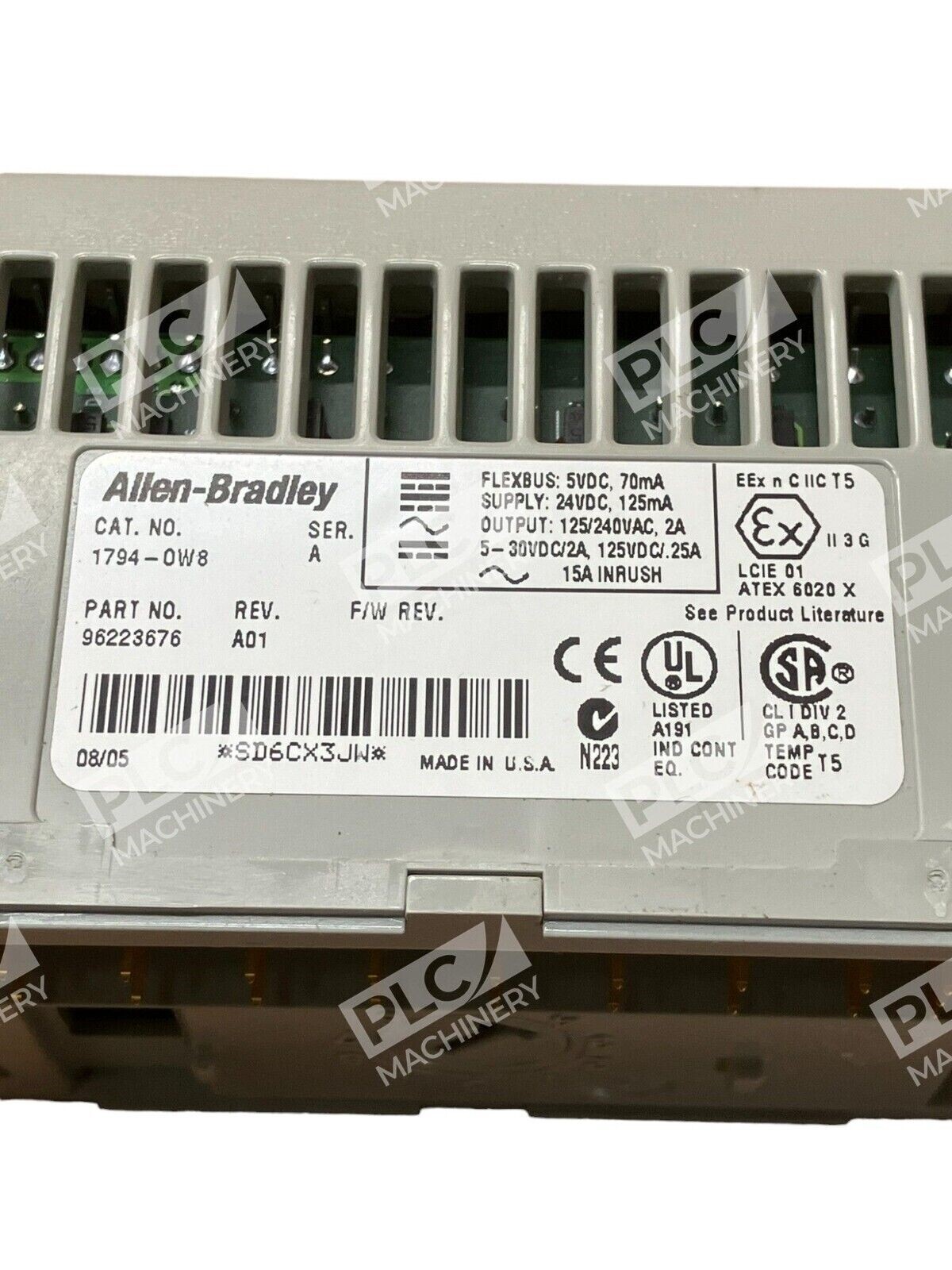

The Allen-Bradley 1794-OW8/A Flex I/O 8 Relay Output Module is a versatile component designed to enhance the flexibility and efficiency of industrial automation systems.
Key Features
- Output Configuration: Equipped with eight isolated normally open (N.O.) electromechanical relays, each capable of handling up to 2A at 250V AC for resistive loads.
- Compatibility: Seamlessly integrates with various terminal base units, including 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TBN, and 1794-TBNF.
- Mounting Options: Designed for DIN rail mounting, facilitating easy installation and maintenance.
- Diagnostic Indicators: Features eight yellow status LEDs, providing real-time feedback for each output channel.
Technical Specifications
- Operating Voltage: Supports a range of output voltages, including 5-30V DC at 2.0A resistive, 48V DC at 0.25A resistive, 60V DC at 0.25A resistive, 125V DC at 0.22A resistive, and 240V AC at 2.0A resistive.
- Power Consumption: Consumes a maximum of 5.5 Watts, ensuring energy-efficient operation.
- Temperature Range: Operates reliably within a temperature range of -20°C to 55°C (-4°F to 131°F).
- Dimensions: Measures 46.3 mm in height, 53.0 mm in width, and 94.0 mm in length, with a weight of approximately 0.135 kg.
Certifications
- Safety and Compliance: Holds certifications such as UL Listed, CE, and CSA Listed Hazardous, ensuring adherence to international safety standards.
The 1794-OW8/A module is engineered to provide reliable and efficient relay output capabilities, making it an essential component for diverse industrial applications.
